Products Description
Sitrex | Inline Hay Explorer 'V' Rakes | Model MX8 To MX12 | 17'5" Working Width | Horsepower 30 HP | For Tractors
DESCRIPTION

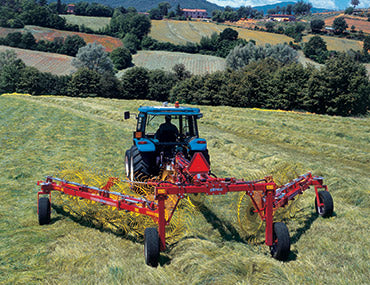

The Sitrex MX Explorer "V" Rake Series offers a versatile solution for medium-sized hay raking operations. This pull-type rake is available in models with 8, 10, or 12 finger wheels, allowing farmers to choose from working widths of 17'5", 20'5", or 23'3" depending on their needs. Designed with the durability to handle rigorous use, each rake wheel is spring-loaded to lift independently, ensuring the machine can adapt to varied terrain and create uniform, fluffy windrows.
Equipped with a tractor-driven dual hydraulic system, the MX Explorer "V" Rakes allow the operator to adjust wheel height, open or close the rake, and maintain the set working width with ease. The rake’s tines, made from high-quality 7mm steel, reliably gather hay and maintain ideal windrow formation for baling.
Key Features
- Adjustable Rake Width: Easily set windrow widths from 3" to 5' with the ratchet rear opener.
- Locking Hydraulic System: Ensures the rake holds its set position, even if a hydraulic pipe fails.
- High-Quality Components: Durable steel tines and sturdy construction make this rake reliable and long-lasting.
Detailed Specifications
| Specification | MX8 | MX10 | MX12 |
|---|---|---|---|
| Model | MX8 | MX10 | MX12 |
| Part Number | 802.156 | 802.157 | 802.158 |
| Wheels | 8 | 10 | 12 |
| Working Width | 17′ 5″ (5.3 m) | 20′ 5″ (6.2 m) | 23′ 3″ (7.1 m) |
| Operating Speed | 14 mph (22.5 km/h) | 14 mph (22.5 km/h) | 14 mph (22.5 km/h) |
| Weight | 2,685 lbs | 3,015 lbs | 3,350 lbs |
| Transport Width | 8′ 3″ (2.5 m) | 8′ 3″ (2.5 m) | 8′ 3″ (2.5 m) |
| Minimum HP Required | 30 HP | 30 HP | 30 HP |
