Sitrex V-Type Wheel Rake | Models QR8, QR10 & QR12 | Working Width 16’–24’6” | 30–50 HP | For Tractors
DESCRIPTION

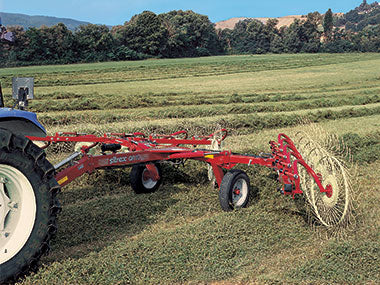

Built for demanding hay operations, the Sitrex QR Series V-Type Wheel Rake is your trusted partner for faster, cleaner raking and superior windrow formation. Available in 8-, 10-, and 12-wheel configurations, these rakes are engineered to maximize field efficiency while delivering minimal leaf loss and exceptional crop handling.
Each model in the QR Series is equipped with independent finger wheels for smooth operation across uneven terrain, along with suspension spring preload adjustments to match your field and forage conditions. The rugged 150×100 mm tubular frame ensures rock-solid performance, whether you're in tight headlands or wide-open fields.
The smart V-frame design enhances crop flow, providing excellent clearance while maintaining compact dimensions for easy road transport. With its robust build and user-friendly operation, the Sitrex QR Series is ideal for professional haymakers looking to boost productivity with reliable, low-maintenance equipment.
Key Features
- Efficient V-Type Configuration Creates uniform, fluffy windrows that speed up drying and improve baling quality.
- Independent Finger Wheels Follow ground contours individually for cleaner raking and minimal crop damage.
- Adjustable Extension Arms Customize working width for different field sizes and windrow preferences.
- Tap-Controlled Hydraulic Cylinders Enable easy, single-sided raking for windrow alignment or field edge cleanup.
- Suspension Spring Preload Adjustment Fine-tune wheel pressure to optimize performance across crop types and soil conditions.
- Compact Yet High-Capacity Streamlined design offers superior maneuverability during operation and transport.
- Heavy-Duty Tubular Frame Built with a reinforced 150×100 mm tubular steel structure for long-term durability.
- Low Power Requirements Operates with tractors as small as 30 HP, making it suitable for a wide range of farms.
Detailed Specifications
| Specification | QR8 | QR10 | QR12 |
|---|---|---|---|
| Number of Finger Wheels | 8 | 10 | 12 |
| Transport Width | 8’5” (2.6 m) | 8’5” (2.6 m) | 8’5” (2.6 m) |
| Transport Height | 7’9” (2.4 m) | 7’9” (2.4 m) | 7’14” (2.5 m) |
| Minimum Working Width | 16’4” (5.0 m) | 19’ (5.8 m) | 21’8” (6.6 m) |
| Maximum Working Width | 18’ (5.5 m) | 21’ (6.4 m) | 24’6” (7.5 m) |
| Minimum Windrow Width | 3’ (0.9 m) | 3’ (0.9 m) | 3’ (0.9 m) |
| Maximum Windrow Width | 6’7” (2.0 m) | 6’7” (2.0 m) | 6’7” (2.0 m) |
| Weight | 1,675 lbs (760 kg) | 1,875 lbs (850 kg) | 2,115 lbs (960 kg) |
| Tire Size | 205/75-15 | 205/75-15 | 205/75-15 |
| Tractor Power Required | 30 HP (22.3 kW) | 30 HP (22.3 kW) | 50 HP (36.7 kW) |
