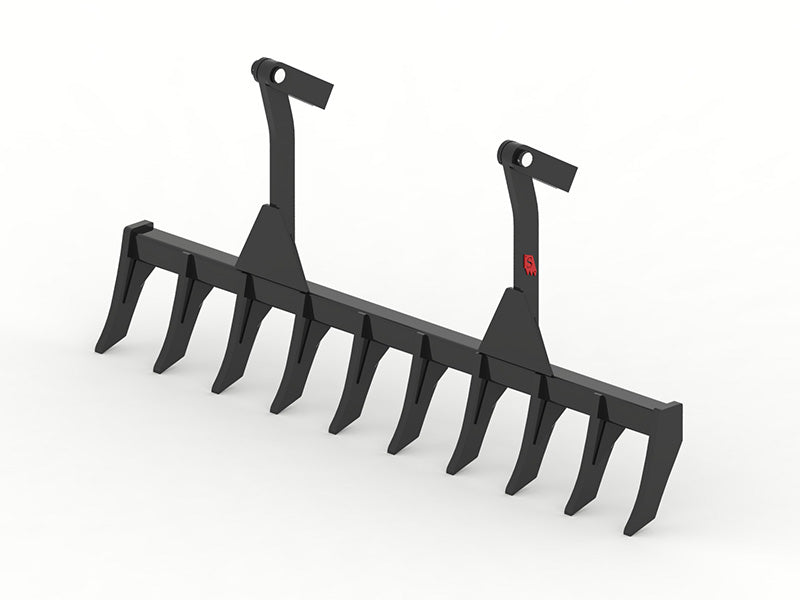

Solesbee’s Pin-On Dozer Rake | Models DR Series | Width 9'-14' | Machine Size 5.5-35 Tons | For Dozer

Solesbee’s Pin-On Dozer Rake | Models DR Series | Width 9'-14' | Machine Size 5.5-35 Tons | For Dozer

$5,671.57
$5,671.57
Sale Sold out
Customizable
Fast
24/7 Support
  • Width Options: 9'–14'
  • Weight Range: 1,350–1,525 lbs
  • Machine Compatibility: For Dozers, 0.6–0.8 Tons
  • Mounting: Pin-On System with Weld-On Brackets
  • Application: Land Clearing, Root Raking, Site Prep
View full details

Product Description

Solesbee’s Pin-On Dozer Rake | Models DR Series | Width 9'-14' | Machine Size 5.5-35 Tons | For Dozer



DESCRIPTION

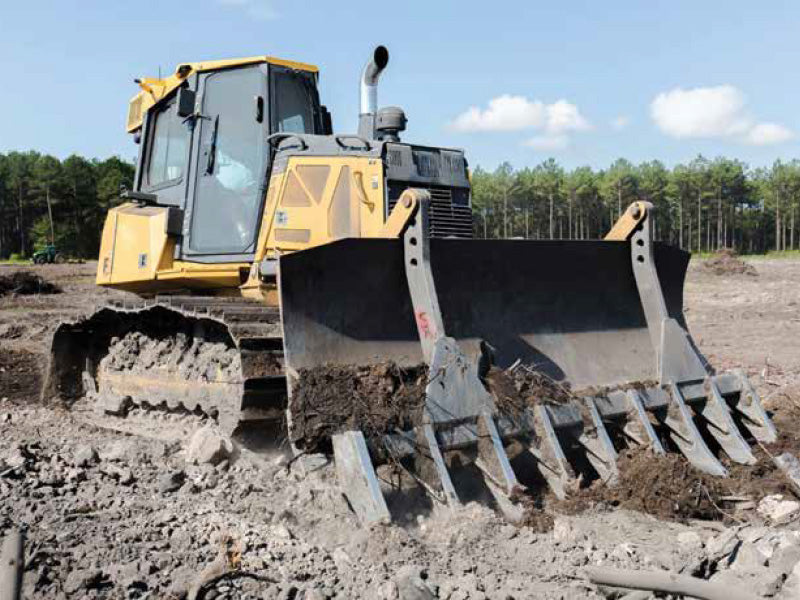

Take control of land-clearing and site prep with the Solesbee’s Pin-On Dozer Rake a heavy-duty, customizable attachment built for bulldozers tackling forestry, construction, demolition, or agricultural projects. Designed for maximum durability and efficiency, this dozer rake transforms your machine into a clearing powerhouse.

With a fully customizable design, you can tailor the number of teeth, tooth width, and spacing to meet the specific demands of your terrain. Whether you need to move brush, roots, stumps, or debris, Solesbee’s delivers a solution that works as hard as you do.

Installation is quick and hassle-free with all pins and brackets included, allowing a qualified welder to have your rake ready to operate in under two hours. Once mounted, the rake can be easily attached or removed, ensuring your dozer remains versatile on every job.

Key Features

  • Custom-engineered for dozers ranging from compact to large-scale machines (0.6–0.8 tons), ensuring optimal fit and performance across multiple models.
  • Available in widths from under 9 feet to 14 feet, allowing precise match to your dozer size and jobsite requirements.
  • Built from high-strength steel with forged teeth for superior durability in demanding land-clearing environments.
  • Customizable tooth count, spacing, and width to handle everything from light brush to dense stumps and roots.
  • Pin-on mounting system includes all brackets and pins, enabling fast installation by a qualified welder in under 2 hours.
  • Quick-attach/detach design allows the rake to be mounted or removed in minutes, maximizing machine versatility.
  • Compatible with major dozer brands including CAT, John Deere, Komatsu, Case, and more.
  • Ideal for forestry, construction site prep, demolition cleanup, and agricultural land management.
  • Tooth lengths range from 14" to 20", providing aggressive ground penetration and efficient debris handling.
  • Weighs between 1,350 to 1,525 lbs depending on model, balancing strength with manageable load for dozer hydraulics.
  • Designed for dozers in the 5.5 To 35 ton class, delivering powerful clearing performance without overloading the machine.
  • Made in the USA with precision engineering and quality control for long-term reliability.
  • Low-maintenance structure reduces downtime and service costs, keeping operations efficient.
  • Leaves soil largely undisturbed while removing vegetation, ideal for selective clearing and environmental sensitivity.
  • Backed by Solesbee’s support and warranty, ensuring peace of mind and dependable performance on every job.

Detailed Specifications

Model

Rake Width

Tooth Width

Tooth Length

Approx. Weight (lbs)

Machine Size (tons)
Under 9 ft Rake < 9 ft 1.25″ 14″ 1,350 5.5 – 9 t
10 ft Rake 10 ft 2.00″ 18″ 1,490 10 – 15 t
11 ft Rake 11 ft 2.00″ 20″ 1,525 15 – 20 t
12 ft Rake 12 ft 2.00″ 20″ 1,525 20 – 25 t
13 ft Rake 13 ft 2.00″ 20″ 1,525 25 – 30 t
14 ft Rake 14 ft 2.00″ 20″ 1,525 30 – 35 t

Manuals & Documents

General Warranty Info:

  • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
  • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
  • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
  • Please reach out to us for any specific warranty information needed about products and parts you can’t find!
