Product Description
Spectra Geospatial LL300N Laser Level with HL450 Laserometer
DESCRIPTION

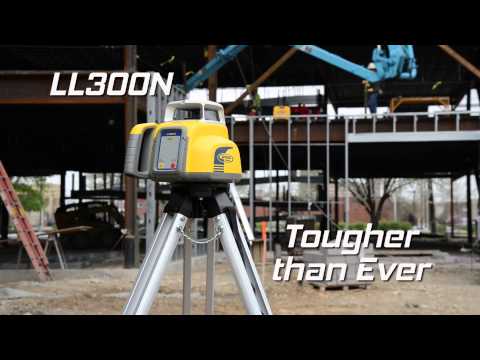

The Spectra LL300N laser level is built to perform in rough environments.
The Spectra LL300N Laser Level features a rugged design with “hard hat” rotor protection that provides superior drop and weather protection. Built to withstand severe drops of up to 3 ft (1 m) directly onto concrete, or up to 5 ft (1.5 m) when pushed over on a tripod means less downtime and cost due to damage caused by accidental drop.
The fully automatic, self-leveling LL300N allows for fast, accurate setup and increases productivity. Waterproof and dustproof, the LL300N features “hard hat” rotor protection and can withstand drops of up to 3 feet (1 meter) directly onto concrete or up to 5 feet (1.5 meters) when pushed over on a tripod. The included HL450 Laserometer features a 4” (102 mm) reception height for fast beam acquisition, and an anti-strobe sensor prevents construction site strobe lights from setting it off. The HL450 displays a digital readout of elevation on large front and rear LCD’s to show how far the elevation is from on-grade.
Key Features
- Increases Productivity - with fast setups, fewer mechanical parts, and automatic self-leveling
- One Person Elevation Control - with 1,650 ft (500 m) diameter range increases productivity
- Maintains Performance - even in rainy, dusty and other harsh job site and weather conditions – IP66 environmental rating
- Durable Design - reduces downtime due to drops and tripod tip-overs
- Increases Flexibility - with remote control slope option.
- Comes Standard - with HL450 digital readout receiver and other configurations are available
- Kits Available - with system case which contain laser, receiver, tripod and grade rod
- Upgrade up to the LL1505C
- Single person manual slope control
- Complete kits available, and fits in one case with tripod and grade rod
- Energy-efficient design offers long battery life
- Highly durable design able to survive a drop up to 1m (3 feet) onto concrete
- Remote control or remote control app allows operation of laser functions from anywhere on the jobsite
Detailed Sepcifications
| Feature | Details |
|---|---|
| Laser Source | 650 nm, Class 2, <3.4mW |
| Laser Accuracy | ±3/32 in at 100 ft (±2.2 mm at 30 m) |
| Compensation Method | Electronic self-leveling / ±5 degrees |
| Operating Range | 1,650 ft (500 m) diameter |
| Out of Level Warning | Rotor stops, laser shuts off, red out-of-level LED flashes |
| Rotation Speed | 600 RPM |
| Operating Temperature | -4 °F to 122 °F (-20 °C to 50 °C) |
| Storage Temperature | -4 °F to 158 °F (-20 °C to 70 °C) |
| Battery Life | Rechargeable: 45 hours Alkaline: 90 hours |
| Size | 10.7L × 7.7W × 7.9H in (27.2L × 19.7W × 20.1H cm) |
| Dust & Waterproof | Yes, IP 66 |
| Weight | 5.9 lbs (2.7 kg) |
| Low Voltage Indicator | LCD battery indicator |
| Warranty | 5 Years |
In Package
- LL100N Laser Level
- HR320 Laser Receiver
- Receiver Clamp
- Tripod
- 15' Grade Rod (Graduated in Inches)
- Carrying Case
