Product Description

Steelwrist Tilt-Rotators | Model X20 | Building Height 22.2" inches | Machine Weight Up-To 39,700 Lbs | For Excavators

Description

The Steelwrist X20 tiltrotator is designed to deliver the power and versatility that is a must for excavators of this size. Our tiltrotators have a low building height, high tilt angle and an unbeatable relationship between strength and weight thanks to steel cast components.

With a midsized excavator you can take on projects of varying sizes, from small scale landscaping tasks to roadwork or foundation work on construction sites. The X20 tiltrotator enhances the efficiency of the excavator as it enables you to rotate a work tool 360 degrees and tilt 45 degrees in each direction, with top of the class precision and controllability. This facilitates your work and makes you flexible to take on a variety of challenging new jobs.

Steelwrist quick couplers and tiltrotators follow the symmetrical standard (S-standard), the fastest growing coupler type internationally. The attachment coupler on the tiltrotator has Front Pin Lock (FPL) safety solution, a mechanical lock of the front shaft which significantly limits the risk of an unintended drop of work tools. The tiltrotator is delivered with a control system that fits your excavator regardless if you need a two or four hose solution. With a tiltrotator that has high flow hydraulics you will be able to use the tiltrotator in a more fuel efficient way and it allows for efficient use of high flow work tools. A robust and easily calibrated Absolute Rotation sensor in the high flow swivel gives high accuracy data to Machine Control Systems.

A Sandwich configuration is often chosen for this size of excavators. This means that a quick coupler is mounted on the excavator arm, making it possible to disconnect the tiltrotator and pick up and connect a work tool directly.

Steelwrist SQ is our high performing automatic oil connection technology used to easily change and connect hydraulic work tools on the excavator. All SQ products comply with the Open-S standard. This means that the SQ system is designed to be able to connect to other brands following the Open-S standard. S-type tiltrotators (from S50 and up) are upgradeable to SQ-type at a later stage.

Key Features

• Optimized for 16-22 Tonne Excavators: Specifically designed for excavators in this weight range, ensuring robust performance and flexibility.
• Steel Cast Components: Provides a low build height and high tilt angle, with an excellent strength-to-weight ratio due to the steel cast structure.
• 360° Rotation and 45° Tilt: Enables precise positioning of work tools, enhancing efficiency and flexibility on diverse projects.
• Symmetrical Standard (S-Standard): Follows the internationally growing S-standard for quick couplers, ensuring compatibility and efficiency.
• Front Pin Lock (FPL) Safety Solution: Mechanical lock of the front shaft minimizes the risk of unintended tool drops.
• High Flow Hydraulics: Allows for fuel-efficient use of high flow work tools and provides accurate data to Machine Control Systems through the Absolute Rotation sensor.
• Sandwich Configuration: Quick coupler mounted on the excavator arm allows for easy disconnecting of the tiltrotator and direct connection of work tools.
• SQ Auto Connection System: High-performing automatic oil connection technology compatible with the Open-S standard, allowing connection with other brands.
• Advanced Control Systems: Available with the Quantum control system for ergonomics and efficiency, or a basic four-hose proportional machine control system.
• Optional Gripper Cassette: Adds flexibility with precise object handling and can be retrofitted.
• Central Lubrication Option: Factory-fitted option compatible with all central lubrication systems, reducing maintenance needs.
• Coupler Interface Options: Available with Verachtert (CW) or Lehnhoff (HS) coupler interfaces, always in Direct Fit configuration for Verachtert (CW).

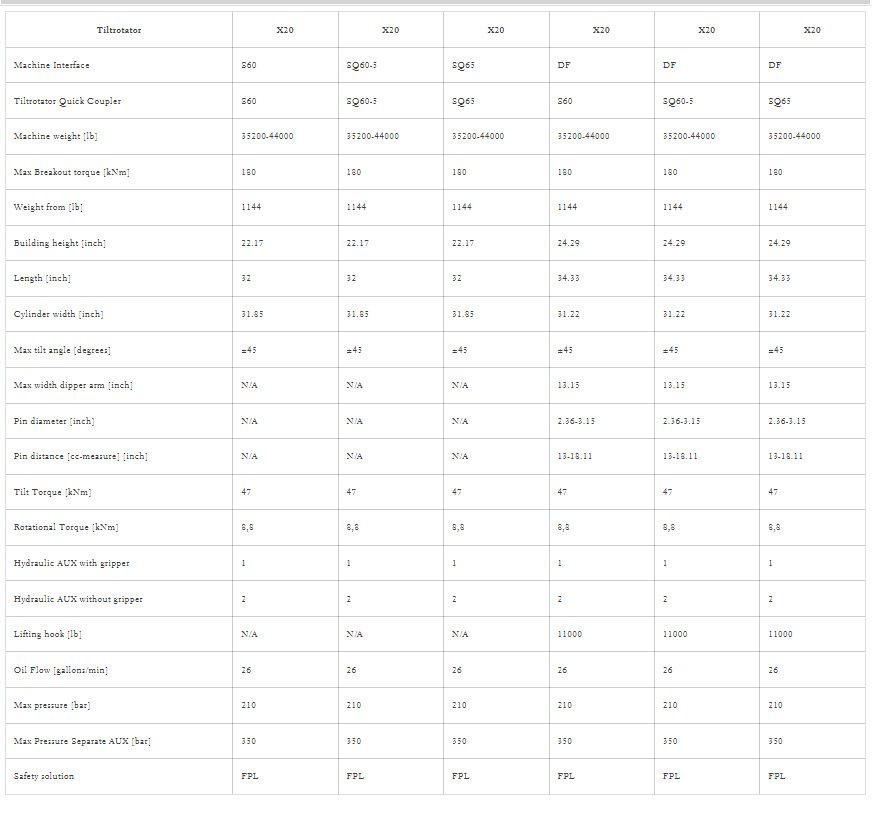

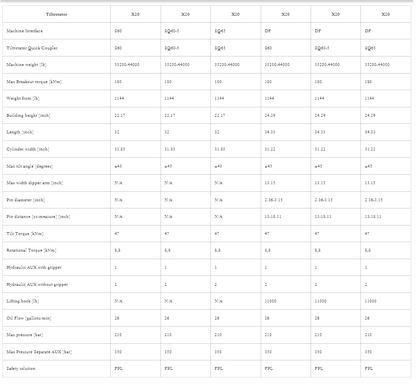

Detailed Specifications

Manual & Documents

General Warranty Info:

• Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
• The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
• Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
• Please reach out to us for any specific warranty information needed about products and parts you can’t find!

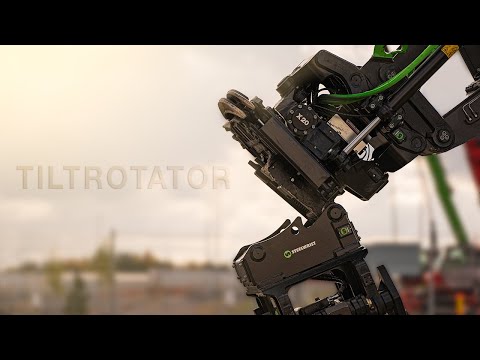

Videos
