Product Description
STOUT | Heavy Duty Rock Bucket Grapple | 3" Tine Spacing | Model 62", 69", 72", 78" & 82" Widths | Hydraulic Flow 15-25 GPM | For Skid Steer
DESCRIPTION
The Stout Skid Steer Heavy Duty 3" Tine Spacing Rock Bucket Grapple is a robust, multifunctional attachment designed to tackle the toughest agricultural and landscaping jobs. Engineered with precision and strength, this grapple bucket is perfect for removing rocks, debris, and brush from soil or loose material. Ideal for farm, ranch, and construction applications, this implement excels as both a tractor grapple and skid loader grapple, offering unrivaled durability and versatility.
The Stout Skid Steer Heavy Duty 3" Tine Spacing Rock Bucket Grapple does not have specific GPM (gallons per minute) requirements explicitly listed in the available information. However, attachments like this typically require:Hydraulic Flow (GPM): A standard skid steer hydraulic system with a flow rate of around 15-25 GPM is generally sufficient for operating the hydraulic cylinders effectively.
Constructed entirely from Grade 50 high-strength steel (50,000 psi), this grapple bucket is built to last. It features an innovative 3-inch tine spacing that captures rock and debris while allowing loose material to fall through, enhancing efficiency. Operators can also add or remove optional bolt-on side plates for enhanced usability and flexibility. Powered by hydraulic cylinders, the grapple arms automatically adjust to uneven bucket loads for maximum performance. With bucket widths ranging from 62" to 82" and a Power Requirement tailored for skid steer quick-attach systems, this attachment ensures productivity, adaptability, and reliability for a variety of jobs.
Key Features
- Power Requirement: Designed for compatibility with skid steers equipped with universal quick-attach systems.
- Durable Construction: Made entirely of Grade 50 high-strength steel, ensuring resilience for heavy-duty applications.
- Versatile Grapple Design: Ideal for removing rocks, debris, logs, and brush in farming, ranching, and construction environments.
- 3-Inch Tine Spacing: Captures debris larger than 3 inches while allowing loose material to sift through, optimizing efficiency.
- Adjustable Side Plates: Optional bolt-on side plates offer greater flexibility for diverse tasks.
- Hydraulic Flow (GPM): A standard skid steer hydraulic system with a flow rate of around 15-25 GPM is generally sufficient for operating the hydraulic cylinders effectively.
- Hydraulic Cylinders: Bore x Stroke: 2"x8", automatically adjust to uneven bucket loads, ensuring superior performance.
- Fully Grease-able Pivot Points: For extended durability and smooth operation.
- Available Widths: Offers bucket widths of 62", 69", 72", 78", and 82" to suit varying job requirements.
-
Grapple Arm Features:
- 62", 69", and 72" buckets feature two 15-inch wide grapples.
- 78" and 82" buckets feature two 21-inch wide grapples.
- Grapple arm thickness: 1/2".
- Grapple web thickness: 3/8".
- Operator-Friendly Design: Hoses encased in protective sleeves and equipped with a hose keeper for clean and safe operation.
- Made in the USA: A testament to superior craftsmanship and high-quality standards.
Detailed Specifications

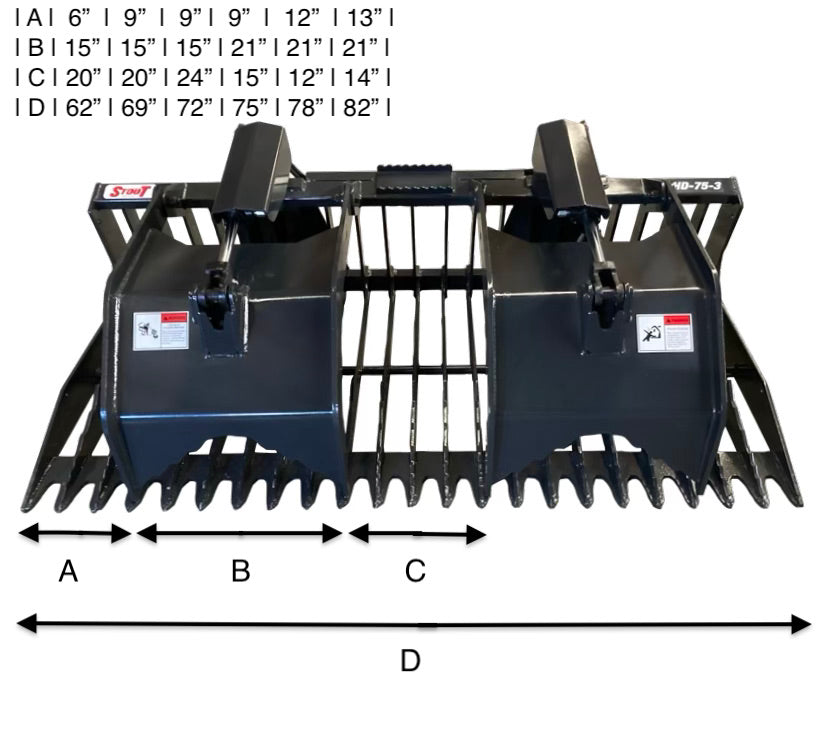

| Specification | 62" Width | 69" Width | 72" Width | 78" Width | 82" Width |
|---|---|---|---|---|---|
| Weight (lbs.) | 840 lbs. | 875 lbs. | 900 lbs. | 935 lbs. | 960 lbs. |
| Height (in.) | 28" | 28" | 28" | 28" | 28" |
| Depth (in.) | 41" | 41" | 41" | 41" | 41" |
| Tine Spacing (in.) | 3" | 3" | 3" | 3" | 3" |
| Grapple Opening (in.) | 39" | 39" | 39" | 39" | 39" |
| Grapple Arm Width (in.) | 15" | 15" | 15" | 21" | 21" |
| Tine Thickness (in.) | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" |
| Hydraulic Cylinder (Bore x Stroke) | 2"x8" | 2"x8" | 2"x8" | 2"x8" | 2"x8" |
| Distance Between Grapples (in.) | 20" | 20" | 24" | 15" | 12" |
