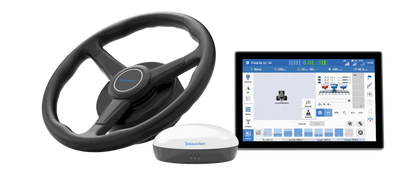

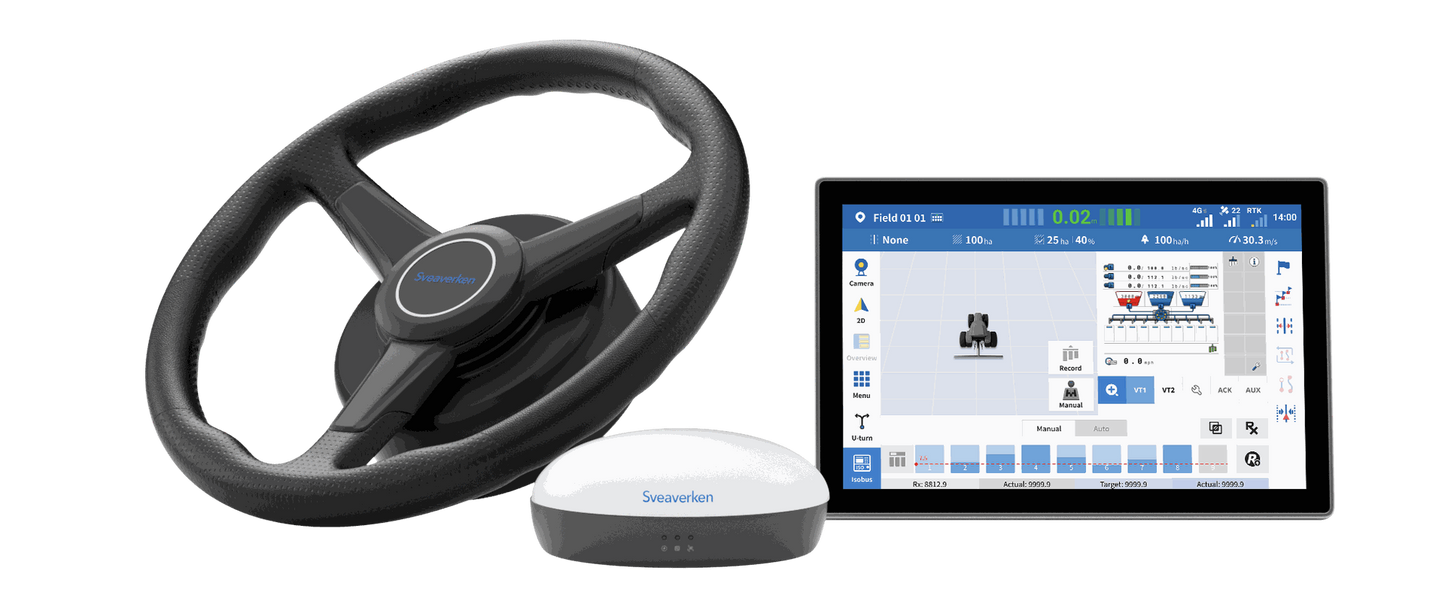

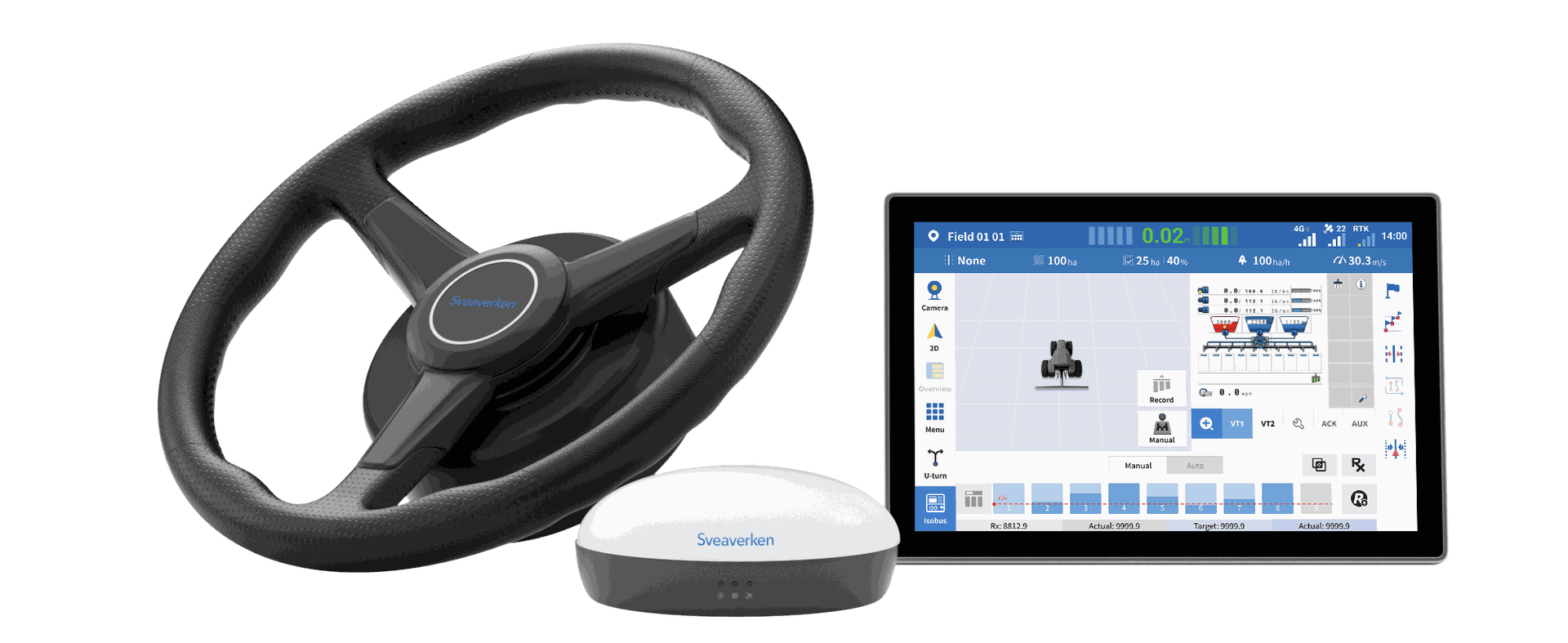

Sveaverken | F200 Max Auto Steer System | 12.1" Display | Electric Power Steering | Precision Accuracy 2.5 cm | Precision Steering | Horsepower 120 To 500 HP | For Tractor

Sveaverken | F200 Max Auto Steer System | 12.1" Display | Electric Power Steering | Precision Accuracy 2.5 cm | Precision Steering | Horsepower 120 To 500 HP | For Tractor

Regular price $1.00
Regular price Sale price $1.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Compatibility: For Tractors, ATVs & UTVs with 120 To 500 HP.
  • 12.1" high-definition touchscreen control terminal with 16GB storage.
  • Steering wheel diameter: 380 mm, electric power steering with 15 To 20 Nm torque.
  • GNSS antenna size: 162 × 67 mm, precision accuracy up to 2.5 cm.
  • Total system weight approx. 9.5 kg, designed for advanced auto steering in farming operations.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Sveaverken | F200 Max Auto Steer System | 12.1" Display | Electric Power Steering | Precision Accuracy 2.5 cm | Precision Steering | Horsepower 120 To 500 HP | For Tractor

DESCRIPTION

The Sveaverken F200 Max Auto Steer System is more than just a GPS guidance tool it's your complete solution for smarter, more efficient agriculture. Built for professional farmers and operators who demand accuracy, reliability, and seamless integration, this next-generation system puts you in control of every row, pass, and input with up to 2.5 cm precision.

Featuring a vivid 12.1-inch ISOBUS-enabled touchscreen, enhanced electric steering, automatic section control, and real-time task management via the Sveaverken Farm Management System, the F200 Max is your command center for precision farming.

Whether you’re planting, spraying, or harvesting, this auto steer kit integrates with tractors from 120 to 500 HP, delivering consistent results across diverse field conditions. Plus, its modular wiring, refined steering wheel, and support for cameras and CAN-based diagnostics make it a system that works as hard and as smart as you do.

Built with AEF-certified ISOBUS compatibility, rugged components, and a sleek, intuitive user interface, the F200 Max helps you farm faster, smarter, and more sustainably. From variable rate application (VRA) to section control, you’ll reduce overlaps, minimize waste, and maximize yield with confidence.

Key Features

  • Up to 2.5 cm RTK Accuracy Maintain exceptional precision in every pass, reducing overlaps and missed areas.

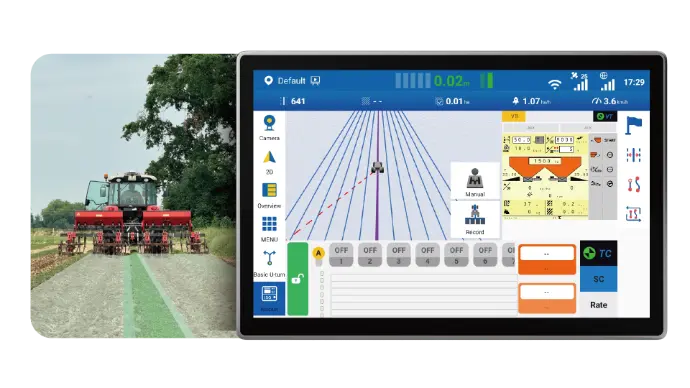

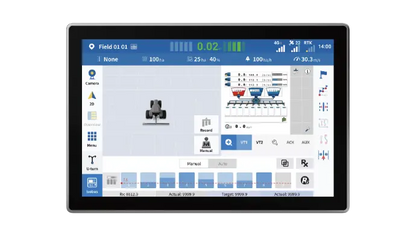

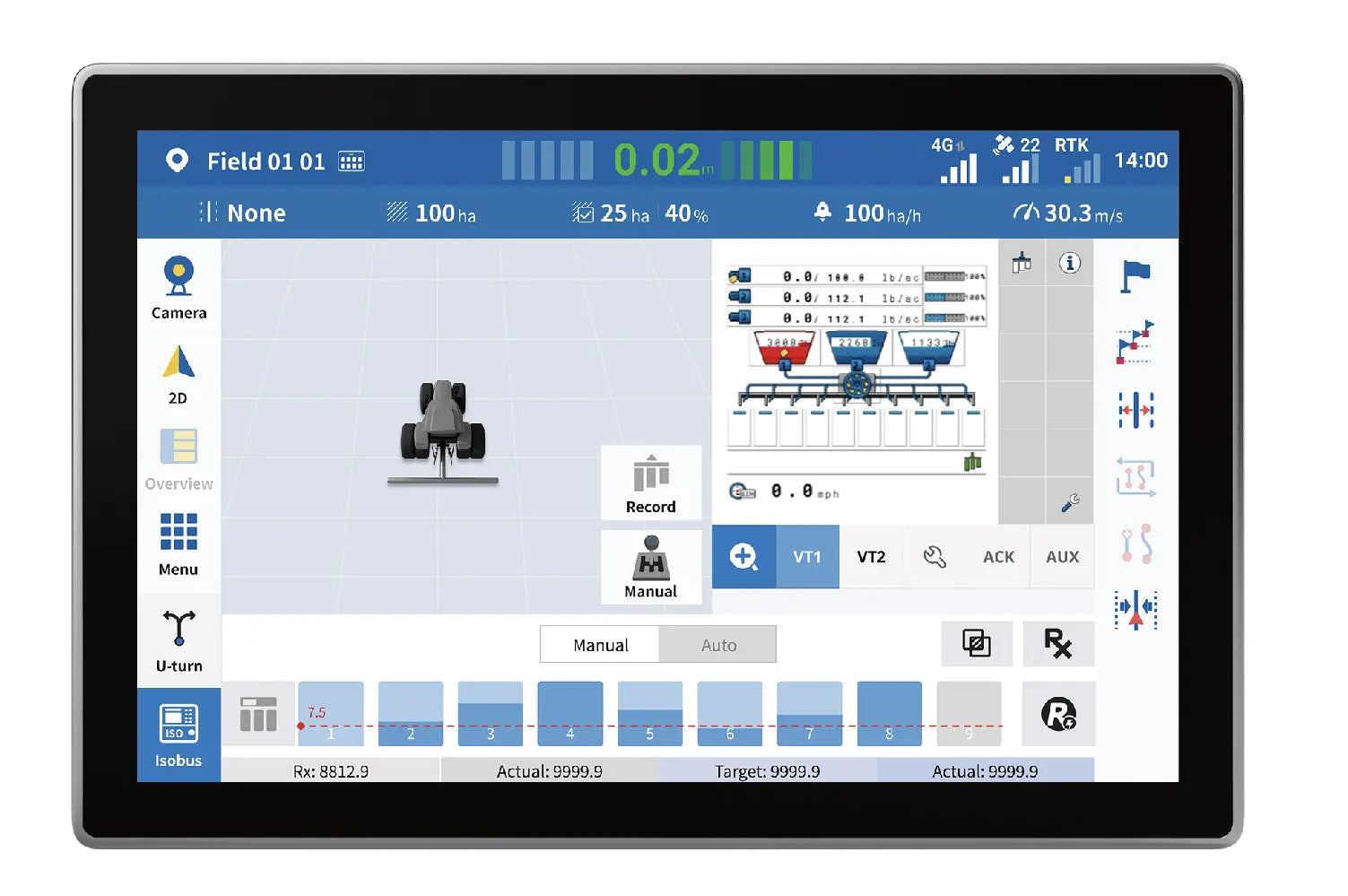

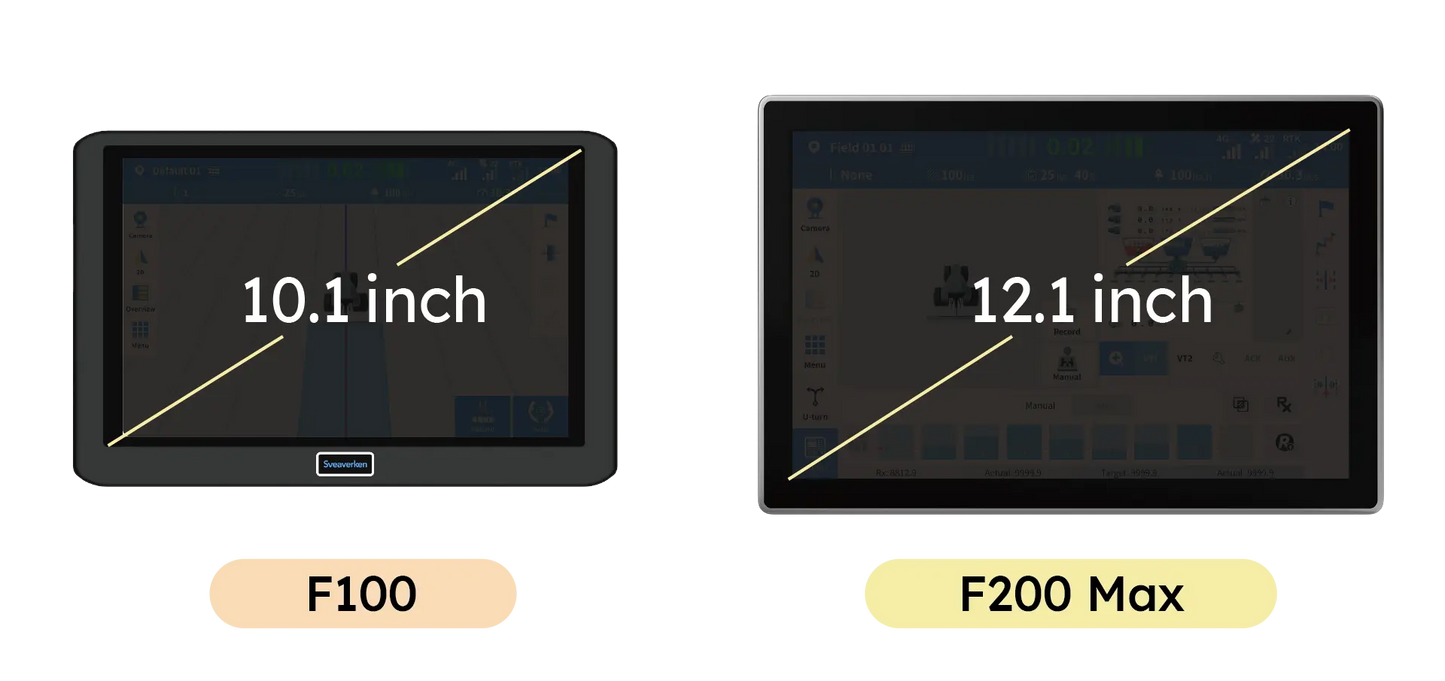

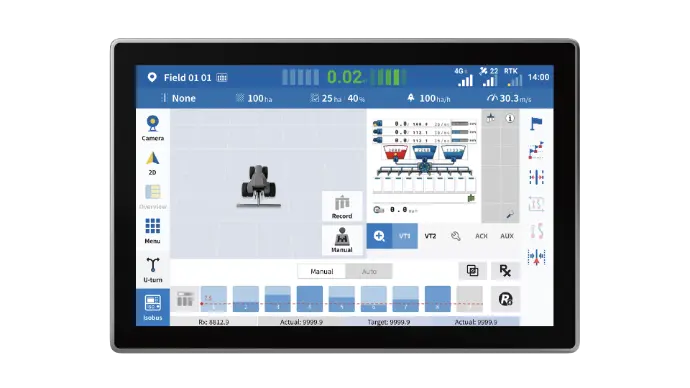

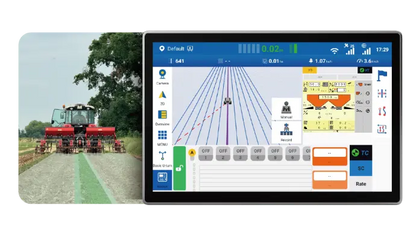

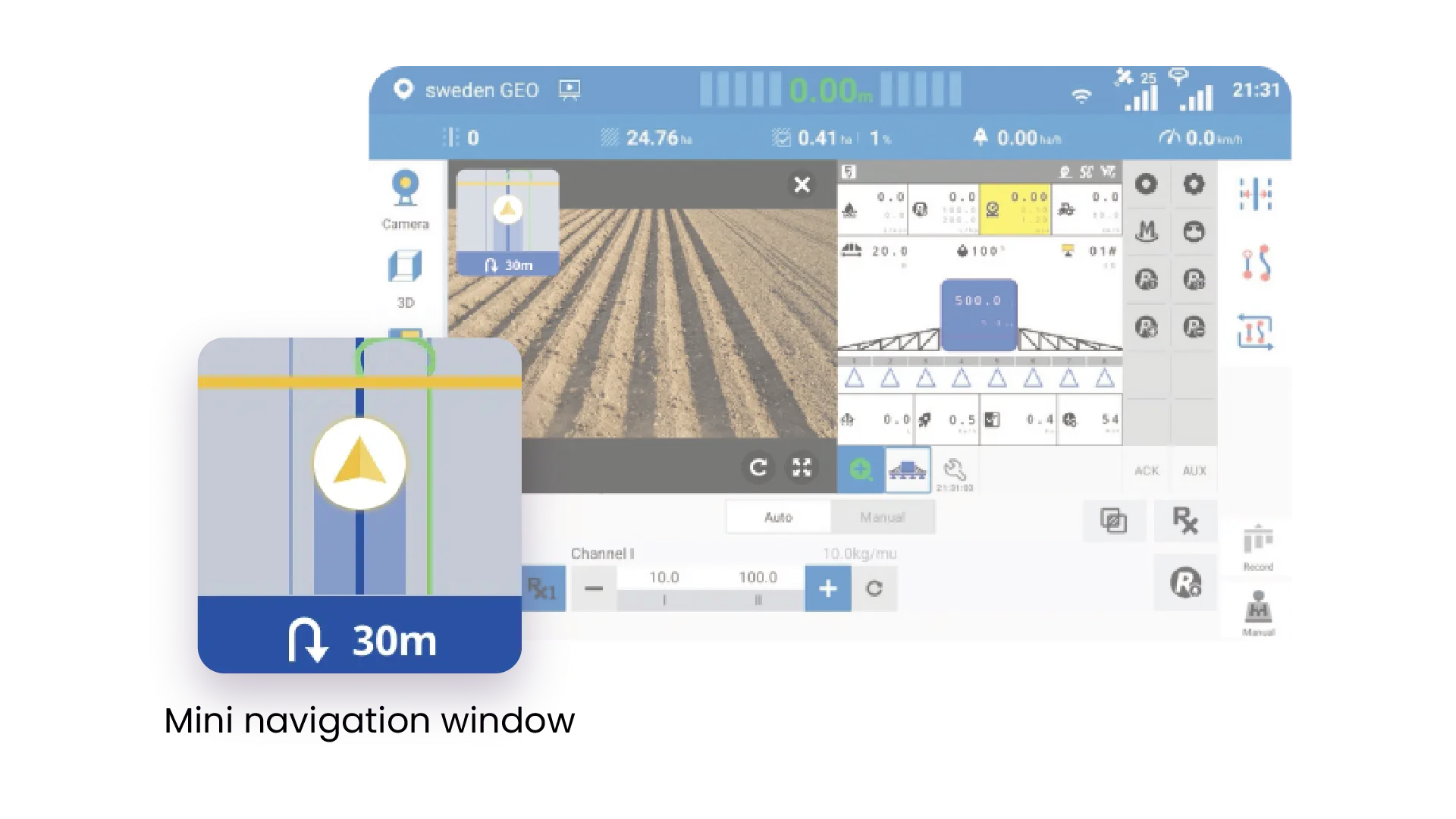

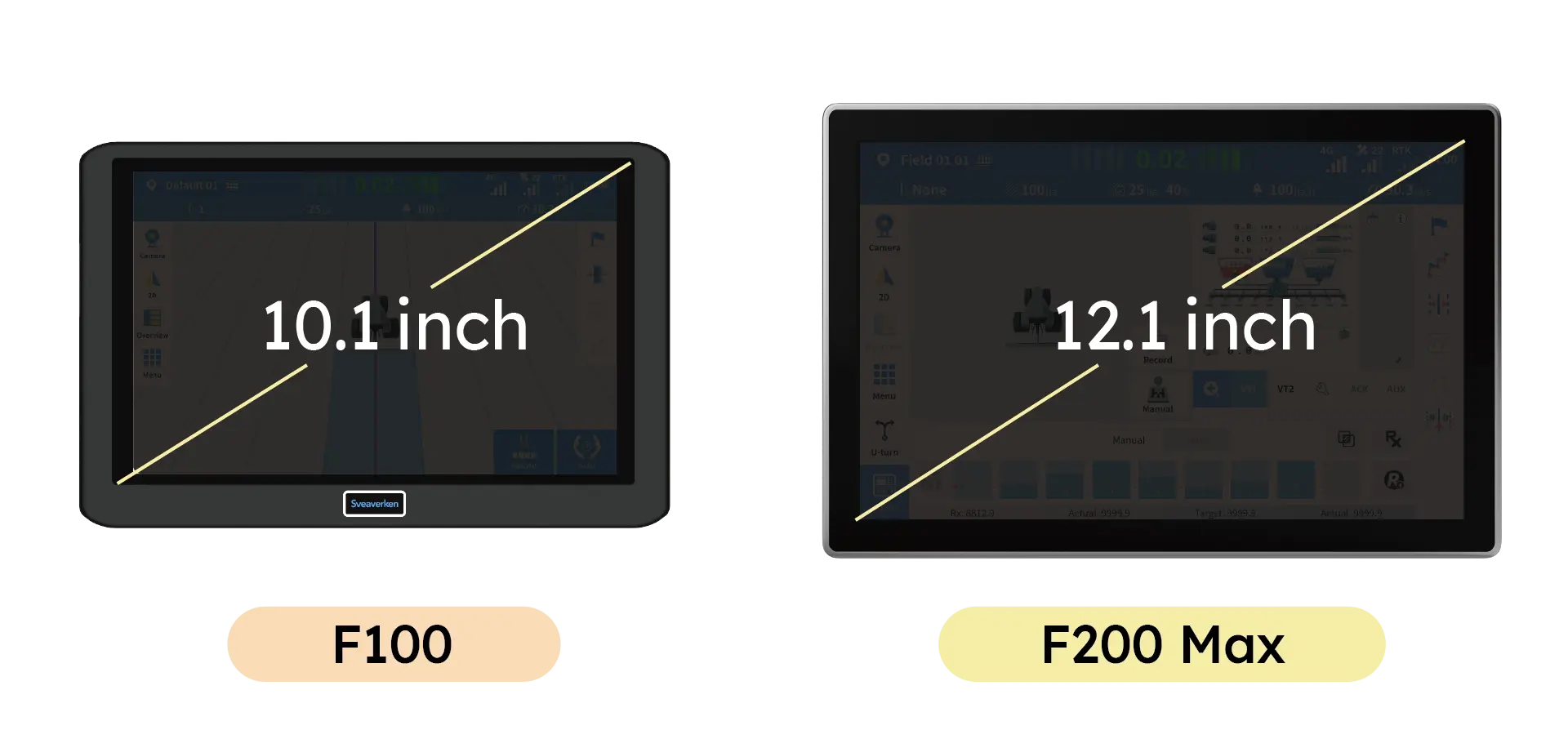

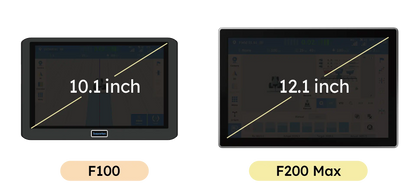

  • 12.1” Touchscreen Display Large, high-definition ISOBUS-compatible screen for clear visualization and effortless control.
  • Supports Tractors from 120–500 HP Designed for medium to high-powered tractors used in commercial agriculture.
  • ISOBUS UT, TC-GEO, TC-SC, AUX-N Compatible Certified for seamless implement control and automation.
  • Variable Rate Application (VRA) Adjust input rates in real-time using prescription maps for smarter resource use.
  • GNSS Antenna with Multi-Constellation Support Supports GPS, GLONASS, Galileo, and BDS for better signal stability.

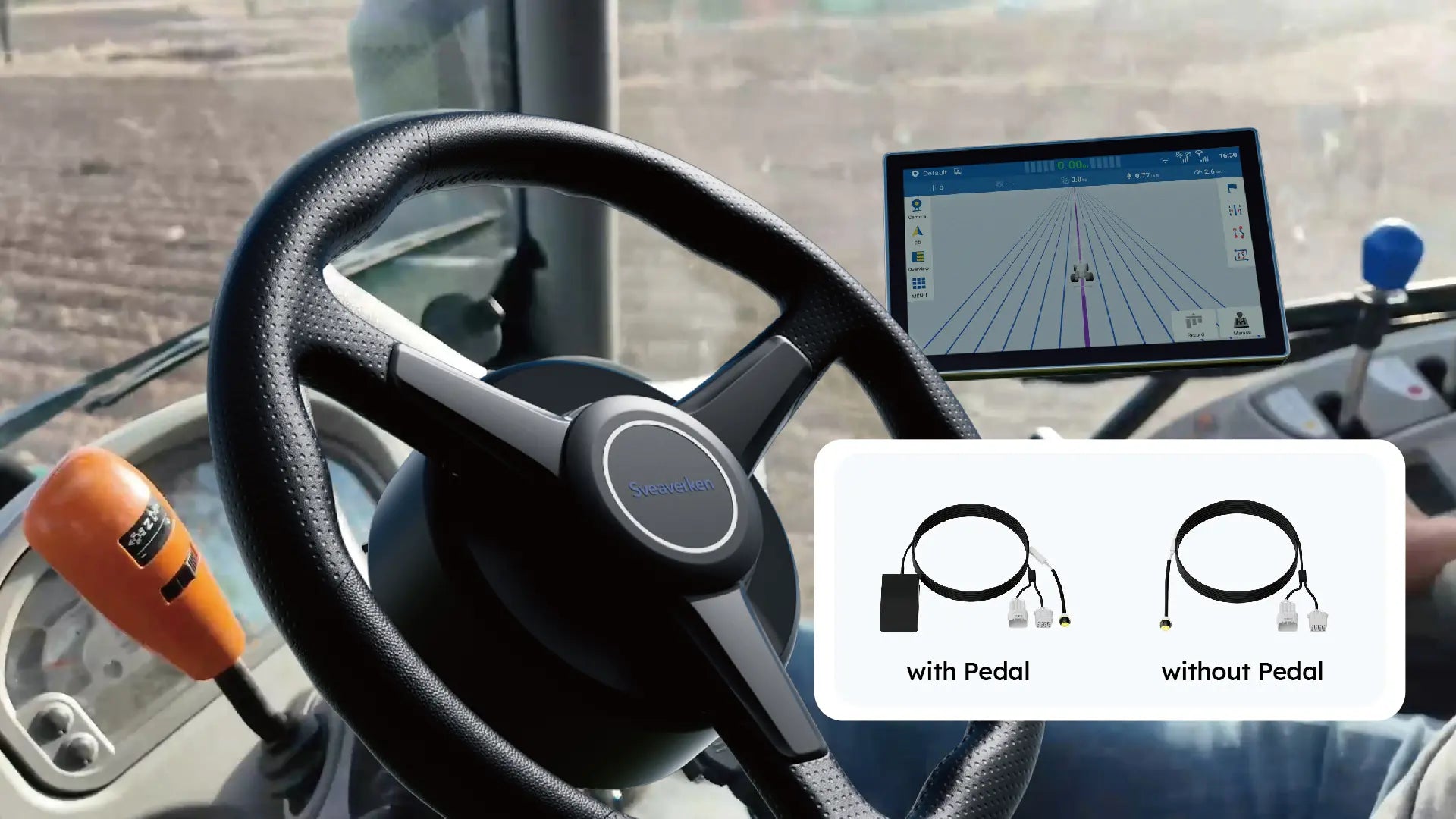

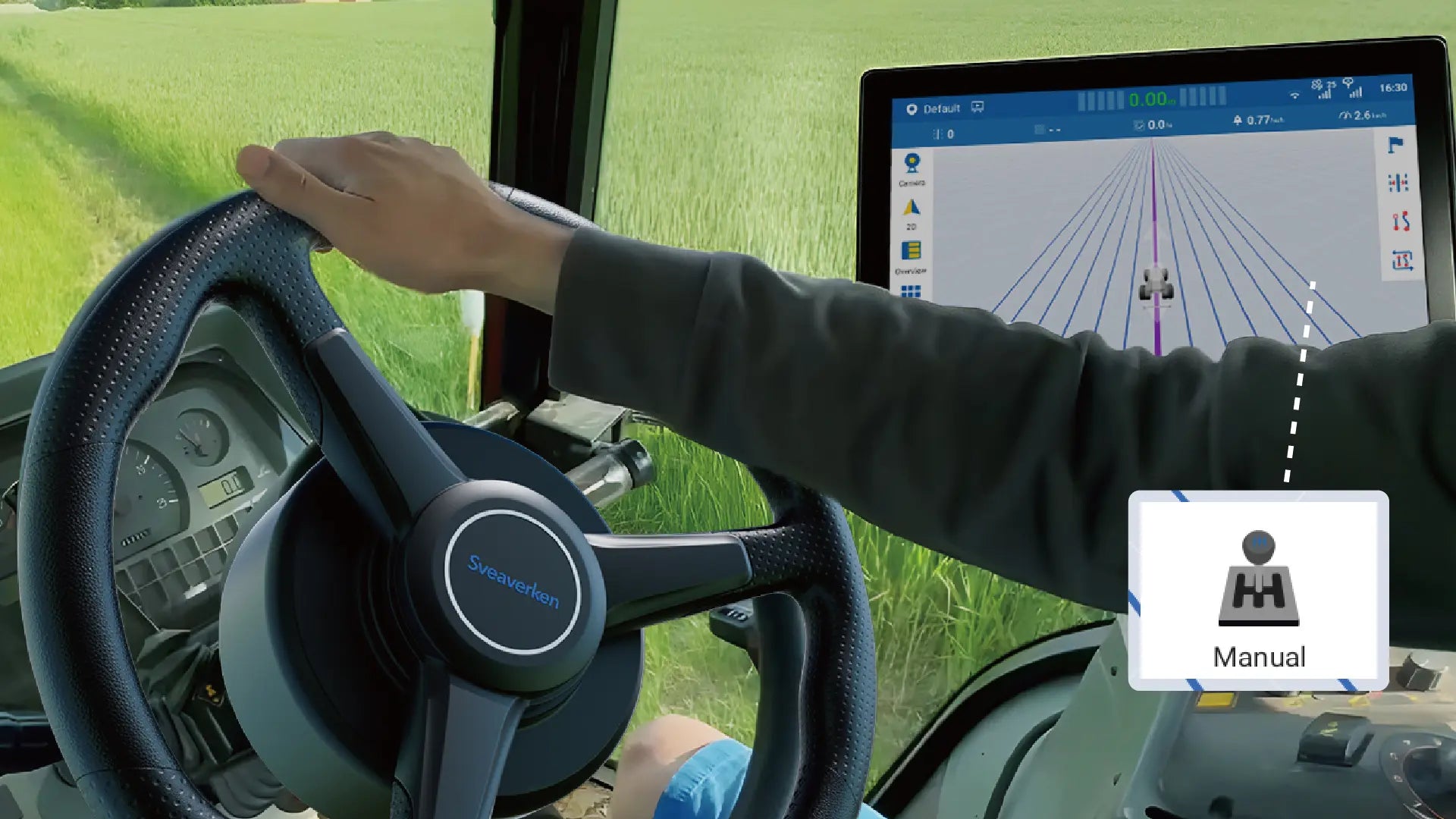

  • Electric Power Steering with Manual Override Easy transition between auto and manual driving with electric assist.

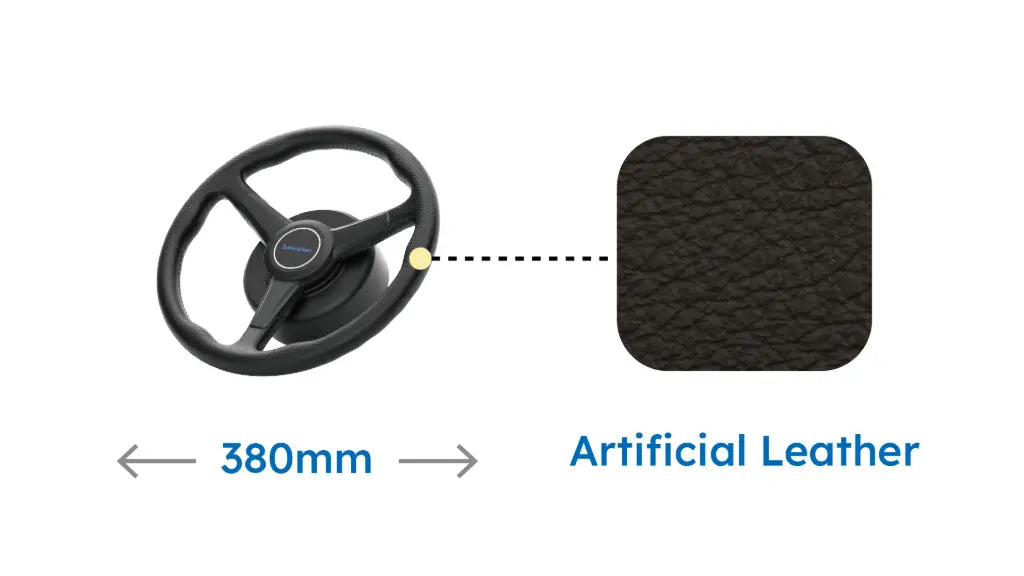

  • Refined 380mm Leather-Trimmed Steering Wheel Compact design improves handling and cabin space comfort.

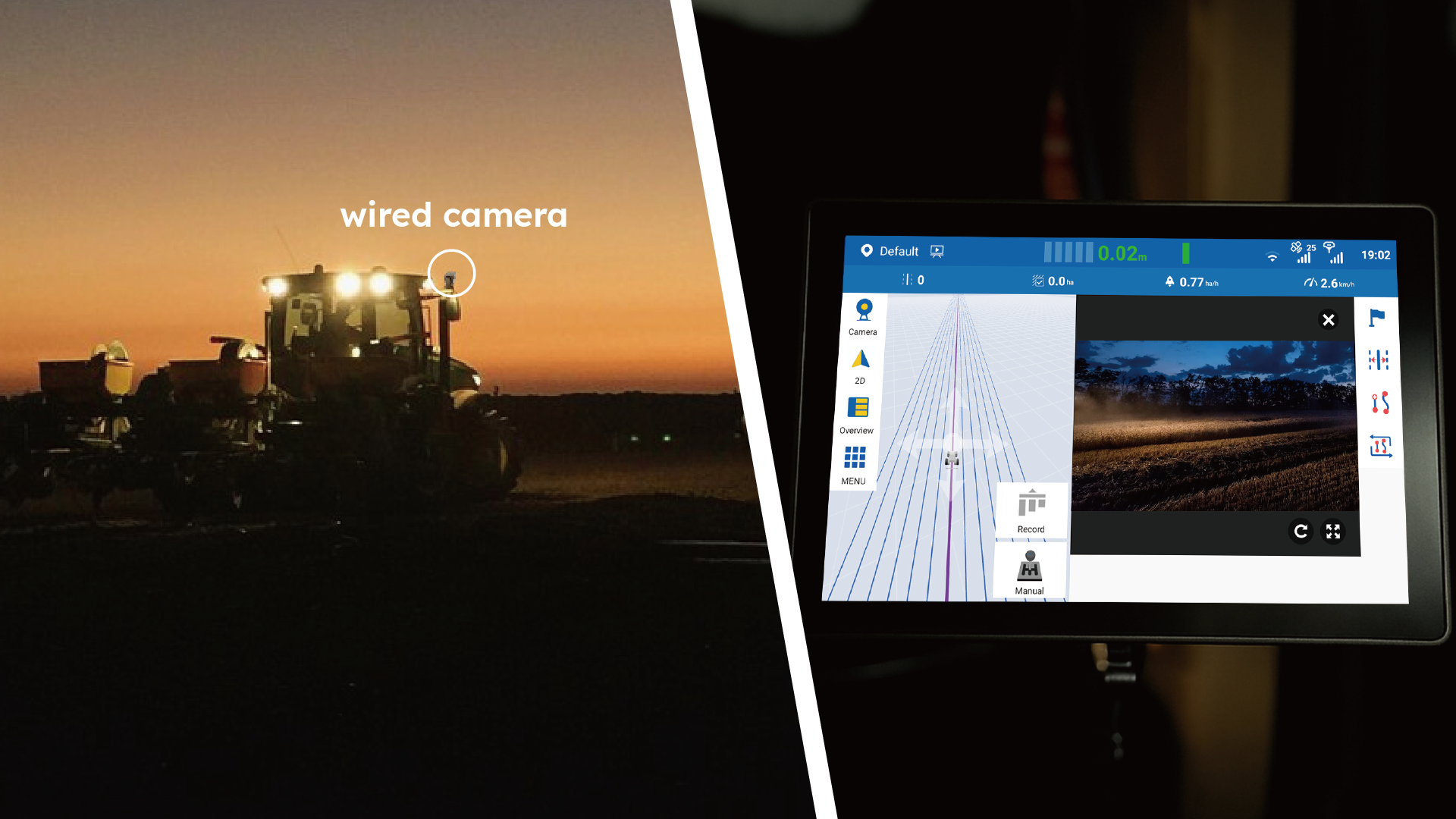

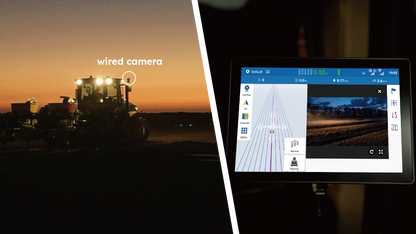

  • Wired/Wireless Camera Integration Enhance visibility and safety in all field conditions.

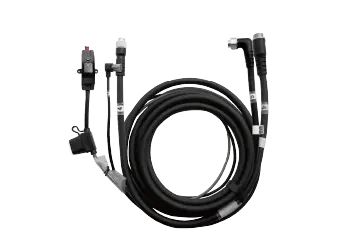

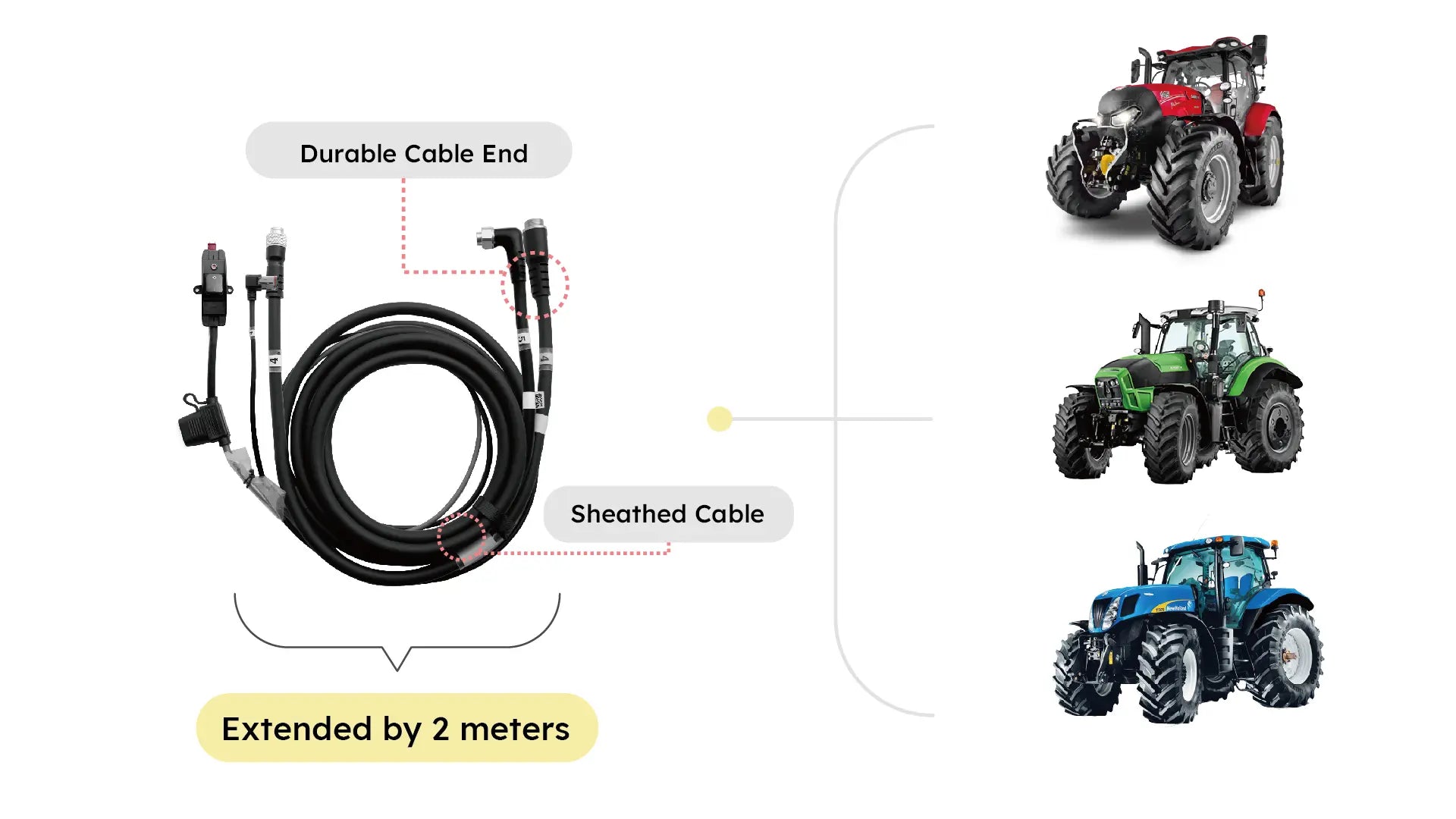

  • Durable Wiring Harness 2-meter extended main cable and molded connectors for stability and easy installation.

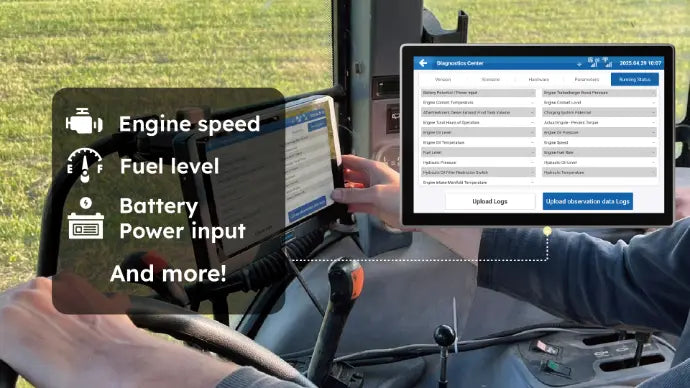

  • Onboard Diagnostics via WiFi CAN Module Monitor tractor RPM, engine load, and performance in real-time.
  • GIS Data Transfer Support Export line groups, maps, and task data to any platform effortlessly.

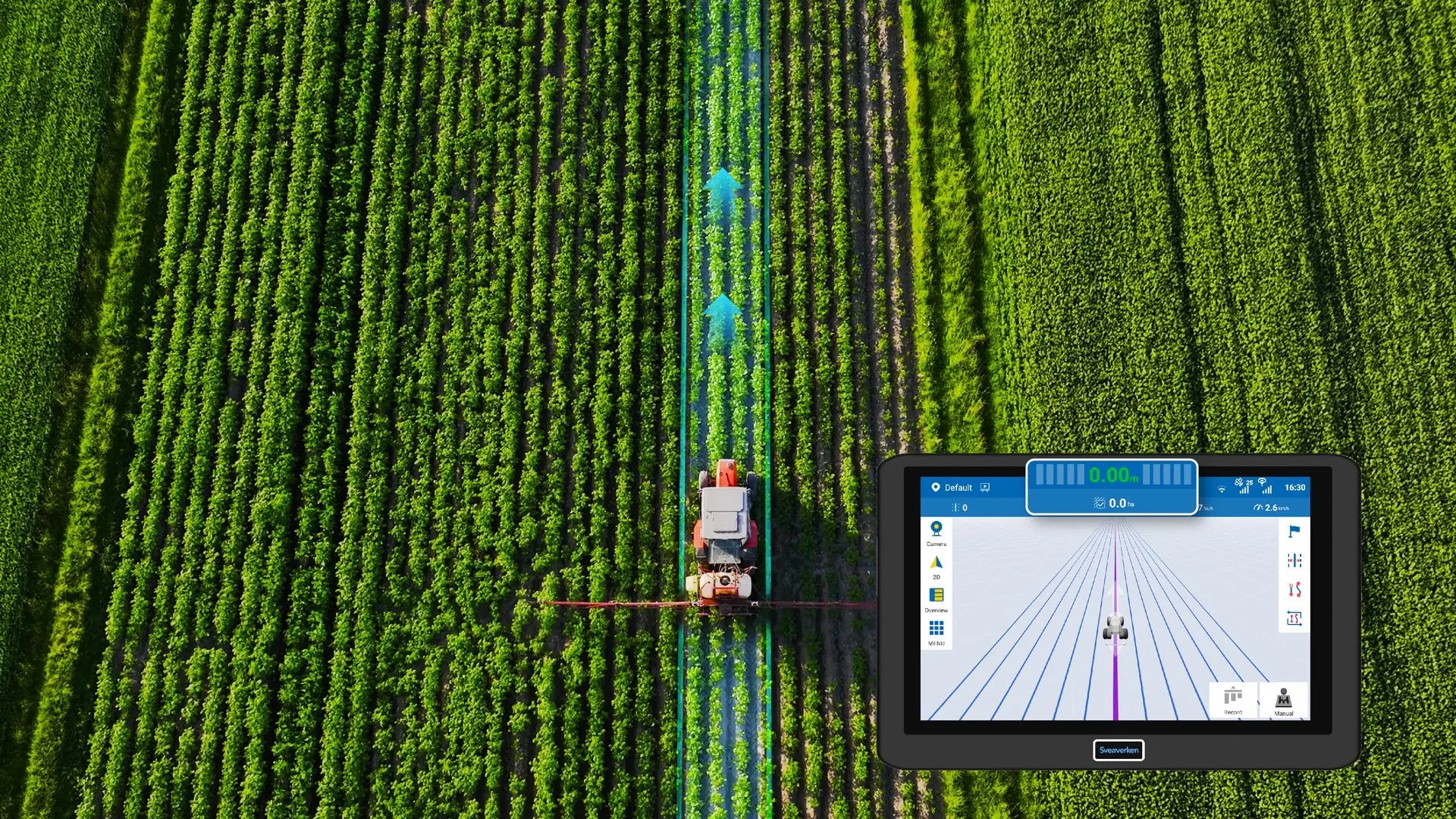

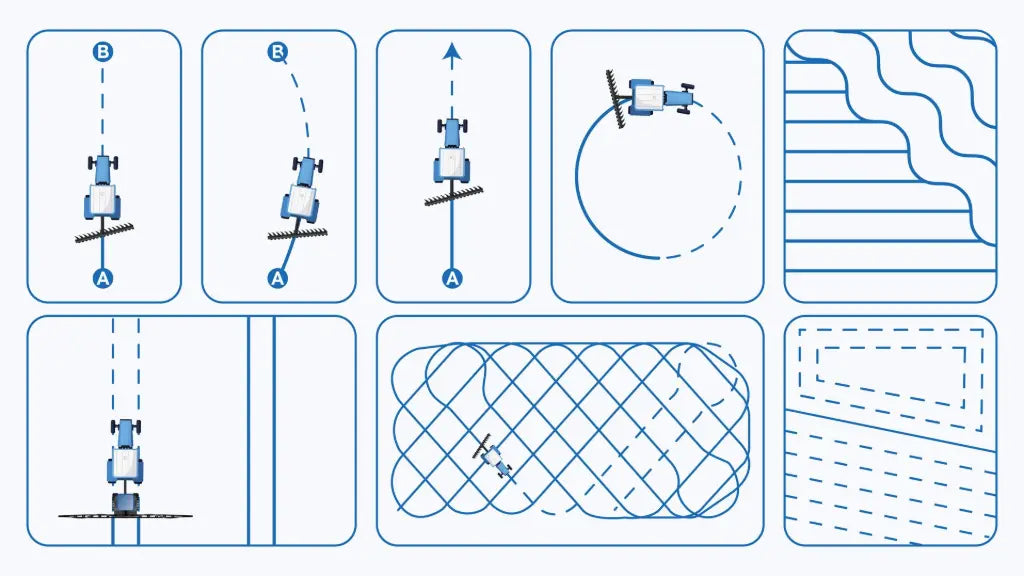

  • Custom Guidance Paths Supports AB Straight, Pivot, Curved, and Combination Line modes.
  • Auto Acre Recording with Sensors Track field activity automatically with lift and work sensors.

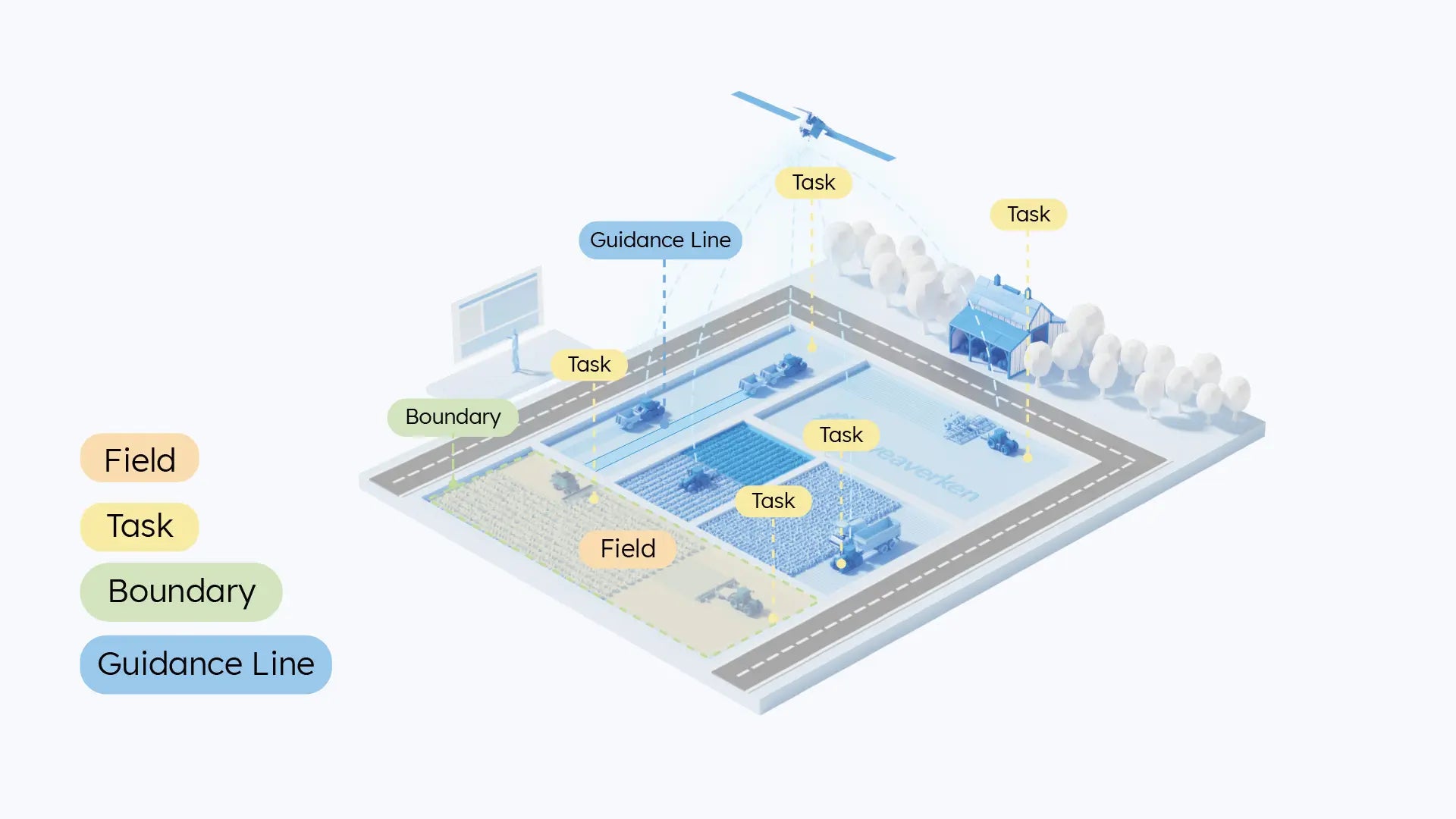

  • Live Field Monitoring via Farm Management System Stay connected and manage tasks remotely.

Detailed Specifications

Component Specification
Compatibility Tractors (120 To 500 HP)
Precision RTK up to 2.5 cm

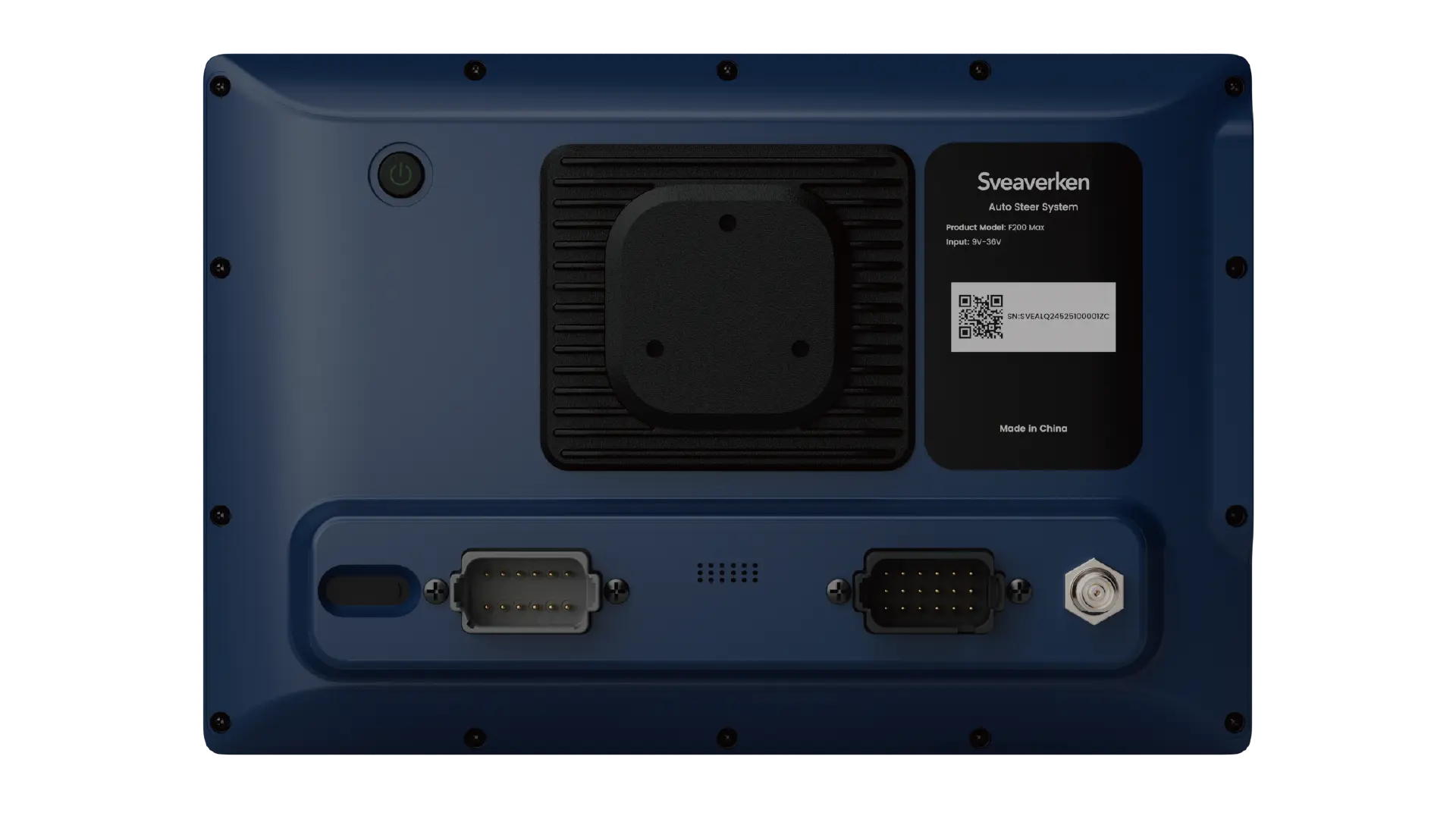

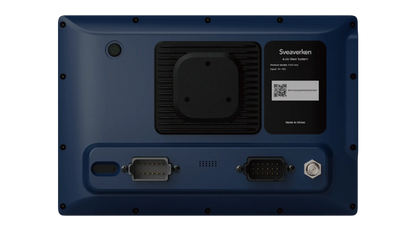

Display 12.1" Capacitive Touchscreen, 16GB Storage, ISOBUS-Compatible
Steering Wheel 380 mm Diameter, Leather-Trimmed, Electric Assist
Electric Motor 180 mm Diameter, 77 mm Height, 12V/24V, Peak Torque: 15 To 20 Nm
GNSS Antenna Supports GPS L1/L2, GLONASS L1/L2, BDS, Galileo; IP67
Camera 1080P Resolution, 120° FOV, Wired (12V), -20°C to 70°C Operating Range
Acre Tracking Auto Acre Recording via Lift & Acre Sensors
Connectivity 4G, Satellite, WiFi, CAN, SIM Slot, Dual Type-C Ports
Power Supply 9V To 36V
Operating Temp. -20°C to 70°C (Control Terminal) / -40°C to 85°C (Storage)
Waterproof Rating IP65 (Steering Motor), IP67 (GNSS & Angle Sensor)

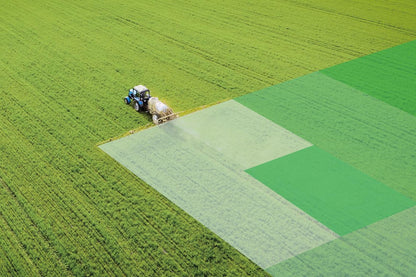

Section Control ISOBUS TC-SC, supports automatic on/off switching based on field location
Variable Rate ISOBUS TC-GEO, real-time adjustment using prescription maps
Data Export GIS Data Transfer, USB or Cloud via Farm Management System
