Swisher Honda GXV390 Commercial Engine | Model GXV390UT1DE33 | 17.1" Width | 10.2 HP 4-Stroke OHV | Horsepower 15 To 20 HP | Hydraulic Flow 0 To 25 GPM | For Skid Steers, Loaders & Tractors
Swisher Honda GXV390 Commercial Engine | Model GXV390UT1DE33 | 17.1" Width | 10.2 HP 4-Stroke OHV | Horsepower 15 To 20 HP | Hydraulic Flow 0 To 25 GPM | For Skid Steers, Loaders & Tractors
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Swisher Honda GXV390 Commercial Engine | Model GXV390UT1DE33 | 17.1" Width | 10.2 HP 4-Stroke OHV | Horsepower 15 To 20 HP | Hydraulic Flow 0 To 25 GPM | For Skid Steers, Loaders & Tractors
DESCRIPTION

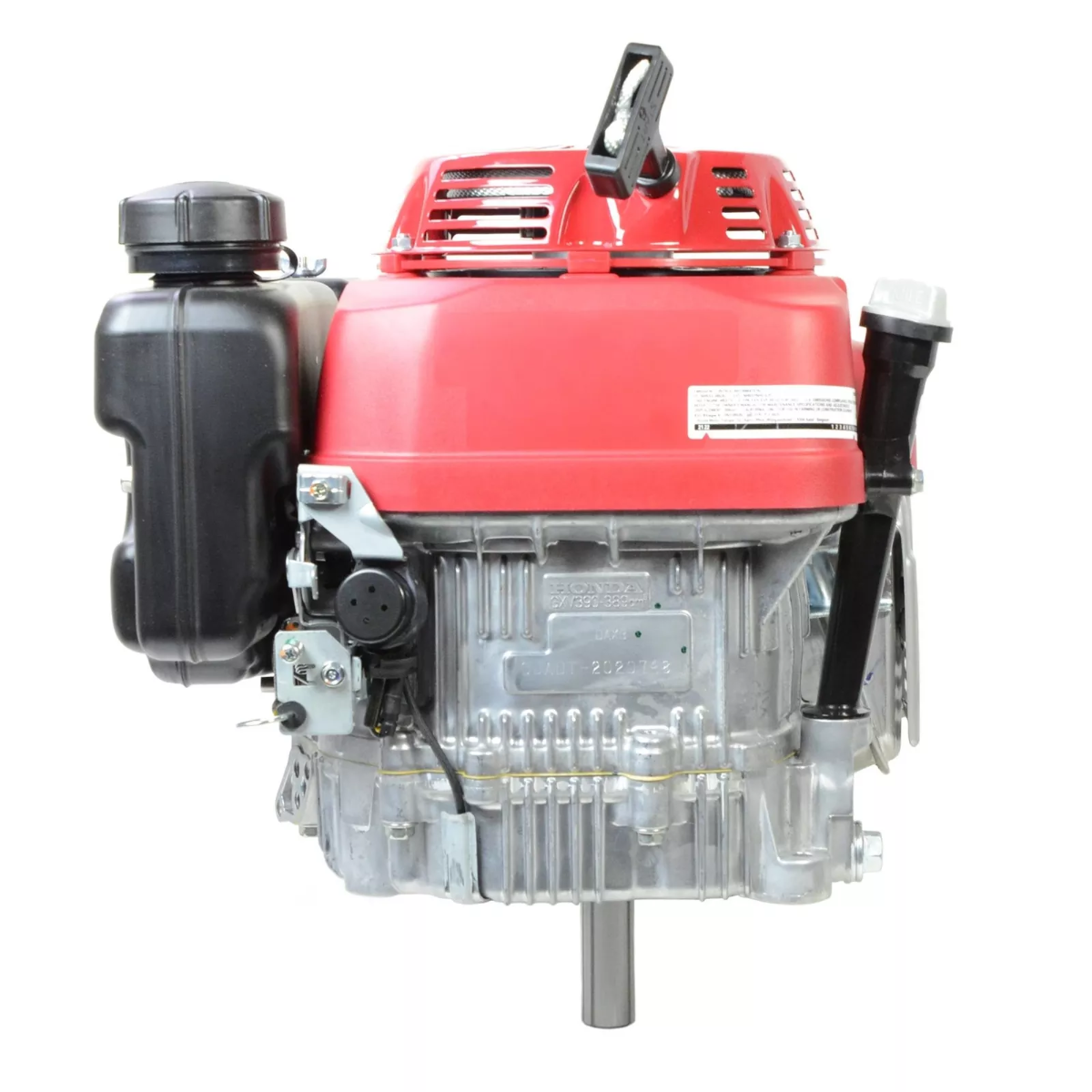

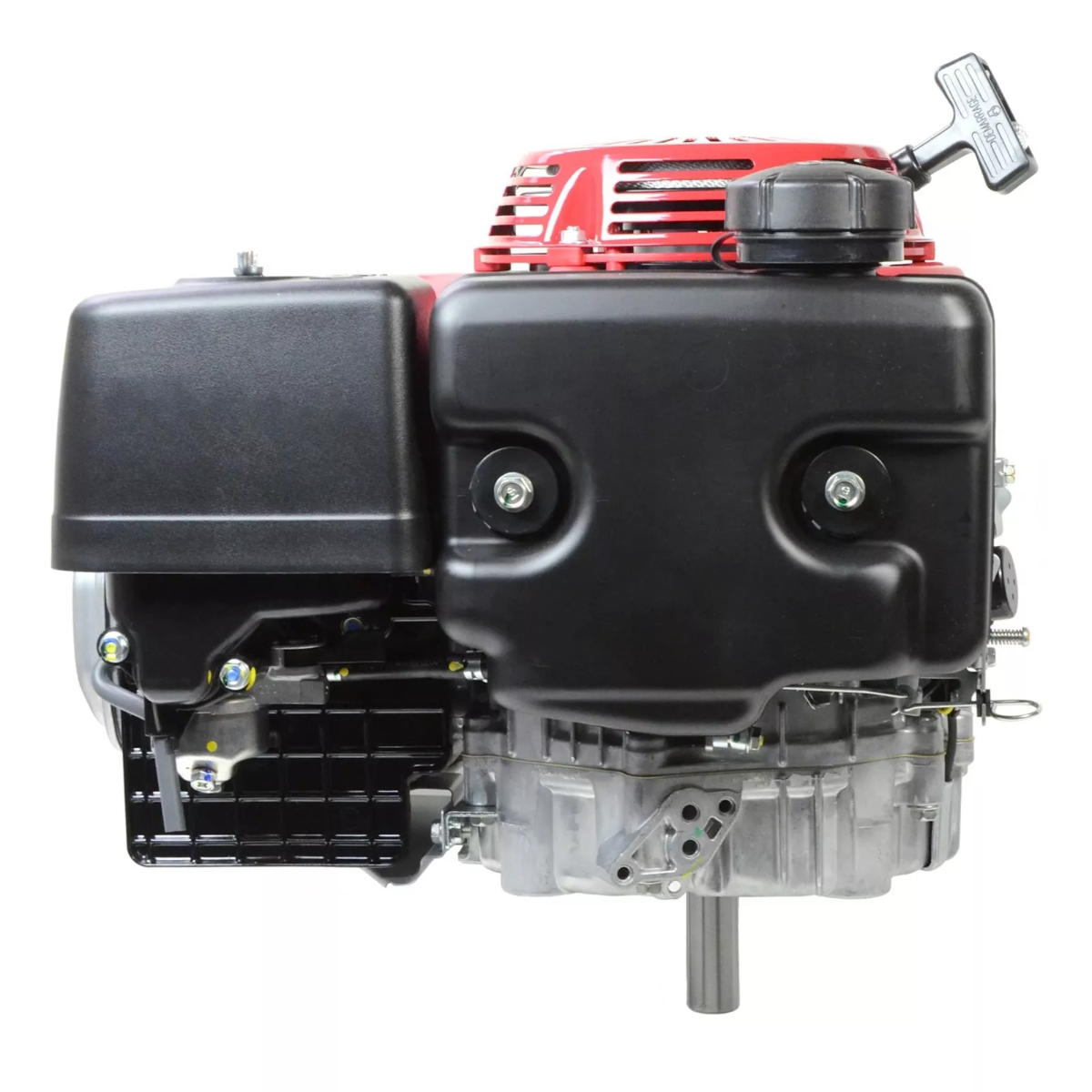

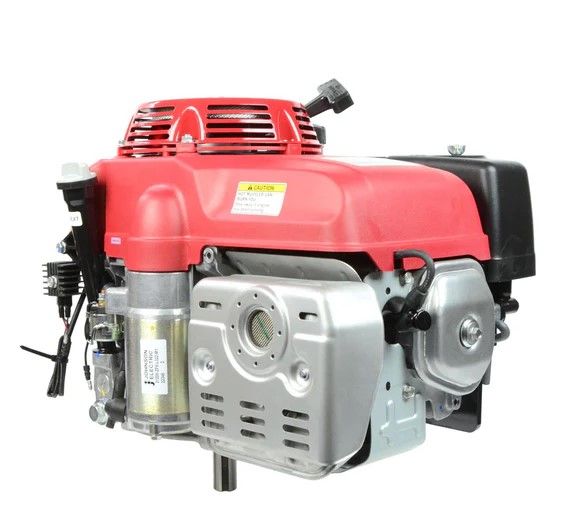

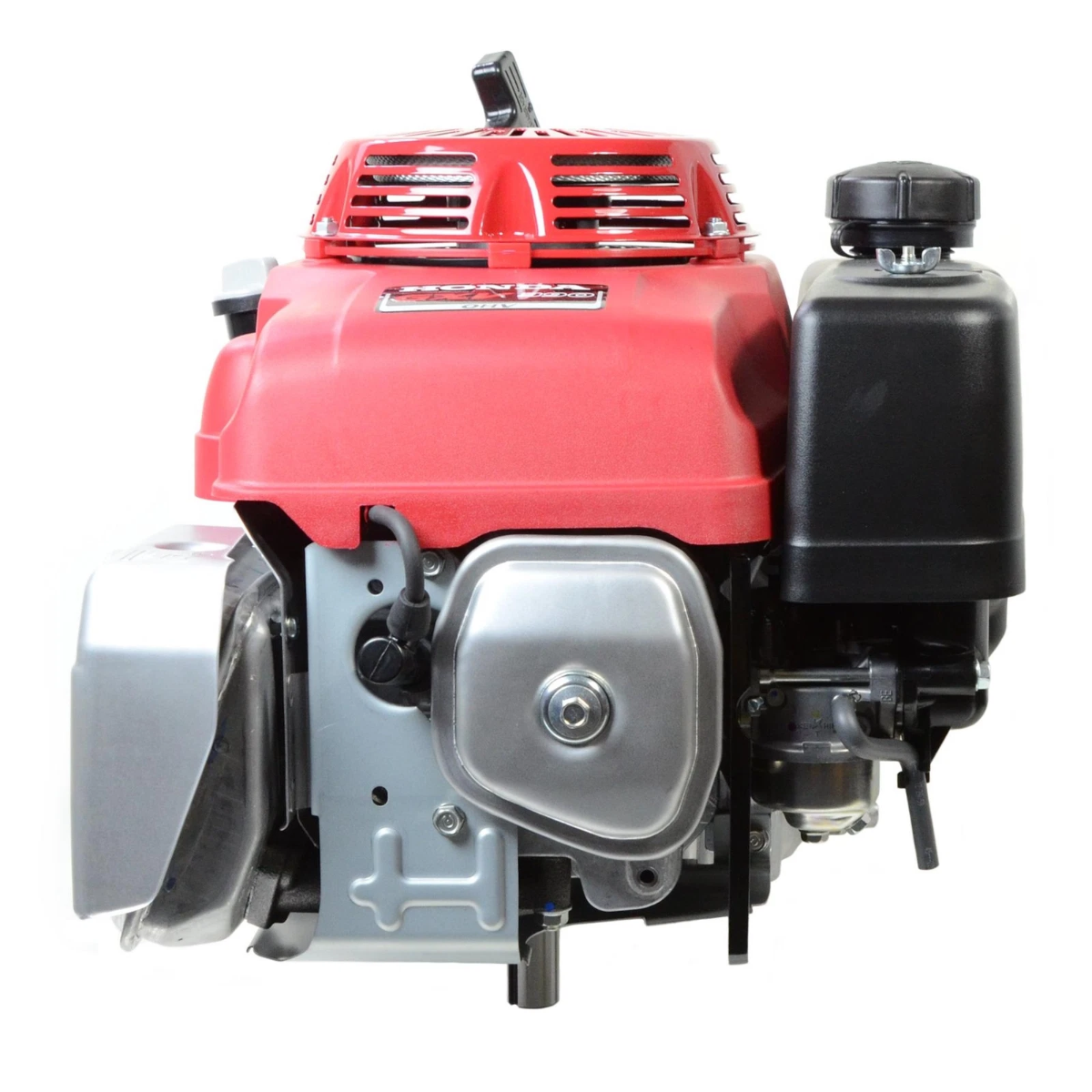

Unlock unparalleled power and reliability with the Honda GXV390 Engine (Model GXV390UT1DE33). Designed to fuel your heavy-duty equipment, this high-performance engine delivers consistent power and efficiency in demanding applications. Whether you're using it for skid steers, tractors, loaders, or other heavy machinery, the GXV390 ensures seamless operation to maximize productivity.
Equipped with Honda’s advanced 4-stroke OHV technology, this engine promises smooth, quiet performance and extended lifespan, even under tough conditions. The electric start system makes it quick and easy to fire up, saving you time and frustration. Built to endure the harshest environments, this engine’s robust construction, fuel efficiency, and ease of maintenance make it a top choice for professionals and enthusiasts alike.
Whether you’re managing construction projects, landscaping, or farming, the Honda GXV390 engine provides dependable power to get the job done right.
Key Features
- Reliable Honda Power: Equipped with a 10.2 HP engine, offering superior torque and reliability for a wide range of applications, from skid steers to tractors.
-
Electric Start System: Quick, convenient starting with a push of a button, reducing downtime and effort.
Required Power & Machine Compatibility Horsepower 15 To 20 HP, Hydraulic Flow 0 To 25 GPM, For Skid Steers, Loaders & Tractors.
- 4-Stroke OHV Technology: Provides smooth, consistent power with fewer vibrations and improved fuel efficiency, ideal for demanding tasks.
- Low Maintenance: The Honda GXV390 is designed for long-lasting performance with minimal upkeep.
- Quiet Operation: Engineered for low noise, helping to maintain a peaceful work environment while still delivering maximum power.
- Heavy-Duty Construction: Built to withstand tough job site conditions, ensuring durability and longevity.
- Dual Element Air Cleaner: Enhances engine life by preventing debris and dust from entering the engine.
- Efficient Lubrication System: A combination of pressure & splash lubrication keeps engine components well-lubricated for improved performance and reduced wear.
- Fuel Efficiency: With a 0.55-gallon fuel tank capacity, this engine provides extended run times for your machinery, reducing fuel consumption.
- Counterclockwise PTO Shaft Rotation: Ensures compatibility with a wide variety of attachments and machinery.
- Compact Design: At just 71.4 lbs and measuring 17.1 x 15.1 x 16 inches, the GXV390 fits into most heavy machinery without compromising space or performance.
- Increased Durability: Features a 7.7:1 compression ratio for improved power and durability.
- Horizontal Butterfly Valve Carburetor: For easy fuel control and consistent operation.
- Transistorized Magneto Ignition: Ensures reliable spark, even in challenging weather conditions.
- Centrifugal Mass Governor System: Maintains constant RPM levels for smoother performance under load.
- Affordable and Efficient: A powerful engine at an affordable price, designed to provide maximum value over its long operational life.

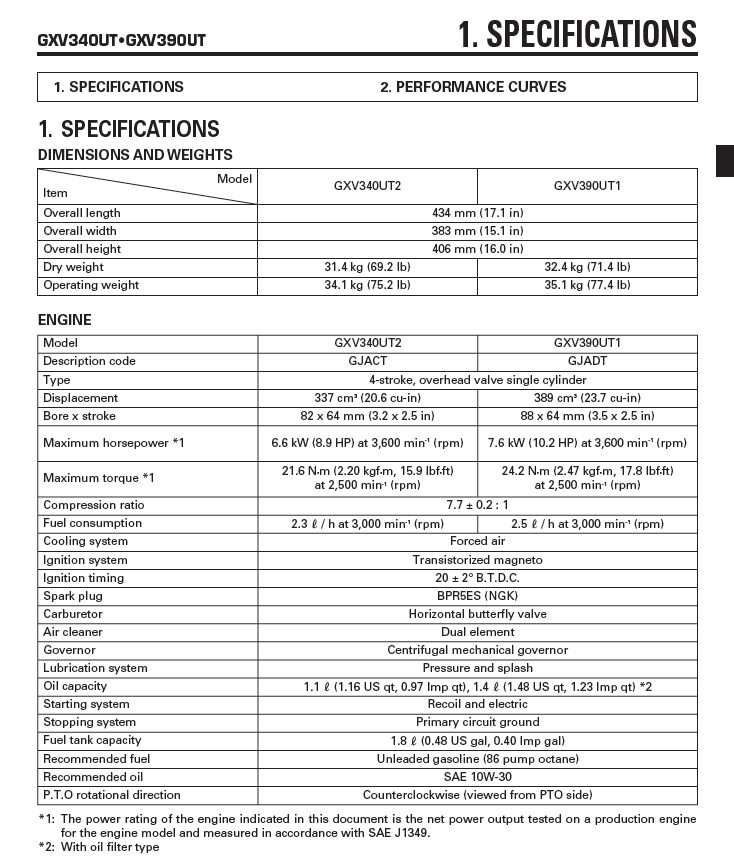

Detailed Specifications
| Specification | Details |
|---|---|
| Engine Brand | Honda |
| Engine Model | GXV390UT1DE33 |
| Engine Series | Honda GXV |
| Engine Type | 4-Stroke OHV Single Cylinder |
| Bore | 88 mm |
| Stroke | 64 mm |
| Displacement | 389 cm³ |
| Net Power Output | 10.2 HP (7.6 kW) @ 3,600 RPM |
| Compression Ratio | 7.7 ± 0.2:1 |
| Carburetor Type | Horizontal Butterfly Valve |
| Ignition System | Transistorized Magneto |
| Lubrication System | Pressure & Splash |
| Fuel Tank Capacity | 0.55 gallon |
| Oil Capacity | 1.2 US qt |
| Machine Compatibility | Skid Steers, Loaders & Tractors |
| Horsepower | 15 To 20 HP |
| Hydraulic Flow | 0 To 25 GPM |
| PTO Shaft Rotation | Counterclockwise (from PTO shaft side) |
| Dimensions (L x W x H) | 17.1" x 15.1" x 16" |
| Weight | 71.4 lbs |
