Product Description
TAG Car Body Forks | Heavy Duty Scrap & Salvage Forks | Fixed Tines 60"–96" | Fork Carriage Width 96"–120" | Machine Size 30,000–80,000 lbs | For Wheel Loaders
DESCRIPTION

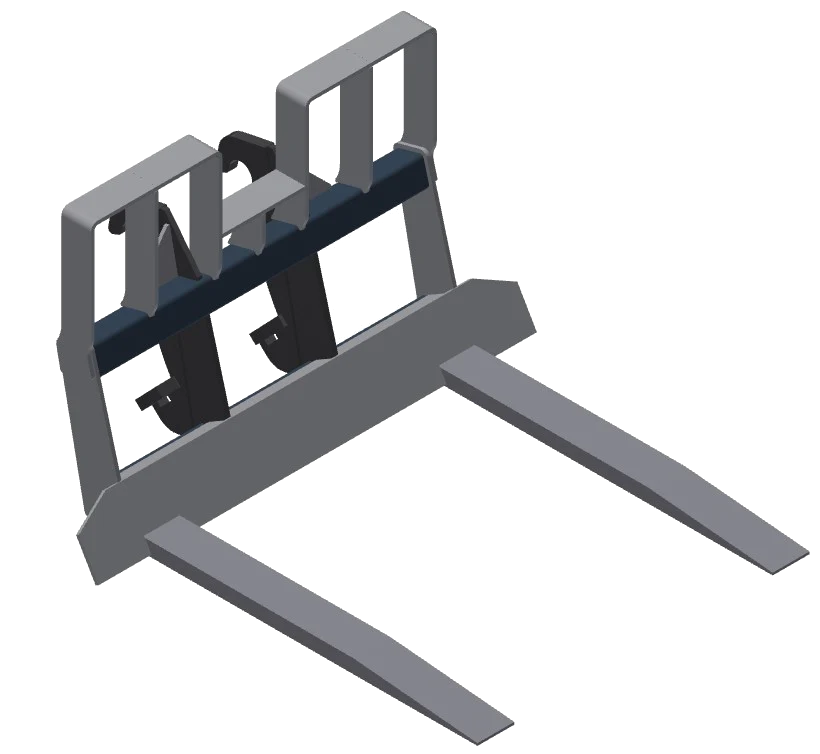

The TAG Car Body Forks are engineered to deliver superior strength, durability, and control in scrap yard, auto salvage, and demolition environments. Designed for high-capacity wheel loaders, these forks allow efficient handling, repositioning, and staging of entire vehicles and irregular loads.
Each unit features solid welded fixed tines with either top taper (for flat bottom placement) or bottom taper (for flat top stacking), and optional high-back guards for added stability. Constructed with heavy-duty steel carriages and oversized fork bars, TAG’s Car Body Forks maximize efficiency and protect both the machine and operator during demanding lift cycles.
Key Features
- Heavy Duty Carriage Design Fabricated for maximum torque resistance and weight handling in scrapyard conditions.
- Fixed Tines with Taper Options Choose top taper for flat bottom applications or bottom taper for flat top stacking versatility.
- Optional High Back Guards Provide additional safety when lifting long or awkward objects—contact TAG for upgrade pricing.
- Wide Carriage Widths Available in 96", 106", and 120" widths for full vehicle support and large debris.
- Machine Compatibility Designed for 30,000–80,000 lbs wheel loaders with load capacities from 16,800 lbs to 84,400 lbs at 24" centers.
- Fork Size Versatility Tine lengths range from 60" to 96" to suit different reach and lift requirements.
-
Quick Coupler or Pin-On Mount Options Enables fast mounting across diverse fleet setups.
Detailed Specifications
| Size | SKU # | Carriage Width | Tine Size | TINE “A” | Rated Capacity (@24") | Weight (lbs) |
|---|---|---|---|---|---|---|
| 100 | P100CBF9660 / QC100CBF9060 | 96" | 2" x 8" x 60" | 72" | 16,800 lbs | 1,650 |
| 100 | P100CBF9672 / QC100CBF9672 | 96" | 2" x 8" x 72" | 72" | 16,800 lbs | 1,760 |
| 200 | P200CBF9672 / QC200CBF9672 | 96" | 2.5" x 8" x 72" | 72" | 26,400 lbs | 1,850 |
| 200 | P200CBF9684 / QC200CBF9684 | 96" | 2.5" x 8" x 84" | 72" | 26,400 lbs | 1,985 |
| 300 | P300CBF9672 / QC300CBF9672 | 96" | 3" x 8" x 72" | 72" | 38,000 lbs | 2,175 |
| 300 | P300CBF9684 / QC300CBF9684 | 96" | 3" x 8" x 84" | 72" | 38,000 lbs | 2,335 |
| 500 | P500CBF9672 / QC500CBF9672 | 96" | 3" x 8" x 72" | 72" | 38,000 lbs | 2,580 |
| 500 | P500CBF9684 / QC500CBF9684 | 96" | 3" x 8" x 84" | 72" | 38,000 lbs | 2,745 |
| 600 | P600CBF10672 / QC600CBF10672 | 106" | 3.5" x 8" x 72" | 72" | 51,700 lbs | 2,825 |
| 600 | P600CBF10684 / QC600CBF10684 | 106" | 3.5" x 8" x 84" | 72" | 51,700 lbs | 3,015 |
| 600 | P600CBF10696 / QC600CBF10696 | 106" | 3.5" x 8" x 96" | 72" | 51,700 lbs | 3,200 |
| 700 | P700CBF10672 / QC700CBF10672 | 120" | 4" x 10" x 72" | 72" | 84,400 lbs | 4,300 |
| 700 | P700CBF10684 / QC700CBF10684 | 120" | 4" x 10" x 84" | 72" | 84,400 lbs | 4,575 |
| 700 | P700CBF10696 / QC700CBF10696 | 120" | 4" x 10" x 96" | 72" | 84,400 lbs | 4,845 |
| 800 | P800CBF12084 / QC800CBF12084 | 120" | 4" x 10" x 84" | 72" | 84,400 lbs | 5,200 |
| 800 | P800CBF12096 / QC800CBF12096 | 120" | 4" x 10" x 96" | 72" | 84,400 lbs | 5,470 |
