TAG Dirt Bucket | Wedge Lock Heavy Duty & High-Capacity | 0.04–0.45 yd³ | Bucket Weight 80–635 lbs | 1–7 Ton | For Deere & Hitachi Excavators
DESCRIPTION

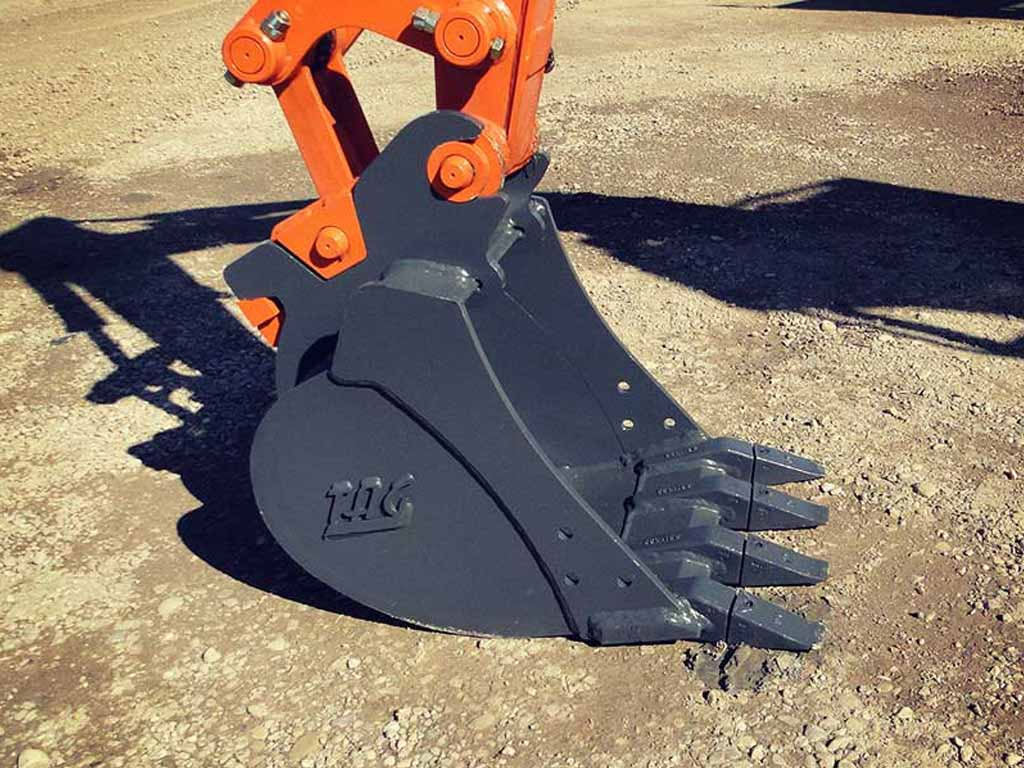

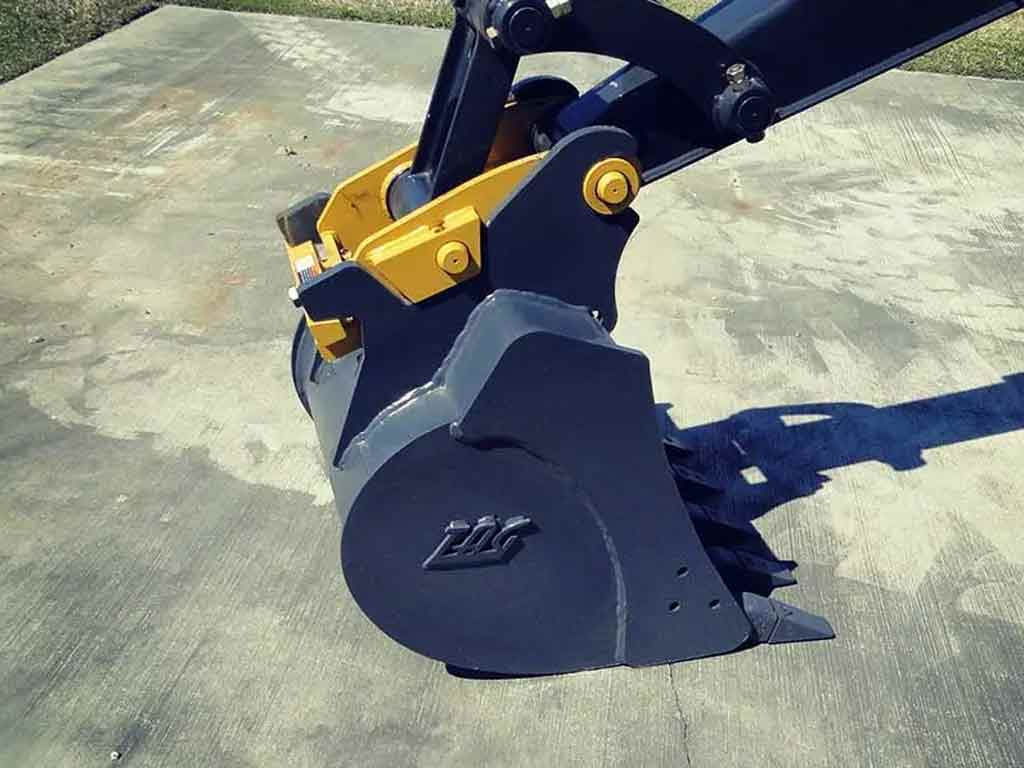

The TAG Wedge Lock Dirt Bucket Series is purpose-built for John Deere and Hitachi excavators ranging from 2,500 to 14,000 lbs (1–7 ton). Engineered for fast cycle times, these buckets offer smooth, unobstructed openings and optimal bucket geometry for efficient digging and loading in all soil conditions.
Designed with double bottom shells, a double-radius taper profile, and internal triangle reinforcements, these heavy-duty buckets improve strength, durability, and bucket fill capacity while reducing downtime. Models include both standard-duty buckets and high-capacity versions—ideal for increasing pass productivity without sacrificing material control.
Key Features
- Machine Compatibility: Fits 1–7 ton Deere & Hitachi excavators (2,500–14,000 lbs).
- Mounting System: Wedge Lock coupler for OEM Deere/Hitachi compatibility.

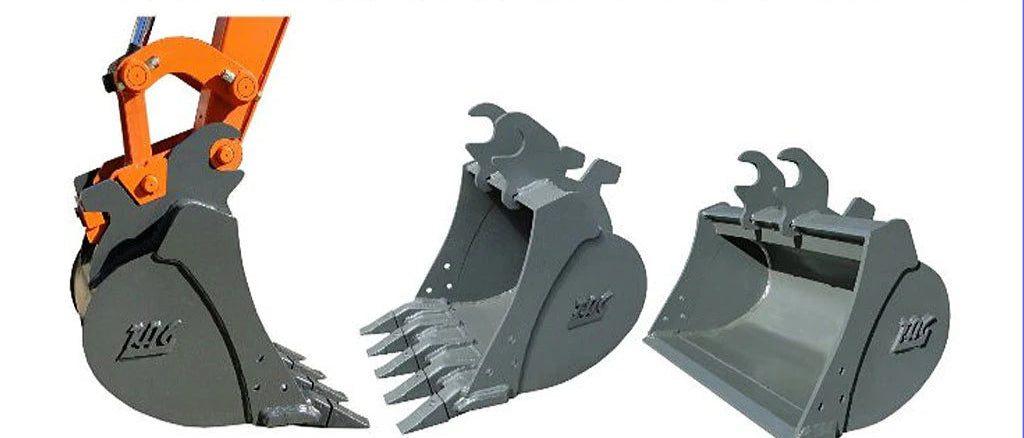

- Bucket Style Options: Heavy Duty: Designed for maximum strength and digging performance , High Capacity: Increased volume and efficiency per pass.
- Construction: Double-bottom bucket shell, triangle reinforcements, dual taper sides.
- Edge Profile: Smooth and open for clean loading and easy dump cycles.
- Tooth Configuration: Standard with teeth; optimized for digging in compacted soils, clay, and sand.
-
Availability: Common sizes are stocked—contact for lead times and fitment confirmation.
Detailed Specifications
JD17 / ZX17 | 2,500–4,000 lbs
| Width | Capacity (yd³) | Teeth | Weight (lbs) |
|---|---|---|---|
| 8" | 0.040 | 3 | 80 |
| 10" | 0.050 | 3 | 90 |
| 12" | 0.055 | 3 | 100 |
| 16" | 0.075 | 4 | 125 |
| 18" | 0.085 | 4 | 135 |
| 20" | 0.100 | 4 | 145 |
| 24" | 0.120 | 5 | 160 |
| 30" | 0.150 | 5 | 170 |
| 36" | 0.180 | 6 | 180 |
JD27 / JD35 / ZX27 / ZX35 | 4,000–8,000 lbs
| Width | Capacity (yd³) | Teeth | Weight (lbs) |
|---|---|---|---|
| 10" | 0.055 | 3 | 135 |
| 12" | 0.070 | 3 | 150 |
| 16" | 0.095 | 4 | 185 |
| 18" | 0.105 | 4 | 195 |
| 20" | 0.120 | 4 | 205 |
| 24" | 0.145 | 4 | 225 |
| 30" | 0.180 | 5 | 255 |
| 36" | 0.220 | 6 | 290 |
JD50 / ZX50 | 10,000–12,000 lbs
| Width | Capacity (yd³) | Teeth | Weight (lbs) |
|---|---|---|---|
| 12" | 0.085 | 3 | 310 |
| 16" | 0.125 | 4 | 320 |
| 18" | 0.130 | 4 | 350 |
| 20" | 0.145 | 4 | 385 |
| 24" | 0.180 | 5 | 440 |
| 30" | 0.230 | 5 | 485 |
| 36" | 0.275 | 6 | 580 |
JD60 / ZX60 | 12,000–14,000 lbs
| Width | Capacity (yd³) | Teeth | Weight (lbs) |
|---|---|---|---|
| 12" | 0.100 | 3 | 315 |
| 16" | 0.140 | 4 | 325 |
| 18" | 0.155 | 4 | 355 |
| 20" | 0.160 | 4 | 390 |
| 24" | 0.200 | 5 | 445 |
| 30" | 0.255 | 5 | 490 |
| 36" | 0.300 | 6 | 585 |
JD60 / ZX60 | High Capacity Buckets
| Width | Capacity (yd³) | Teeth | Weight (lbs) |
|---|---|---|---|
| 12" | 0.150 | 3 | 350 |
| 16" | 0.180 | 4 | 365 |
| 18" | 0.210 | 4 | 375 |
| 20" | 0.235 | 4 | 410 |
| 24" | 0.290 | 5 | 470 |
| 30" | 0.370 | 5 | 540 |
| 36" | 0.450 | 6 | 635 |
| Weight Class | Hitachi Model | Bucket Specs Match |
|---|---|---|
| 2,500–4,000 lbs | EX15, ZX15, ZX17 | JD17 Series |
| 4,000–8,000 lbs | EX27, EX30, EX35, ZX26, ZX30, ZX35 | JD27 / JD35 Series |
| 10,000–12,000 lbs | EX50, ZX50 | JD50 Series |
| 12,000–14,000 lbs | ZX60 | JD60 Series & High-Cap |
