Product Description
TAG Log & Lumber Forks Class 200 | Carriage Width 80" | 48" & 60" Tine Length | Machine Size 10-15 Tons | For Wheel Loaders
DESCRIPTION

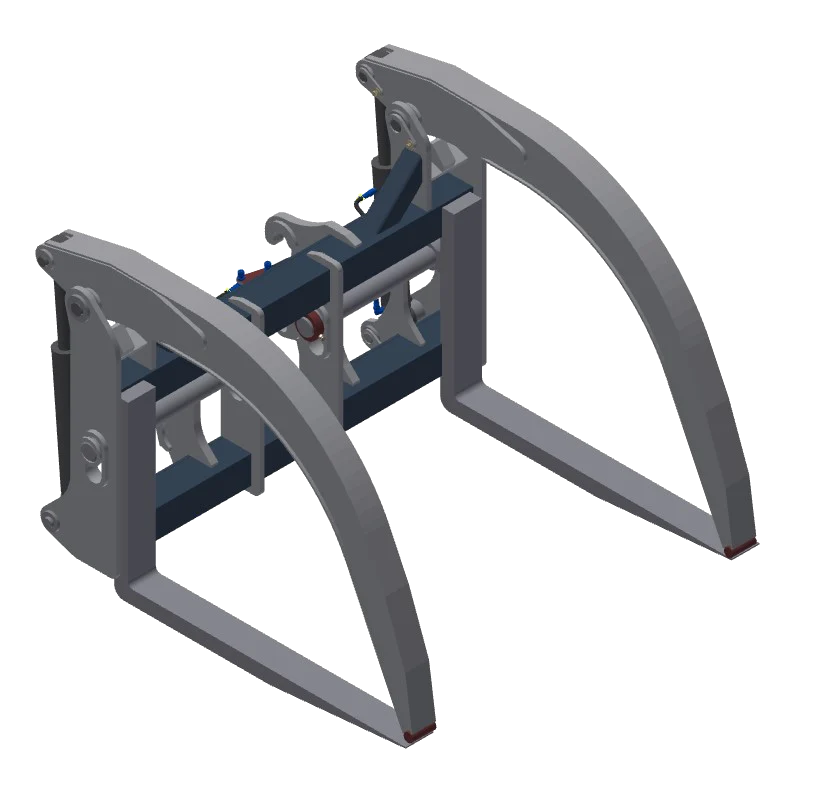

TAG’s Log & Lumber Forks with Dual Top Clamps for Class 200 loaders bring secure, compact performance to forestry, mill yard, and lumber yard operations. Designed for 9–14 ton wheel loaders, this attachment adds twin independent top clamps to TAG’s standard lumber fork system—maximizing grip on uneven bundles and loose wood products during transport and staging.
Fabricated from high-strength steel, each unit features boxed carriage construction, full gusseted sides, split collar lock collars, and rod-mounted tines. Optional 5.00" oscillating rods and single-piece tall back stops are available for added adaptability and containment. Requires third-function hydraulics for clamp actuation.
Key Features
- Dual Independent Top Clamps Clamp arms operate independently for secure holding of mixed or uneven lumber loads.
- Heavy-Duty Boxed Carriage Structure With full-length gussets and steel side plates for structural integrity.
- Rod-Mounted Tines with Split Collar Locks Prevent rod damage during tine repositioning—improves longevity.

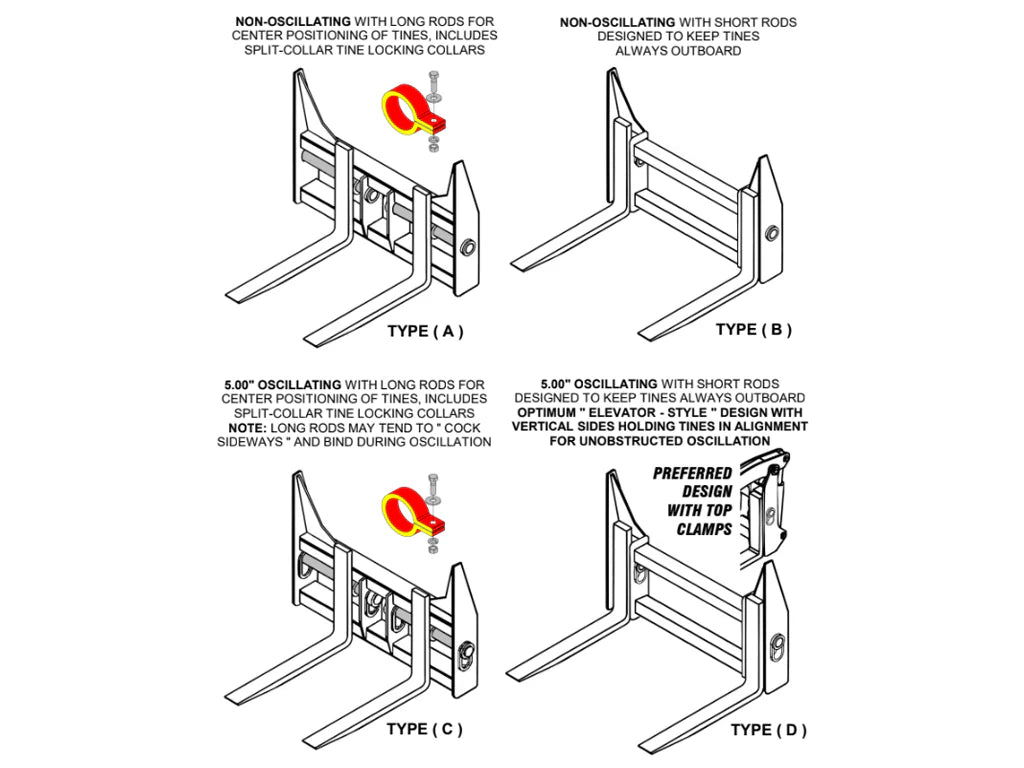

- Optional 5.00" Oscillating Rod Setup Increases performance over rough terrain and irregular stacking conditions.
- Cross-Over Relief Valve System Protects hydraulic cylinders from overpressure—supports safe, repeat operation.
- Clamp Plates & Skins Built from single-piece high-strength steel—ideal for high-load clamping applications.
- Mounting Versatility Available in Pin-On and Quick Coupler formats to match fleet configurations.
-
Third Function Hydraulics Required Ensures full control and independent operation of both clamps.
Detailed Specifications
| SKU # | Carriage Width | Tine Size |
|---|---|---|
| P200DTC8048 | 80" | 2.5" x 6" x 48" |
| P200DTC8060 | 80" | 2.5" x 6" x 60" |
| QC200DTC8048 | 80" | 2.5" x 6" x 48" |
| QC200DTC8060 | 80" | 2.5" x 6" x 60" |
