TAG Log & Lumber Forks | Pin-On & Quick Coupler | Dual Top Clamps Class 500 | 48"–84" Tines | 33,250 lbs Capacity | 28,000–45,000 lbs | For Wheel Loaders
DESCRIPTION
The TAG Class 500 Log & Lumber Forks are engineered for heavy-duty wheel loaders in the 28,000–45,000 lb operating weight class, commonly used in timber yards and industrial applications. These forks combine TAG’s proven strength with the added versatility of dual independent hydraulic clamps, which provide reliable log stabilization and secure handling over varying material loads.
Equipped with rod-mounted forged tines, a heavy-duty gusseted carriage, and available in both pin-on and quick coupler setups, this system supports high-efficiency operations. The integrated split collar lock system allows easy repositioning of the tines without damaging rods. All units require third-function hydraulics to control the top clamps.
Key Features
- Machine Compatibility: Fits wheel loaders from 28,000–45,000 lbs operating weight.
- Fork Classification: Class 500 system for high-capacity industrial loading.
- Mount Types: Pin-On standard OEM style, Quick Coupler-ready for fast attachment changes.
- Clamp Design: Dual top-mounted hydraulic clamps for superior log retention.
- Tine Specs: 3" x 7" cross-section; lengths from 48" to 84".
- Carriage Width: Standard 80" wide gusseted frame.

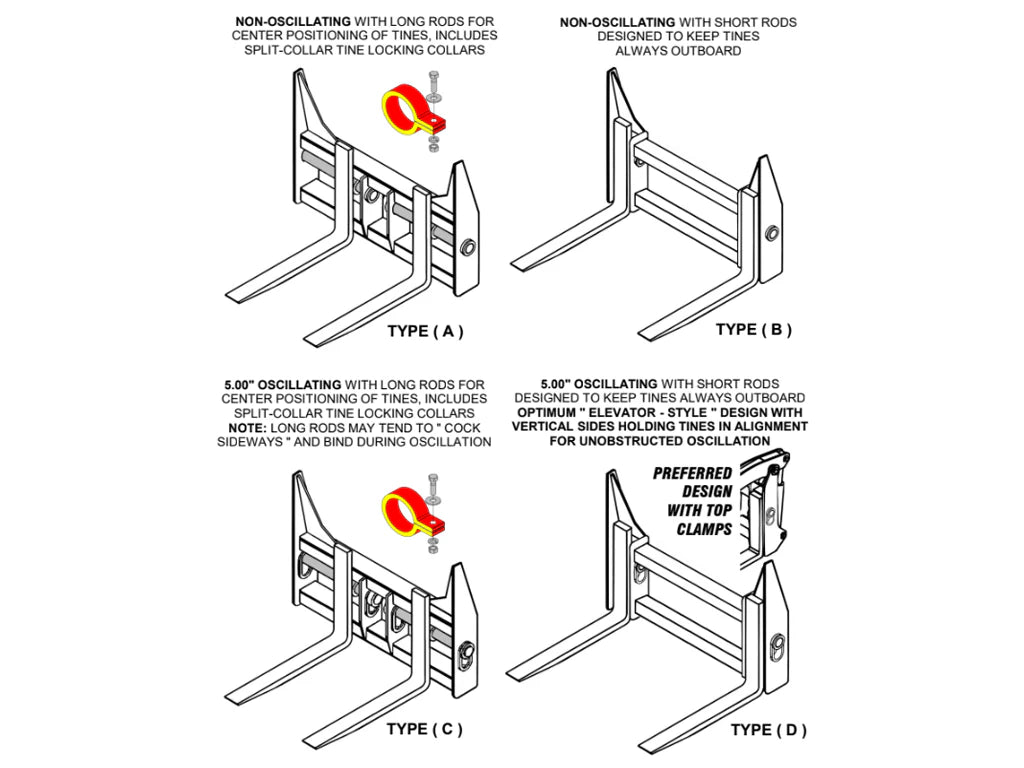

- Adjustment System: Split collar locks for flexible tine placement.
- Capacity: Rated 33,250 lbs @ 24" load center.
-
Hydraulics Required: 3rd function hydraulic circuit for clamp actuation.
Detailed Specifications
Pin-On Forks
| SKU # | Tine Size (in) | Tine Range (in) | Carriage Width (in) | Capacity (lbs) | Weight (lbs) |
|---|---|---|---|---|---|
| P5300DTC8048 | 3 x 7 x 48 | 38–72 | 80 | 33,250 | 2,825 |
| P500DTC8060 | 3 x 7 x 60 | 38–72 | 80 | 33,250 | 2,970 |
| P500DTC8072 | 3 x 7 x 72 | 38–72 | 80 | 33,250 | 3,120 |
| P500DTC8084 | 3 x 7 x 84 | 38–72 | 80 | 33,250 | 3,270 |
Quick Coupler Forks
| SKU # | Tine Size (in) | Tine Range (in) | Carriage Width (in) | Capacity (lbs) | Weight (lbs) |
|---|---|---|---|---|---|
| QC500DTC8048 | 3 x 7 x 48 | 38–72 | 80 | 33,250 | 2,825 |
| QC500DTC8060 | 3 x 7 x 60 | 38–72 | 80 | 33,250 | 2,970 |
| QC500DTC8072 | 3 x 7 x 72 | 38–72 | 80 | 33,250 | 3,120 |
| QC500DTC8084 | 3 x 7 x 84 | 38–72 | 80 | 33,250 | 3,270 |
