TAG Power Tilt Coupler | Heavy Duty 180° Rotating Interface | Parker/Helac Actuator | 2–60 Ton | For Excavators
TAG Power Tilt Coupler | Heavy Duty 180° Rotating Interface | Parker/Helac Actuator | 2–60 Ton | For Excavators
Regular price
$7,800.00
Regular price
Sale price
$7,800.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
TAG Power Tilt Coupler | Heavy Duty 180° Rotating Interface | Parker/Helac Actuator | 2–60 Ton | For Excavators
DESCRIPTION
The TAG PowerTilt Coupler Series delivers advanced attachment rotation capabilities for excavators from 4,000 to 120,000 lbs (2–60 ton class). Manufactured using Parker/Helac next-generation rotary actuators, these couplers enable up to 180° tilt functionality for buckets, rakes, grapples, and more.
Whether configured as a mechanical half hitch, hydraulic multi-lock pin grabber, or integrated with TAG Quick Coupler, Kubota Wedge, or Deere Wedge lock systems, PowerTilt offers unmatched flexibility, compatibility, and performance. Built with robust steel casings and precision machined interfaces, each model handles rugged work environments while reducing operator repositioning time.
Key Features
- Excavator Compatibility: Fits machines from 4,000 to 120,000 lbs (2–60 ton class).
- Tilt Mechanism: Built with Parker/Helac rotary actuators for smooth 180° rotation.

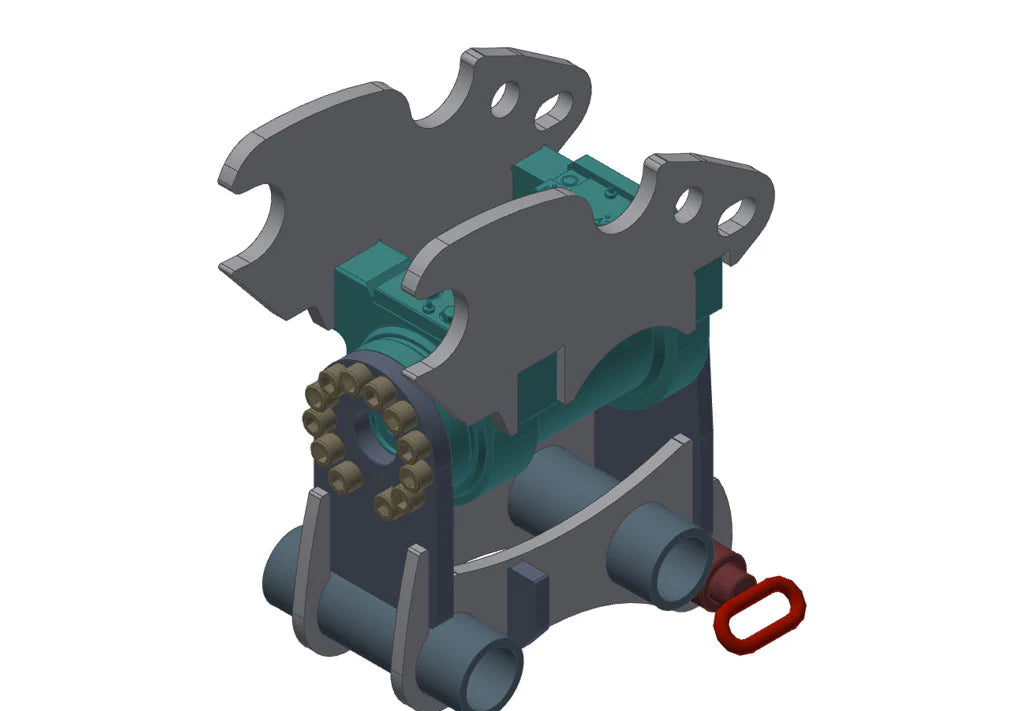

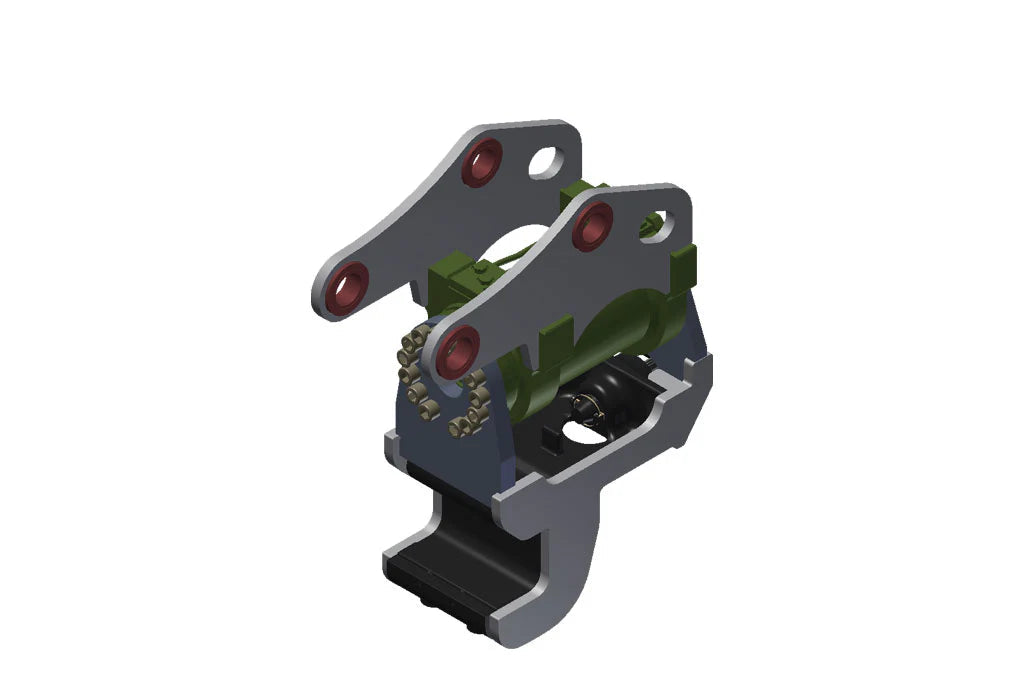

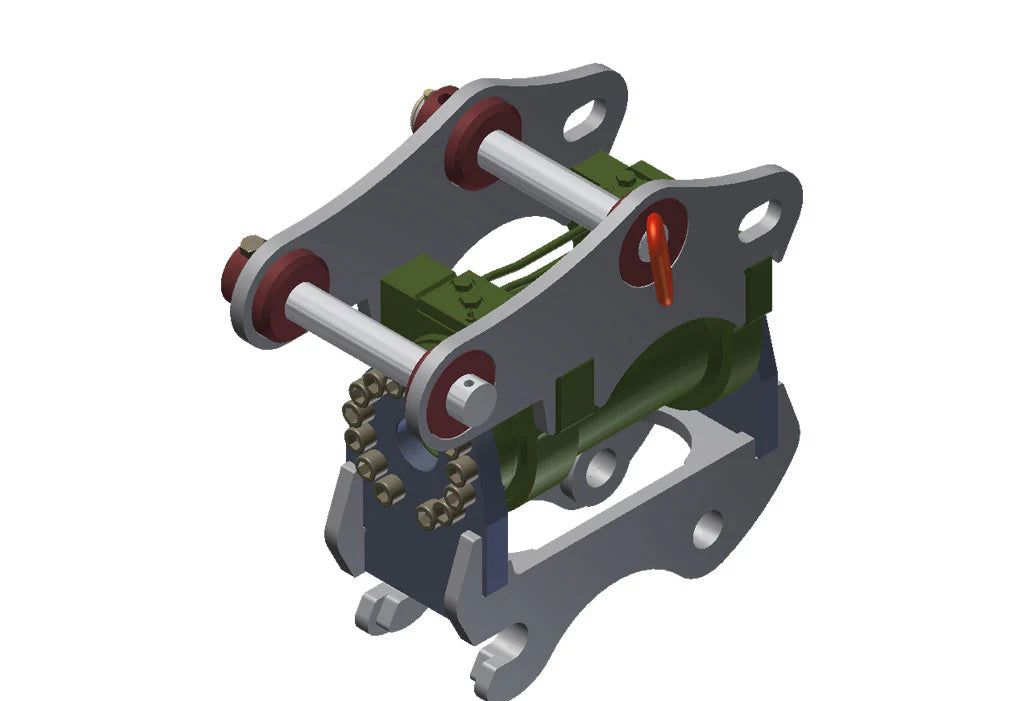

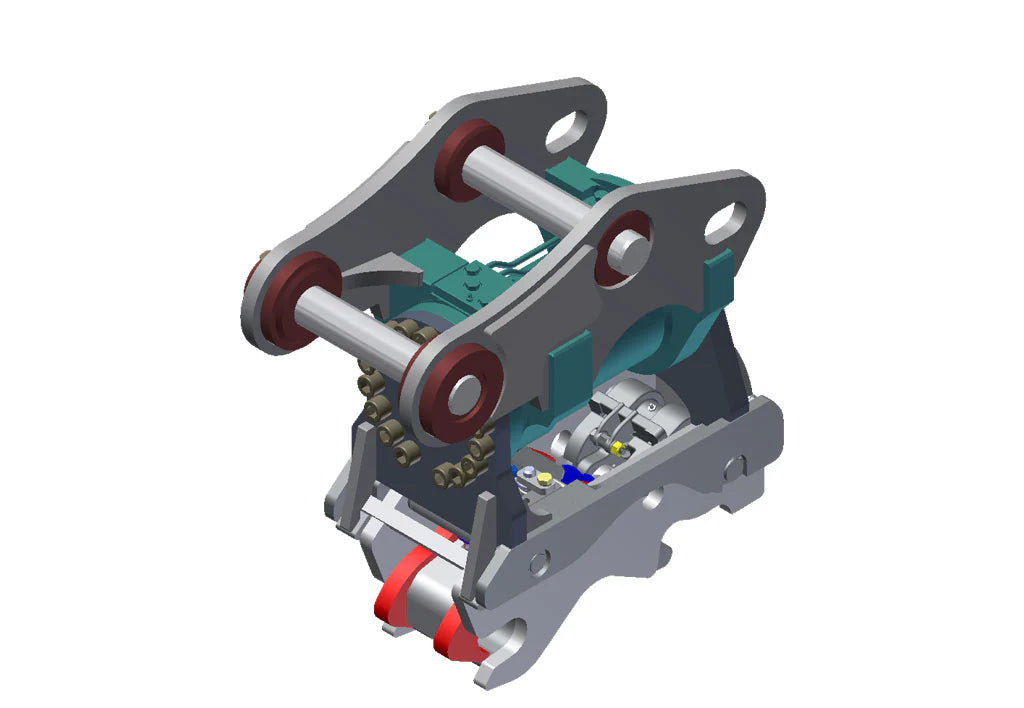

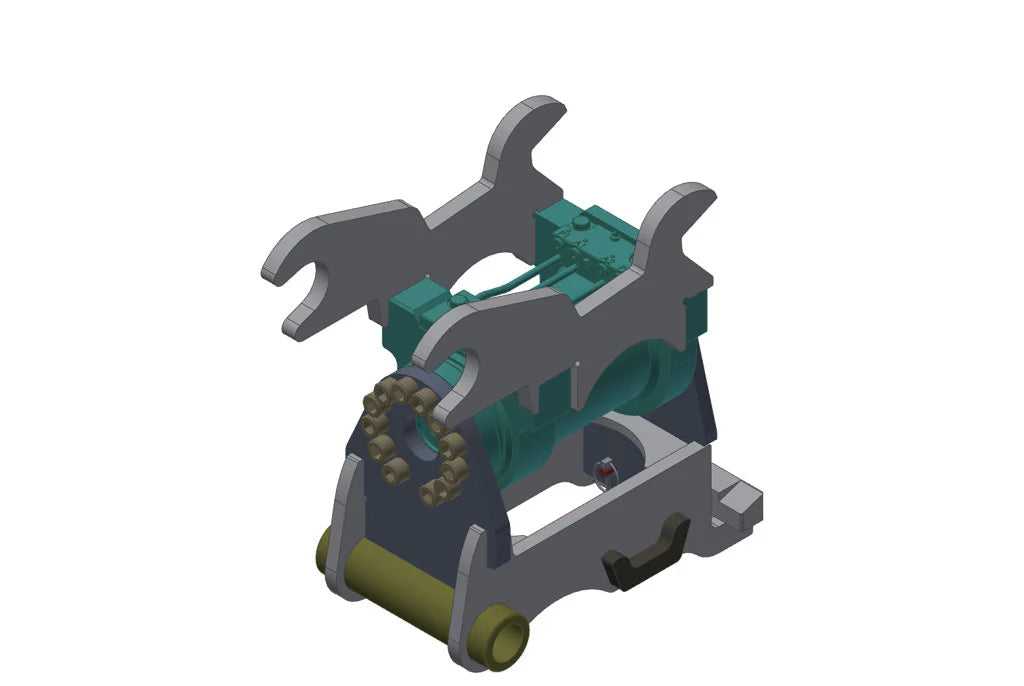

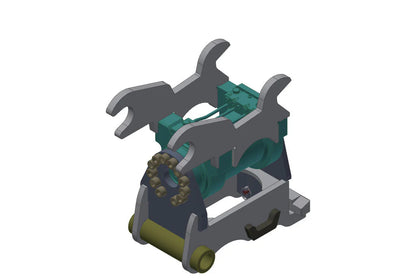

- Mounting Styles Available: Mechanical Half Hitch: Pin-on direct setup with locking pin, Quick Hitch Adjust-A-Hook: TAG quick coupler interface, Deere Wedge Lock: OEM wedge style mounting, Kubota Wedge Coupler: Kubota USA coupler spec, Hydraulic Multi-Lock: Hydraulic pin grabber with dead pin and locking system.
- Hydraulic Integration: Hydraulic variants require auxiliary hydraulic circuit
- Versatility: Converts static attachments into tilting solutions without machine repositioning.
- Durability: Reinforced housings, high-load actuator components, and corrosion-resistant finish.
-
Application Use: Ideal for grading, trenching, ditch shaping, slope forming, and finish work.
Detailed Specifications
| Machine Size (lbs) | Class | Model # | Style | Weight (lbs) |
|---|---|---|---|---|
| 4,000–8,000 | 05 | PTA-050-180 | Mechanical Half Hitch | 185 |
| 4,000–8,000 | 05 | PTA-050-QC27 | Adjust-A-Hook Quick Hitch | 185 |
| 4,000–8,000 | 05 | PTA-050-DW05 | Deere Wedge Lock | 185 |
| 4,000–8,000 | 05 | PTA-050-KQ05 | Kubota Coupler | 185 |
| 4,000–8,000 | 05 | PTA-050-ML05 | Hydraulic Multi Lock | 300 |
| 8,000–14,000 | 25/45 | PTA-070-HH25 | Mechanical Half Hitch | 325 |
| 8,000–14,000 | 25/45 | PTA-070-QC28/29 | Adjust-A-Hook Quick Hitch | 325 |
| 8,000–14,000 | 25/45 | PTA-070-DW25 | Deere Wedge Lock | 325 |
| 8,000–14,000 | 25/45 | PTA-070-KQ25 | Kubota Coupler | 325 |
| 8,000–14,000 | 25/45 | PTA-070-ML25 | Hydraulic Multi Lock | 500 |
| 14,000–20,000 | 49/55 | PTA-100-HH49 | Mechanical Half Hitch | 450 |
| 14,000–20,000 | 49/55 | PTA-100-QC30 | Adjust-A-Hook Quick Hitch | 450 |
| 14,000–20,000 | 49/55 | PTA-100-KQ49 | Kubota Coupler | 450 |
| 14,000–20,000 | 49/55 | PTA-100-ML49 | Hydraulic Multi Lock | 700 |
| 20,000–33,000 | 120 | PTA-180-HH120 | Mechanical Half Hitch | 700 |
| 20,000–33,000 | 120 | PTA-180-QC33/35 | Adjust-A-Hook Quick Hitch | 725 |
| 20,000–33,000 | 120 | PTA-180-ML120 | Hydraulic Multi Lock | 950 |
| 33,000–40,000 | 150 | PTA-180-HH150 | Mechanical Half Hitch | 1000 |
| 33,000–40,000 | 150 | PTA-180-QC38 | Adjust-A-Hook Quick Hitch | 925 |
| 33,000–40,000 | 150 | PTA-180-ML150 | Hydraulic Multi Lock | 1200 |
| 40,000–45,000 | 200 | PTA-240-HH200 | Mechanical Half Hitch | 1200 |
| 40,000–45,000 | 200 | PTA-240-QC40 | Adjust-A-Hook Quick Hitch | 975 |
| 40,000–45,000 | 200 | PTA-240-ML200 | Hydraulic Multi Lock | 1600 |
| 45,000–60,000 | 230 | PTA-300-HH230 | Mechanical Half Hitch | 1500 |
| 45,000–60,000 | 230 | PTA-300-ML230 | Hydraulic Multi Lock | 1900 |
| 68,000–80,000 | 330 | PTA-465-HH330 | Mechanical Half Hitch | 2100 |
| 68,000–80,000 | 330 | PTA-465-ML330 | Hydraulic Multi Lock | 2425 |
| 80,000–120,000 | 450 | PTA-465-HH450 | Mechanical Half Hitch | 2525 |
| 80,000–120,000 | 450 | PTA-465-ML450 | Hydraulic Multi Lock | 2830 |
