TAG Rock Bucket | Severe Duty High-Capacity | 2½" To 3" Lip | 42" To 100" Width | Bucket Weight 7,825 To 18,295 lbs | 65 To 80 Ton | For Excavators
TAG Rock Bucket | Severe Duty High-Capacity | 2½" To 3" Lip | 42" To 100" Width | Bucket Weight 7,825 To 18,295 lbs | 65 To 80 Ton | For Excavators
Regular price
$30,810.00
Regular price
Sale price
$30,810.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description

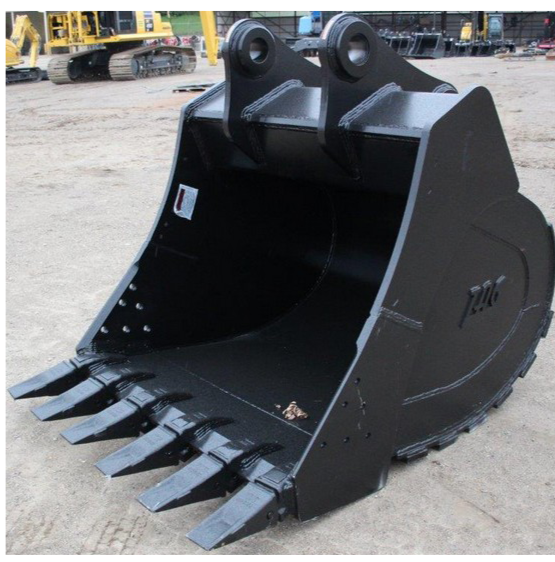

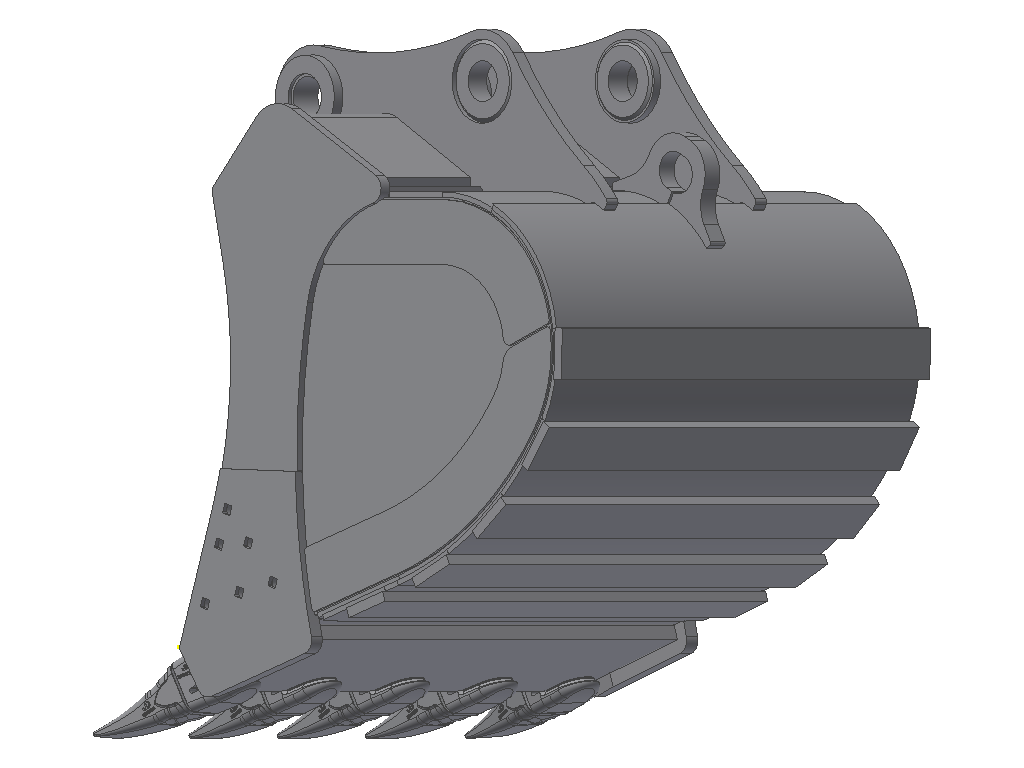

TAG Rock Bucket | Severe Duty High-Capacity | 2½" To 3" Lip | 42" To 100" Width | Bucket Weight 7,825 To 18,295 lbs | 65 To 80 Ton | For Excavators
DESCRIPTION
The TAG Severe Duty High-Capacity Rock Bucket Series is engineered for maximum performance in the most demanding excavation environments. Designed for excavators weighing 140,000–160,000 lbs (65–80 tons), these buckets combine brute strength with precision engineering to deliver faster loading cycles, greater yardage per pass, and reduced wear and failure rates.
Built on TAG’s proven heavy-duty platform, these buckets feature larger triangle gussets, full-width replaceable transverse wear strips, extended bucket ears, and full side wear plates. Available with either a 2½" or 3" cutting lip, each model is optimized for high-impact rock excavation, quarrying, and severe-duty earthmoving.
Key Features
- Excavator Compatibility: Designed for 65–80 ton machines (140,000–160,000 lbs)
- 2½" or 3" Cutting Lip: Choose your edge thickness for optimal durability and penetration
- Larger Triangle Gussets: Reinforce high-stress zones for added structural integrity
- Full Side Wear Plates: Protect bucket walls from abrasion and impact
- Transverse Wear Strips: Replaceable full-width strips extend bucket life
- Extended Bucket Ears: Improve mounting strength and reduce stress points
- Tooth Configuration: Available with 4–8 teeth depending on width and lip size
- Mounting Style: Pin-on OEM configuration; compatible with couplers (pin kit may be required)
-
Application Use: Ideal for rock excavation, demolition, quarrying, and severe-duty digging
Detailed Specifications
| Specification | 42700X3 | 48700X3 |
|---|---|---|
| Width | 42" | 48" |
| Capacity (yd³) | 3.45 | 3.84 |
| No. Teeth (2½") | 4 | 4 |
| No. Teeth (3") | 4 | 4 |
| Weight (2½") | 7,825 lbs (3.91 tons) | 8,755 lbs (4.38 tons) |
| Weight (3") | 7,940 lbs (3.97 tons) | 8,885 lbs (4.44 tons) |
| Specification | 54700X3 | 60700X3 |
|---|---|---|
| Width | 54" | 60" |
| Capacity (yd³) | 4.37 | 4.95 |
| No. Teeth (2½") | 5 | 5 |
| No. Teeth (3") | 4 | 5 |
| Weight (2½") | 9,690 lbs (4.85 tons) | 10,725 lbs (5.36 tons) |
| Weight (3") | 9,835 lbs (4.92 tons) | 10,885 lbs (5.44 tons) |
| Specification | 66700X3 | 72700X3 |
|---|---|---|
| Width | 66" | 72" |
| Capacity (yd³) | 5.48 | 6.02 |
| No. Teeth (2½") | 5 | 6 |
| No. Teeth (3") | 5 | 5 |
| Weight (2½") | 11,780 lbs (5.89 tons) | 12,835 lbs (6.42 tons) |
| Weight (3") | 11,955 lbs (5.98 tons) | 13,025 lbs (6.51 tons) |
| Specification | 78700X3 | 84700X3 |
|---|---|---|
| Width | 78" | 84" |
| Capacity (yd³) | 6.62 | 7.16 |
| No. Teeth (2½") | 6 | 7 |
| No. Teeth (3") | 6 | 6 |
| Weight (2½") | 13,870 lbs (6.94 tons) | 14,905 lbs (7.45 tons) |
| Weight (3") | 14,075 lbs (7.04 tons) | 15,130 lbs (7.57 tons) |
| Specification | 90700X3 | 96700X3 |
|---|---|---|
| Width | 90" | 96" |
| Capacity (yd³) | 7.70 | 8.24 |
| No. Teeth (2½") | 7 | 8 |
| No. Teeth (3") | 7 | 8 |
| Weight (2½") | 15,940 lbs (7.97 tons) | 16,975 lbs (8.49 tons) |
| Weight (3") | 16,185 lbs (8.09 tons) | 17,240 lbs (8.62 tons) |
| Specification | 100700X3 |
|---|---|
| Width | 100" |
| Capacity (yd³) | 8.78 |
| No. Teeth (2½") | 8 |
| No. Teeth (3") | 8 |
| Weight (2½") | 18,010 lbs (9.01 tons) |
| Weight (3") | 18,295 lbs (9.15 tons) |
Host Machine Compatibility
| BRAND | MODELS |
|---|---|
| CASE | CX800, CX800 MASS EX |
| CAT | 375, 385BL, 385CL, |
|
DEERE |
670G, 650D, 850D |
| HITACHI | ZX670, ZX650-3, ZX850-3, ZX800LC, EX700 |
|
KOBELCO |
SK600 |
| KOMATSU | PC800-8, PC750 |
| LINK BELT | 800LX |
| VOLVO | EC700B |
Mountings
| STYLE | PHOTO |
|---|---|
| Pin On - OEM mounting style, (2) horizontal pinstypically a pin kit is added if using coupler |  |
