Tanco Round Bale Wrapper | Model D66-S100-A | Width 4' 6" | 30-60 GPM | 40-60 HP | For Skid Steer, Tractor & Loaders
Tanco Round Bale Wrapper | Model D66-S100-A | Width 4' 6" | 30-60 GPM | 40-60 HP | For Skid Steer, Tractor & Loaders
Regular price
$30,340.00
Regular price
Sale price
$30,340.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Tanco Round Bale Wrapper | Model D66-S100-A | Width 4' 6" | 30-60 GPM | 40-60 HP | For Skid Steer, Tractor & Loaders
DESCRIPTION

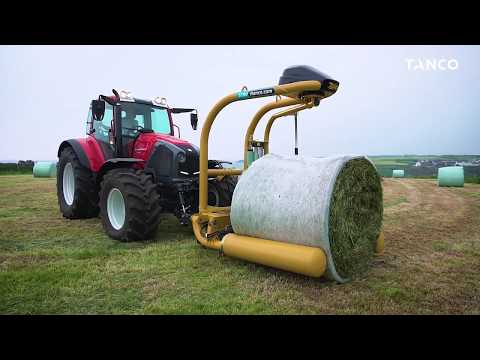

The Tanco D66-S100-ACode S Series Round Bale Wrapper combines cutting-edge technology with high performance to meet the needs of farmers and agricultural professionals. Featuring automatic operation with optional Auto-Load, it wraps up to 80 bales per hour with variable speed control for consistent results. Whether you’re wrapping or stacking, this machine is designed to minimize bale movement and reduce handling damage. The compact, lightweight design just 1,587 lbs makes it easy to use on all terrains, including mountainous conditions. With patented features like the telescopic Cut & Start system and multiple wrap arm configurations, the D66-S100-ACode sets the standard in efficiency and versatility. Save time, reduce labor, and improve your bale preservation with this advanced, reliable round bale wrapper.
Key Features
- Compact & Lightweight Design: Weighing only 1,587 lbs, ideal for mountainous and rough terrains.
- Fast Bale Wrapping: Wraps up to 80 bales per hour, improving productivity on your farm.
- Minimized Bale Movement: Patented wrap arms rotate around the bale, reducing bale handling and risk of damage.
- Wrap & Stack Efficiency: Wraps and stacks bales in one process, minimizing handling time and costs.
- Telescopic Cut & Start System: Reliable and efficient cutting system, ensuring a smooth wrapping experience.
- Variable Speed Hydraulics: Adjust wrap arm speed for smoother, more consistent operation and reduced vibrations.
- Flexibility with Wrap Arms: Single, twin, or triple wrap arms for tailored output to meet your operational needs.
- End-Tip Kit Option: Prevents bales from rolling and ensures plastic coverage on the flat end for better preservation.
- Durable Construction: Built with high-quality materials, designed for long-lasting use in tough agricultural environments.
- Remote Control Option: Operate the wrapper from a distance for added convenience and flexibility.
- Pre-Stretch Options: Choose from one, two, or three pre-stretchers for more efficient film usage.
- RDS Expert Plus Controller: User-friendly controller for easy machine adjustments and settings.
- Multiple Oil Flow Options: Compatible with a wide range of hydraulics for different machines.
- Automatic Hydraulic Cut & Start: Cut and hold the film for a precise wrapping process with minimal risk of failure.
- Minimal Film Waste: Efficient film dispensers with built-in stretch options (55% & 70%) to reduce material costs.
Detailed Specifications
| Feature | Tanco D66-S100-ACode |
|---|---|
| Weight | 1,587 lbs (720 kg) |
| Transport Length | 7' 5" (2.30 m) |
| Transport Width | 4' 6" (1.40 m) |
| Height in Transport | 7' 8" (2.40 m) |
| Bale Width | 4' 1" (1.25 m) |
| Bale Diameter | Min 39" (1.00 m) - Max 59" (1.50 m) |
| Max Bale Weight | 2,645 lbs (1,200 kg) |
| Min. Oil Consumption | 8 GPM (30 l/min) |
| Max. Oil Consumption | 16 GPM (60 l/min) |
| Min. Oil Pressure | 2,600 PSI (180 bar) |
| Free Flow Return Required | Yes |
| Load Sensing Option | No |
| Horsepower | 40-60 HP |
| Hydraulic Flow | 30-60 GPM |
| Hydraulic Controls | Programmable Computer Controls |
| Remote Control Option | Yes |
| Pre-Stretch Options | 1 Pre-Stretcher 30” (750 mm) |
