Product Description
Tanco Round Bale Wrapper | Model D66-S200-V | Width 4' 6" | 30-60 GPM | 40-60 HP | For Skid Steer, Tractor & Loaders
DESCRIPTION
The Tanco Round Bale Wrapper Model D66-S200-V is a versatile, high-performance solution designed for farmers who need efficient, reliable, and fast bale wrapping. Built with innovation and precision, this S Series Autowrap features a variable speed control, automatic hydraulic cut-and-start, and the flexibility to wrap up to 80 bales per hour. Perfect for tractors, skid steers, and loaders, this system ensures minimal bale movement with its unique satellite wrap arms that rotate around the bale. Whether you're in a mountainous field or a flat yard, the Tanco D66-S200-V works efficiently across all terrains, saving time, labor, and reducing bale damage.
The compact and lightweight S Series is engineered to reduce handling and increase productivity, offering easy bale stacking and wrapping with minimal effort. With its patented telescopic Cut & Start and dual stretch options, the D66-S200-V guarantees superior performance and reliability.
Key Features
- High-Speed Wrapping: Wraps up to 80 bales per hour, maximizing efficiency for larger operations.
- Variable Speed Control: Adjusts wrap arm speed for smooth, consistent wrapping, extending machine life.
- Compact & Lightweight: Weighs just 1,587 lbs, ideal for all terrains, even in mountainous conditions.
- Wrap & Stack Simultaneously: Reduces labor by wrapping and stacking bales in one operation.
- Flexible Bale Handling: End-Tip kit ensures flat bale placement, preventing damage and reducing rolling.

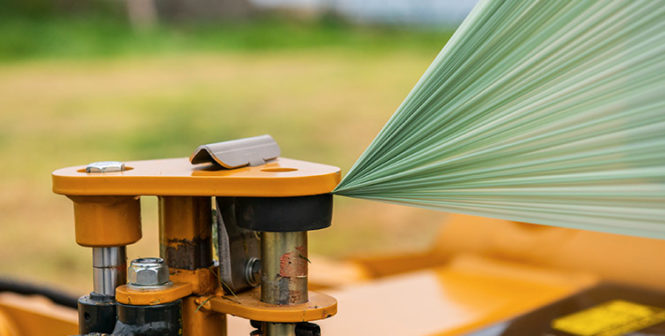

- Automatic Hydraulics: Cut & Start system automatically cuts and holds film for easy operation.
- Durable Construction: Designed with aluminum dispensers for long-lasting use.
- Film Break Sensors: Prevents downtime by detecting film breakage.
- Patented Wrap Arms: Unfolding and folding system reduces machine size without sacrificing performance.
- Versatile Design: Compatible with various machines, including skid steers, tractors, and loaders.
- Optimal Bale Protection: Minimizes bale damage by reducing movement during wrapping.
- Proportional Hydraulics: Provides variable control over wrap arm speed for smoother operation.
- Optional Radio Remote: Enhances user control for seamless operation in the field.
- Dual Stretch Options: The dispenser offers 55% and **70% stretch for efficient film use.

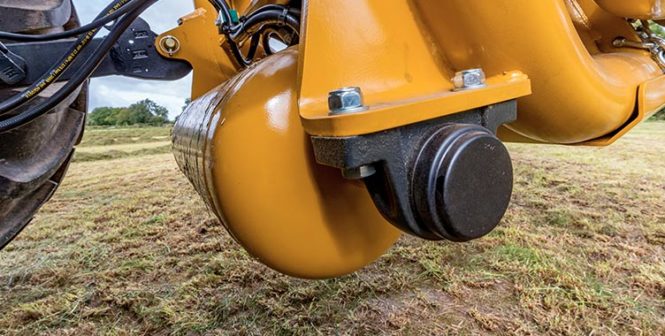

- Heavy-Duty Rollers: Individually driven pick-up rollers provide reliable performance.
Detailed Specifications
| Feature | S200 |
|---|---|
| Transport Length | 7' 5" (2.30 m) |
| Transport Width | 4' 6" (1.40 m) |
| Transport Height | 7' 8" (2.40 m) |
| Weight | 1,918 lbs (870 kg) |
| Bale Dimensions (Width x Diameter) | 1.25 x (1.00 - 1.50 m) |
| Max. Bale Weight | 2,645 lbs (1,200 kg) |
| Min. Oil Consumption | 8 GPM (30 l/min) |
| Max. Oil Consumption | 16 GPM (60 l/min) |
| Horsepower | 40-60 HP |
| Hydraulic Flow | 30-60 GPM |
| Min. Oil Pressure | 2,600 PSI (180 bar) |
| Free Flow Return Required | Yes |
| Load Sensing Option | Yes |
| Pre-Stretcher Options | 2 Pre-Stretchers (750 mm) |
| Optional Remote Control | Yes |
Manuals & Documents
Product Brochure
Product Manual
