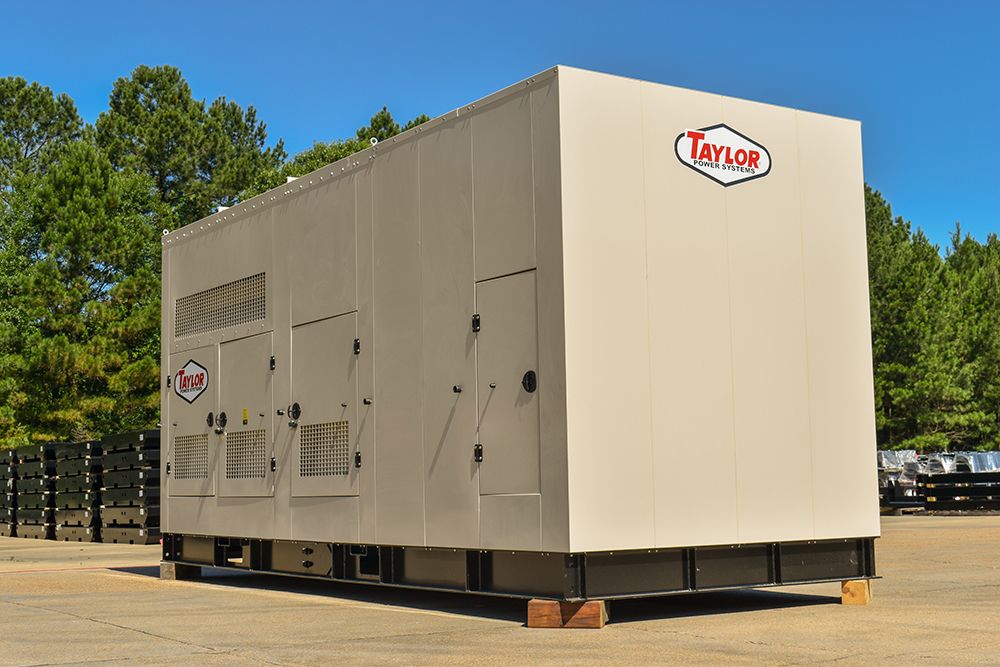

The Taylor TD1600 Standby Diesel Generator is a powerhouse solution designed for reliable emergency power. With a robust Mitsubishi S16R-Y2PTAW-1 V-16 Turbocharged engine, this generator delivers an impressive 1600kW output, ensuring performance in the most demanding environments. Certified to UL2200 standards, it is built to cater to diverse applications with optional configurations to meet specific requirements.
Taylor Power System Standby-Diesel Generators | Model TD-1600 | Horsepower 2279 HP | Power Output 1600kW (2000kVA) | Open & Enclosed Unit
Taylor Power System Standby-Diesel Generators | Model TD-1600 | Horsepower 2279 HP | Power Output 1600kW (2000kVA) | Open & Enclosed Unit
Regular price
$1.00
Regular price
Sale price
$1.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
How To Request A Quote
***Online pricing not available, Please request a quote:***
How To Get A Quote:
Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Product Description
Taylor Power System Standby-Diesel Generators | Model TD-1600 | Horsepower 2279 HP | Power Output 1600kW (2000kVA) | Open & Enclosed Unit
DESCRIPTION
Key Features
- Engine: Mitsubishi S16R-Y2PTAW-1, 65.37L Turbocharged V-16, EPA Tier 2 Certified
- Horsepower: A formidable 2279 HP at 1800 RPM
- Output Power Options: Flexible voltage configurations up to 2000kVA
- Construction: Heavy-duty steel base with vibration isolators
- Fuel Efficiency: Optimized for low-sulfur diesel with Mitsubishi PS8 fuel injection
- Cooling System: High ambient unit-mounted radiator with significant coolant capacity
- Durability: Factory powder coating and rigorous factory testing
- Ease of Maintenance: Oil drain valve with extension, battery rack, and cables
- Emission Compliance: EPA Certified for stationary emergency use
- Sound Level: Operates at 112 dBA at 3.2 ft (1M)
- Safety Features: Comprehensive protection including under-frequency, over-voltage, and over-excitation
| Control Panels | Feature | Description |
 |
DeepSea 7310 MKII | Simultaneous Use of RS232 & RS485, Modbus RTU Support, Fully Configurable Using USB, RS232 &RS485, IP65 Rating 6 Programmable Inputs & 8 Outputs UL & cUL Listed and CE Certified |
 |
Basler DGC2020 | SAE J1939 Engine ECU, Communications, 4 Programmable Inputs & 10 Outputs Modbus Communications With RS485 UL Recognized, CSA & CE Certified IP 54 Front Panel Rating NFPA 110 Level 1 Compatible Manual Override Keyswitch DGC2020HD Variant Available |
 |
Taylor Analog | Automatic CANBUS Engine Control Gauge Zeroing on Shutdown Auto-Off-Manual Control Switch Oil Pressure, Water Temperature, Battery Voltage and RPM Gauges AC Voltage, Frequency, Percent of Load, and Run-Time Metering LED Status Lights |
Detailed Specifications
| Category | Details |
|---|---|
| Engine Make | Mitsubishi S16R-Y2PTAW-1 |
| Engine Type | 65.37L Turbocharged V-16, Tier 2 |
| Fuel Type | Diesel |
| Horsepower | 2279 HP @ 1800 RPM |
| Output Ratings | 1600kW/2000kVA |
| Cooling Capacity | 44.9 gal (170.0 L) |
| Compression Ratio | 14.5:1 |
| Fuel Consumption | 128.7 gal/hr (487 L/hr) at 100% load |
| Alternator Type | Marathon PMG with hybrid analog/digital voltage regulator |
| Voltage Regulation | ±0.25% |
| Temperature Rise | 125°C Standby |
| Heat Rejection | To coolant: 636 kW (36,167 BTUM) |
| Sound Level | 112 dBA @ 3.2 ft |
 |
Open Unit | Overall Size: 204”L x 88”W x 105”H Approximate Weight: 26,800 lbs. |
 |
Standard Enclosed Unit | N/A |
