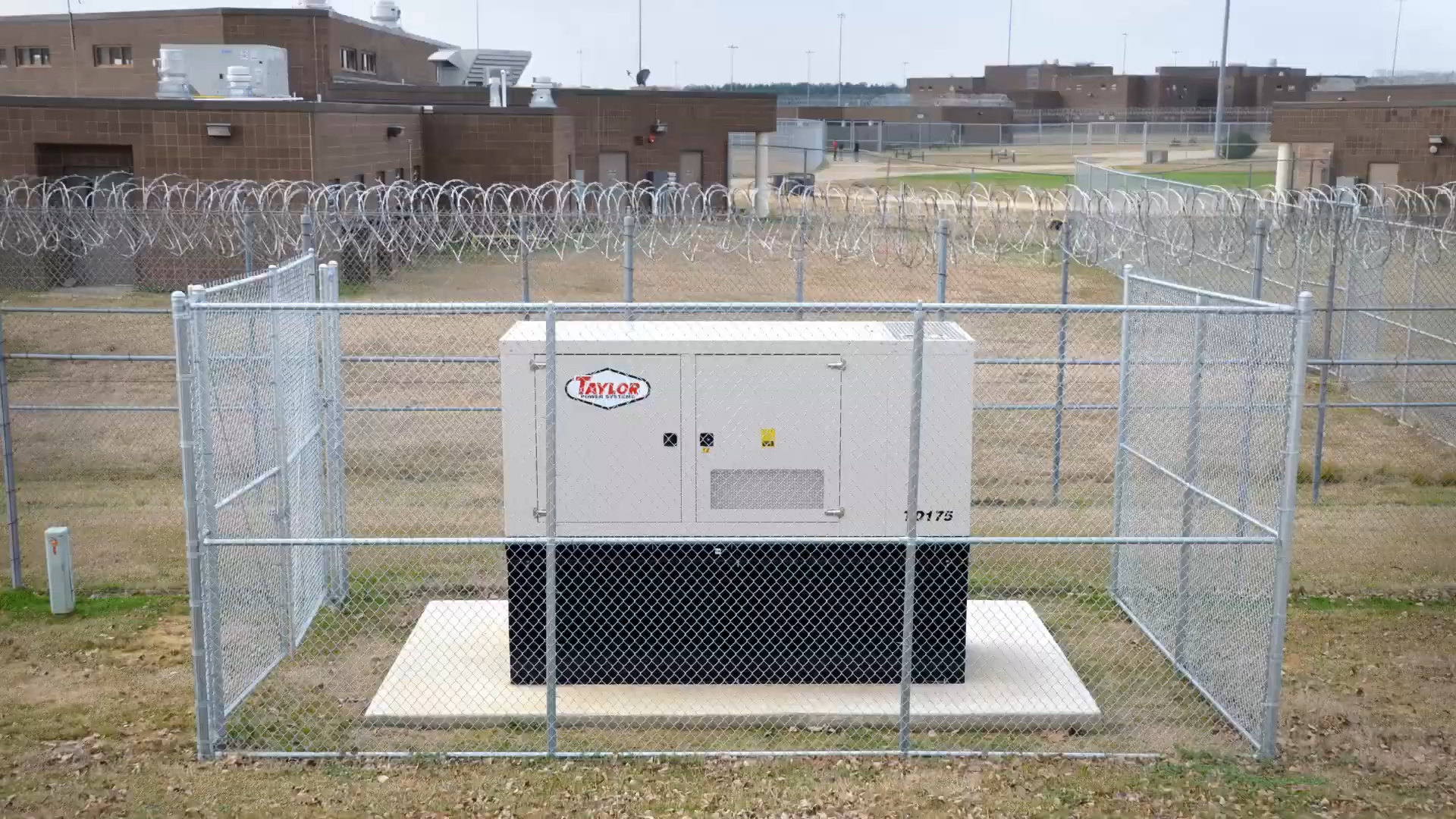

The TD175 is an EPA-certified stationary emergency generator designed to deliver reliable power even in the most demanding conditions. With its robust Perkins 1106D-E70TAG4 engine, cutting-edge alternators, and user-friendly control panels, this generator is ideal for a wide range of industrial and commercial applications.
Taylor Power System Standby-Diesel Generators | Model TD-175 | Horsepower 267 HP | Power Output 175kW (219kVA) | Open & Enclosed Unit
Taylor Power System Standby-Diesel Generators | Model TD-175 | Horsepower 267 HP | Power Output 175kW (219kVA) | Open & Enclosed Unit
Regular price
$1.00
Regular price
Sale price
$1.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
How To Request A Quote
***Online pricing not available, Please request a quote:***
How To Get A Quote:
Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Product Description
Taylor Power System Standby-Diesel Generators | Model TD-175 | Horsepower 267 HP | Power Output 175kW (219kVA) | Open & Enclosed Unit
DESCRIPTION
Key Features
-
High Power Output:
- Rated at 175/219 kW/kVA, ensuring dependable performance for critical power needs.
- Supports single-phase and three-phase configurations with versatile voltage outputs, including 277/480V, 120/208V, and 120/240V.
-
Robust Engine:
- Equipped with the Perkins 1106D-E70TAG4 turbocharged engine, delivering a powerful 267.20 horsepower at 1800 RPM.
- Features advanced air-to-air charge cooling for enhanced efficiency and durability.
- Isochronous governor ensures accurate speed regulation with ±0.28% precision.
-
Advanced Alternators:
- Stamford PMG: High voltage accuracy of up to 1.0% single-phase and 0.5% three-phase, with cooling airflow of 1,308 CFM.
- Marathon PMG: Exceptional hybrid analog/digital voltage regulation with <0.25% variance.
-
Fuel Efficiency:
- Advanced CRIN2 electronic fuel injection ensures optimized fuel consumption, with rates of 13.79 gal/hr at 100% load.
- Runs on low-sulfur diesel fuel, aligning with EPA Tier 3 standards.
-
Smart Control Panels:
- Options for DeepSea 7310 MKII and Basler DGC2020, both offering advanced diagnostics, Modbus RTU support, and programmable inputs/outputs.
- Highly customizable for seamless operation and monitoring.
-
Noise Reduction:
- Open unit noise level: 98.8 dBA at 1 meter.
- Sound-attenuated enclosures reduce noise to 76.5 dBA at 7 meters, enhancing usability in noise-sensitive environments.
| Control Panels | Feature | Description |
 |
DeepSea 7310 MKII | Simultaneous Use of RS232 & RS485 Modbus RTU Support Fully Configurable Using USB, RS232 & RS485 IP65 Rating 6 Programmable Inputs & 8 Outputs UL & cUL Listed and CE Certified |
 |
Basler DGC2020 | SAE J1939 Engine ECU Communications 4 Programmable Inputs & 10 Outputs Modbus Communications With RS485 UL Recognized, CSA & CE Certified IP 54 Front Panel Rating NFPA 110 Level 1 Compatible Manual Override Keyswitch DGC2020HD Variant Available |
 |
Taylor Analog | Automatic CANBUS Engine Control Gauge Zeroing on Shutdown Auto-Off-Manual Control Switch Oil Pressure, Water Temperature, Battery Voltage and RPM Gauges AC Voltage, Frequency, Percent of Load, and Run-Time Metering LED Status Lights |
Detailed Specifications
| Feature | Details |
|---|---|
| Engine | Perkins 1106D-E70TAG4 (7.01L, Turbocharged) |
| Horsepower | 267.20 HP at 1800 RPM |
| Power Output | 175/219 kW/kVA |
| Voltage Options | 277/480V, 120/208V, 120/240V |
| Alternator Options | Stamford or Marathon PMG |
| Voltage Regulation | Stamford: 1.0% (single-phase), 0.5% (three-phase); Marathon: <0.25% |
| Fuel Consumption | 13.79 gal/hr (100% load), 10.25 gal/hr (50% load) |
| Sound Level | 76.5 dBA (enclosed unit at 7 meters) |
| Dimensions (Open Unit) | 98"L x 35"W x 62"H |
| Weight (Open Unit) | 3,500 lbs |
| Dimensions (Enclosed Unit) | 136"L x 60"W x 68"H |
| Weight (Enclosed Unit) | 5,500 lbs |
 |
Open Unit | Overall Size: 98”L x 35”W x 62”H Approximate Weight: 3,500 lbs. |
 |
Standard Enclosed Unit | Overall Size: 136”L x 60”W x 68”H Approximate Weight: 5,500 lbs. |
