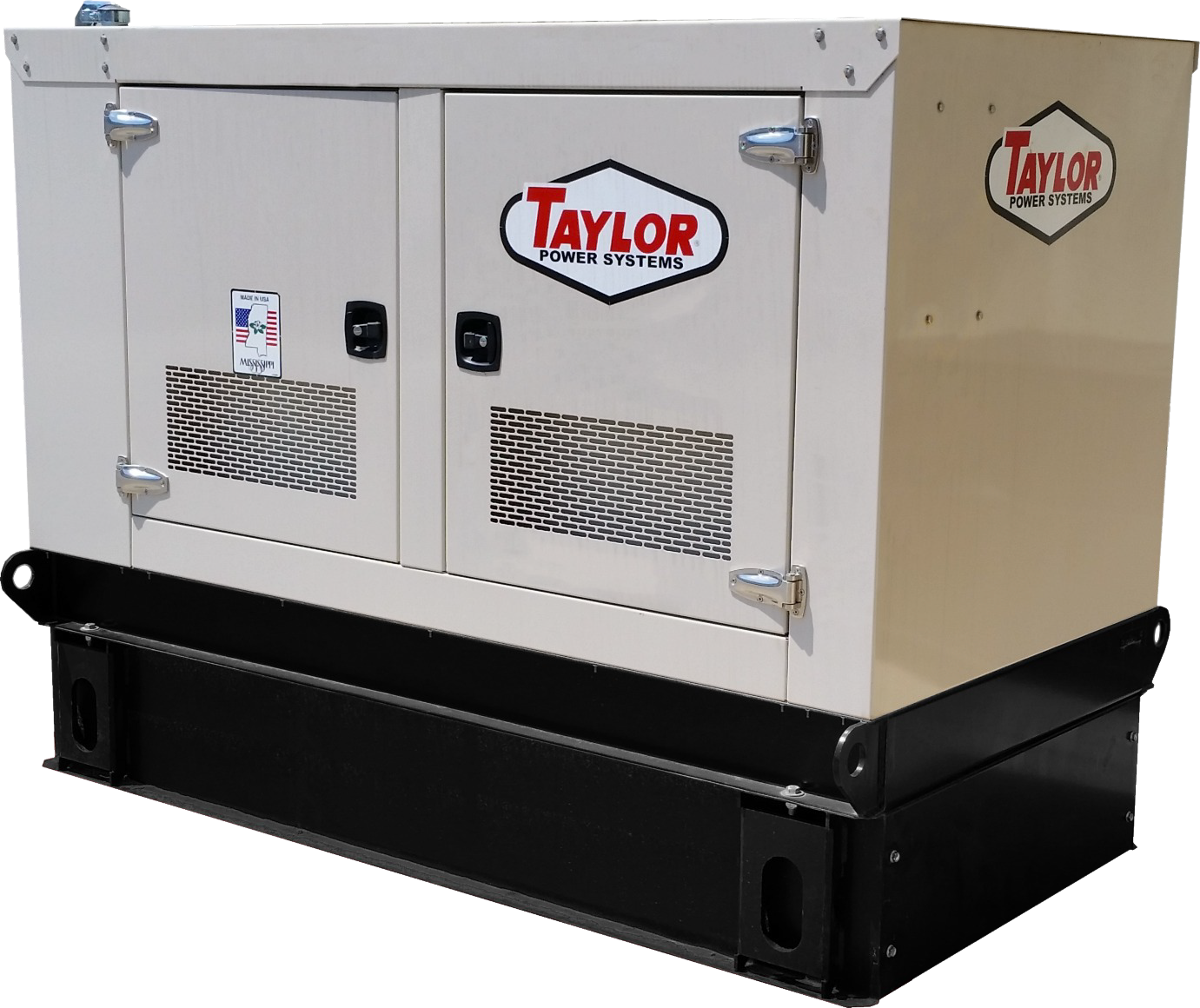

The Taylor Power Systems TD8 Standby Diesel Generator is an EPA-certified, Tier 4 Final stationary emergency power system designed for unmatched reliability and efficiency. Engineered with advanced features, it caters to residential, commercial, and industrial backup power needs. Its compact design, durable construction, and precision performance make it an optimal choice for applications requiring consistent and efficient power delivery. The TD8 generator offers customizable options, robust performance, and low operational noise, ensuring dependable service even in the most demanding conditions.
Taylor Power System Standby-Diesel Generators | Model TD-8 | Power Output 8kW (10kVA) | Perkins Engine
Taylor Power System Standby-Diesel Generators | Model TD-8 | Power Output 8kW (10kVA) | Perkins Engine
Regular price
$1.00
Regular price
Sale price
$1.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
How To Request A Quote
***Online pricing not available, Please request a quote:***
How To Get A Quote:
Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Product Description
Taylor Power System Standby-Diesel Generators | Model TD-8 | Power 8-Kilowatt | Perkins Engine
DESCRIPTION
Key Features
- EPA Certified and Tier 4 Final Compliant: Ensures adherence to environmental and regulatory standards.
- Fuel-Efficient Engine: Powered by a Perkins 403F-11 naturally aspirated, vertical inline, 4-cycle engine for maximum reliability.
- Versatile Output Options: Supports three-phase and single-phase operations at various voltages, including 277/480V, 120/208V, and 120/240V.
- Compact and Durable Design: Heavy-duty steel base with vibration isolators ensures stability and longevity.
- Optimized Cooling System: High ambient unit-mounted radiator for superior cooling during prolonged use.
- Advanced Alternators: Equipped with self-excited Stamford or Marathon alternators offering enhanced performance and stability.
- Ease of Maintenance: Features such as oil drain valve extensions, battery racks, and coolant drain kits simplify upkeep.
- Flexible Control Options: Includes DeepSea 7310 MKII, Taylor Analog, and Basler DGC2020 control panels with advanced monitoring and customization options.
- Sound Reduction: Operates at a low noise level of 78.5 dBA, ensuring quieter performance.
- Customizable Options: Available with weatherproof enclosures, sound attenuation, remote monitoring, and additional heating solutions for different environments.
| Control Panels | Feature | Description |
 |
DeepSea 7310 MKII | Simultaneous Use of RS232 & RS485 Modbus RTU Support Fully Configurable Using USB, RS232 & RS485 IP65 Rating 6 Programmable Inputs & 8 Outputs UL & cUL Listed and CE Certified |
 |
Basler DGC2020 | SAE J1939 Engine ECU Communications 4 Programmable Inputs & 10 Outputs Modbus Communications With RS485 UL Recognized, CSA & CE Certified IP 54 Front Panel Rating NFPA 110 Level 1 Compatible Manual Override Keyswitch DGC2020HD Variant Available |
 |
Taylor Analog | Automatic CANBUS Engine Control Gauge Zeroing on Shutdown Auto-Off-Manual Control Switch Oil Pressure, Water Temperature, Battery Voltage and RPM Gauges AC Voltage, Frequency, Percent of Load, and Run-Time Metering LED Status Lights |
Detailed Specifications
| Category | Details |
|---|---|
| Engine | Perkins 403F-11 |
| EPA Certification | Tier 4 Final |
| Power Output | 8kW (Standby), 10kVA |
| Voltage Options | 277/480V, 120/208V, 120/240V |
| Frequency | 60 Hz |
| Fuel Type | Ultra Low Sulfur Diesel |
| Aspiration | Naturally Aspirated |
| Cooling System | High Ambient Radiator |
| Oil System Capacity | 6.34 qt. (6.00 L) |
| Cooling System Capacity | 1.37 gal (5.20 L) |
| Fuel Consumption (100%) | 0.74 gal/hr (2.80 L/hr) |
| Sound Level | 78.5 dBA at 3.2 ft (1M) |
| Alternator Manufacturer | Stamford or Marathon |
| Insulation Class | NEMA H (Stamford) / NEMA N (Marathon) |
| Controller Options | DeepSea 7310 MKII, Basler DGC2020, Taylor Analog |
| Dimensions (WxLxH) | Compact |
| Weight | Lightweight |
