Taylor Power System

Taylor Power System Streamline-Diesel Generator | Model TDS30 | Horsepower 47 HP | Power Output 30kW (38kVA)

Taylor Power System Streamline-Diesel Generator | Model TDS30 | Horsepower 47 HP | Power Output 30kW (38kVA)

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • High Performance: Equipped with a turbocharged Perkins engine delivering 47.84 net horsepower.
  • Advanced Cooling System: Air-to-air charge cooling ensures optimal engine temperatures.
  • EPA Compliant: Meets Tier 4i standards for reduced emissions.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Taylor Power System Streamline-Diesel Generator | Model TDS30 | Horsepower 47 HP | Power Output 30kW (38kVA)

DESCRIPTION

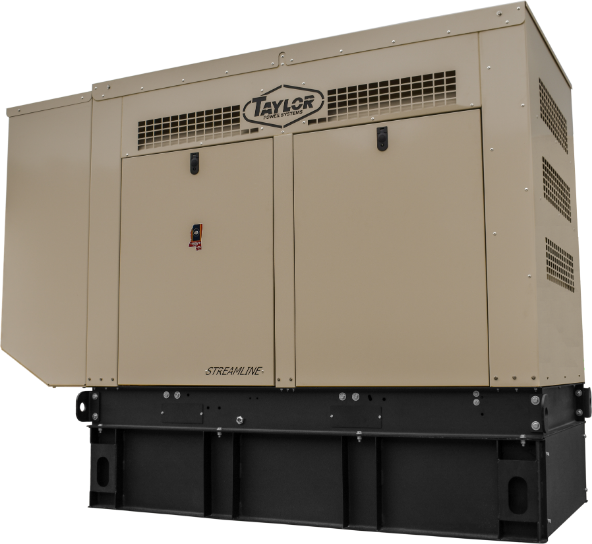

The Taylor TDS30 Streamline-Diesel Generator is a compact yet highly efficient 30kW generator powered by a turbocharged Perkins 404D-22TAG engine. Engineered for reliable performance, this diesel generator is compliant with EPA Tier 4i standards and features an air-to-air charge cooling system. Designed for durability and fuel efficiency, it provides consistent power output with advanced cooling and exhaust systems, making it an excellent choice for various applications.

Key Features

  • High Performance: Equipped with a turbocharged Perkins engine delivering 47.84 net horsepower.
  • Advanced Cooling System: Air-to-air charge cooling ensures optimal engine temperatures.
  • EPA Compliant: Meets Tier 4i standards for reduced emissions.
  • Durable Build: Features a vertical inline, 4-cycle configuration for long-lasting use.
  • Fuel-Efficient Operation: Designed for ultra-low sulfur diesel with precise fuel injection.
  • Compact and Quiet: Achieves low sound levels of 78 dBA at 3.2 ft (1m) without exhaust.
  • User-Friendly Maintenance: Includes 1 air cleaner, 1 oil filter, and 2 fuel filters for efficient servicing.
 Controller Data Feature Description
DynaGen Tough Series TG410 Controller
  •  Meets NFPA-110 Level 1 (with RA400 Remote Annunciator)
  • Oil pressure, engine temperature, fuel level, oil level, hour meter, RPM, real time clock, and battery voltage metering
  • 3-Phase AC volts, amps & frequency metering
  • J1939 DTC codes with custom text
  • Modbus port with galvanic isolation to connect remote
  • annunciators
  • SAE J1939 CAN Bus Protocol
  • Speed control offset adjustment for electronic engines
  • Auto start on Low Battery and other inputs
Basler DGC2020ES Controller
  • Meets NFPA-110 Level 1 (RDP-110C Remote Annunciator)
  • Oil pressure, engine temperature, fuel level, oil level, hour meter, RPM, real time clock, and battery voltage metering
  • Easy to Adjust Exercise Timer
  • 3-Phase AC volts, amps & frequency metering
  • Programmable Inputs & Outputs
  • Fully potted design
  • SAE J1939 CAN Bus Protocol
  • Multilingual Capability
DeepSea 6110 MKIII Controller
  • Meets NFPA-110 Level 1 (with DSE2548 Remote Annunciator)
  • Oil pressure, engine temperature, fuel level, oil level, hour meter, RPM, real
  • time clock, and battery voltage metering
  • 3-Phase AC volts, amps & frequency metering
  • Programmable Inputs & Outputs
  • Internal PLC editor
  • Engine pre-heat and post-heat functions
  • Fully configurable via PC using USB



Detailed Specification

Category Details
Engine Manufacturer Perkins
Engine Model 404D-22TAG
Aspiration Turbocharged
EPA Tier Tier 4i
Charge Cooling System Air-to-Air
Arrangement Vertical Inline, 4-Cycle
Displacement 2.22 L (135.23 in³)
Bore x Stroke 84.00 mm x 100.00 mm (3.31 in x 3.94 in)
Compression Ratio 23.3:1
Net Horsepower 47.84
Rated RPM 1800
Speed Regulation ±0.5%
Fuel Injection Type Indirect
Fuel Pump Rate 0.28 gal/hr (1.05 L/hr)
Radiator Air Flow 4,238 CFM (120 m³/min)
Combustion Air Flow 87.93 CFM (2.49 m³/min)
Fuel Consumption 2.35 gal/hr (8.90 L/hr) at 100% load
Cooling Capacity 0.95 gal (3.60 L)
Oil Capacity 11.20 qt (10.60 L)
Exhaust Gas Temperature 892.4°F (478.0°C)
Exhaust Gas Flow 296.64 CFM (8.40 m³/min)
Exhaust Outlet Size 1.65 in. (42.00 mm)
Max Back Pressure 40.94 in. H₂O (10.20 kPa)
Battery Voltage 12 V
Cold Cranking Amps 450
Filters 1 Air Cleaner, 1 Oil Filter, 2 Fuel Filters
Sound Level 78 dBA (3.2 ft without exhaust)


Manuals & Documents

Product Brochure

 General Warranty Info:

  • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
  • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
  • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
  • Please reach out to us for any specific warranty information neededabout products and parts you can’t find!
