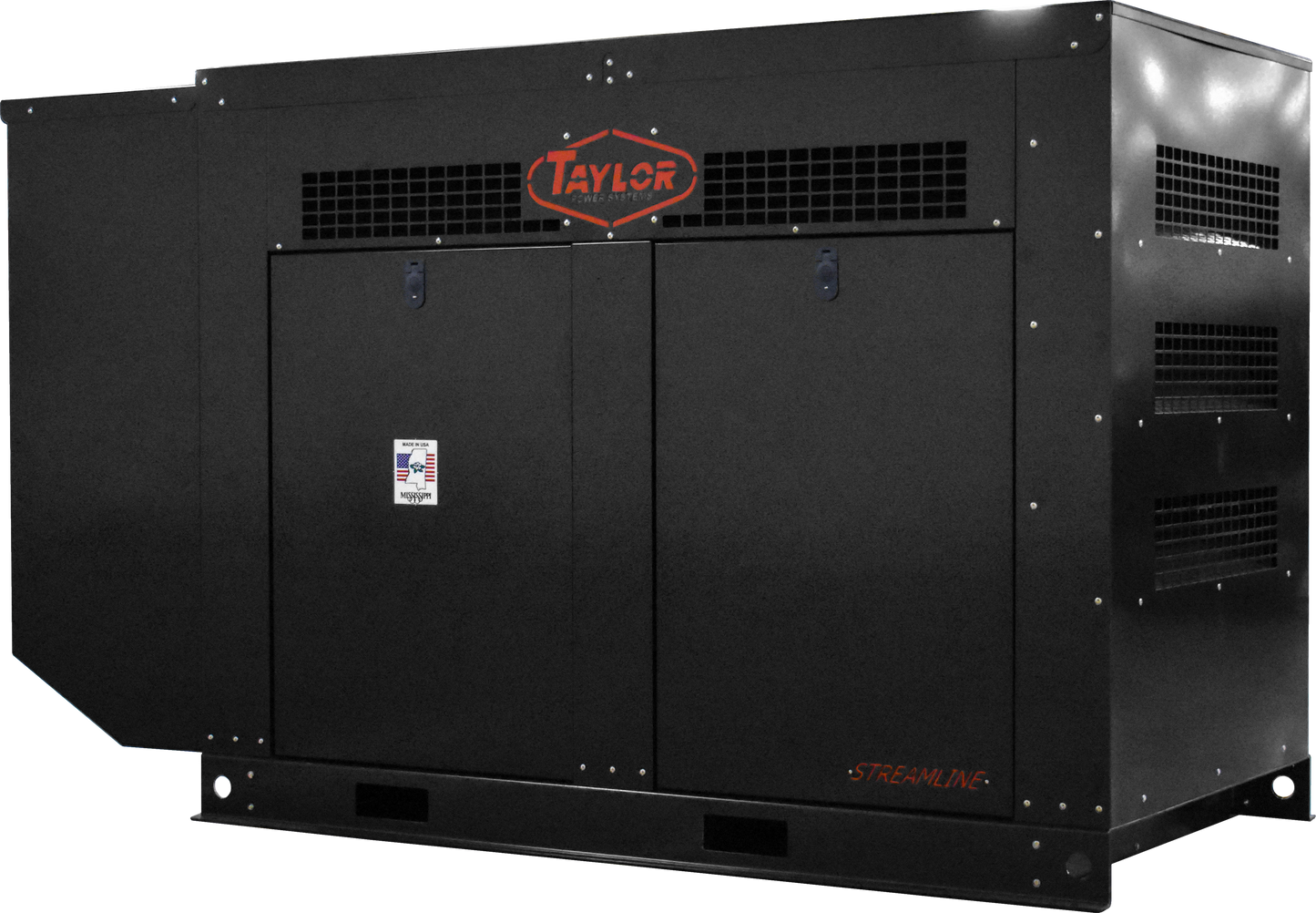

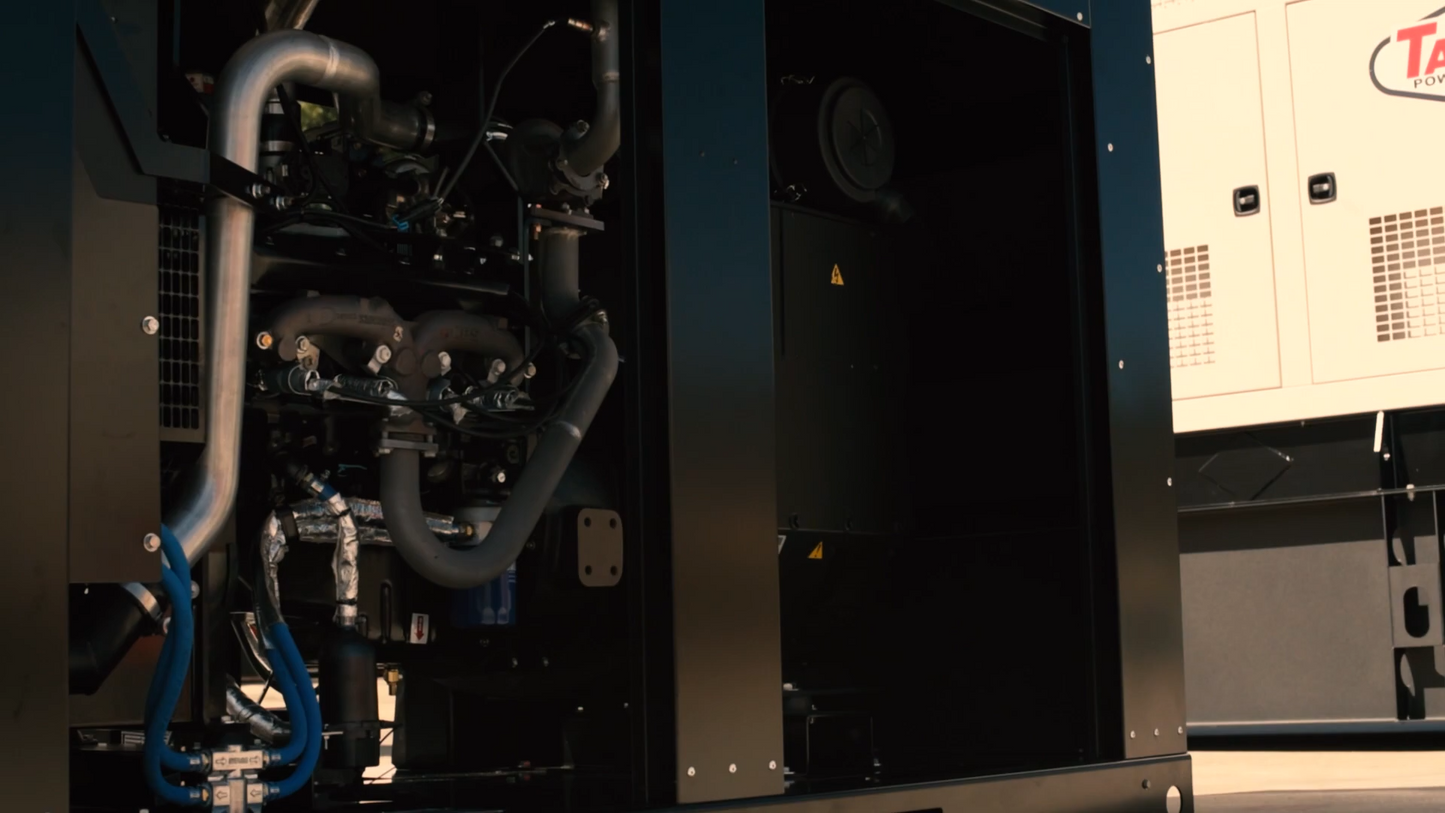

The Taylor TGS100 Streamline-NG/LP Generator is a premium 100kW power solution powered by a PSI 5.7L turbocharged aftercooled (TCAC) engine. Built for heavy-duty use, this generator delivers exceptional performance with fuel flexibility, offering optimized operation on natural gas or LP vapor. Its robust construction, high efficiency, and advanced governing capabilities make it an ideal choice for critical applications requiring reliable power output.
Taylor Power System Streamline-NG/LP Generator | Model TGS100 | Horsepower 149-160 HP | Power Output 100kW (125kVA)
Taylor Power System Streamline-NG/LP Generator | Model TGS100 | Horsepower 149-160 HP | Power Output 100kW (125kVA)
Regular price
$1.00
Regular price
Sale price
$1.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
How To Request A Quote
***Online pricing not available, Please request a quote:***
How To Get A Quote:
Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Product Description
Taylor Power System Streamline-NG/LP Generator | Model TGS100 | Horsepower 149-160 HP | Power Output 100kW (125kVA)
DESCRIPTION
Key Features
- High Horsepower: Produces 160.9 horsepower on natural gas and 149.1 horsepower on LP vapor.

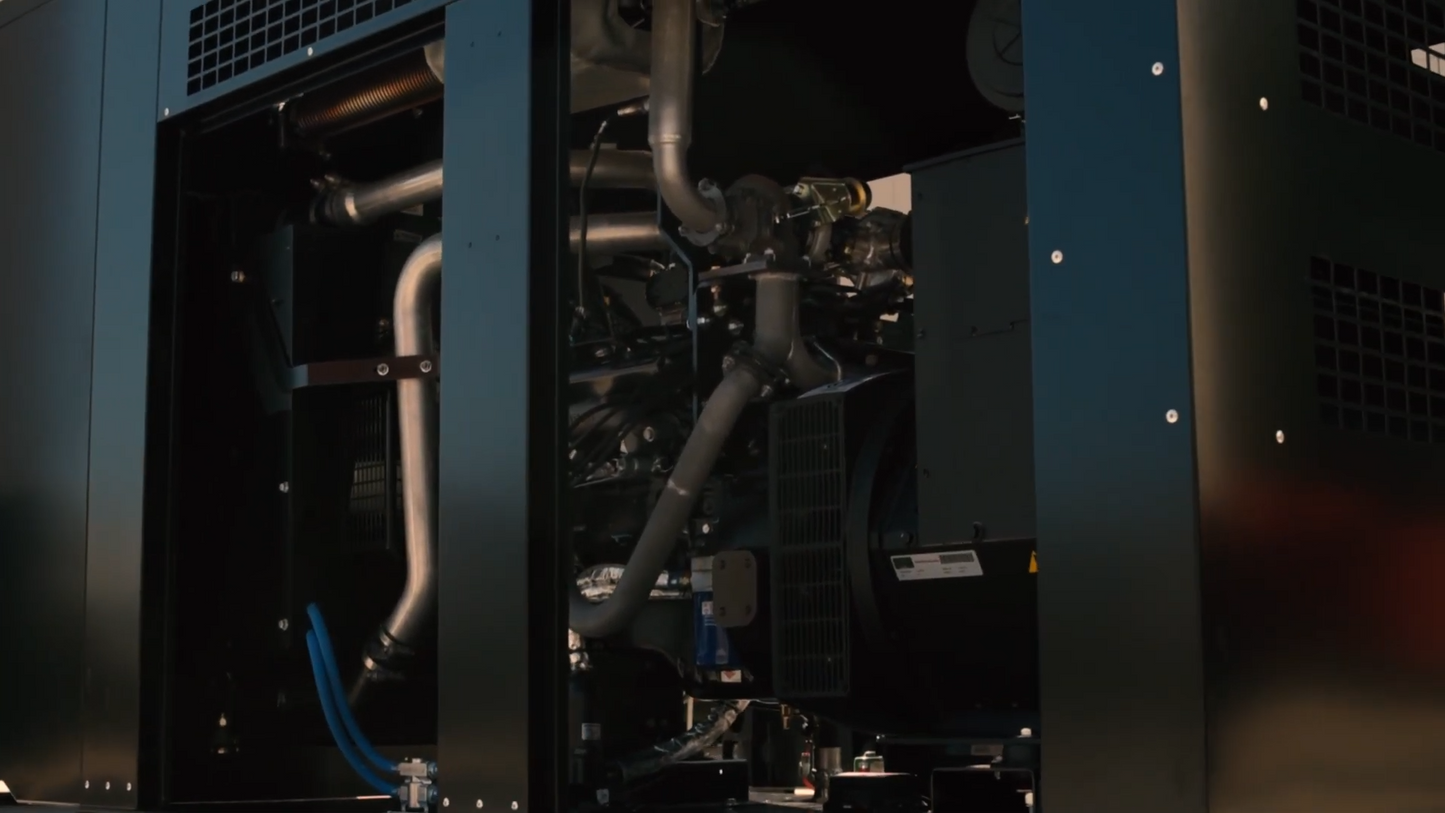

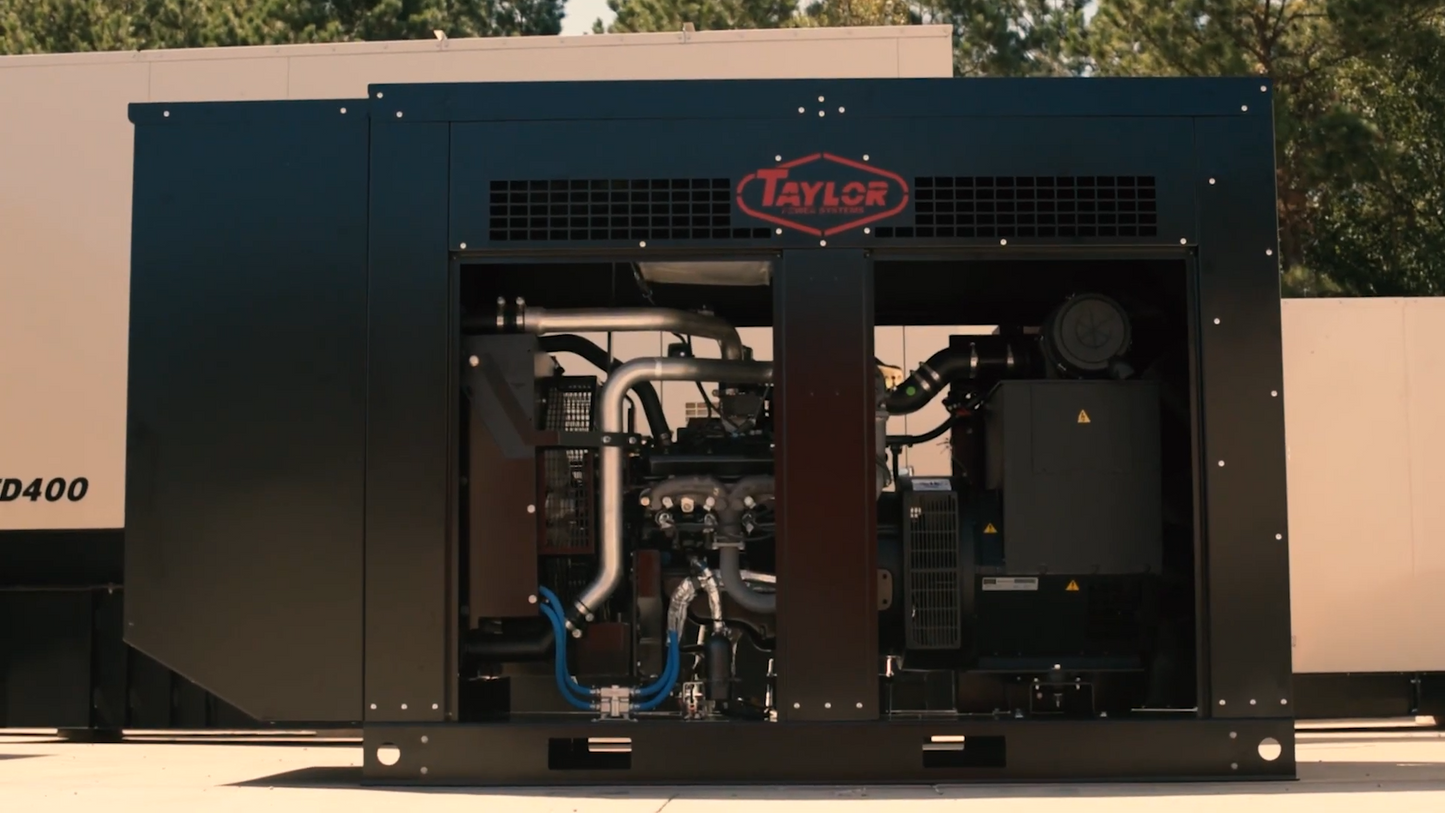

- Turbocharged Aftercooled Engine: Enhances efficiency and performance with superior air cooling and fuel delivery.
- Reliable Operation: Isochronous governor ensures precise speed regulation (±0.50%) for stable RPMs.
- Fuel Versatility: Operates seamlessly with both natural gas and LP vapor fuel systems.
- Optimal Cooling System: Features a radiator airflow of 5,500 CFM to maintain engine performance under demanding conditions.
- Advanced Exhaust System: Supports high gas flow with a durable, well-sized exhaust outlet.
- Streamlined Maintenance: Equipped with a single air cleaner and oil filter for efficient servicing.
| Controller Data | Feature | Description |
 |

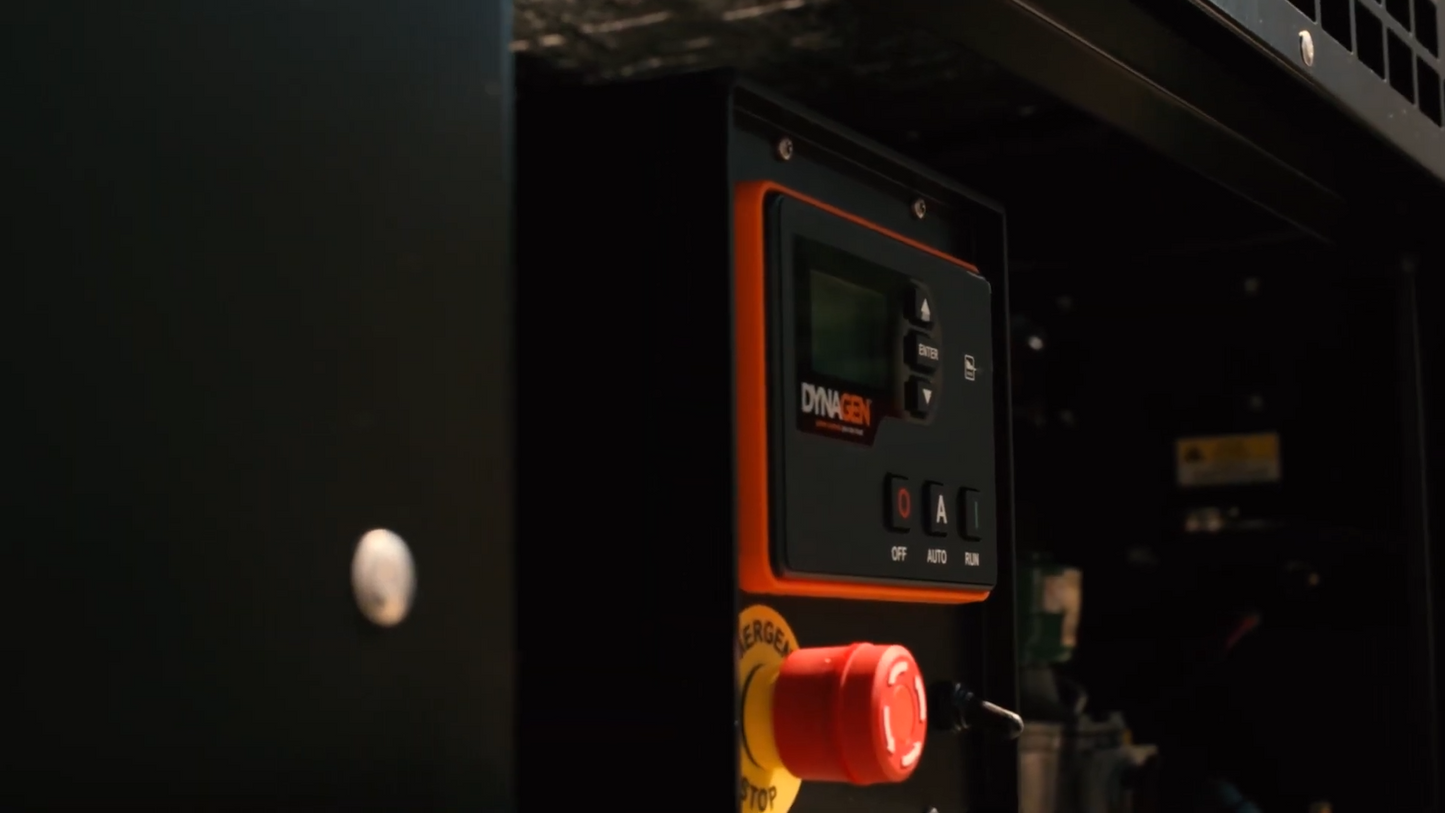

DynaGen Tough Series TG410 Controller |
|
 |
Basler DGC2020ES Controller |
|
Detailed Specification
| Category | Details |
|---|---|
| Engine Manufacturer | PSI |
| Engine Model | 5.7L |
| Aspiration | Turbocharged Aftercooled (TCAC) |
| Arrangement | V-8, 4-Cycle |
| Displacement | 5.7 L (350.0 in³) |
| Bore x Stroke | 101.60 mm x 88.4 mm (4.00 in x 3.48 in) |
| Compression Ratio | 9.1:1 |
| Gross Horsepower (NG) | 160.9 |
| Gross Horsepower (LP) | 149.1 |
| Rated RPM | 1800 |
| Speed Regulation | ±0.50% |
| Fuel Supply Size | 1.25” NPT |
| Fuel Pressure | 7-11 in. H₂O (1.74-2.74 kPa) |
| Combustion Air Flow | 262.0 CFM (7.4 m³/min) |
| Radiator Air Flow | 5,500 CFM (156 m³/min) |
| Fuel Consumption (NG) | 1389 CFH (39.9 m³/hr) at 100% load |
| Fuel Consumption (LP) | 538 CFH (15.2 m³/hr) at 100% load |
| Cooling System Capacity | 2.1 gal (7.8 L) |
| Oil Capacity | 5.0 qt (4.7 L) |
| Exhaust Gas Temperature | 1200°F (649°C) |
| Exhaust Gas Flow | 845.9 CFM (24.0 m³/min) |
| Exhaust Outlet Size | 4.0 in. (101.6 mm) |
| Battery Voltage | 12 V |
| Cold Cranking Amps | 650 |
| Filters | 1 Air Cleaner, 1 Oil Filter |
