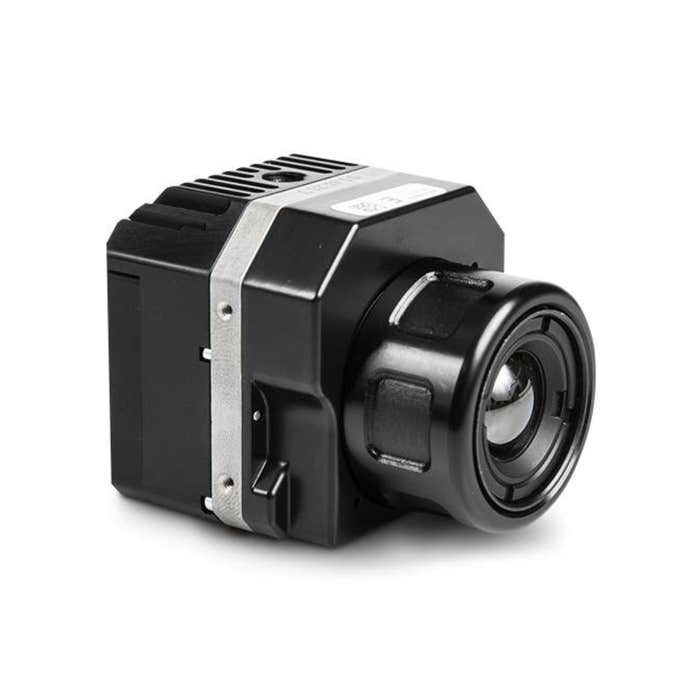

Teledyne FLIR Vue Pro - 336 @ 30 Hz / 9mm
DESCRIPTION
Take your aerial operations to the next level with the FLIR Vue Pro, a thermal imaging camera engineered for small unmanned aerial systems (sUAS). Designed for mission-critical applications, it combines high-resolution thermal imaging, onboard data capture, and full flight control integration through MAVLink and PWM.
With its intuitive app-based setup and onboard micro-SD recording, the Vue Pro eliminates the need for field computers and ensures your data is never lost due to transmission issues. Whether you're conducting inspections, search and rescue, or mapping, the Vue Pro delivers reliable thermal vision and flexible integration — all in a lightweight, compact package.
Key Features
- Onboard Data Recording: Save thermal video and still images directly to a removable micro-SD card, minimizing the risk of transmission loss.
- MAVLink Integration & PWM Control: Enables geotagging and in-flight control via your drone's system for seamless mission execution,.
- Mobile App Configuration: Use the FLIR UAS app to adjust color palettes, zoom, image optimization, and input settings — no laptop needed in the field.
- Advanced Thermal Imaging: Equipped with a 336 x 256 resolution uncooled VOx microbolometer sensor with a 30 Hz frame rate for real-time, professional-grade imaging.
- Compact & Lightweight: Weighing just 3.25–4 oz and designed with precision mounting holes for easy installation on a variety of sUAS platforms.
Detailed Specifications
| Category | Specification |
|---|---|
| Imaging & Optical | |
| IR Camera Resolution | 336 × 256 |
| Frame Rate | 30 Hz (NTSC); 25 Hz (PAL) |
| Lens | 9 mm; 35° × 27° (FOV), 34° × 26° (NTSC Analog Output) |
| Zoom | Yes – Adjustable via App and PWM |
| Spectral Band | 7.5 – 13.5 µm |
| Image Optimization | Yes |
| Scene Presets & Processing | Yes – Adjustable via App |
| Invertable Image | Yes – Adjustable via App |
| Color Palettes | Yes – Adjustable via App and PWM |
| HDMI Output | 1280 × 720 @ 50 Hz / 60 Hz |
| Analog Video Output | Yes |
| Thermal Imager Type | Uncooled VOx Microbolometer |
| Electrical | |
| Input Voltage | 4.8 – 6.0 VDC |
| Power Dissipation | 2.1 W (peak 3.9 W) |
| Optional Power Module Input | 5 VDC – 28 VDC |
| Reverse Polarity Protection | Yes |
| Environmental | |
| Operating Temperature | -20°C to +50°C |
| Non-Operating Temperature | -55°C to +95°C |
| Operational Altitude | Up to +40,000 feet |
| Mechanical | |
| Size | 2.26" x 1.75" (including lens) |
| Weight | 3.25 – 4 oz (depending on configuration) |
| Mounting Options | Two M2x0.4 holes on each of two sides and bottom; One 1/4-20 threaded hole on top |
| In the Box | |
| Package Contents | 1x FLIR Vue Pro – 336 @ 30 Hz / 9 mm lens |
