Top Dog Attachments Bale Grapple | Width 72"to 82" | Weight 1204 to 1342 lbs | Oil Flow Range 15 to 25 GPM | For Skid Steer
DESCRIPTION

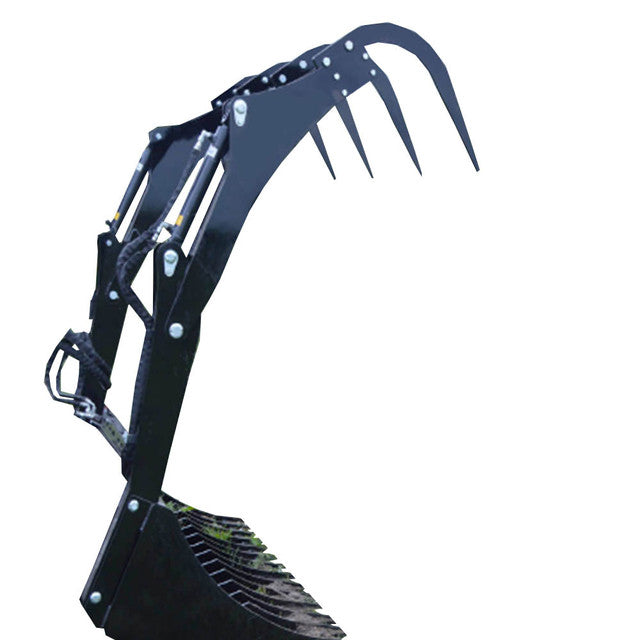

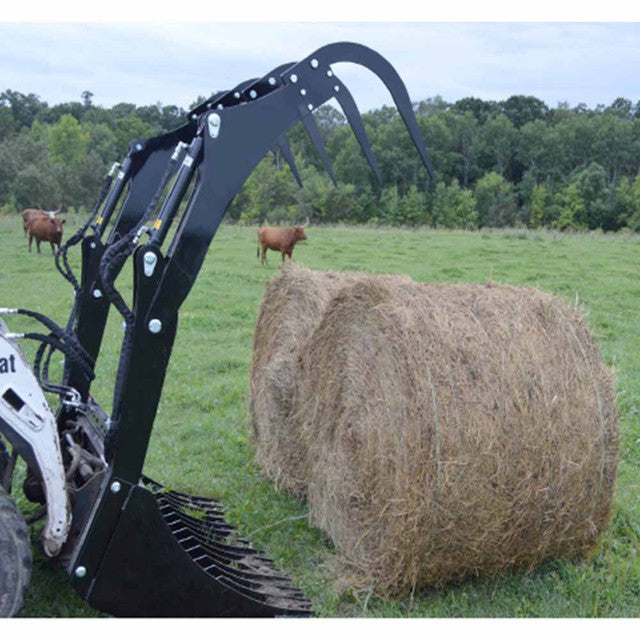

The Top Dog Attachments Skid Steer Bale Grapple is the ultimate farm attachment for transporting large hay bales with ease. Designed with a skeleton grapple style, this attachment is versatile enough to handle brush, rocks, and both round and square hay bales. The Extended Grapple Arm provides greater reach and stability, ensuring secure transport. Equipped with 3,000 PSI cylinders, this grapple delivers powerful clamping force, preventing bale movement during transport. Built with A-50 Grade Steel, this attachment is engineered for durability and long-lasting performance.
Key Features
- Heavy-Duty Construction – Made with A-50 Grade Steel for superior durability.
- Extended Grapple Arm – Provides greater reach and stability for securing loads.
- Versatile Skeleton Grapple Design – Ideal for handling hay bales, brush, and rocks.
- High-Pressure Cylinders – 3,000 PSI cylinders ensure maximum gripping power.
- Multiple Width Options – Available in 72", 79", and 82" to suit different job requirements.
- Universal Skid Steer Mount – Compatible with most skid steer loaders for easy installation.
- Hydraulic System – Equipped with hydraulic hoses and flat-faced couplers for seamless operation.
- Oil Flow Range – 15-25 GPM, ensuring optimal hydraulic performance.
- Grease Zerks at Pivot Points – Allows for easy maintenance and extended lifespan.
- Made in the USA – Manufactured with high-quality steel and expert craftsmanship.
Detailed Specifications
| Model | TD-9033225 (72") | TD-9033226 (79") | TD-9033227 (82") |
|---|---|---|---|
| Weight (Lbs.) | 1204 | 1289 | 1342 |
| Length (") | 60 | 60 | 60 |
| Width (") | 72 | 79 | 82 |
| Height - Open (") | 78 | 78 | 78 |
| Height - Closed (") | 55 | 55 | 55 |
| Grapple Opening (") | 73 | 73 | 73 |
| Depth of Bucket (") | 40 | 40 | 40 |
| Tines | 3/8" - Grade 50 | 3/8" - Grade 50 | 3/8" - Grade 50 |
| Cutting Edge | 1/2" x 10" - Grade 50 | 1/2" x 10" - Grade 50 | 1/2" x 10" - Grade 50 |
| Top Tube | 3" x 4" x 1/4" | 3" x 4" x 1/4" | 3" x 4" x 1/4" |
| Bottom Tube | 3" x 4" x 1/4" | 3" x 4" x 1/4" | 3" x 4" x 1/4" |
| Grapple Tines | 5/8" T-1 - Laser Cut | 5/8" T-1 - Laser Cut | 5/8" T-1 - Laser Cut |
| Cylinders | 2½" x 12" - Welded Clevis | 2½" x 12" - Welded Clevis | 2½" x 12" - Welded Clevis |
| PSI Max | 3,000 PSI | 3,000 PSI | 3,000 PSI |
| Pivot Points | Grease Zerks | Grease Zerks | Grease Zerks |
| Oil Flow Range (GPM) | 15-25 GPM | 15-25 GPM | 15-25 GPM |
