Top Dog Attachments Double Bale Spear (ONE ROUND 2 TINES) | Width 46" | Weight 265 lbs | Max Lift Capacity 3,000 lbs | For Skid Steer
Top Dog Attachments Double Bale Spear (ONE ROUND 2 TINES) | Width 46" | Weight 265 lbs | Max Lift Capacity 3,000 lbs | For Skid Steer
Regular price
$785.71
Regular price
Sale price
$785.71
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Top Dog Attachments Double Bale Spear (ONE ROUND 2 TINES) | Width 46" | Weight 265 lbs | Max Lift Capacity 3,000 lbs | For Skid Steer
DESCRIPTION

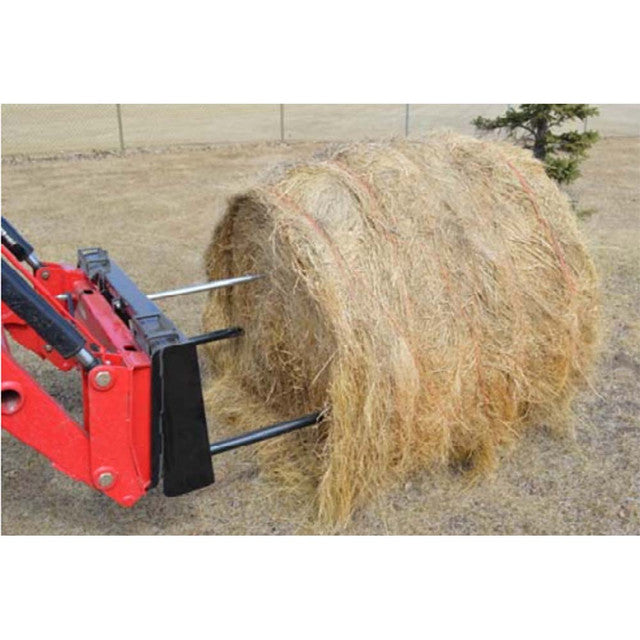

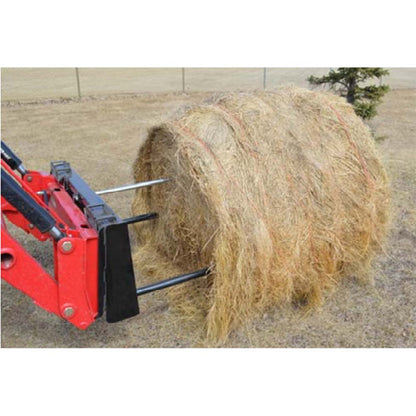

The Top Dog Attachments Double Bale Spear (ONE ROUND 2 TINES) is designed for efficient handling and transport of round and square hay bales, making it a must-have tool for farm operations. Featuring two heavy-duty 47" spears on the bottom, this attachment provides stable lifting, while the 23" top stabilizer spear ensures secure transport by preventing unwanted shifting. Built with A-50 Grade Steel, this attachment offers maximum durability, making it ideal for demanding agricultural applications. The universal mounting plate allows quick attachment to most skid steers and tractors, providing versatile functionality for different equipment setups.
Key Features
- Dual Spear System – Two long piercing spears provide balanced support for secure bale transport. 47" bolt-in spears with 42" usable length for balanced lifting.
- Stabilizer Spear – Upper stabilizer spear prevents bale shifting, ensuring safe handling during transport. 1" cold roll round spear (23" overall, 18½" usable length) ensures load security.
- Heavy-Duty GR50 Steel Build – Designed for high-stress farm operations, ensuring durability and longevity.
- Optimized Bale Handling – The 42" usable length of the spears provides deep penetration for secure lifting.
- Universal Attachment – Compatible with skid steers and tractors, offering ease of installation and use..
- Max Carrying Load: 3,000 Lbs – Designed for secure bale transport.
- Made in the USA – Manufactured with high-quality materials and expert craftsmanship.
Detailed Specifications
| Model | TD-9033160 |
|---|---|
| Weight (Lbs.) | 265 |
| Width (") | 46 |
| Depth (") | 50 |
| Width Between Spears (") | 36 |
| Spear Length (Bottom) (") | 47" Bolt-in Spear / 42" Usable Length |
| Sleeve Type | Weld-in Sleeve |
| Stabilizer Spear (") | 1" Cold Roll Round Spear / 23" Overall / 18½" Usable Length |
| Max Lift Capacity (Lbs.) | 3,000 |
