Top Dog Attachments Firewood Grapple | Width 62"-90" | Weight 745-1025 lbs | Oil Flow Range 15-25 GPM | For Skid Steer
Top Dog Attachments Firewood Grapple | Width 62"-90" | Weight 745-1025 lbs | Oil Flow Range 15-25 GPM | For Skid Steer
Regular price
$3,357.14
Regular price
Sale price
$3,357.14
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Top Dog Attachments Firewood Grapple | Width 62"-90" | Weight 745-1025 lbs | Oil Flow Range 15-25 GPM | For Skid Steer
DESCRIPTION
The Top Dog Attachments Firewood Grapple is designed for securely picking up large loads of firewood, making it ideal for forestry, land clearing, and material handling. Featuring wide-spaced tines (3-7/8"), this attachment allows smaller unwanted materials like soil and rock to fall through while retaining larger logs. Compared to the Firewood Bucket, the grapple add-on provides enhanced load security, making it easier to grab and transport loose materials. Built with A-50 Grade Steel, this attachment ensures long-lasting durability and strength for heavy-duty applications.
Key Features
- Heavy-Duty A-50 Grade Steel Construction – Ensures durability and long-lasting performance.
- Wide-Spaced Tines (3-7/8") – Allows smaller debris to fall through while retaining larger logs.
- Grapple Add-On – Provides better load security compared to a standard firewood bucket.
- Multiple Width Options – Available in 62", 68", 75", 82", and 90" to fit various machines and applications.
- Universal Skid Steer Mount – Compatible with most skid steer loaders for easy installation.
- Hydraulic System – Requires 15-25 GPM oil flow, ensuring smooth and efficient operation.
- Made in the USA – Manufactured with high-quality materials and expert craftsmanship.

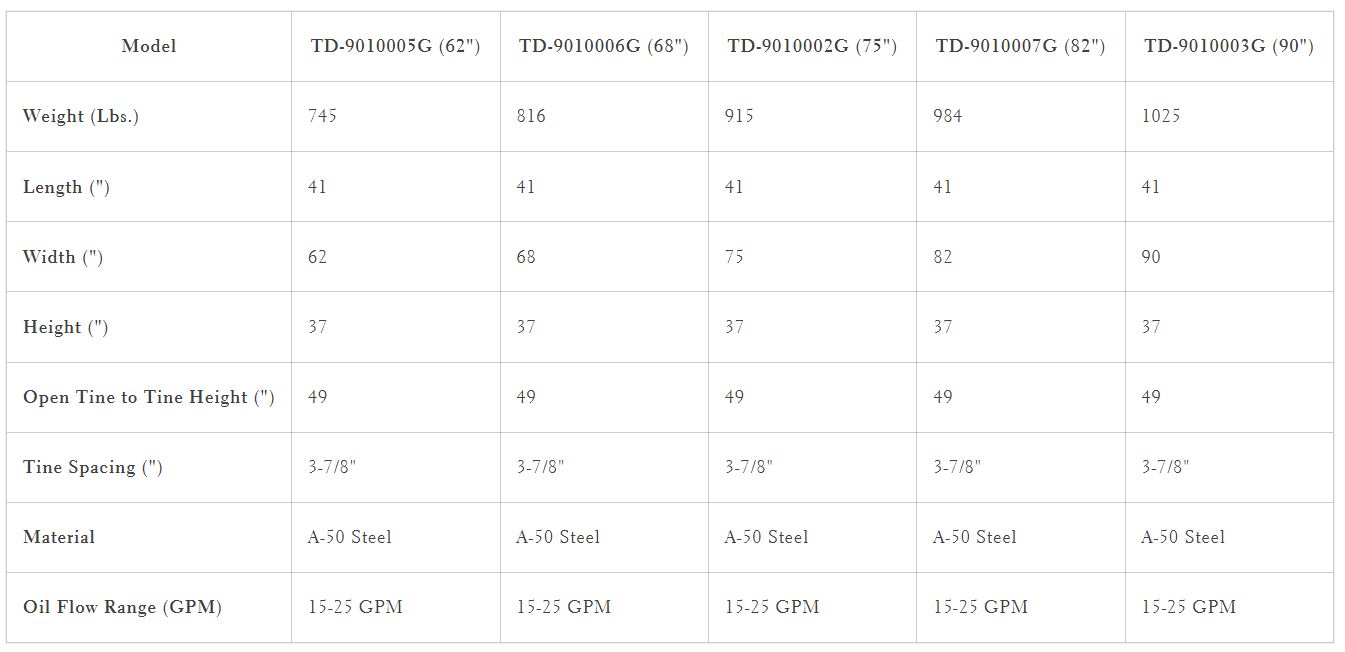

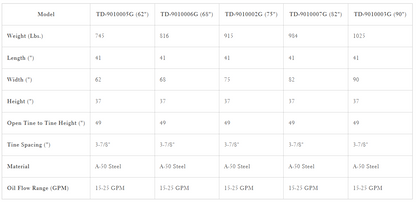

Detailed Specifications
| Specification | TD-9010005G (62") | TD-9010006G (68") |
|---|---|---|
| Weight (Lbs.) | 745 | 816 |
| Length (") | 41 | 41 |
| Width (") | 62 | 68 |
| Height (") | 37 | 37 |
| Open Tine to Tine Height (") | 49 | 49 |
| Tine Spacing (") | 3-7/8" | 3-7/8" |
| Material | A-50 Steel | A-50 Steel |
| Oil Flow Range (GPM) | 15–25 GPM | 15–25 GPM |
| Specification | TD-9010002G (75") | TD-9010007G (82") |
|---|---|---|
| Weight (Lbs.) | 915 | 984 |
| Length (") | 41 | 41 |
| Width (") | 75 | 82 |
| Height (") | 37 | 37 |
| Open Tine to Tine Height (") | 49 | 49 |
| Tine Spacing (") | 3-7/8" | 3-7/8" |
| Material | A-50 Steel | A-50 Steel |
| Oil Flow Range (GPM) | 15–25 GPM | 15–25 GPM |
