Product Description
Top Dog Attachments Pallet Fork Grapple | Width 45" | Weight 279 lbs | Oil Flow Range 10 to 15 GPM | For Skid Steer
DESCRIPTION

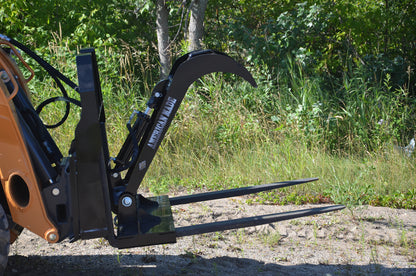

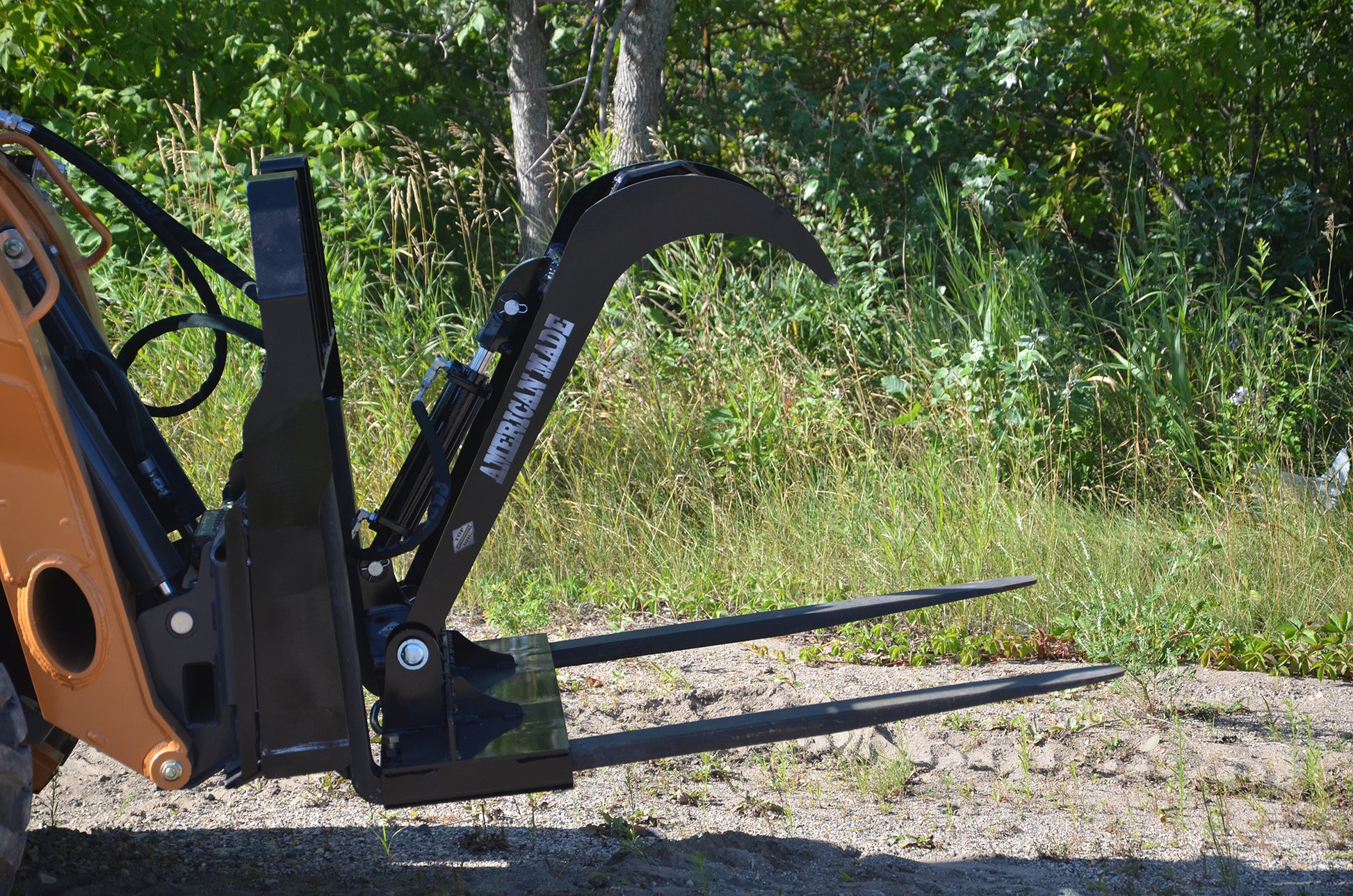

The Top Dog Attachments Skid Steer Pallet Fork Grapple is a versatile and durable attachment designed to increase the functionality of pallet forks by allowing operators to clamp down on loads for better stability. This attachment is compatible with all brands of pallet forks, making it a universal solution for material handling. Built with high-quality A-50 grade steel, this grapple ensures long-lasting durability and strength. It is secured to the pallet forks using bolts underneath the unit, providing a firm and reliable grip. Whether you're handling logs, debris, construction materials, or pallets, this American-made attachment is designed to maximize efficiency on the job site.
Key Features
- Heavy-Duty Construction – Made with 1/2" A-50 grade steel tines for superior durability.
- Universal Compatibility – Works with all brands of pallet forks, not just Top Dog Attachments.
- Secure Mounting – Bolts underneath the unit ensure a firm and stable connection to pallet forks.
- Optimized for Material Handling – Ideal for moving logs, debris, construction materials, and pallets.
- Hydraulic System – Equipped with hydraulic hoses and flat-faced couplers for seamless operation.
- Oil Flow Range – 10-15 GPM, ensuring optimal hydraulic performance.
- Made in the USA – Manufactured with high-quality steel and expert craftsmanship.
Detailed Specifications
| Model | TD-9000180 |
|---|---|
| Weight (Lbs.) | 279 |
| Length (") | 40 |
| Width (") | 45 |
| Height (") | 15 |
| Tine Spacing (") | 17.5 |
| Open Tine Height (") | 40 |
| Tine Construction | 1/2" A-50 Steel |
| Oil Flow Range (GPM) | 10-15 GPM |
