Top Dog Attachments Standard Brush Bucket Grapple | Oil Flow Range 15 to 20 GPM | Width: 62" to 82” | For Skid Steers
DESCRIPTION

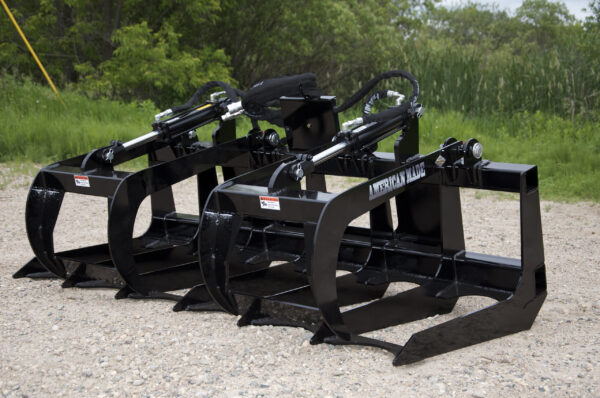

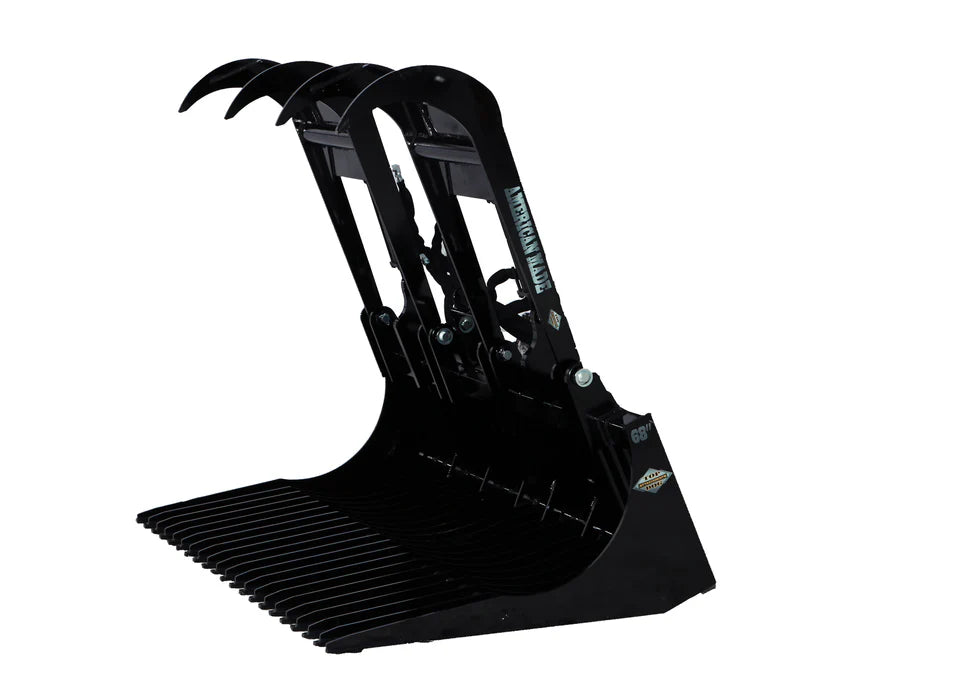

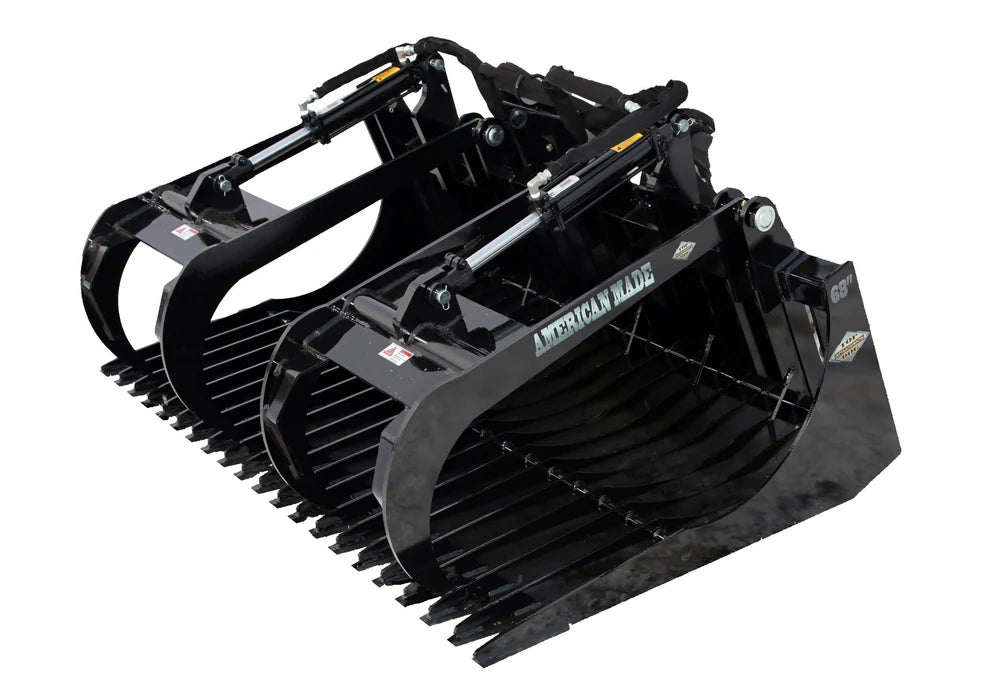

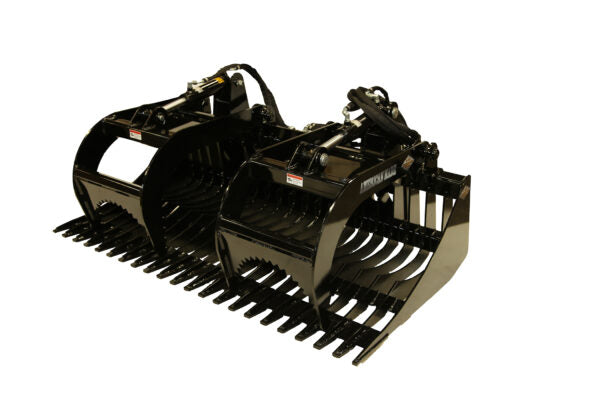

The Top Dog Skid Steer Brush Bucket Grapple is a powerful attachment designed for construction, agricultural work, and heavy-duty material handling. Its open sidewalls allow for carrying objects longer than the bucket itself, making it ideal for moving logs, brush, debris, and oversized materials. The grapple mount provides maximum strength, ensuring secure handling even at full capacity. Built with A-50 grade steel, this attachment is manufactured in the USA with high-quality materials and expert craftsmanship. Available in multiple width options, it accommodates various job requirements, making it a versatile and essential tool for skid steer operators.
Key Features
- Heavy-Duty Construction – Made with A-50 grade steel for superior durability and strength.
- Open Sidewalls – Allows for carrying longer objects beyond the bucket’s width.
- High-Capacity Grapple Mount – Provides maximum strength when handling heavy loads.
- Multiple Width Options – Available in 62", 68", 75", and 82" to suit different job needs.
- Versatile Applications – Ideal for construction, agriculture, land clearing, and material transport.
- Universal Skid Steer Mount – Compatible with most skid steer loaders for easy installation.
- Made in the USA – Manufactured with high-quality steel and expert welding for long-lasting performance.

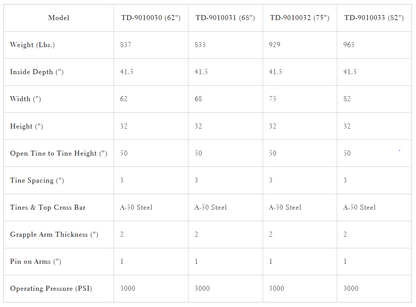

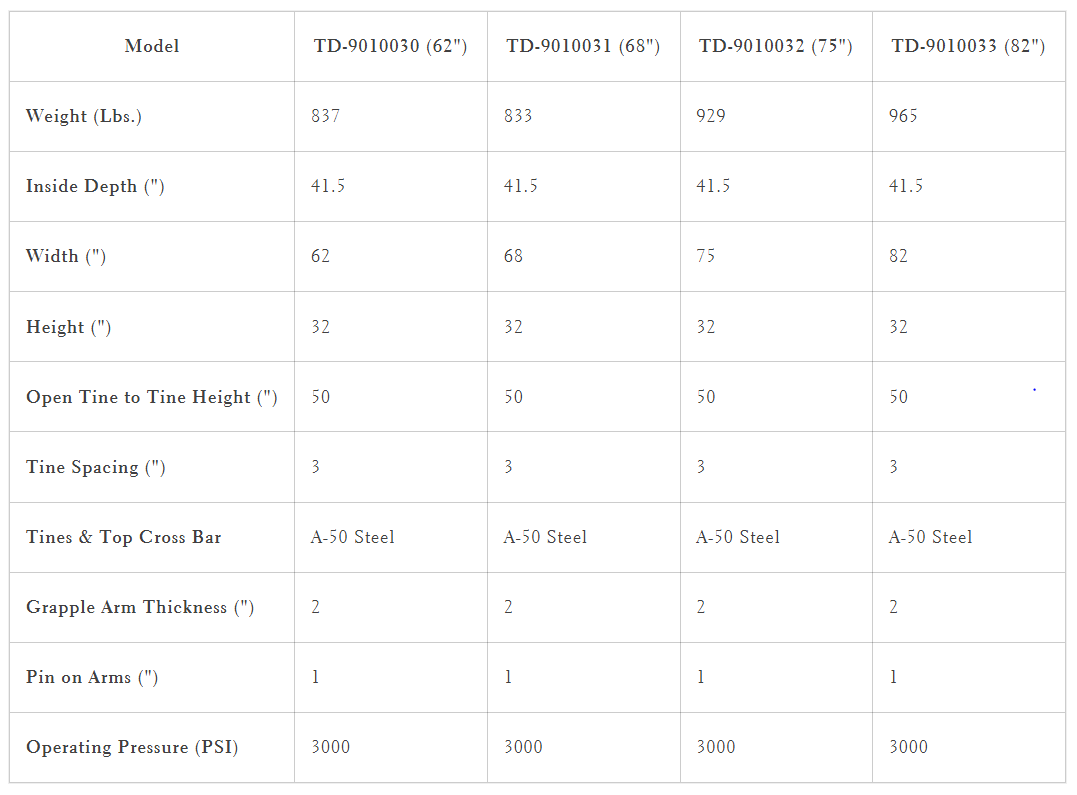

Detailed Specifications
| Specification | TD-9010030 (62") | TD-9010031 (68") |
|---|---|---|
| Weight (Lbs.) | 837 | 833 |
| Inside Depth (") | 41.5 | 41.5 |
| Width (") | 62 | 68 |
| Height (") | 32 | 32 |
| Open Tine to Tine Height (") | 50 | 50 |
| Tine Spacing (") | 3 | 3 |
| Tines & Top Cross Bar | A-50 Steel | A-50 Steel |
| Grapple Arm Thickness (") | 2 | 2 |
| Pin on Arms (") | 1 | 1 |
| Operating Pressure (PSI) | 3000 | 3000 |
| Specification | TD-9010032 (75") | TD-9010033 (82") |
|---|---|---|
| Weight (Lbs.) | 929 | 965 |
| Inside Depth (") | 41.5 | 41.5 |
| Width (") | 75 | 82 |
| Height (") | 32 | 32 |
| Open Tine to Tine Height (") | 50 | 50 |
| Tine Spacing (") | 3 | 3 |
| Tines & Top Cross Bar | A-50 Steel | A-50 Steel |
| Grapple Arm Thickness (") | 2 | 2 |
| Pin on Arms (") | 1 | 1 |
| Operating Pressure (PSI) | 3000 | 3000 |
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information neededabout products and parts you can’t find!

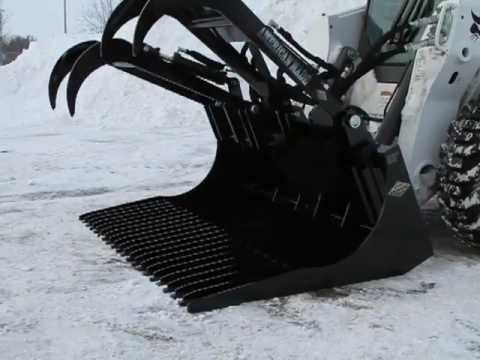

Videos
