Product Description

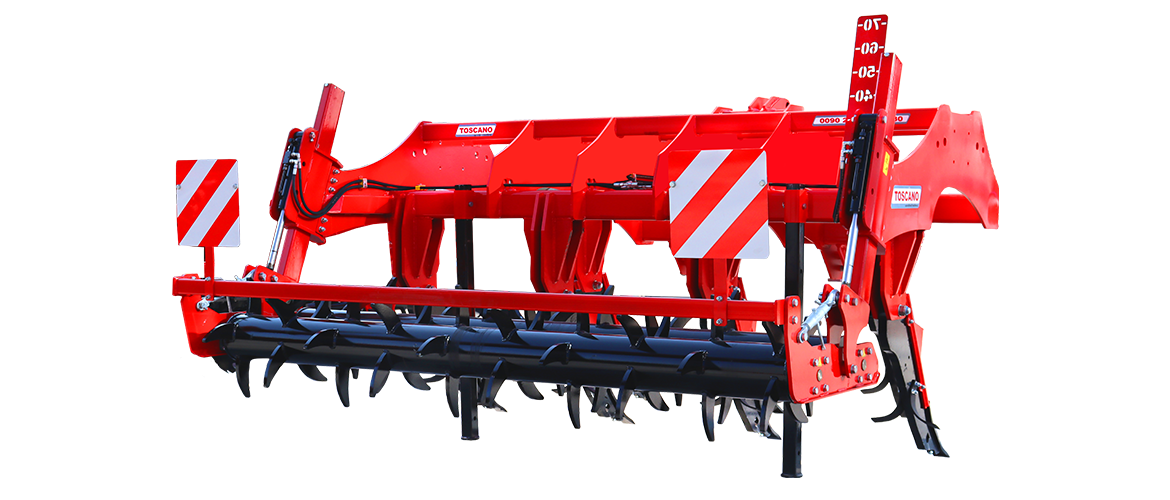

TOSCANO | Heavy Duty Subsoiler | Model 2500/5, 3000/7, 3500/7, 4000/9 & 5000/11 | Work Width 8.2 To 16.4 Feet | HorsePower 170-390 HP | For Tractor
DESCRIPTION

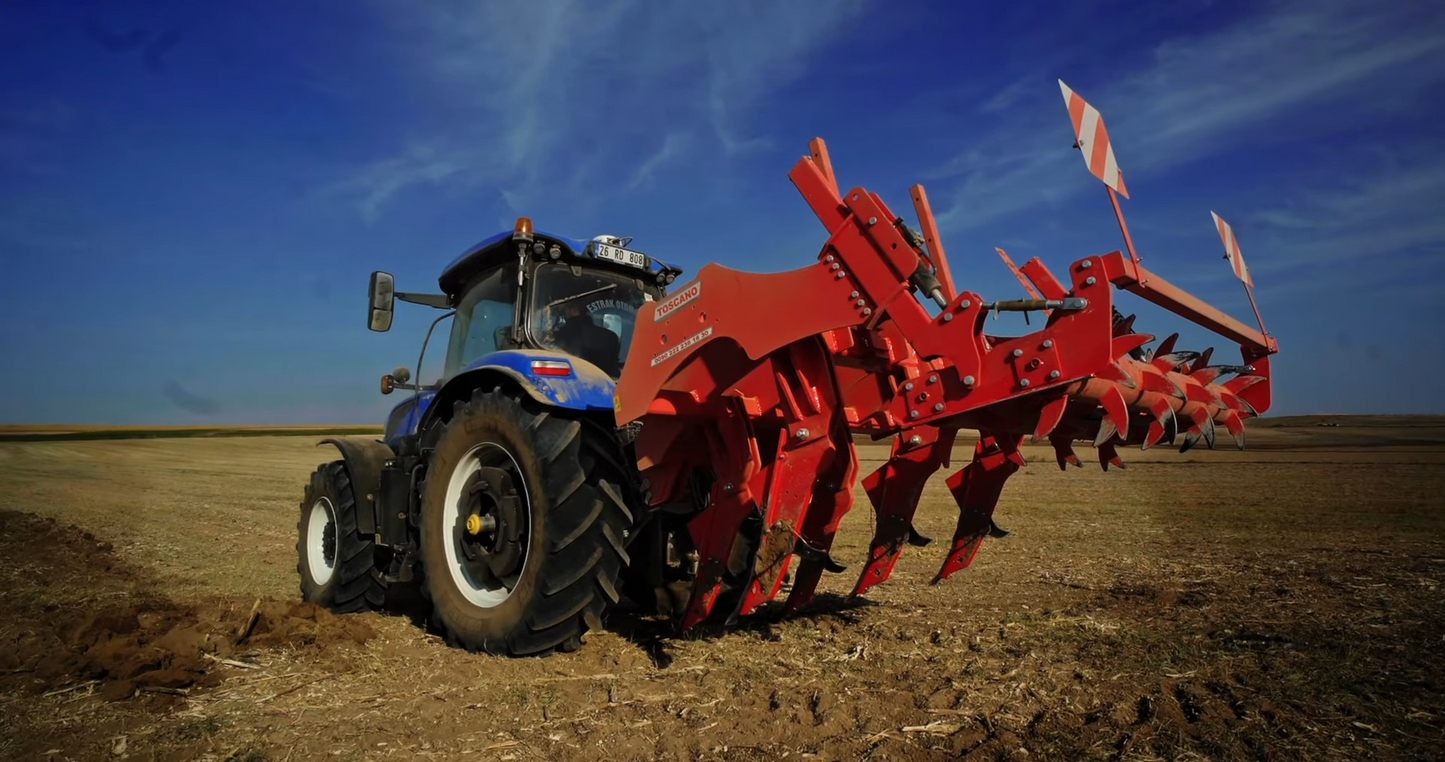

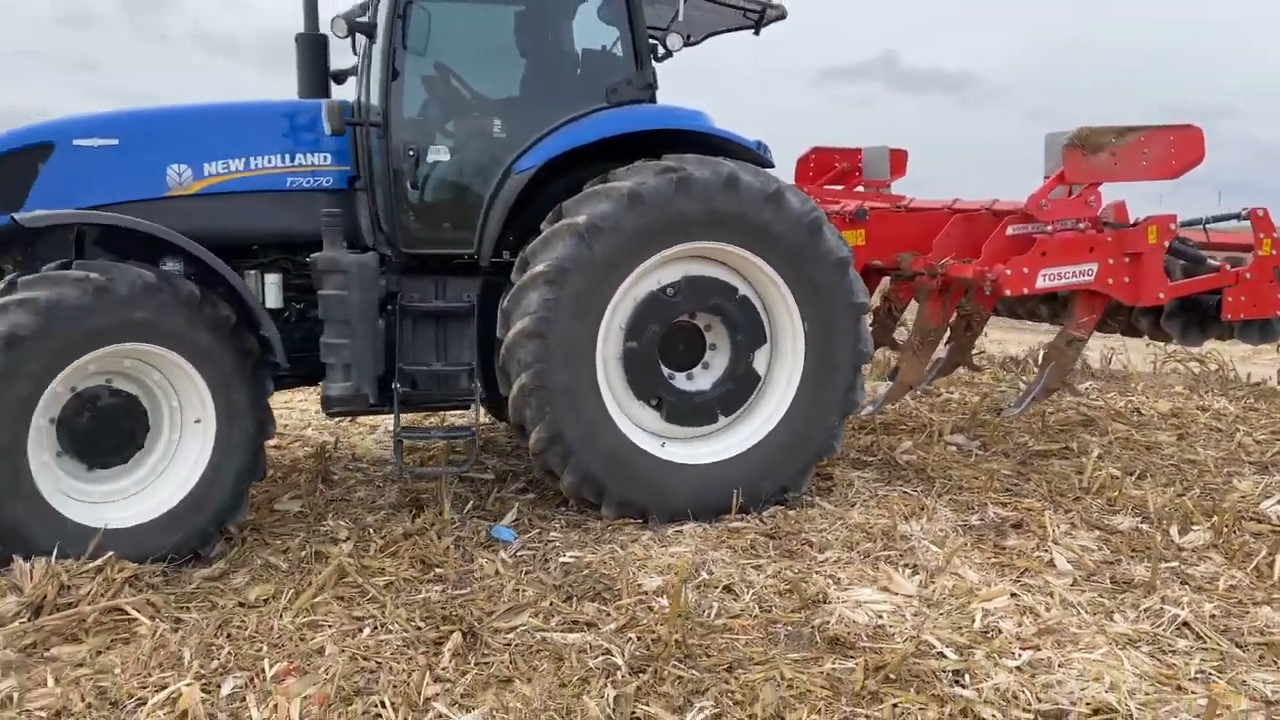

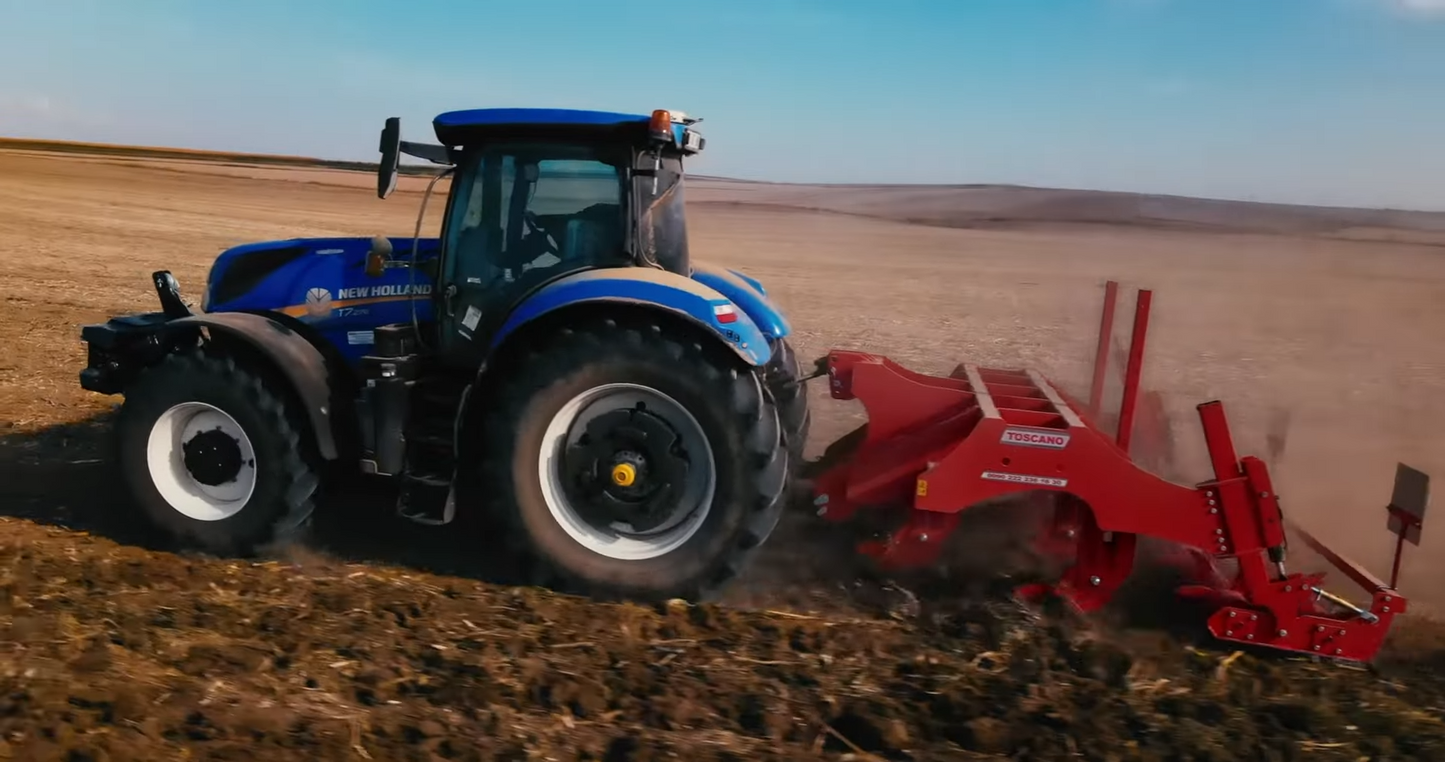

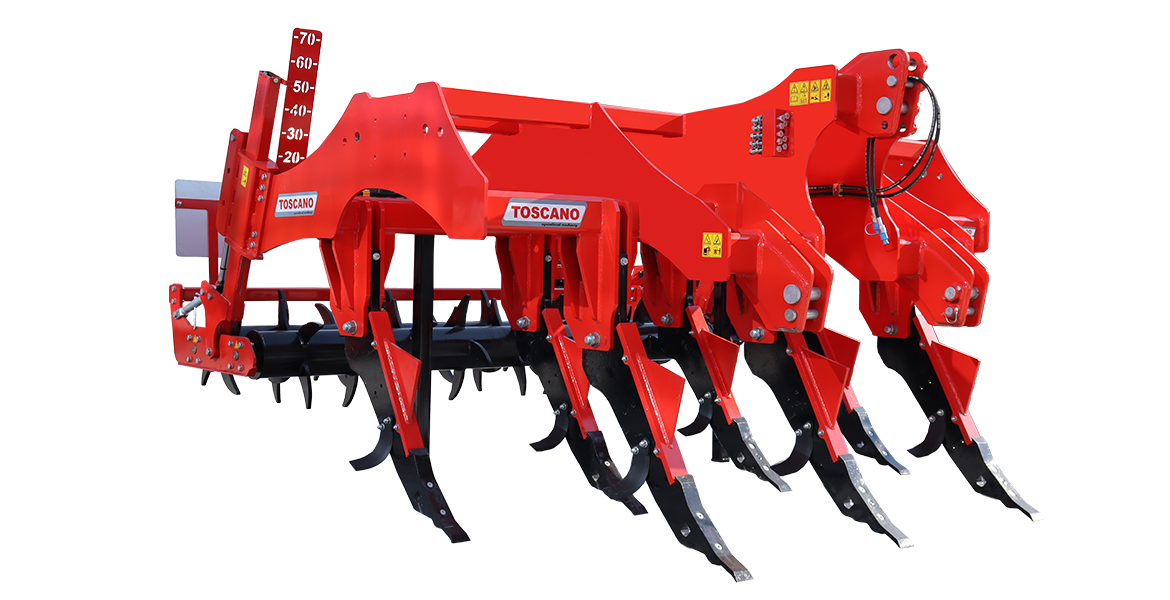

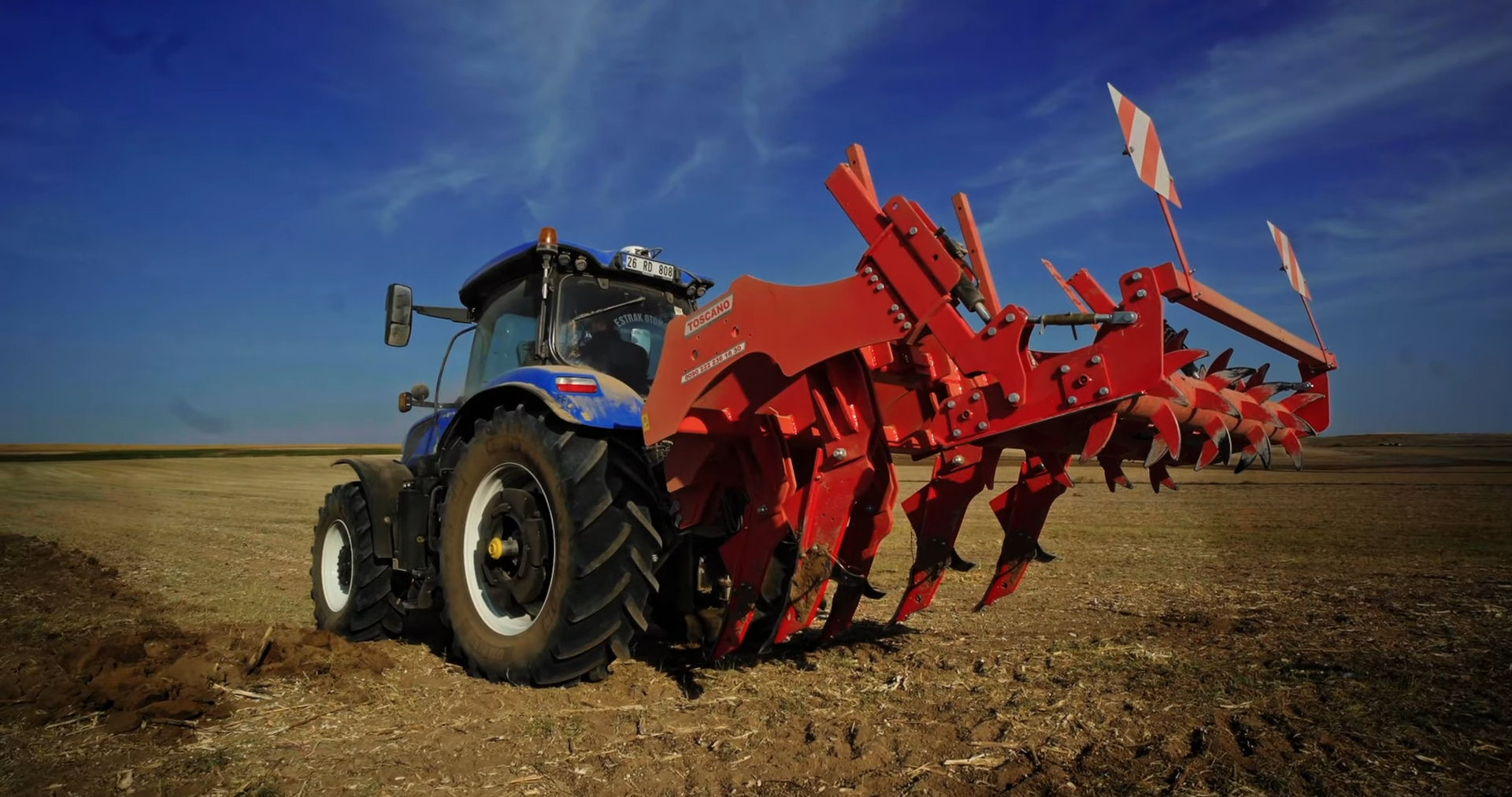

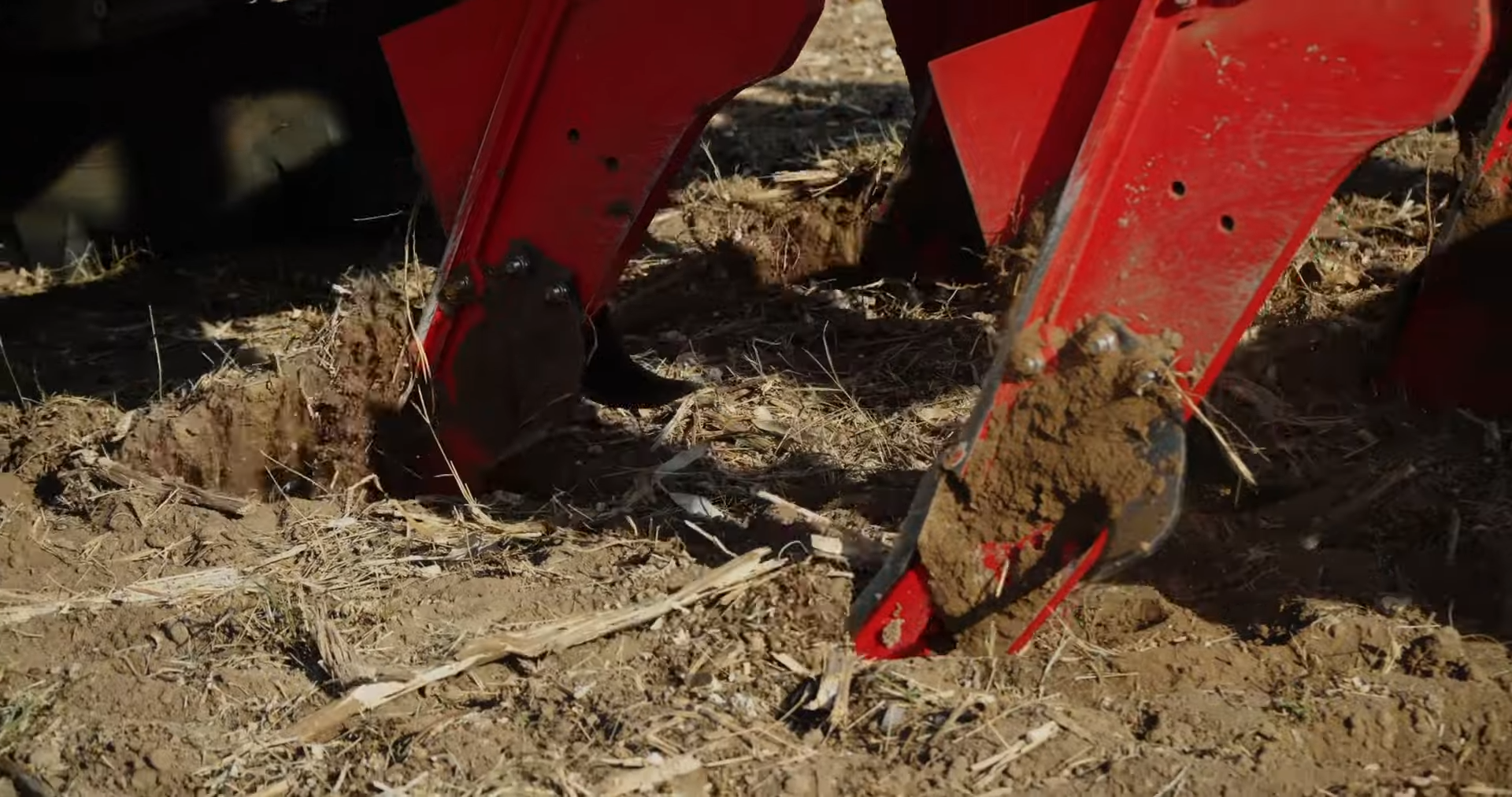

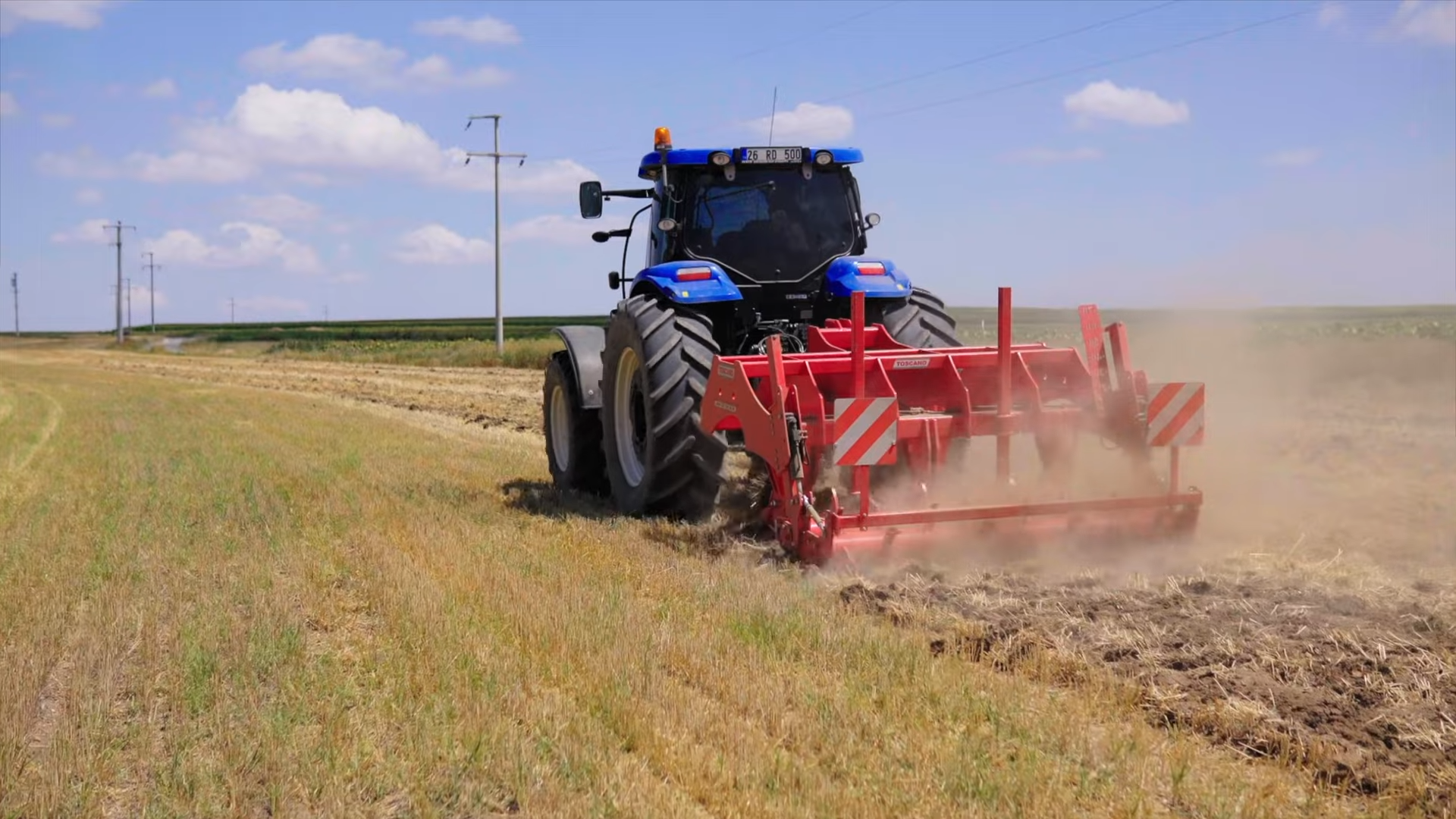

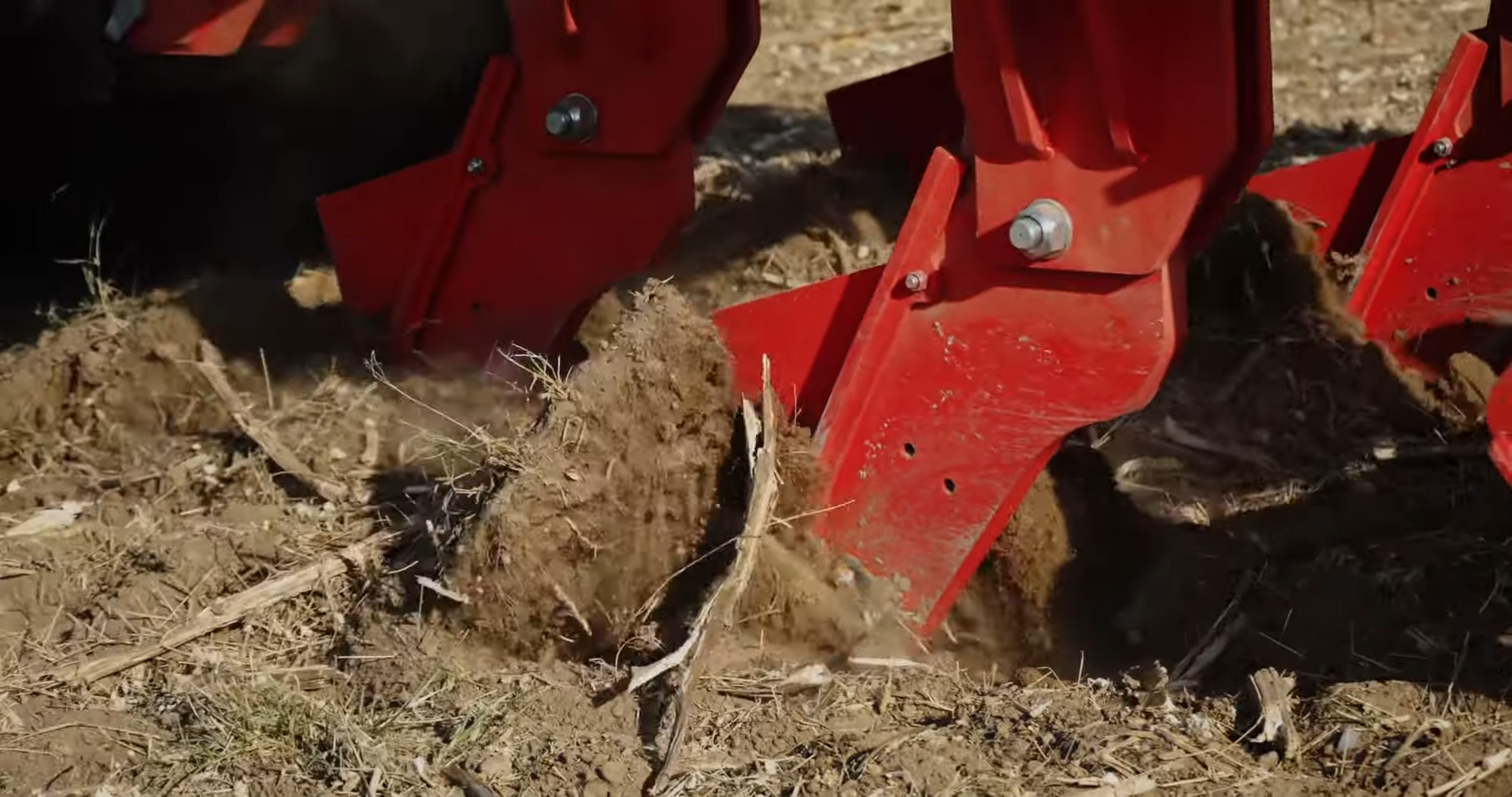

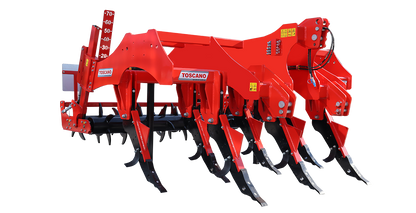

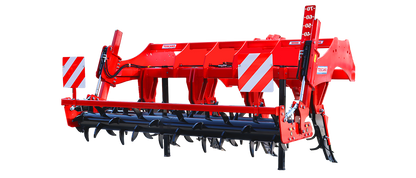

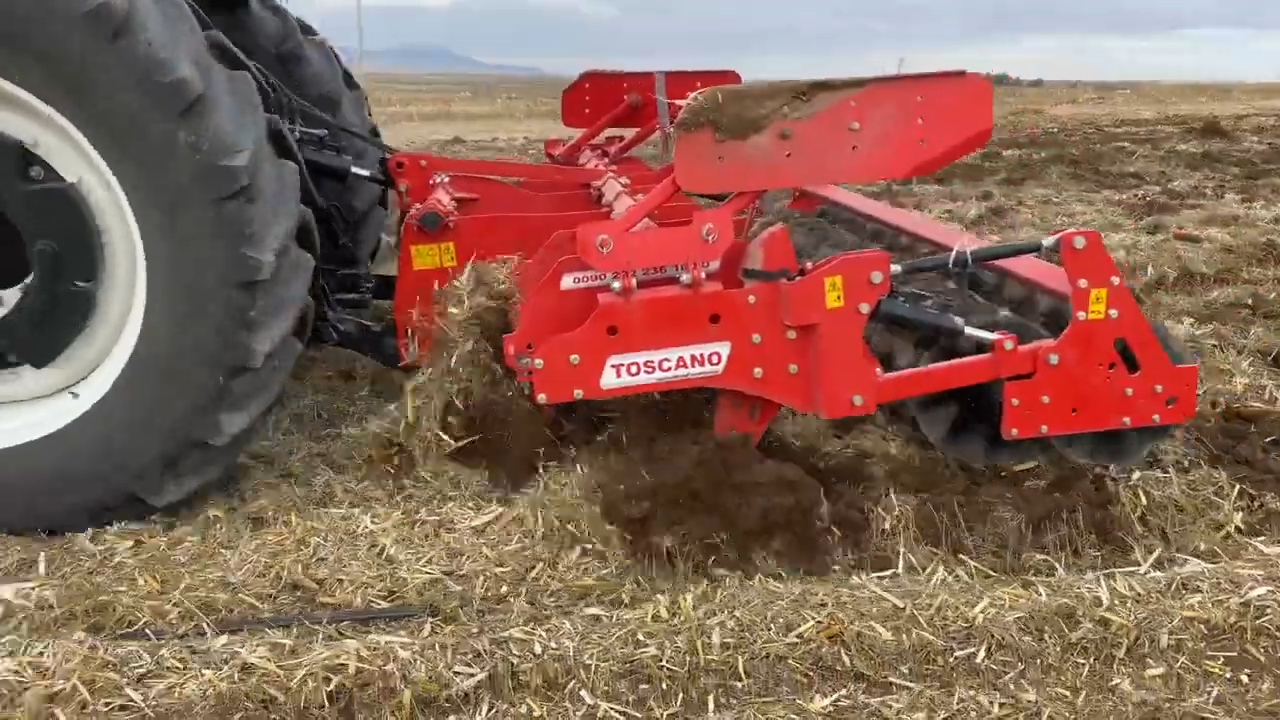

The Toscano Heavy Duty Subsoiler is a masterful tillage solution crafted to penetrate and loosen the deepest soil layers without overturning the surface. By retaining soil moisture, breaking compacted layers, and creating an underground water reservoir, this subsoiler ensures optimal soil health and facilitates robust vertical root growth. Perfect for hard and cloddy soils, the subsoiler also features pointed rollers that leave a smooth finish on the field surface for superior efficiency.The Toscano Heavy Duty Subsoiler operates effectively with tractors requiring 126-290 kW / 170-390 HP, ensuring reliable performance and compatibility for tackling deep soil layers in large-scale farming operations. Its power capability makes it an indispensable tool for modern agricultural needs.
Engineered for high durability and adaptability, the Toscano Heavy Duty Subsoiler comes with a hydraulic double-roller adjustment system, safety shear bolts, and a depth adjustment indicator for precision operations. Compatible with both CAT 3 and 4N linkages, it seamlessly integrates with powerful tractors, making it ideal for large-scale farming. Its optional accessories, including abrasion-resistant blades and side plates, further enhance its functionality, ensuring peak performance in tough terrains.
Key Features
- Power Requirement: Designed to operate with tractors requiring 126-290 kW / 170-390 HP, making it a powerful and versatile solution for deep tillage.

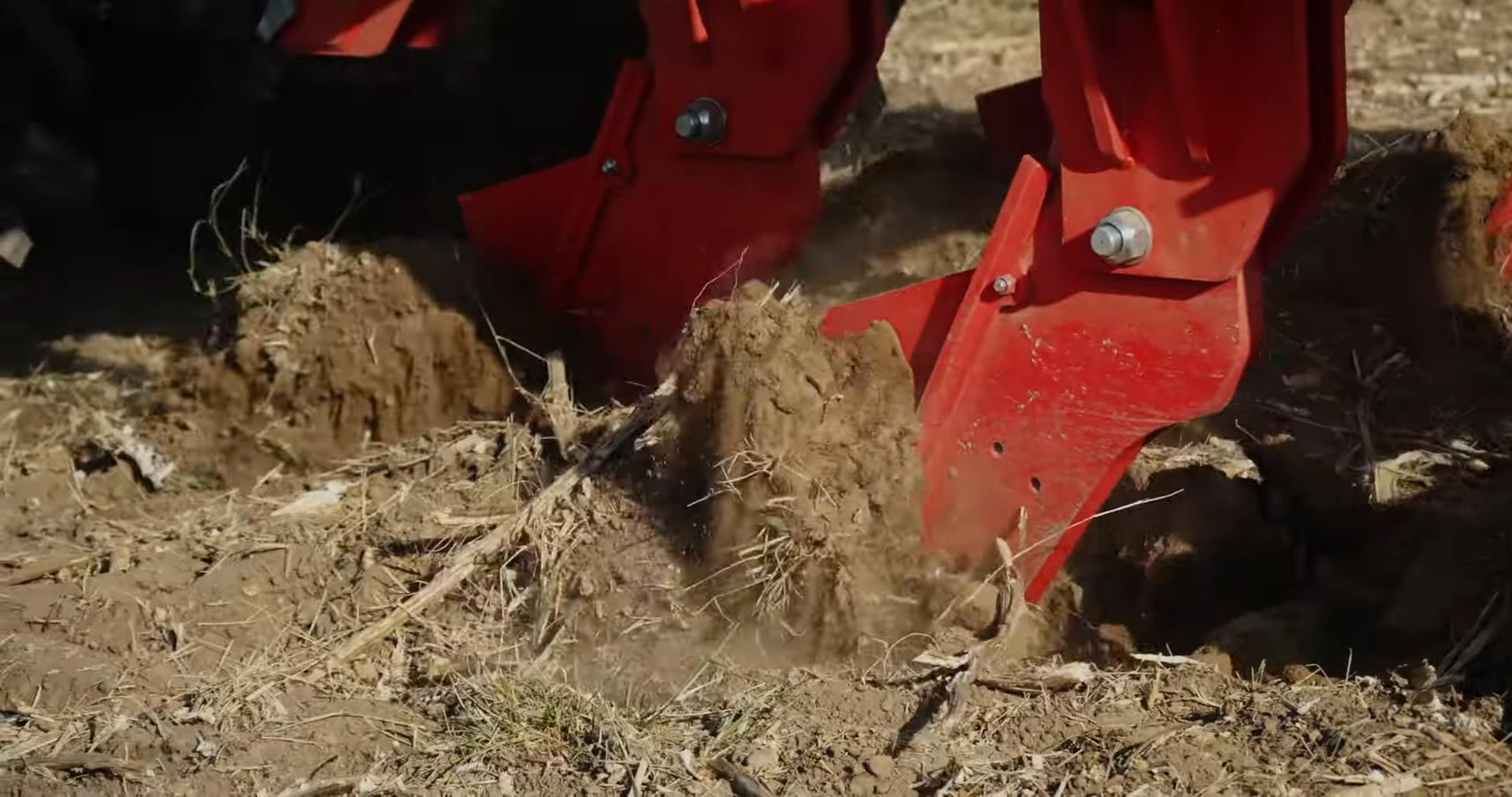

- Deep Soil Penetration: Breaks compact soil layers without turning over the surface, preserving moisture for improved crop yields.
- Improved Root Growth: Supports vertical root growth by loosening the soil and creating underground water reservoirs.

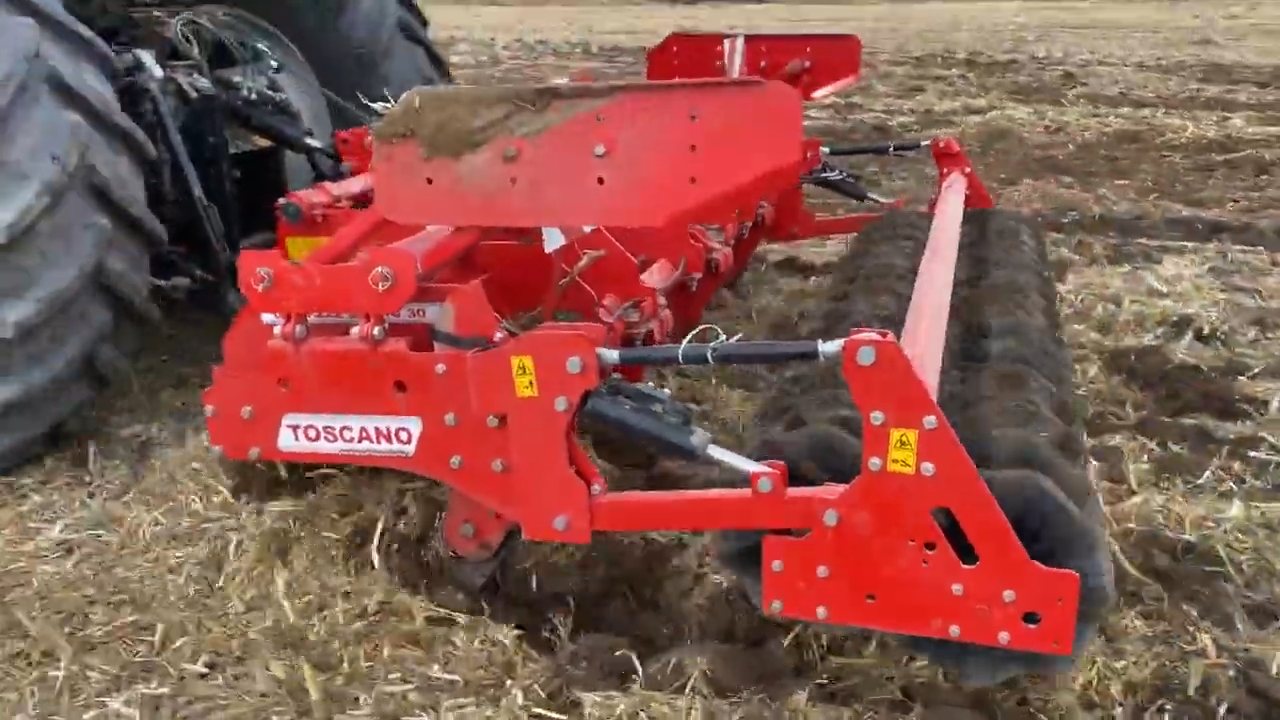

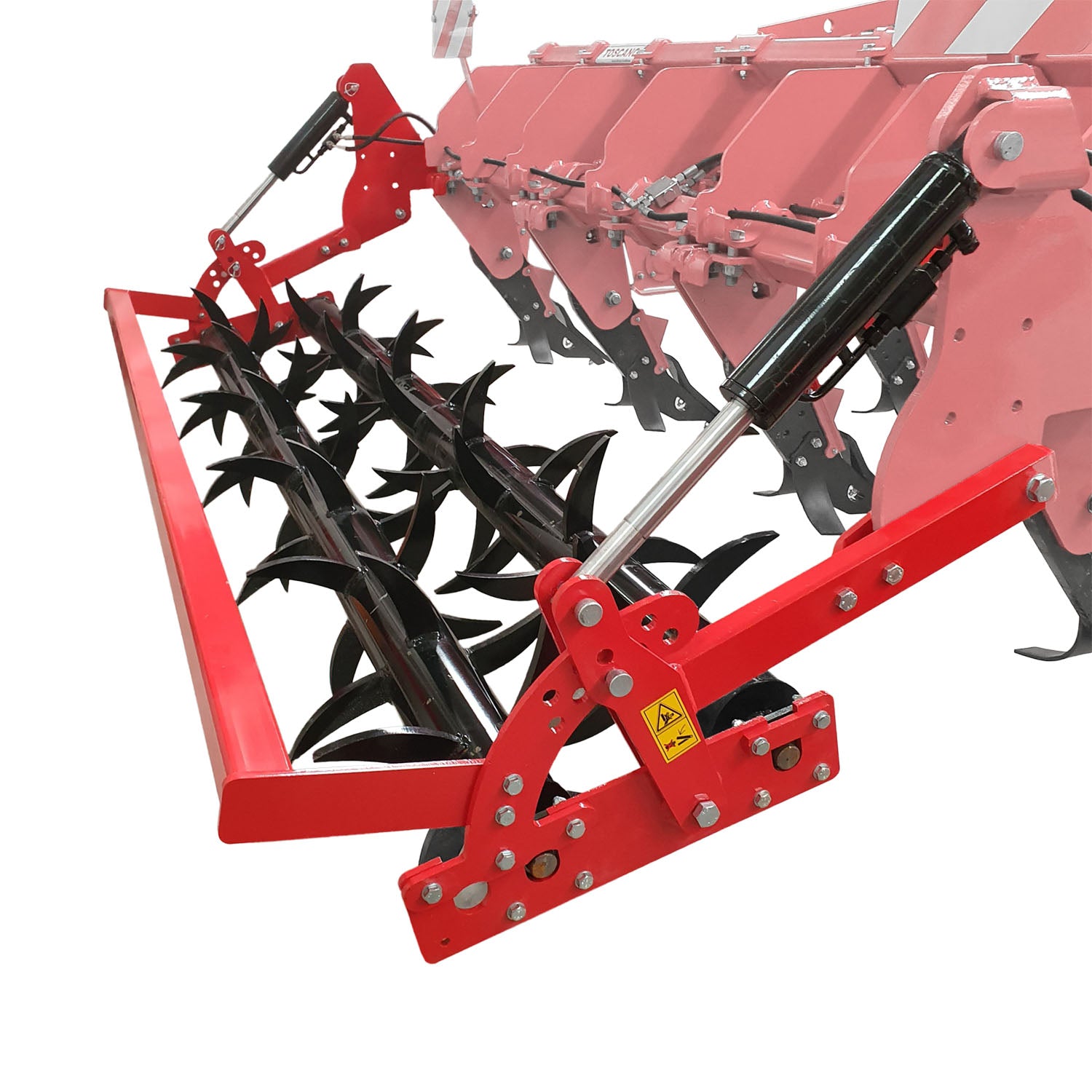

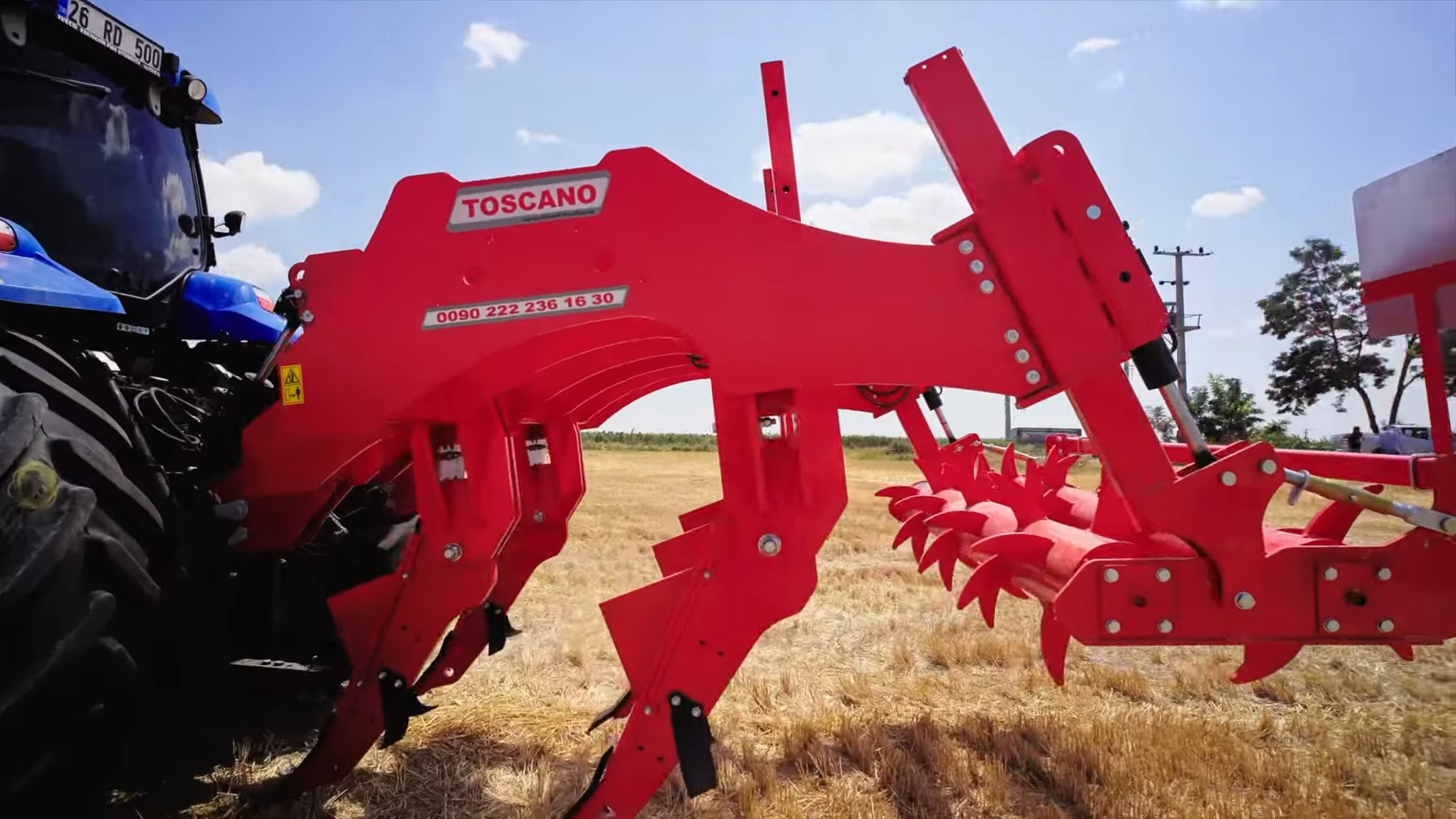

- Hydraulic Double Roller: Adjustable rollers enhance adaptability across various soil structures.

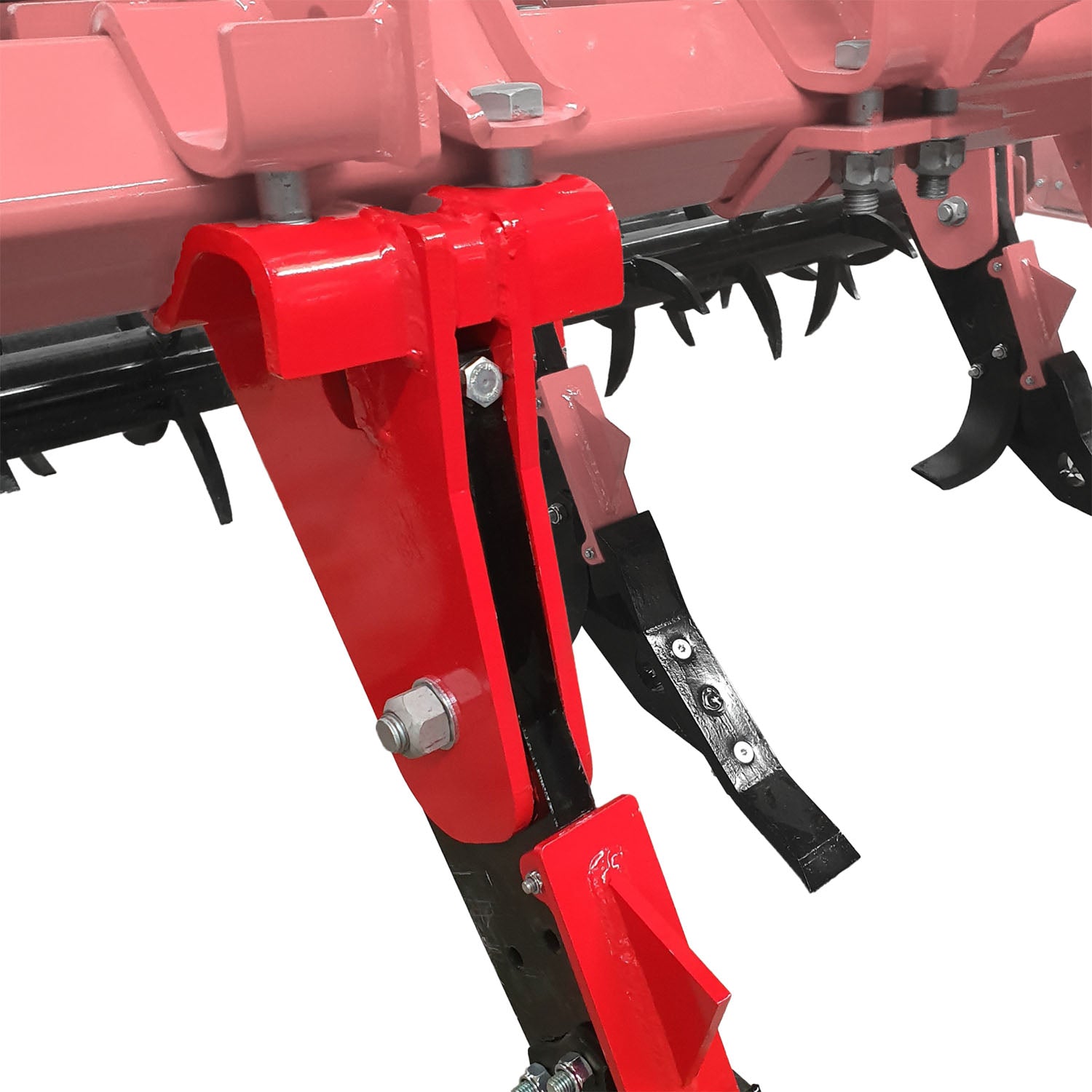

- Safety Pin System: Automatically disengages when encountering hard obstacles, protecting the machine and tractor from damage.

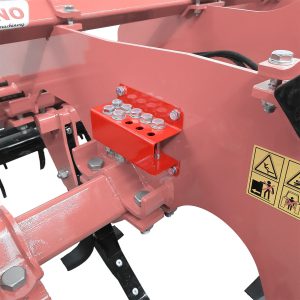

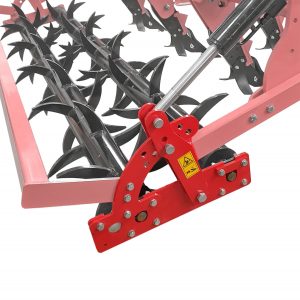

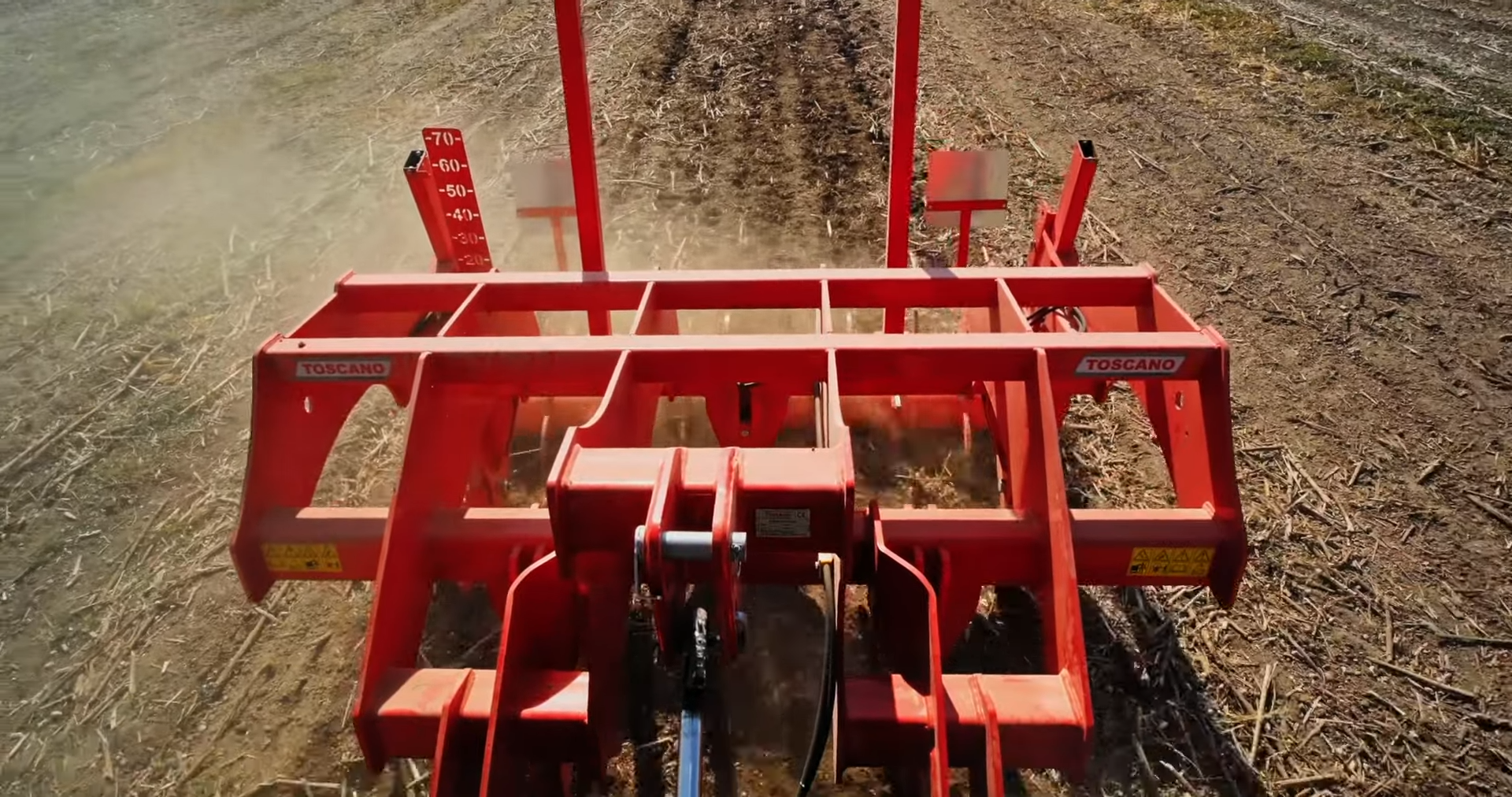

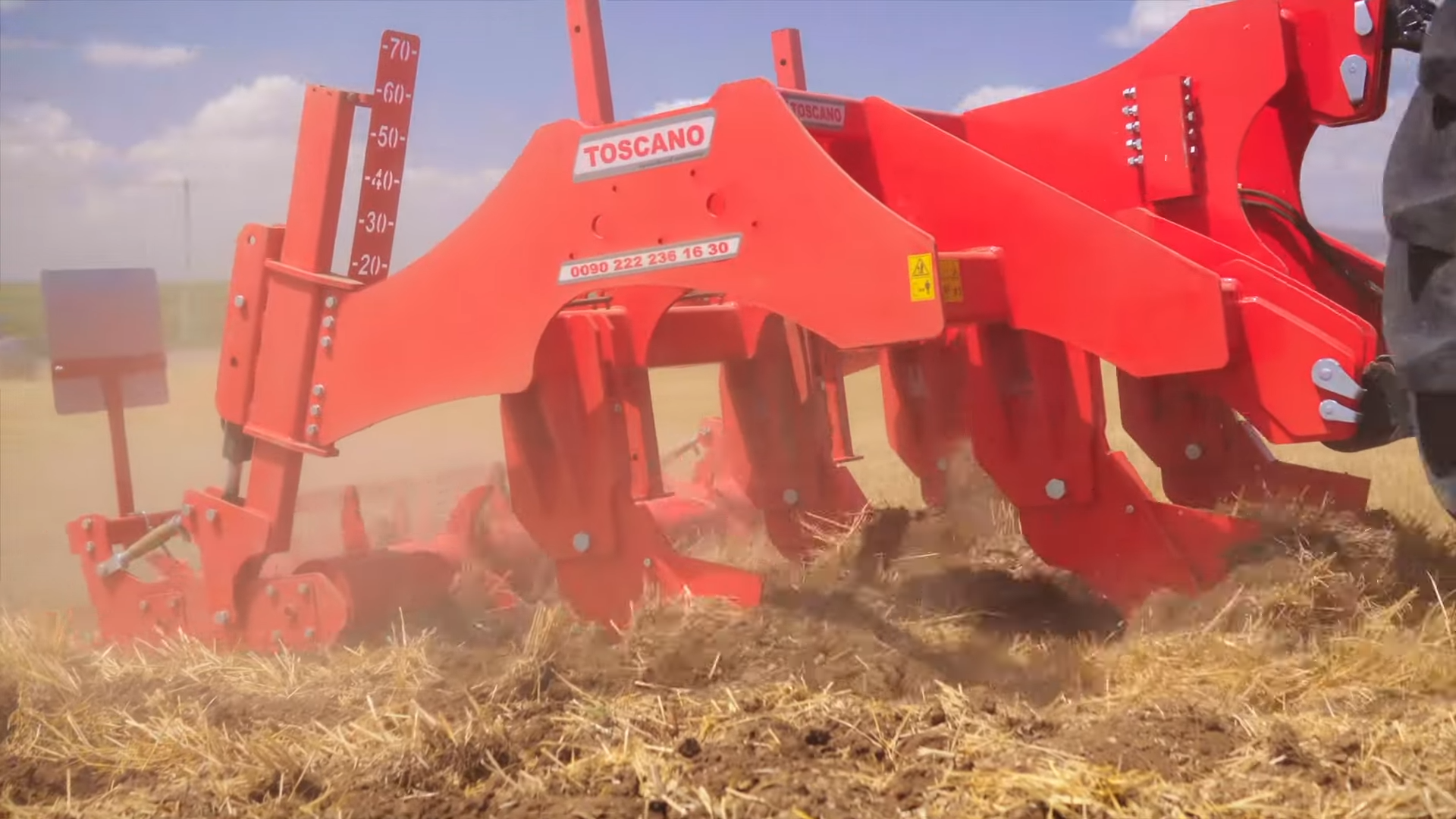

- Precision Depth Adjustment: Pin bolts allow for accurate working depth adjustments to suit your specific tillage needs.

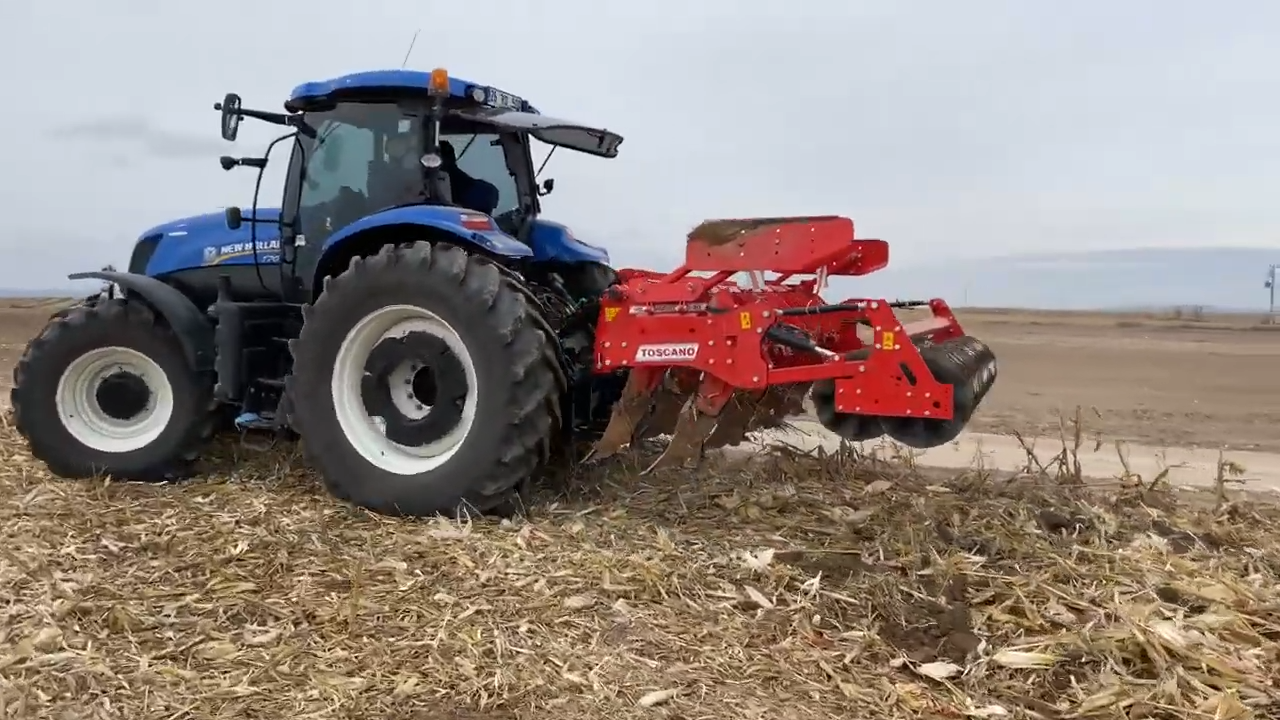

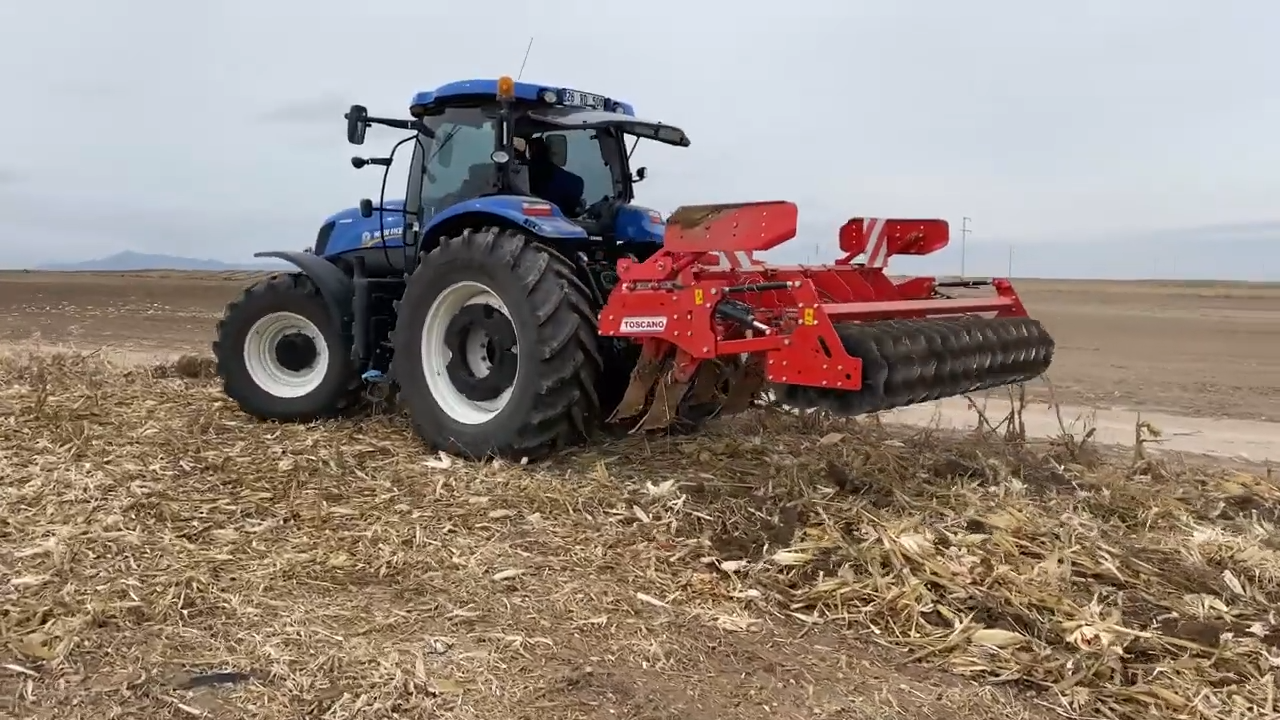

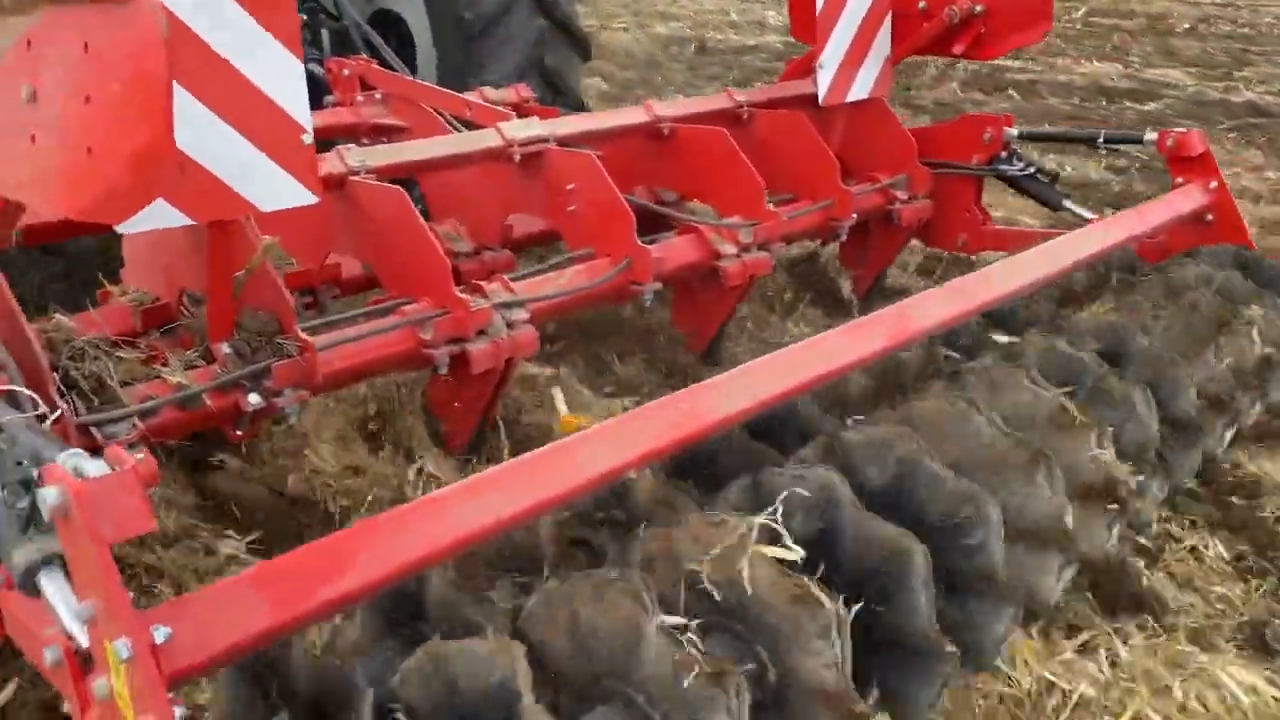

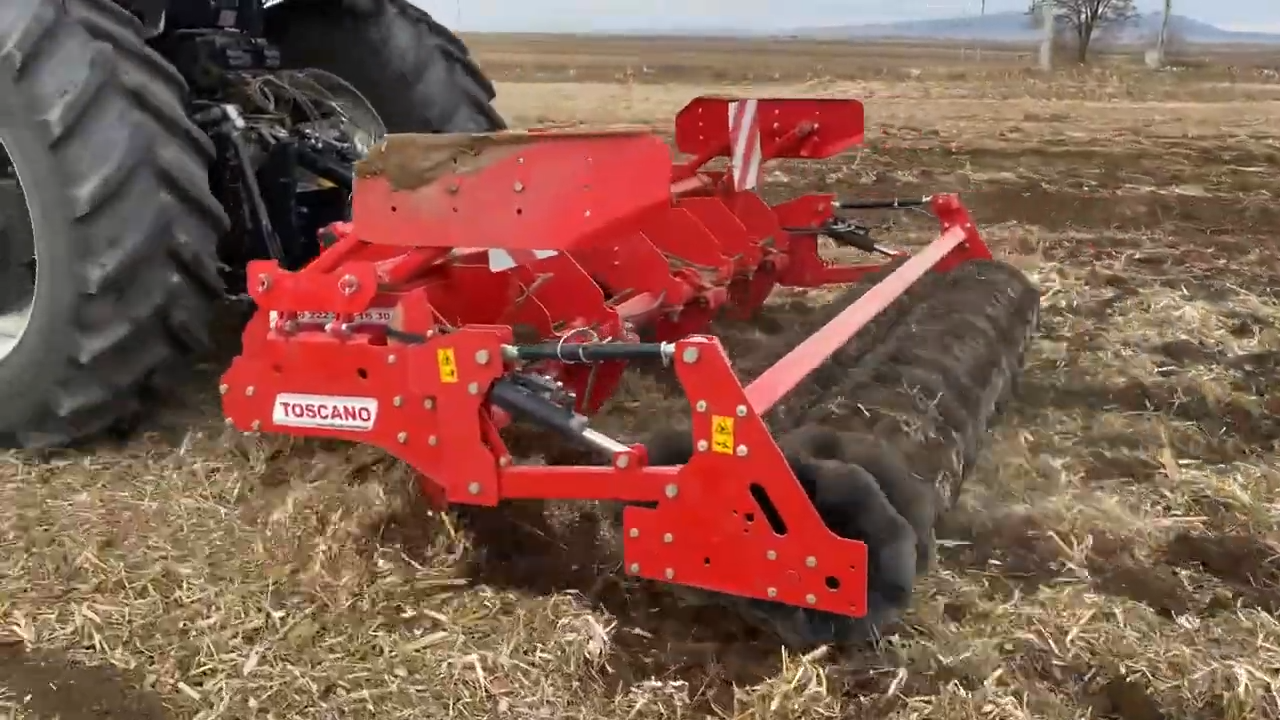

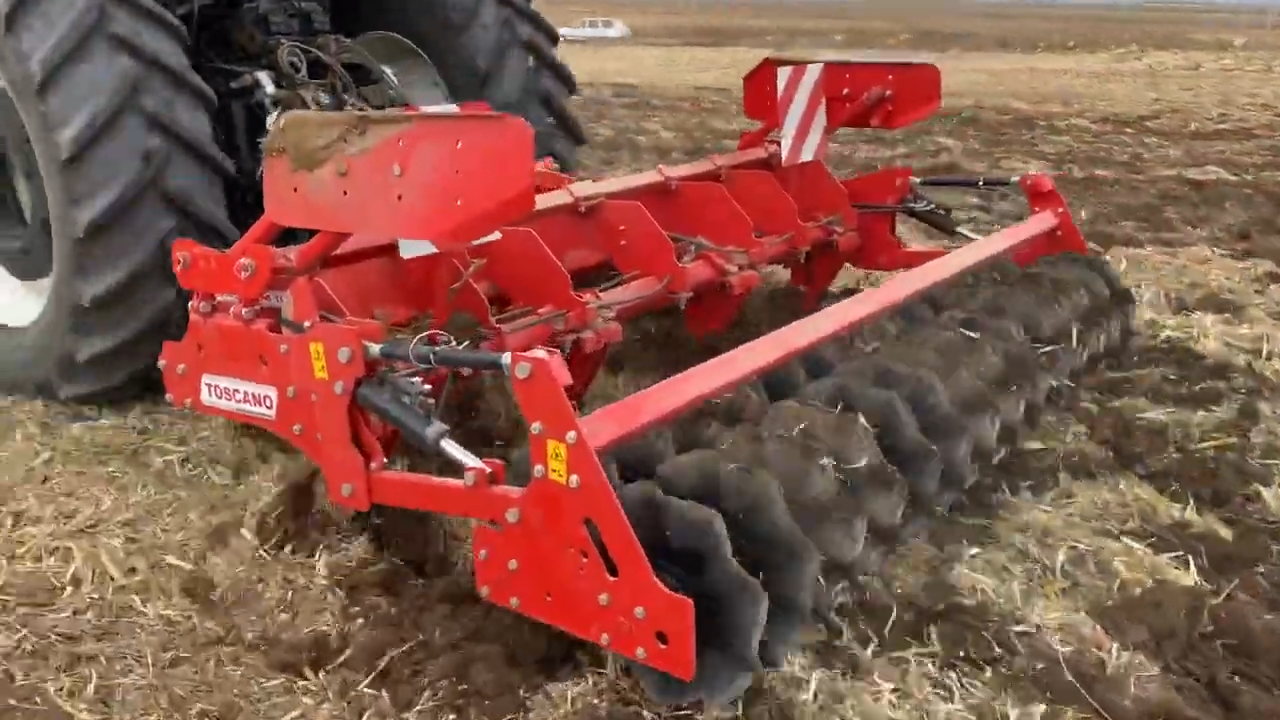

- Pointed Rollers: Deliver smooth field surfaces and better performance in diverse terrains.

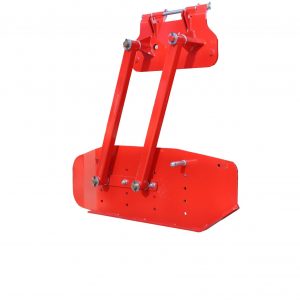

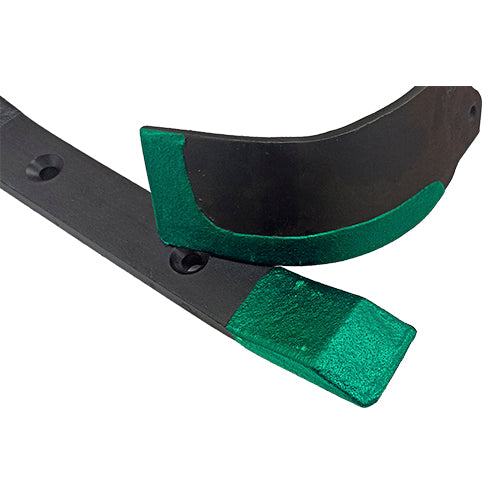

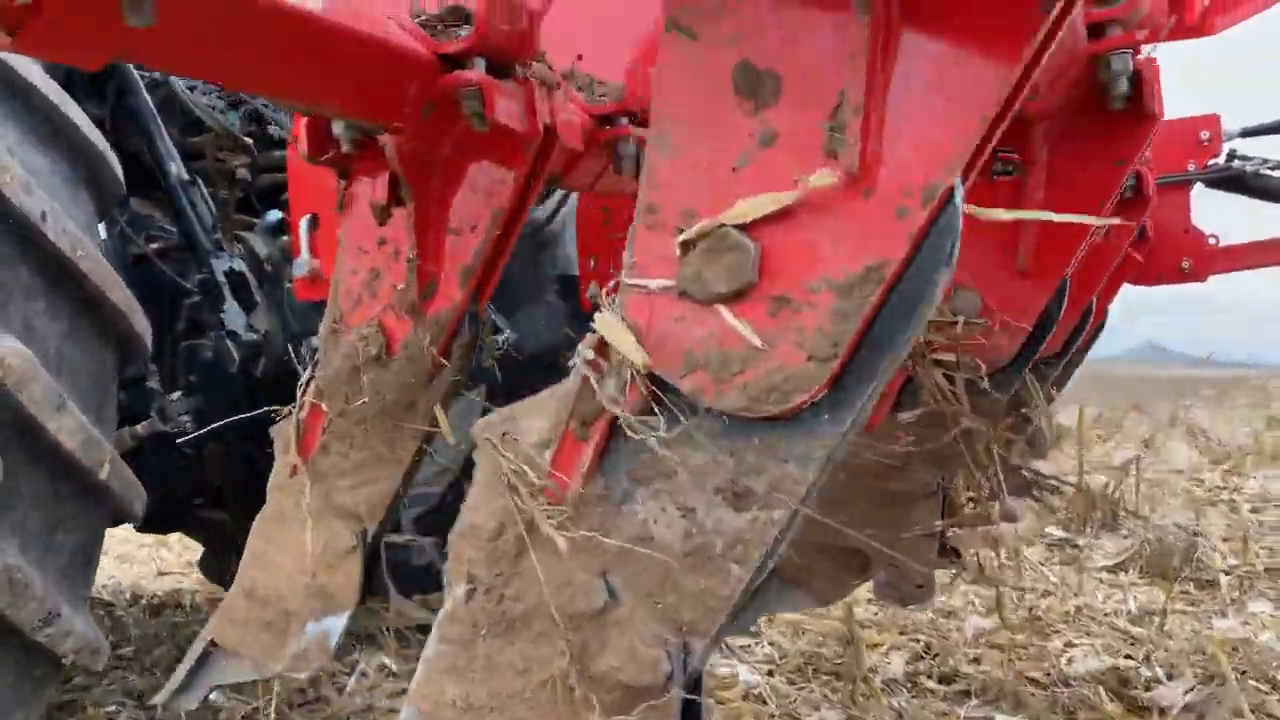

- Optional Accessories: Enhance usability with side plates and abrasion-resistant tungsten carbide-coated blasting blades.

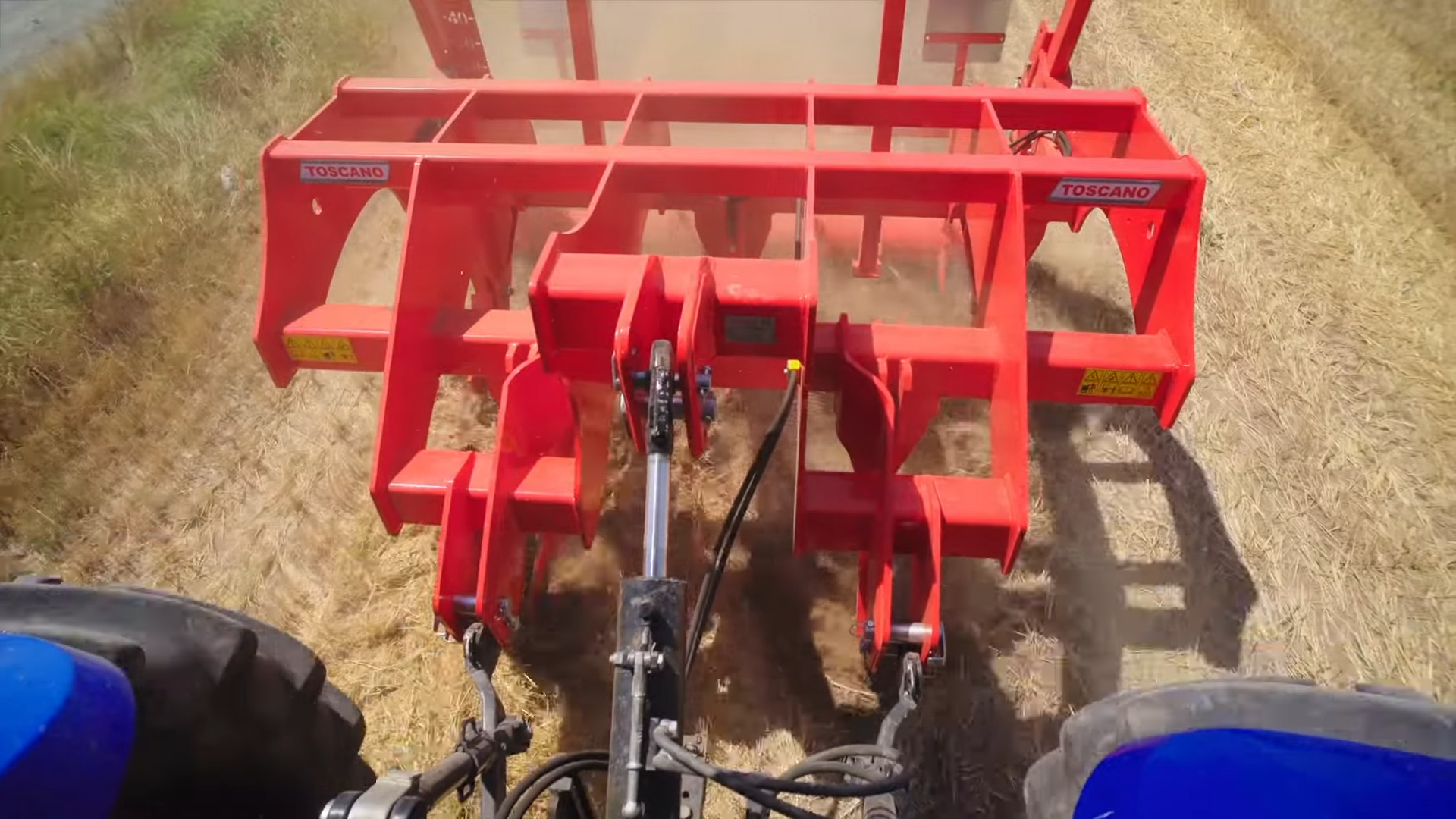

- Universal Compatibility: Designed with CAT 3 and 4N linkages for efficient integration with a wide range of tractor models.

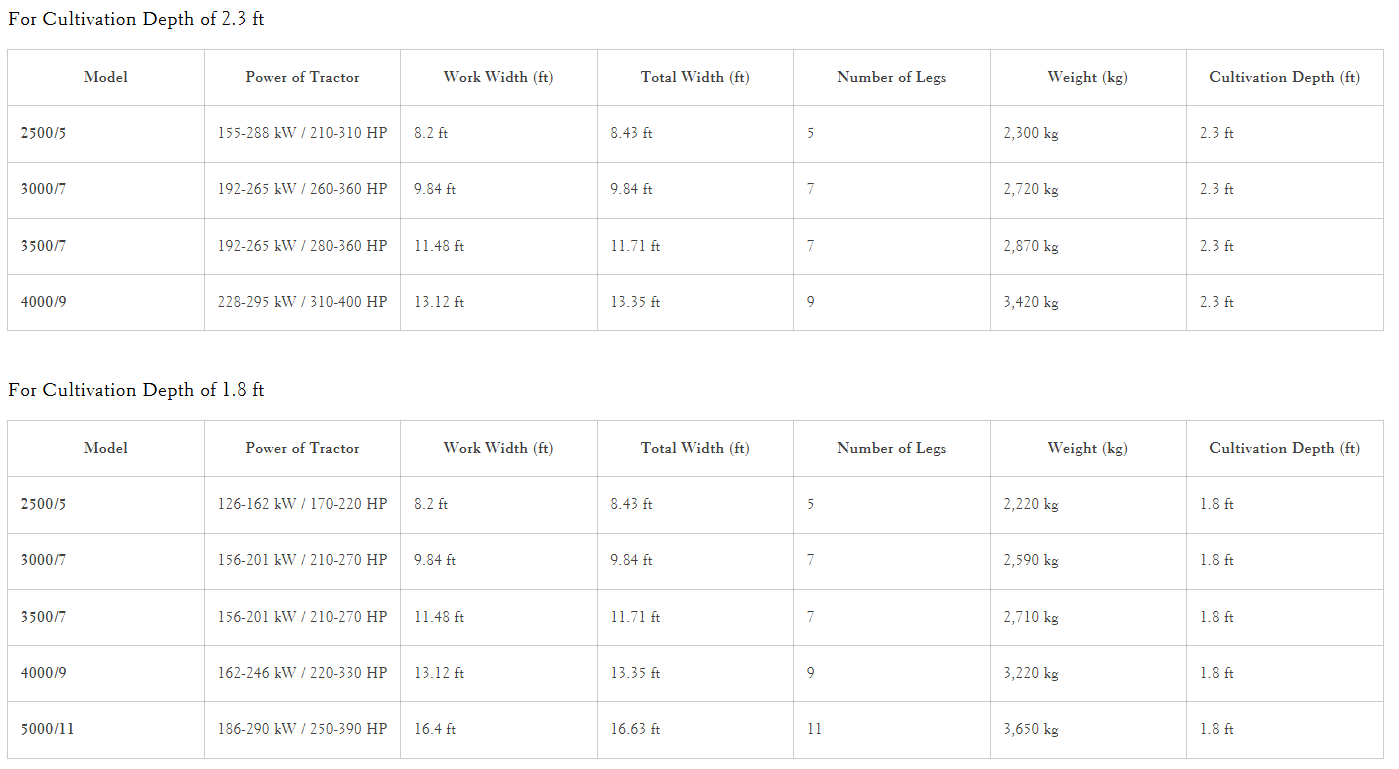

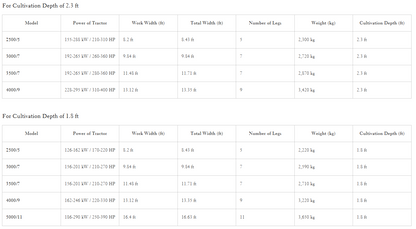

Detailed Specifications
| Feature | 2500/5 | 3000/7 |
|---|---|---|
| Power of Tractor | 155–288 kW / 210–310 HP | 192–265 kW / 260–360 HP |
| Work Width (ft) | 8.2 ft | 9.84 ft |
| Total Width (ft) | 8.43 ft | 9.84 ft |
| Number of Legs | 5 | 7 |
| Weight (kg) | 2,300 kg | 2,720 kg |
| Cultivation Depth (ft) | 2.3 ft | 2.3 ft |
| Feature | 3500/7 | 4000/9 |
|---|---|---|
| Power of Tractor | 192–265 kW / 280–360 HP | 228–295 kW / 310–400 HP |
| Work Width (ft) | 11.48 ft | 13.12 ft |
| Total Width (ft) | 11.71 ft | 13.35 ft |
| Number of Legs | 7 | 9 |
| Weight (kg) | 2,870 kg | 3,420 kg |
| Cultivation Depth (ft) | 2.3 ft | 2.3 ft |
| Feature | 2500/5 | 3000/7 |
|---|---|---|
| Power of Tractor | 126–162 kW / 170–220 HP | 156–201 kW / 210–270 HP |
| Work Width (ft) | 8.2 ft | 9.84 ft |
| Total Width (ft) | 8.43 ft | 9.84 ft |
| Number of Legs | 5 | 7 |
| Weight (kg) | 2,220 kg | 2,590 kg |
| Cultivation Depth (ft) | 1.8 ft | 1.8 ft |
| Feature | 3500/7 | 4000/9 |
|---|---|---|
| Power of Tractor | 156–201 kW / 210–270 HP | 162–246 kW / 220–330 HP |
| Work Width (ft) | 11.48 ft | 13.12 ft |
| Total Width (ft) | 11.71 ft | 13.35 ft |
| Number of Legs | 7 | 9 |
| Weight (kg) | 2,710 kg | 3,220 kg |
| Cultivation Depth (ft) | 1.8 ft | 1.8 ft |
| Feature | 5000/11 |
|---|---|
| Power of Tractor | 186–290 kW / 250–390 HP |
| Work Width (ft) | 16.4 ft |
| Total Width (ft) | 16.63 ft |
| Number of Legs | 11 |
| Weight (kg) | 3,650 kg |
| Cultivation Depth (ft) | 1.8 ft |
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information neededabout products and parts you can’t find!

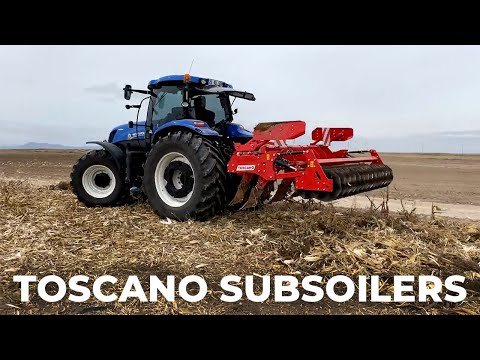

Videos
