Product Description
Checchi & Magli Transplanter WOLFPRO Compact | 2-6 Rows | 79"-138" Frame Width | 30-85 HP For Tractor
Included Options:
- Perforating Cups: Standard, Long, 6X6, 8X8, or blank for customized planting.
- Horizontal Racks: Multiple sizes available for added storage.
- Row Markers: Manual or hydraulic for precise alignment.

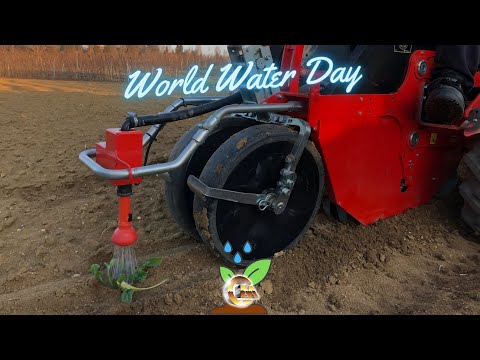

- Watering Devices: Compatible with different row and tank configurations.

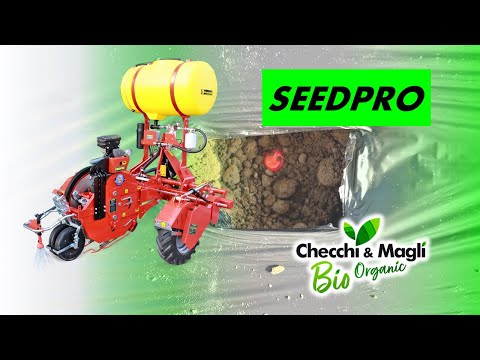

- Seed PRO Unit: For seeding and transplanting in one operation.
- Microgranular and Fertilizer Distributors: Available in various models.

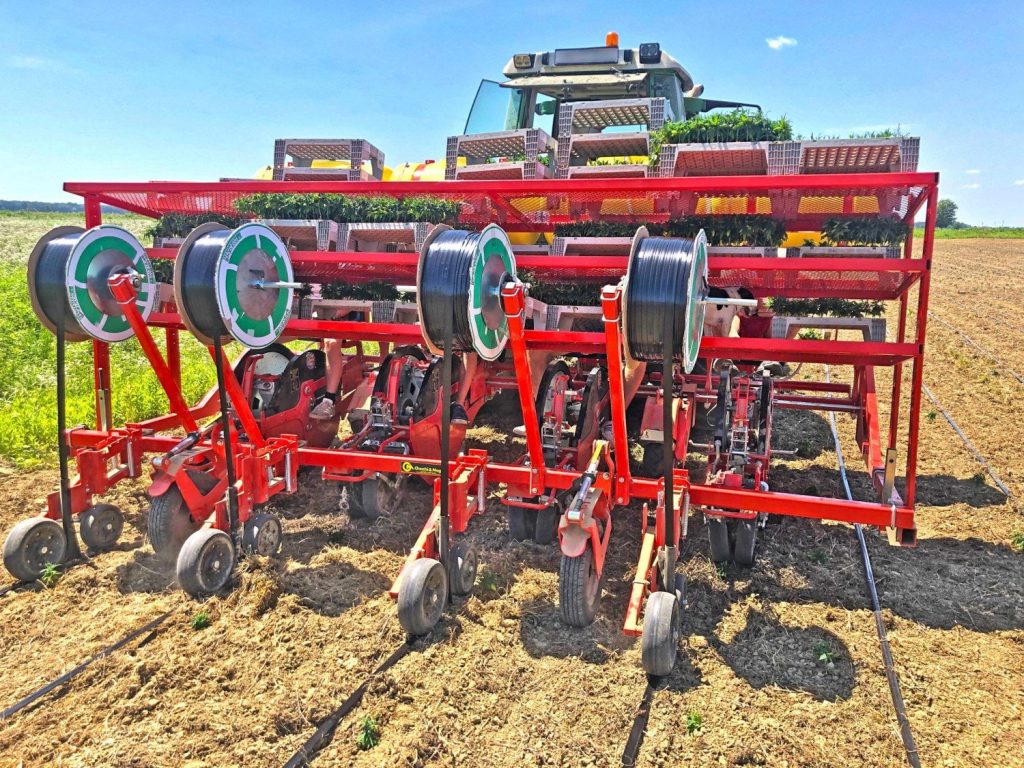

- Drip Tape Dispensers: Options for surface or subsurface irrigation.
- Clod Separator: Ensures better soil preparation.
DESCRIPTION

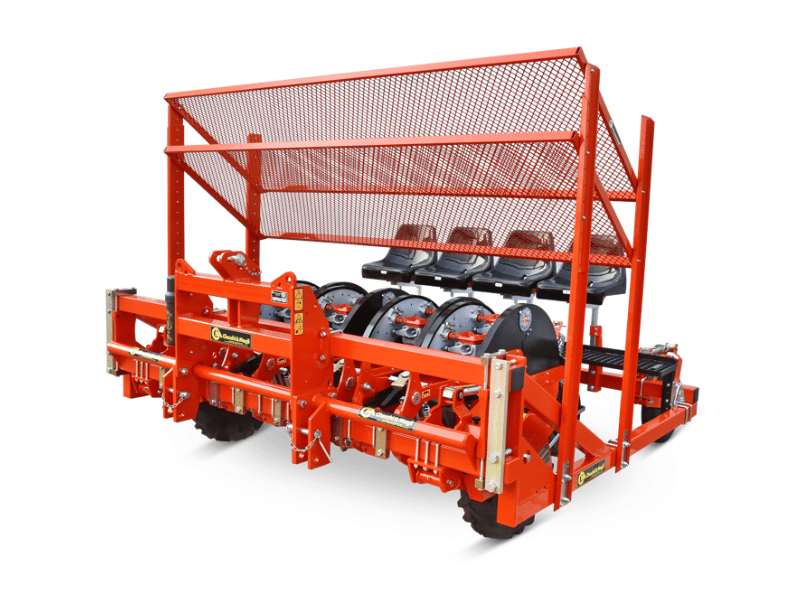

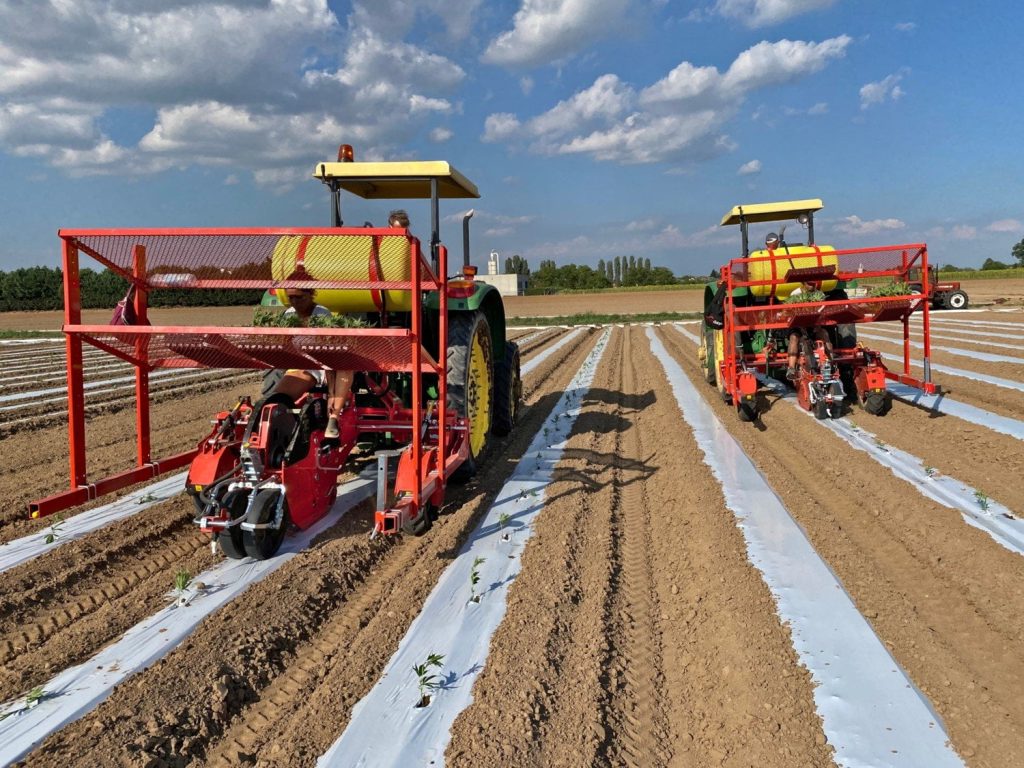

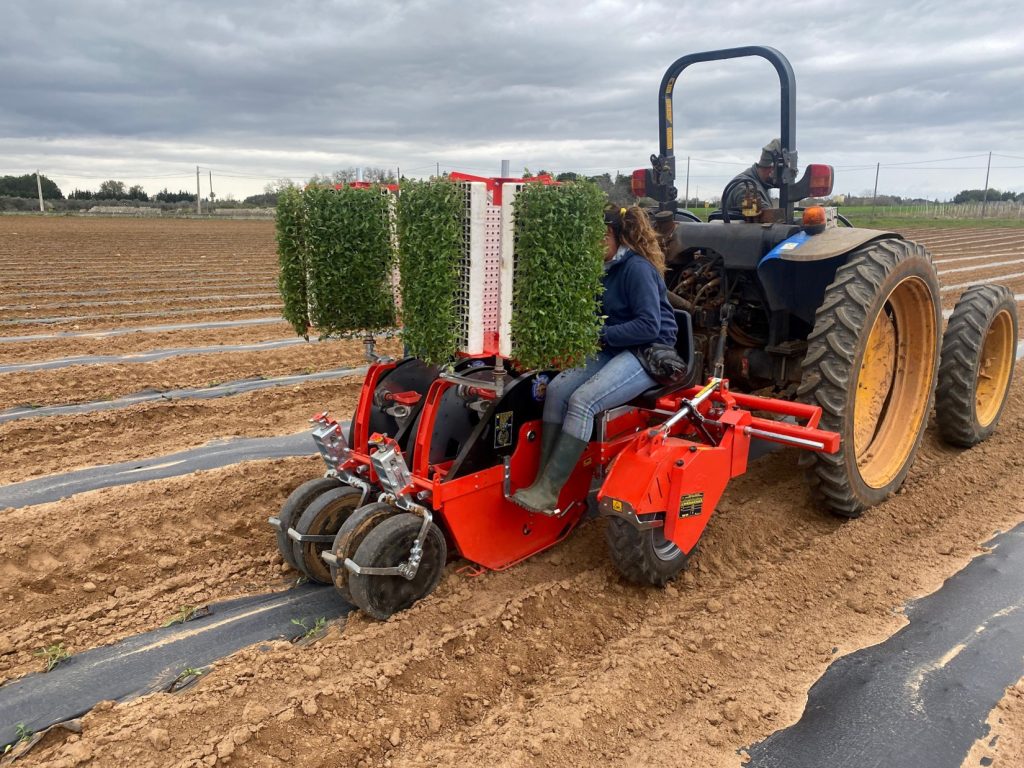

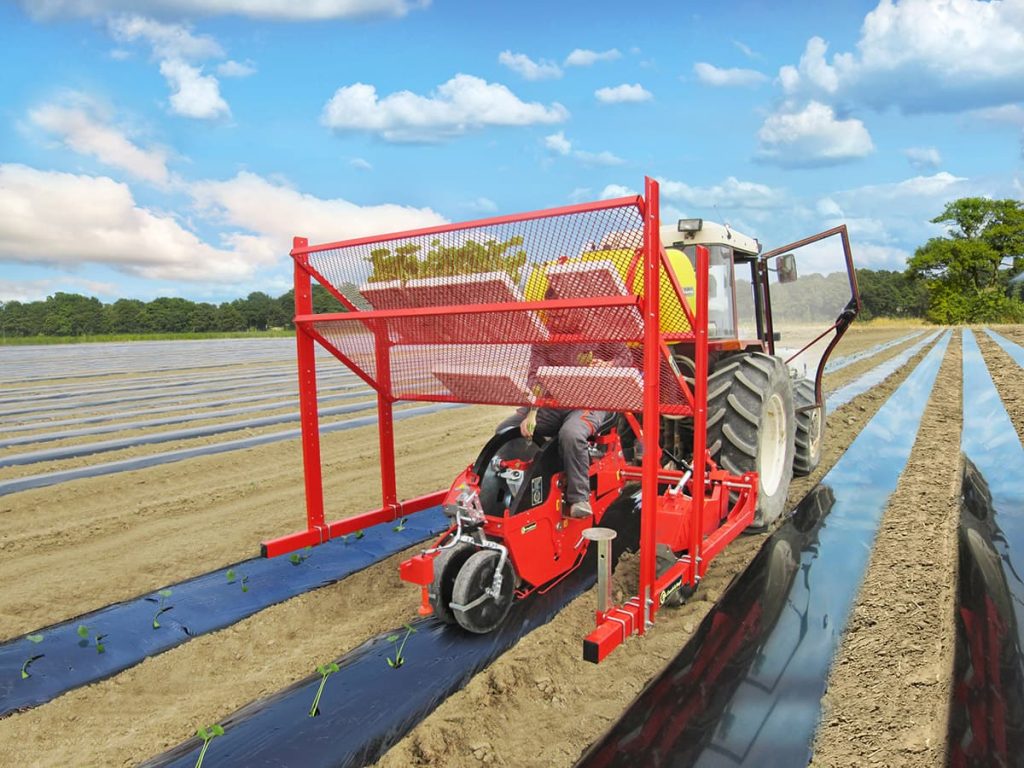

The Checchi & Magli WOLFPRO Compact is a professional-grade transplanter designed for efficient and precise planting operations. With a minimum row spacing of 11.8" (30 cm), this versatile machine works seamlessly with or without mulching film, including biodegradable options. Its independent and floating transplanting units ensure accurate soil adaptation, even in challenging conditions such as heavy soils.
Capable of handling peat clod-rooted seedlings in conical, pyramidal, or cubic shapes up to 3.15", the WOLFPRO Compact guarantees consistent planting depth and healthy crop growth. Equipped with continuous rotation perforating cups, advanced soil work features, and durable packing wheels, it’s perfect for large-scale farming and professional use.
Key Features
- Versatile Planting: Efficiently transplants seedlings with or without biodegradable mulching film.
- High Capacity: Achieves up to 4,000 plants per hour per row with 8 cups.
- Durable Design: Independent floating units with reinforced frames for professional use.
- Precise Depth: Parallelogram system for consistent and deep soil work.
- Wide Compatibility: Accommodates conical, pyramidal, or cubic seedlings up to 3.15”.
- Packing Efficiency: Equipped with 16” bi-convergent packing wheels for optimized soil contact.
- Operator Comfort: Weight distributed on the frame for easier handling.
- Automatic Safety: Protects mechanical components with automatic disengagement.
- Customizable Options: Supports various cup sizes and row configurations.
- Soil Cleaning: Includes side cleaning blades for perforating cups.
Detailed Specifications
| Feature | Details |
|---|---|
| Rows Supported | 2, 3, 4, 5, 6 |
| Frame Width (cm/in) | 79"-138" (200-350 cm) |
| Row Spacing (Min) | 11.8” (30 cm) |
| Seedling Size (Max) | 3.15” (8 cm) |
| Planting Capacity | Up to 4,000 plants/hour per row |
| Transmission | Mechanical, no PTO required |
| Packing Wheels | Flex rubber, Ø16.1” (41 cm) |
| Weight Range (kg/lbs) | 740-1,650 kg (1,631-3,638 lbs) |
| Power Requirement (HP) | 30-85 HP |
| Feature | Details |
|---|---|
| Model | WOLF PRO 2 |
| Frame Width (cm/in) | 79" (200 cm) |
| Weight (kg/lbs) | 740 kg (1,631 lbs) |

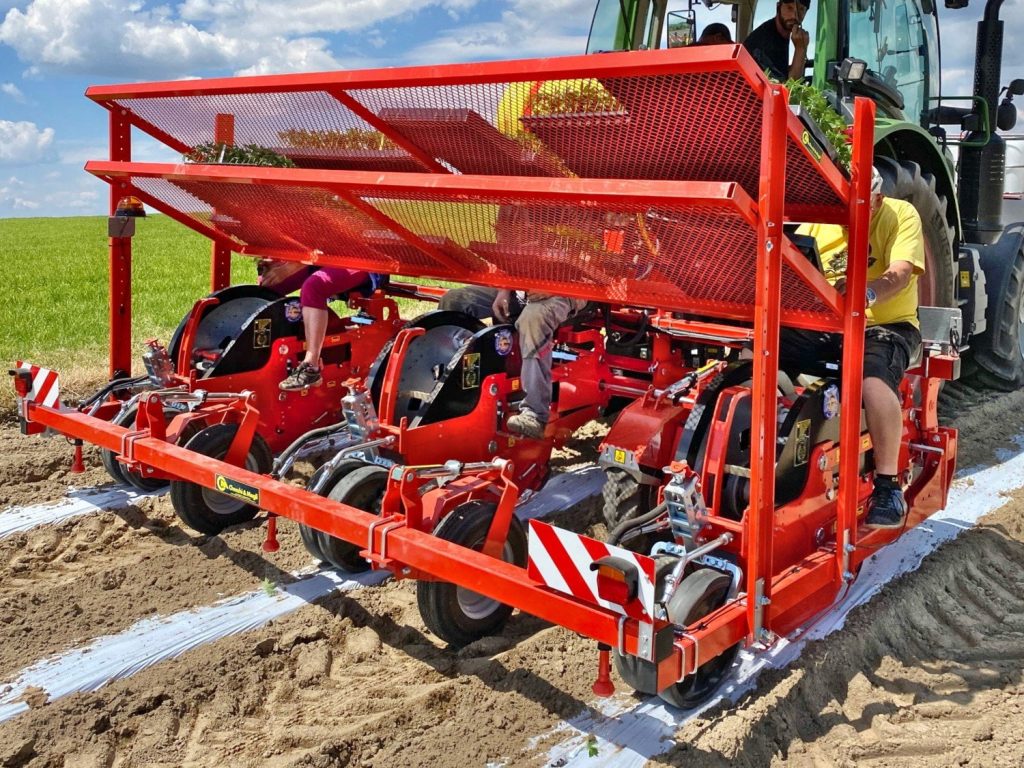

| Feature | Details |
|---|---|
| Model | WOLF PRO 3 |
| Frame Width (cm/in) | 98" (250 cm) |
| Weight (kg/lbs) | 1,020 kg (2,249 lbs) |
| Feature | Details |
|---|---|
| Model | WOLF PRO 4 |
| Frame Width (cm/in) | 118" (300 cm) |
| Weight (kg/lbs) | 1,240 kg (2,734 lbs) |
| Feature | Details |
|---|---|
| Model | WOLF PRO 5 |
| Frame Width (cm/in) | 138" (350 cm) |
| Weight (kg/lbs) | 1,440 kg (3,175 lbs) |

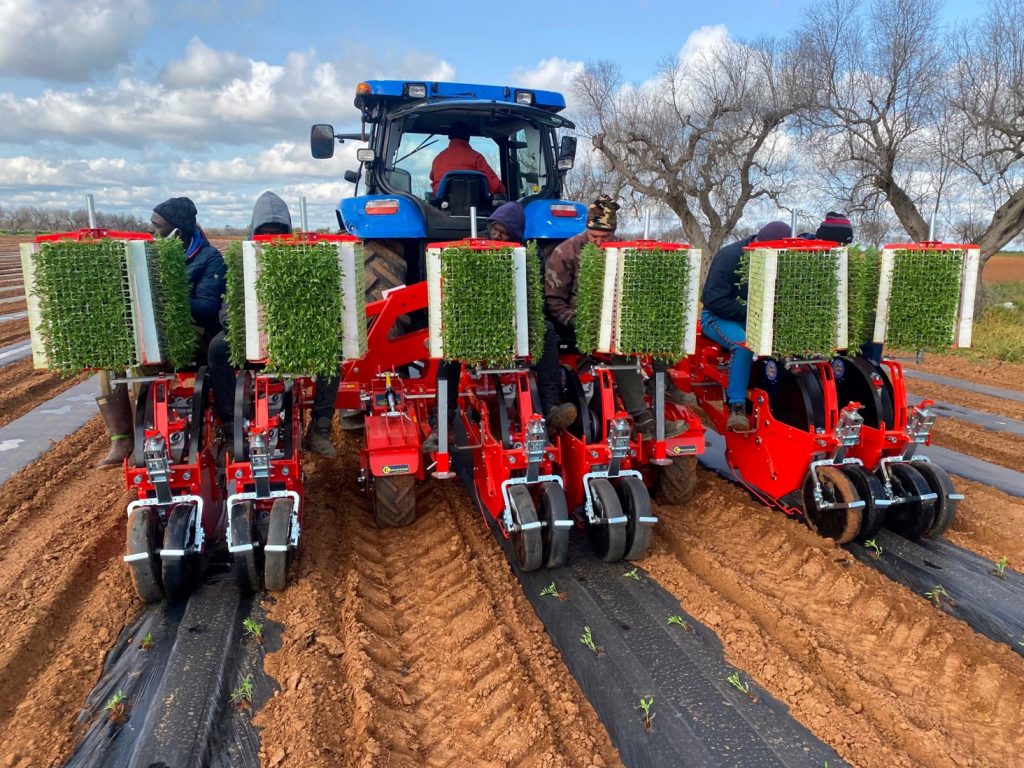

| Feature | Details |
|---|---|
| Model | WOLF PRO 6 |
| Frame Width (cm/in) | 157" (400 cm) |
| Weight (kg/lbs) | 1,650 kg (3,638 lbs) |
In Package
- WOLFPRO Compact Base Unit
- Reinforced frame with independent floating transplanting units
- Packing wheels (16” diameter, bi-convergent with triple adjustment)
- Cleaning blades for perforating cups
- User manual for operation and maintenance
