Turbo Turf Hydroseeder | HS-750 XPW & HS-750-XPW-P | Width 75" | Capacity 750 Gallons | Engine Horsepower 19 HP | For Residential & Commercial Scale Application
Turbo Turf Hydroseeder | HS-750 XPW & HS-750-XPW-P | Width 75" | Capacity 750 Gallons | Engine Horsepower 19 HP | For Residential & Commercial Scale Application
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Turbo Turf Hydroseeder | HS-750 XPW & HS-750-XPW-P | Width 75" | Capacity 750 Gallons | Engine Horsepower 19 HP | For Residential & Commercial Scale Application
Lead Time:
- HE & Harve Series - 24 - 26 Week
- The T models 400 and up - 10 - 12 Week
- Small 50-150 to Jet agitated models - 2 - 4 Week
- 300 is - 4-6 Week
DESCRIPTION

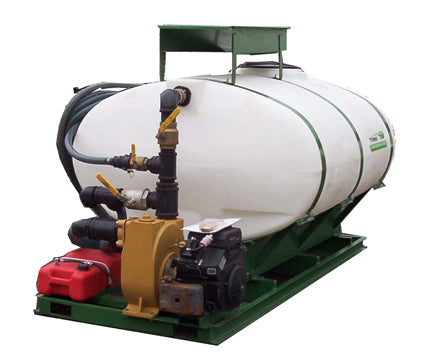

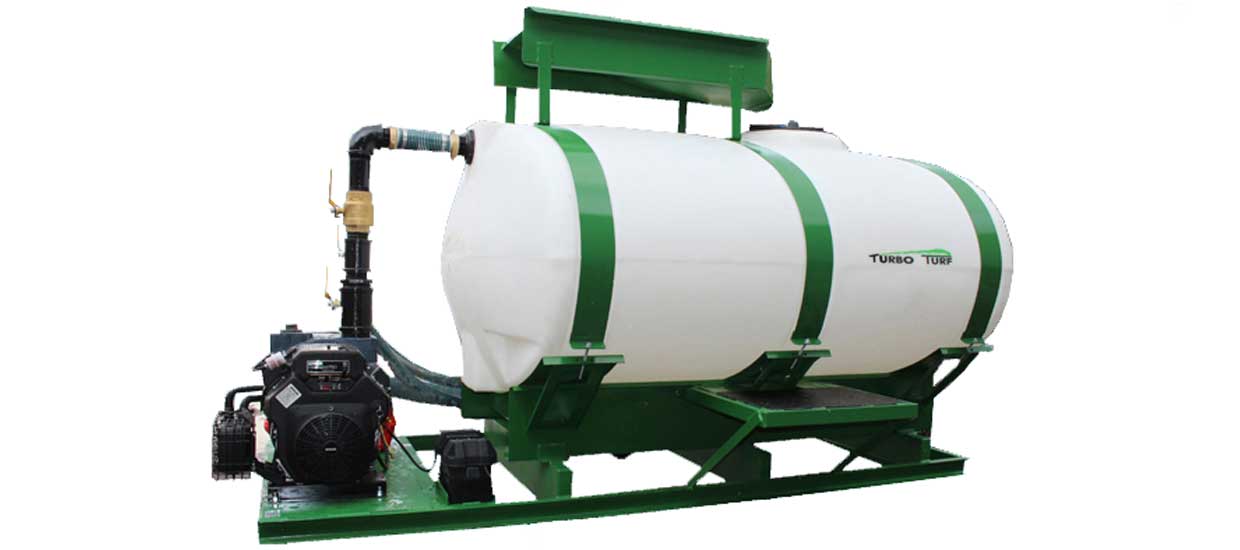

The HS-750-XPW, is a 750 Gallon, skid type hydroseeder. It will seed 1/4th acre per load. It is equipped with an 19 HP Kohler Command Pro electric start engine that is directly coupled to a 4″ X 4″, 640 G. P. M. high volume centrifugal pump. This pump was designed specifically for hydroseeding. The unit comes with 100′ of 1 1/4″ discharge hose, gun and 3 nozzles ( 1 wide hydro seeding nozzle, 1 medium nozzle and one straight nozzle). The Jet “Bale Buster” is standard on this unit. The empty weight of the unit is 1050 pounds. the loaded weight is 7100 pounds. the physical dimensions are 75″W x 120″L x 70″H. The size of the skid frame on this unit is 48″W x 115″L. This unit can be mounted on the back of a truck with sufficient load capacity or it can also be easily operated from a trailer.
The HS-750-XPW is an ideal hydroseeder for a landscaper doing residential and commercial seeding with average jobs of more than 10,000 square feet. On large jobs up to 3 acres can be seeded per day with a good water source. It is capable of handling much smaller jobs, but if the average job is larger, a bigger machine should be considered. Material is applied at approximately 50 G.P.M. Time to spray a complete tank is about 15 minutes. Mixing time is 1-20 minutes depending on material. This unit comes with 100′ of discharge hose. It will easily handle an extra 100′ of hose. The spray distance with the straight nozzle is approximately 55′. The spray distance with an Area/Volume kit or 2″ cannon is 75′.
The HS-750-XPW features a 4″ X 4″ 640 gallon per minute pump, 63 P.S.I. pump. The 2″ I.D. jets equipped with a quick coupler for easy service in the unlikely event of a problem, a quick disconnect for the discharge hose, and a bale tray for easy loading.
Typically materials used in one load would be 4 to 5 bales of hydro seeding mulch, the appropriate amount of seed for 11,000 sq. ft. (any seed will work in hydro seeding), and the appropriate fertilizer for 11,000 square feet (liquid, water soluble, or granular)
Like all TURBO TURF systems the HS-750-XPW, comes equipped with a long life poly tank that can never rust, the ability to mix partial loads, a simple but powerful design with few moving parts, continuous agitation, and the ability to control the flow at the gun without making adjustments at the unit. Prices quoted are a complete machine ready to operate. Trailers shown in the photo’s are optional.
Turbo Turf’s Hydro Seeding Systems have larger jets than most competitive units allowing them to will mix faster. Operators have full control of the flow which allows quicker mixing, more control when trimming and greater reach on hillsides.
Key Features
- Powerful Performance: Driven by a 16 HP Vanguard Briggs & Stratton engine coupled to a specialized 4″ X 4″, 662 G.P.M. centrifugal pump, designed specifically for hydroseeding.
- Versatile Application: Includes 100′ of 1 1/4″ discharge hose, a gun, and three nozzles (wide hydro seeding nozzle, medium nozzle, straight nozzle), enhancing application flexibility.
- Enhanced Capability: Standard Jet “Bale Buster” for efficient material handling and loading. Capable of seeding up to 1/4 acre per load with material applied at 50 G.P.M.
- Advanced Pump Technology: Features a 4″ X 4″ centrifugal pump delivering 662 G.P.M. at 50 P.S.I., ensuring consistent and powerful performance.
- User-Friendly Design: Equipped with 2″ I.D. jets with quick couplers and a quick disconnect for hose management, simplifying maintenance and operation.
- Durable Construction: Built on a sturdy 48″W x 115″L skid frame, with overall dimensions of 75″W x 120″L x 70″H, suitable for truck mounting or trailer operation.
- Rust-Resistant Tank: Long-life poly tank that eliminates rust concerns, designed for durability and minimal maintenance.
- Efficient Mixing: Offers adjustable mixing times ranging from 1 to 20 minutes, accommodating various seeding materials and job requirements.
- Wide Coverage: Sprays up to 11,000 square feet per load, with a spray distance of approximately 55′ using the straight nozzle, extendable to 75′ with optional equipment.
PUMP |
This unit uses a TP4VE centrifugal pump with 662 gallons a minute of flow and 50 P.S.I. of pressure. This pump was designed specifically for hydro seeding. This pump is very low maintenance. There are no grease fittings and the only maintenance required is to winterize if at the end of the season if it is stored where temperatures go below freezing. The pump impeller mounts on the end of the engine shaft so there is no power loss. Typically it can operate for 5 to 10 years with no maintenance. The only thing to be careful of is to not run it dry. |
ENGINE |
This unit comes with a 16 H.P. Vanguard Briggs & Stratton engine. This has proved to be a very reliable engine with a long life. The engine has a two year warranty and service for the engine is available at any authorized Briggs & Stratton engine dealer. This unit has a self contained fuel tank. |
HOSE |
This unit comes standard with 100 ft of 1 1/4″ I. D. hose. The hose we use is both strong and light weight. It is made from a poly material with a spiral reinforcement. Additional hose is available in 50 feet or 100 feet sections. The unit will handle up to 200 feet of hose. |
BALE BUSTER |
This unit comes equipped with a bale buster to speed loading. The bale buster allows you to add mulch in larger chunks and will quickly break them up. Dry mulch floats on top of the water. The bale buster takes the full flow of the pump and blows it across the top of the water picking up those chunks of mulch and smashing them against the back of the tank. Users can add mulch in chunks any size that will fit through the 16″ opening. |
TRAILER |

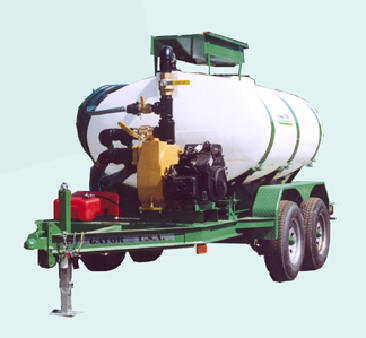

The HS-750-P is permanently attached to a DOT approved double axle trailer with brakes on both axles, DOT lighting, a breakaway, safety chains and an on-board test box for the breakaway battery. The trailer has a GVW of 9990 pounds and is 15’8″ long an 88″ wide. It is available with either a 2 5/16″ ball hitch or a pintle hitch. |
Detailed Specifications
| Feature | HS-750-XPW (Skid Type) | HS-750-XPW-P (Trailered Unit) |
|---|---|---|
| Tank Capacity | 750 Gallons | 750 Gallons |
| Engine | 19 HP Kohler Command Pro (electric start) | 19 HP Kohler Command Pro (electric start) |
| Pump | 4″ X 4″, 640 GPM high-volume centrifugal pump | 4″ X 4″, 640 GPM high-volume centrifugal pump |
| Agitation System | Jet agitation system with Bale Buster | Jet agitation system with Bale Buster |
| Coverage per Load | 11,000 sq. ft. | 11,000 sq. ft. |
| Hose Length | 100 ft (1.25") | 100 ft (1.25") |
| Spray Distance | 55′ (straight nozzle), 75′ (2″ cannon) | 55′ (straight nozzle), 75′ (2″ cannon) |
| Empty Weight | 1,050 lbs | ~1,500 lbs (estimated with trailer) |
| Loaded Weight | 7,100 lbs | ~7,550 lbs (estimated with trailer) |
| Skid Size | 48″ x 115″ | N/A |
| Overall Size | 75″ x 120″ x 70″ | Trailer-mounted, overall size varies |
| Mounting Type | Skid Mounted (truck or trailer placement) | Mounted on a dedicated trailer for mobility |
| Mobility | Requires truck/trailer for transport | Comes with a built-in trailer for easy transport |
| Material Handling | Paper, wood mulch, BFM, Flexterra, ADCs | Paper, wood mulch, BFM, Flexterra, ADCs |
Material Cost Breakdown
50-Gallon Hydroseeder
- Mulch: 0.5 bales at $11.95 per bale = $5.98
- Seed: 5 pounds at $2.05 per pound = $10.25
- Fertilizer: 1.33 pounds at $2.19 per pound = $2.91
- Tackifier: 0.67 oz at $1.00 per oz = $0.67
- Total Material Cost for the Load: $19.81
- Coverage: Approximately 667 sq. ft.
- Cost per Sq. Ft.: 2.97 cents per sq. ft.
-
10,000 Sq. Ft. Residential Job:
- At 10 cents per sq. ft.: Charge = $1,000.00; Material Cost = $297.00; Profit = $703.00.
- At 15 cents per sq. ft.: Charge = $1,500.00; Material Cost = $297.00; Profit = $1,203.00.
100-Gallon Hydroseeder
- Mulch: 1 bale at $11.95 per bale = $11.95
- Seed: 10 pounds at $2.05 per pound = $20.50
- Fertilizer: 2.67 pounds at $2.19 per pound = $5.85
- Tackifier: 1.33 oz at $1.00 per oz = $1.33
- Total Material Cost for the Load: $39.63
- Coverage: Approximately 1,333 sq. ft.
- Cost per Sq. Ft.: 2.97 cents per sq. ft.
- 10,000 Sq. Ft. Residential Job:
- At 10 cents per sq. ft.: Charge = $1,000.00; Material Cost = $297.00; Profit = $703.00.
- At 15 cents per sq. ft.: Charge = $1,500.00; Material Cost = $297.00; Profit = $1,203.00.
150-Gallon Hydroseeder
- Mulch: 1.5 bales at $11.95 per bale = $17.93
- Seed: 15 pounds at $2.05 per pound = $30.75
- Fertilizer: 4 pounds at $2.19 per pound = $8.76
- Tackifier: 2 oz at $1.00 per oz = $2.00
- Total Material Cost for the Load: $59.44
- Coverage: Approximately 2,000 sq. ft.
- Cost per Sq. Ft.: 2.97 cents per sq. ft.
- 10,000 Sq. Ft. Residential Job:
- At 10 cents per sq. ft.: Charge = $1,000.00; Material Cost = $297.00; Profit = $703.00.
- At 15 cents per sq. ft.: Charge = $1,500.00; Material Cost = $297.00; Profit = $1,203.00.
500-Gallon Hydroseeder
- Mulch: 5 bales at $11.95 per bale = $59.75
- Seed: 50 pounds at $2.05 per pound = $102.50
- Fertilizer: 13 pounds at $2.19 per pound = $28.47
- Tackifier: 6.67 oz at $1.00 per oz = $6.67
- Total Material Cost for the Load: $197.39
- Coverage: Assuming linear scaling, a 500-gallon unit covers approximately 6,667 sq. ft.
- Cost per Sq. Ft.: 2.96 cents per sq. ft.
- 10,000 Sq. Ft. Residential Job:
- At 10 cents per sq. ft.: Charge = $1,000.00; Material Cost = $296.70; Profit = $703.30.
- At 15 cents per sq. ft.: Charge = $1,500.00; Material Cost = $296.70; Profit = $1,203.30.
750-Gallon Hydroseeder
- Mulch: 7.5 bales at $11.95 per bale = $89.63
- Seed: 75 pounds at $2.05 per pound = $153.75
- Fertilizer: 20 pounds at $2.19 per pound = $43.80
- Tackifier: 10 oz at $1.00 per oz = $10.00
- Total Material Cost for the Load: $297.18
- Coverage: Approximately 10,000 sq. ft.
- Cost per Sq. Ft.: 2.97 cents per sq. ft.
- 10,000 Sq. Ft. Residential Job:
- At 10 cents per sq. ft.: Charge = $1,000.00; Material Cost = $297.18; Profit = $702.82.
- At 15 cents per sq. ft.: Charge = $1,500.00; Material Cost = $297.18; Profit = $1,202.82.
1000-Gallon Hydroseeder
- Mulch: 10 bales at $11.95 per bale = $119.50
- Seed: 100 pounds at $2.05 per pound = $205.00
- Fertilizer: 26.67 pounds at $2.19 per pound = $58.43
- Tackifier: 13.33 oz at $1.00 per oz = $13.33
- Total Material Cost for the Load: $396.26
- Coverage: Approximately 13,333 sq. ft.
- Cost per Sq. Ft.: 2.97 cents per sq. ft.
- 10,000 Sq. Ft. Residential Job:
- At 10 cents per sq. ft.: Charge = $1,000.00; Material Cost = $297.00 (rounded); Profit = $703.00.
- At 15 cents per sq. ft.: Charge = $1,500.00; Material Cost = $297.00; Profit = $1,203.00.
General Supply Information for a One Acre Job
Paper Mulch Covering:
- 1000 lbs per acre: 25 40# paper bales, $21.95 per bale, totaling $548.75
- 1200 lbs per acre: 30 40# paper bales, $21.95 per bale, totaling $658.50
- 1500 lbs per acre (steeper slope): 38 40# paper bales, $21.95 per bale, totaling $834.10
Fertilizer:
- 2-4 bags per acre
- For residential use: 4 bags
- For non-residential use: 2 bags
- Cost per bag: $59.95
Trafficker:
- For flat to slight slope: Turbo Tack, covers one acre, $49.95
Tracker:
- For slopes: Witches Brew, covers one acre, $69.96
Wood Blend Mulch or 100% Wood:
- Typical coverage: 2000 lbs per acre
- For steep slopes: Up to 3500 lbs per acre
Seed Costs:
- Reach out to us or check your local seed supplier
How Quickly Can I Do a 10,000sf Hydroseeding Job?
50-Gallon Hydroseeder:
- Coverage per Load: Approximately 667 sq. ft.
- Number of Loads Needed: About 15 loads (10,000 / 667).
- Estimated Time per Load: Assuming approximately 20 minutes per load (including refilling and application).
- Total Time: 15 loads x 20 minutes = 300 minutes or 5 hours.
100-Gallon Hydroseeder:
- Coverage per Load: Approximately 1,333 sq. ft.
- Number of Loads Needed: About 8 loads (10,000 / 1,333).
- Estimated Time per Load: Assuming approximately 25 minutes per load.
- Total Time: 8 loads x 25 minutes = 200 minutes or about 3 hours and 20 minutes.
150-Gallon Hydroseeder:
- Coverage per Load: Approximately 2,000 sq. ft.
- Number of Loads Needed: 5 loads (10,000 / 2,000).
- Estimated Time per Load: Assuming approximately 30 minutes per load.
- Total Time: 5 loads x 30 minutes = 150 minutes or 2.5 hours.
300-Gallon Hydroseeder:
- Coverage per Load: Approximately 4,000 sq. ft.
- Number of Loads Needed: 2.5 loads (10,000 / 4,000).
- Estimated Time per Load: Assuming approximately 40 minutes per load.
- Total Time: 2.5 loads x 40 minutes = 100 minutes or about 1 hour and 40 minutes.
500-Gallon Hydroseeder:
- Coverage per Load: Approximately 6,667 sq. ft.
- Number of Loads Needed: 1.5 loads (10,000 / 6,667).
- Estimated Time per Load: Assuming approximately 45 minutes per load.
- Total Time: 1.5 loads x 45 minutes = 68 minutes or about 1 hour and 8 minutes.
750-Gallon Hydroseeder:
- Coverage per Load: Approximately 10,000 sq. ft.
- Number of Loads Needed: 1 load.
- Estimated Time per Load: Assuming approximately 50 minutes per load.
- Total Time: 50 minutes.
1000-Gallon Hydroseeder:
- Coverage per Load: Approximately 13,333 sq. ft.
- Number of Loads Needed: 1 load.
- Estimated Time per Load: Assuming approximately 50 minutes per load.
- Total Time: 50 minutes.
