Upsen Mobile Compact Double-Shaft Shredder | Model U-MS250 | Hopper Size 1500 × 2800 mm | Engine Horsepower 210 HP

Product Description

Upsen Mobile Compact Double-Shaft Shredder | Model U-MS250 | Hopper Size 1500 × 2800 mm | Engine Horsepower 210 HP

DESCRIPTION

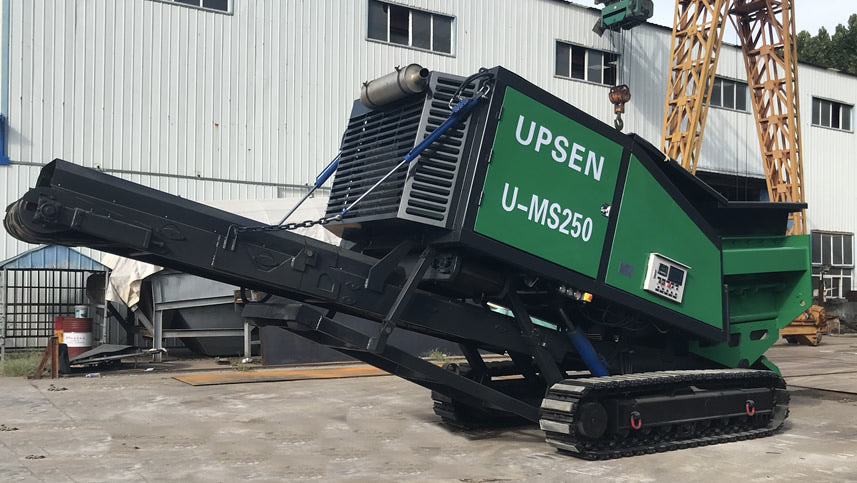

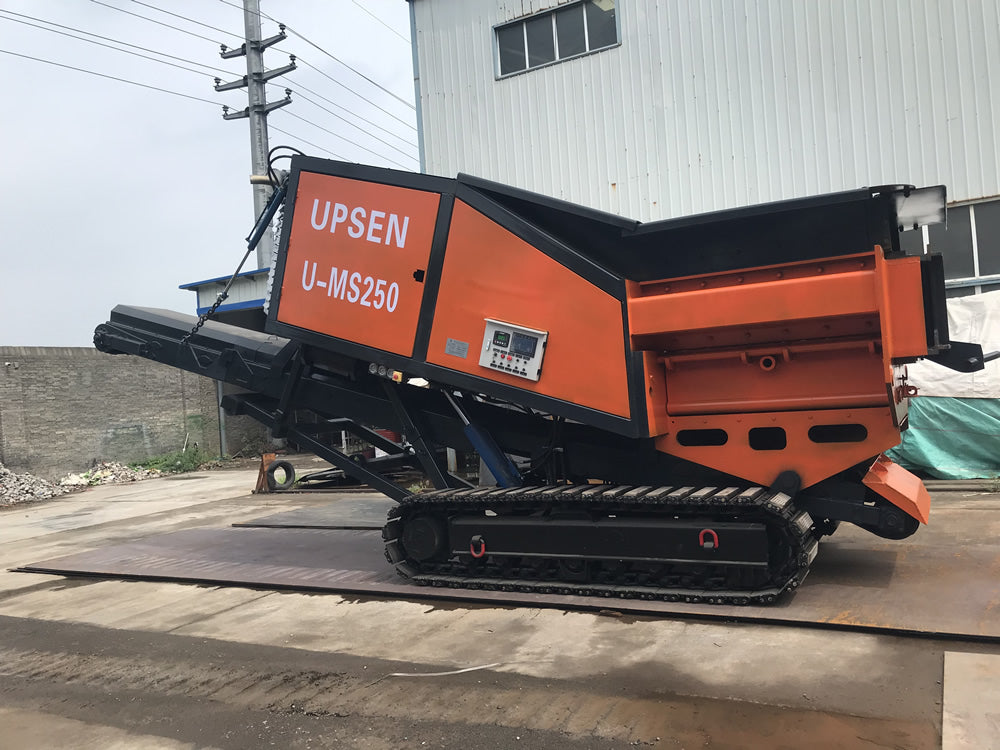

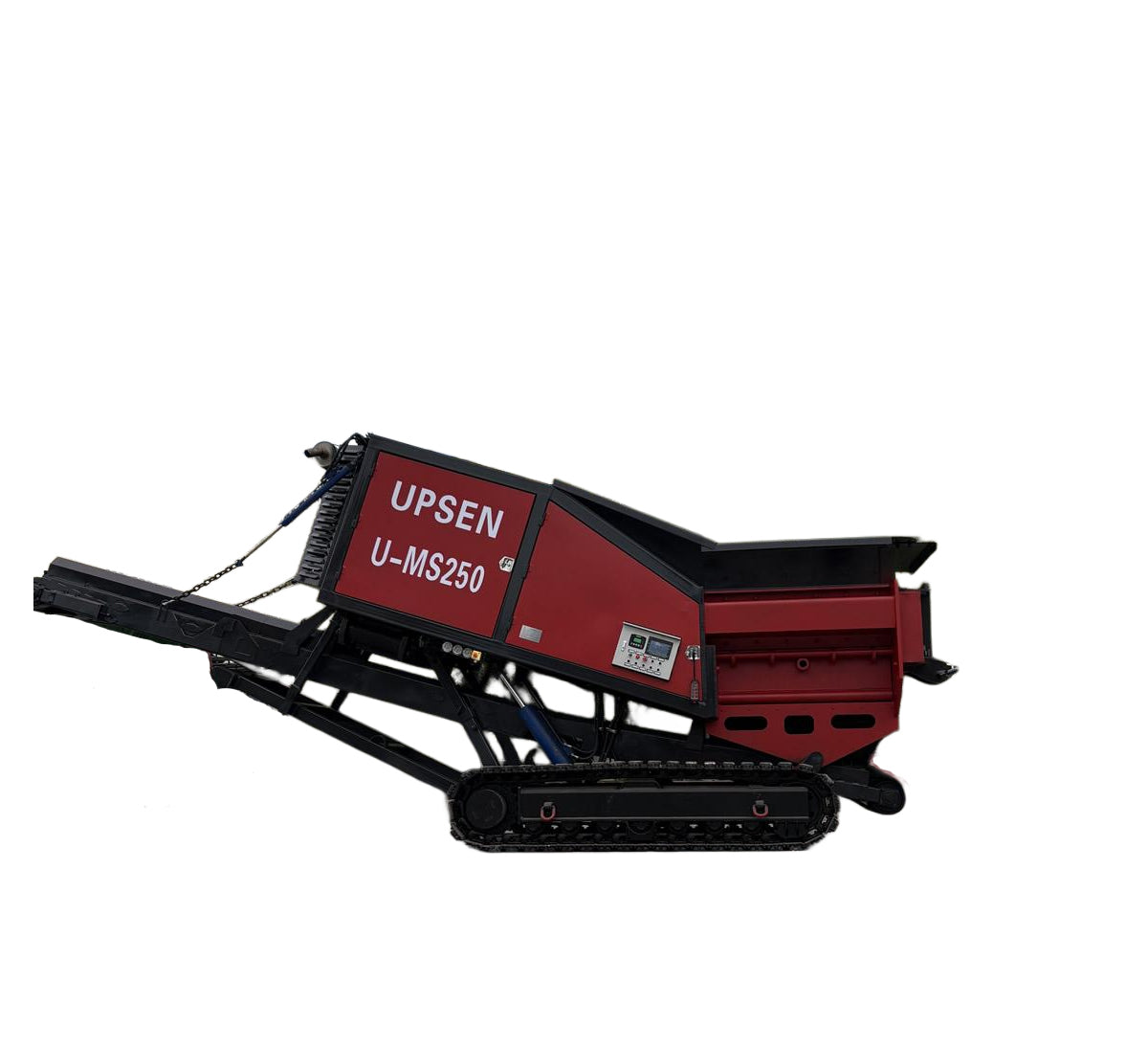

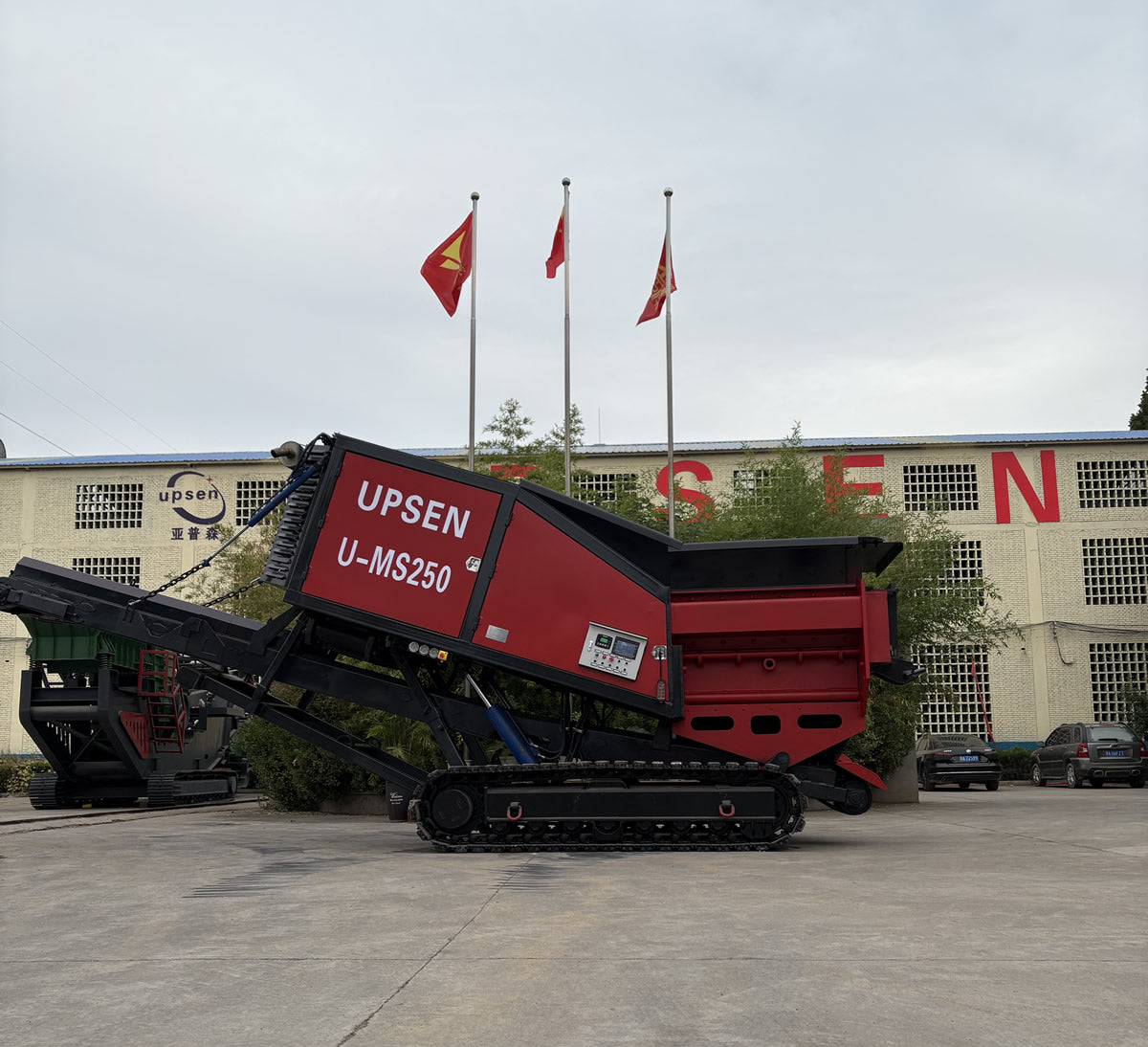

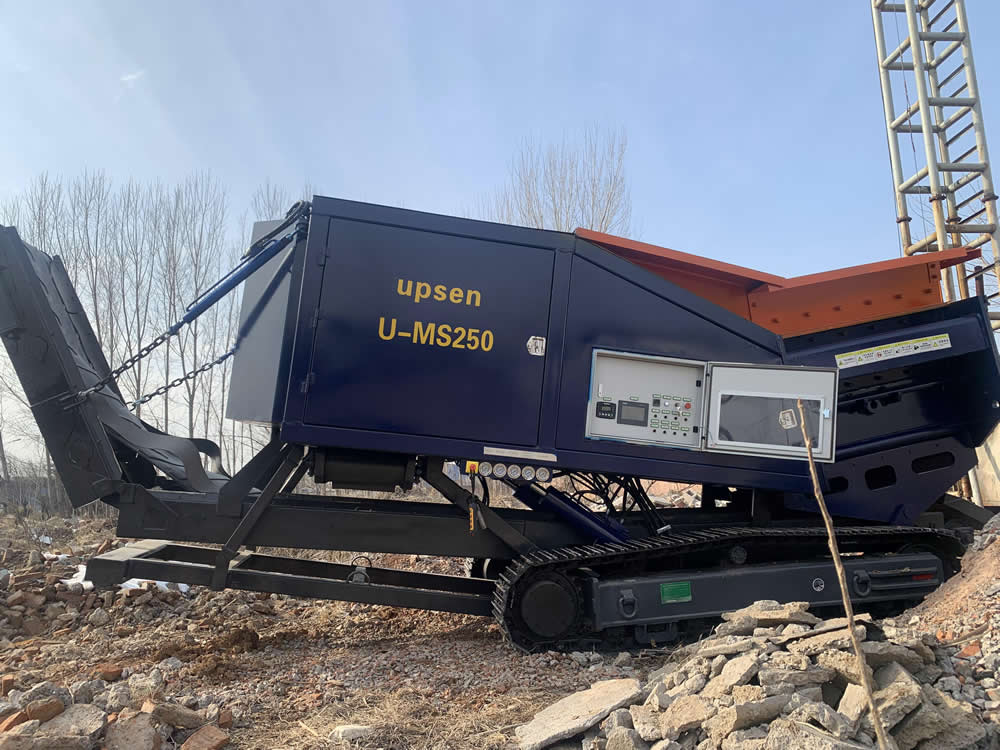

The UPSEN U‑MS250 is a compact, double‑shaft mobile shredder engineered for high‑efficiency processing of construction waste, demolition debris, metals, wood, and other demanding materials. Its 680 mm diameter × 1550 mm length twin shafts deliver aggressive shredding performance, reducing feed material to ≤ 60 mm (customizable) at rates from 30–200 t/h.

Designed for versatility, the U‑MS250 features a shaft quick‑change system to minimize downtime and adapt to different material types. Multiple shredding programs automatically adjust rotation and speed for optimal results. Standard attachments — including a water sprinkler system and belt‑type iron remover — enhance safety, dust suppression, and product purity.

Powered by either a 154 kW Cummins or 155 kW Yanmar Stage V/Tier 4 Final diesel engine, the U‑MS250 offers maximum mobility with a crawler chassis and compact transport dimensions, allowing movement on a small truck or hook‑lift without special permits.

Key Features

• Twin‑shaft shredding system — 680 mm diameter × 1550 mm length rotors for aggressive reduction of C&D waste, metals, wood, and mixed materials.
• Customizable output size — Standard ≤ 60 mm discharge, adjustable to suit application requirements.
• High throughput range — Processes 30–200 t/h depending on material type and shaft configuration.
• Quick‑change shaft design — Enables rapid swap of rotor types to match different feed materials, minimizing downtime.
• Adaptive shredding control — Multiple programs automatically adjust shaft rotation and speed for optimal performance.
• Integrated metal separation — Belt‑type iron remover (QCY0820) ensures product purity and protects downstream equipment.
• Heavy‑duty feed hopper — 1500 × 2800 mm opening accommodates bulky and irregular feedstock.
• Efficient discharge handling — 800 mm wide, 8 m long conveyor with 2.8 m stacking height for direct load‑out.
• Engine options for compliance — Cummins QSF5.9 (154 kW / 210 HP) or Yanmar 4TN107 (155 kW / 211 HP), Stage V/Tier 4 Final compliant.
• Compact transport profile — 9.2 m × 2.2 m × 2.65 m dimensions allow movement on small truck or hook‑lift without special permits.
• Crawler mobility — Self‑propelled undercarriage for easy repositioning on site.
