Product Description
Utilitough Skid Steer Hydraulic Breaker | Model 225, 500, 650, 850 & 1000 Series | For Skid Steer
DESCRIPTION
The UtiliTough Hydraulic Concrete Breaker is indeed a robust tool designed for heavy industrial tasks like breaking concrete slabs, cement, stone, and other materials.
The Utilitough Skid Steer Hydraulic Breakers are built for heavy-duty industrial tasks, including breaking concrete, cement, stone, and other tough materials. With multiple models available, including the 225, 500, 650, 850, and 1000 Series, there is a breaker suitable for a wide range of applications. These tools are equipped with the latest features to enhance productivity and minimize maintenance, making them an excellent choice for construction, demolition, and landscaping tasks. Each breaker is built with a powder-coated finish in black and yellow for enhanced durability and corrosion resistance. The tool is designed to work seamlessly with skid steers and excavators, ensuring maximum impact power with minimal oil loss and vibration. The two-step stroke system prevents idle blow and reduces wear, while the longer chisel point offers more effective breaking and extended tool life.
These hydraulic breakers also come with a complete set of accessories, including heat-treated moil point tools, hydraulic hoses, a gas charging kit, and a repair toolbox, to keep your operations running smoothly.
Key Features
- Multiple Size Options: Available in 225 FT/LB, 500 FT/LB, 650 FT/LB, 850 FT/LB, and 1000 FT/LB energy classes for varying job needs.
- High-Performance Blow Rate: Up to 1,490 BPM to handle tough concrete and rock-breaking jobs.
- Enhanced Durability: Equipped with longer chisel points and a large through-bolt for added durability.
- Minimal Vibration & Noise: Advanced design minimizes vibration and reduces operational noise for better comfort and efficiency.
- Comprehensive Accessories Included: Comes with moil point tools, hydraulic hoses, gas charging kit, and a repair toolbox for on-site maintenance.
Detailed Specifications
- .8~2.5-ton carrier weight range
- 408 LB breaker operating weight
- 3.97~7.92 GPM oil flow range

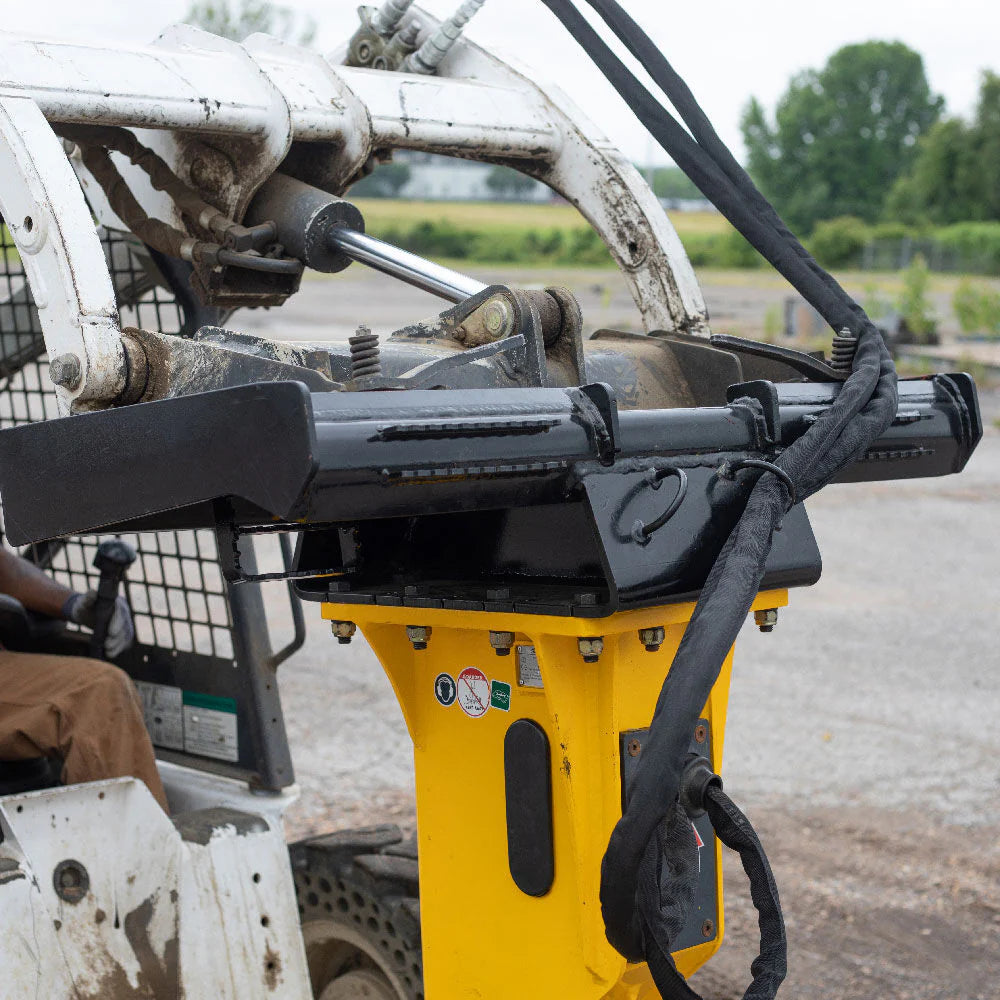

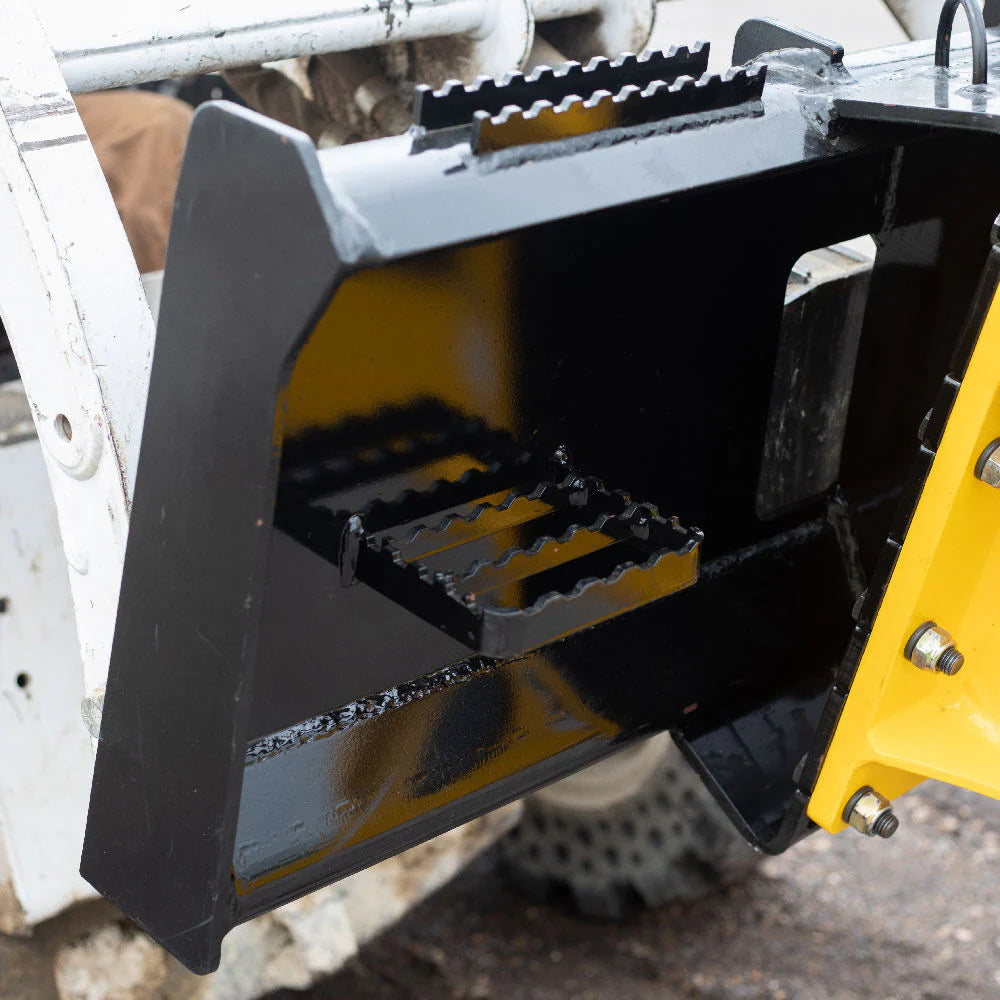

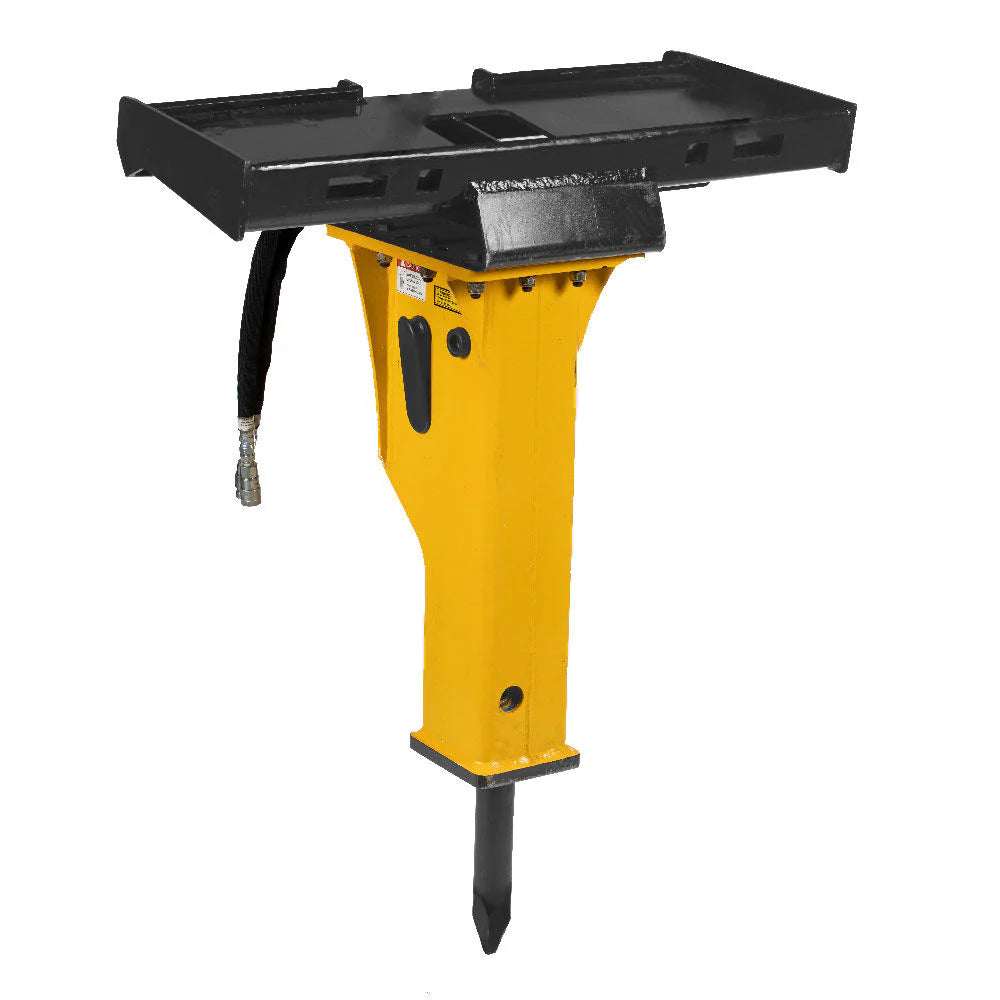

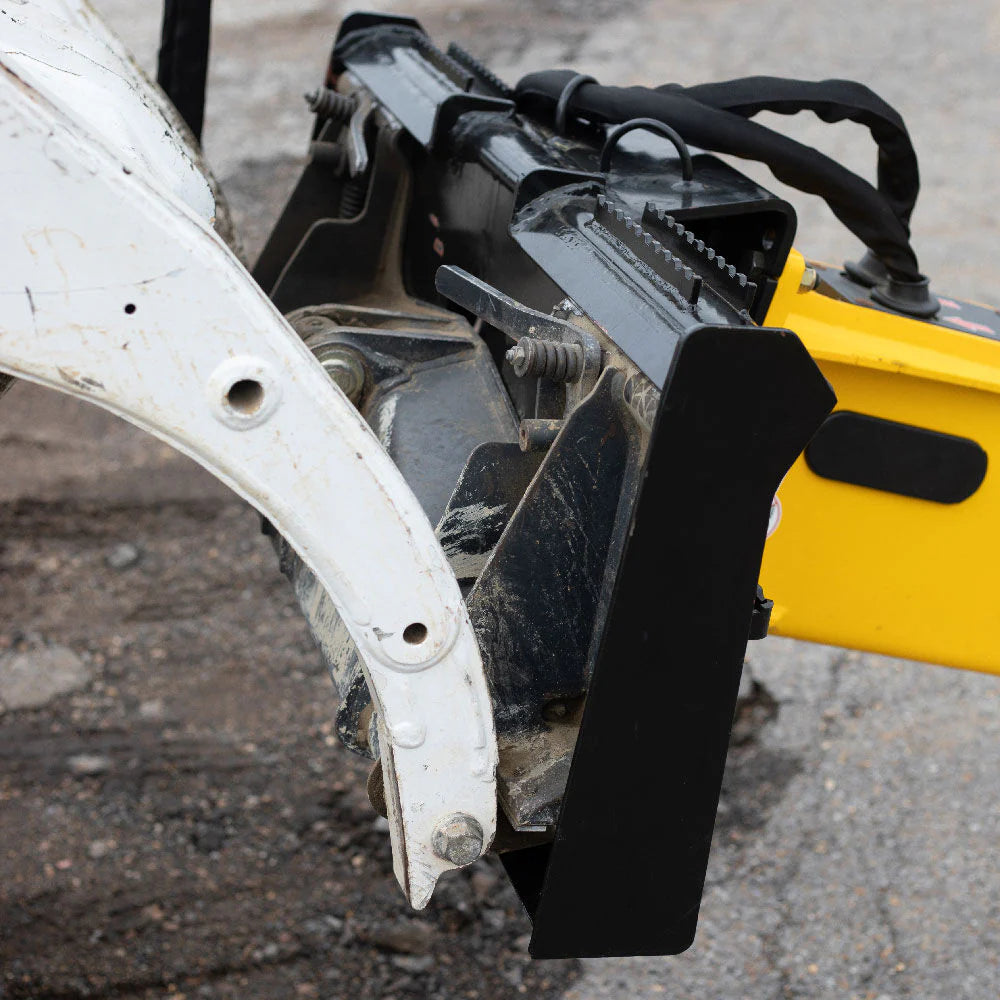

- Universal Skid Steer Quick Tach Mounting System
- Longer chisel point and larger through-bolt to improve durability
- Minimized welding on bracket fabrication process to strengthen durability
- Applied two-step stroke and idle blow preventing structure system
- Stronger impact power
- Low-noise
- Prevention of chisel stop pin loosening
- No oil loss when changing the control valve
- Lower vibration and tighter fastening between power cell and bracket
- Control valve can be replaced on-site with ease and speed
- Simple assembly and disassembly
- Easy maintenance (time and cost saving)

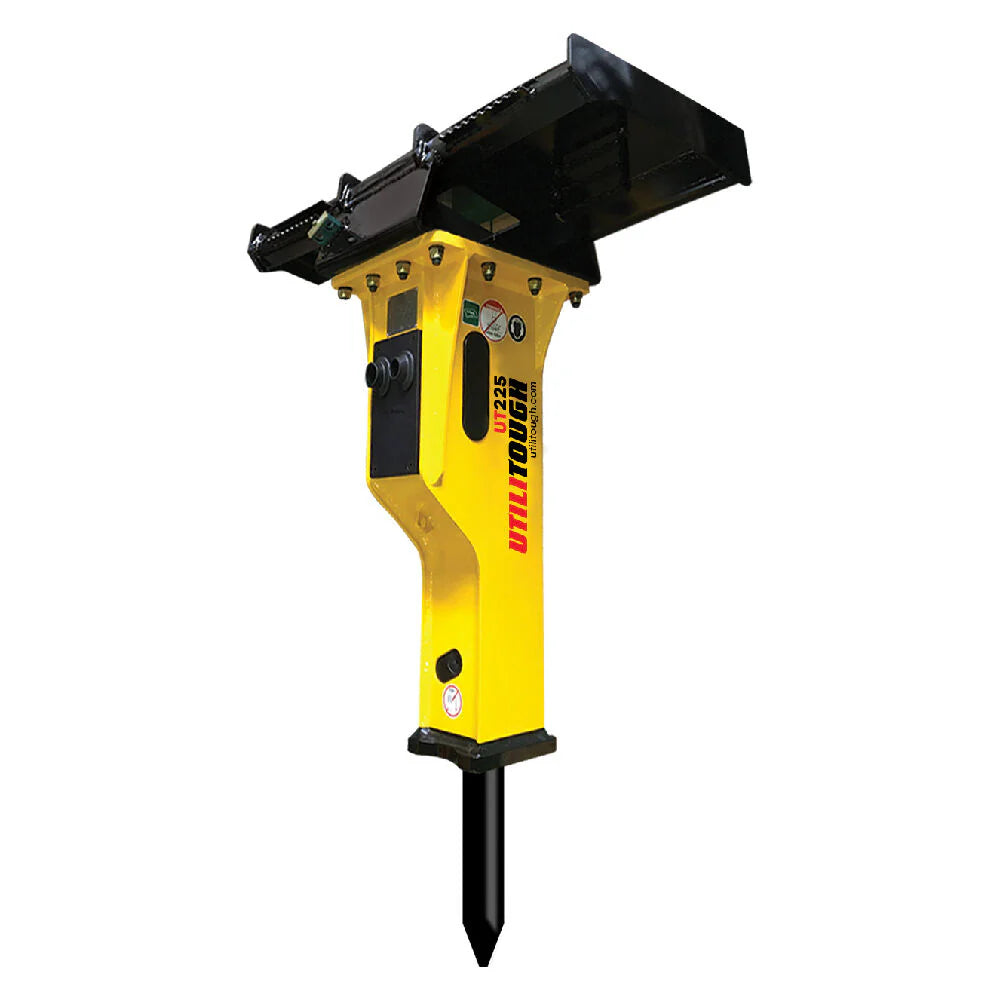

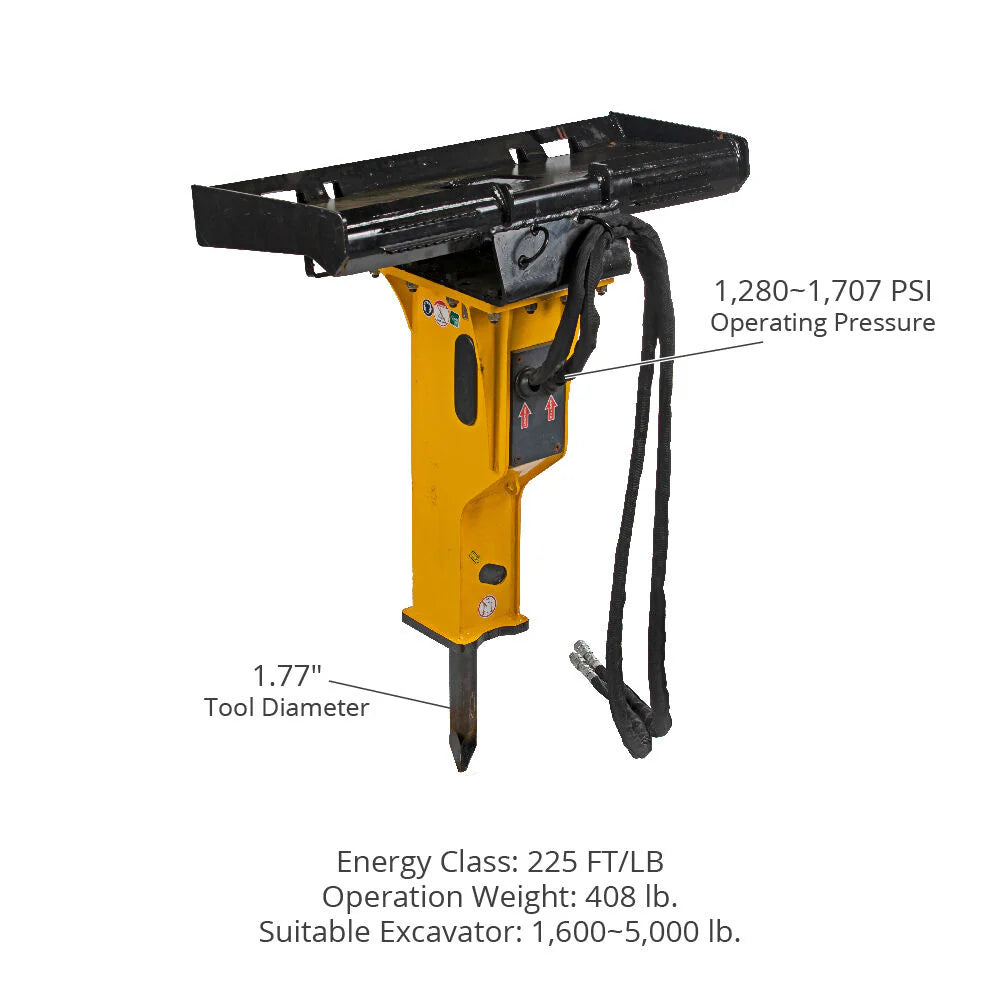

UTILITOUGH 225 SERIES SKID STEER HYDRAULIC BREAKER
| Specification | Details |
|---|---|
| Energy Class | 225 FT/LB |
| Operating Pressure | 1,280~1,707 PSI |
| Blow Rate (Long Stroke) | 540~1,000 BPM |
| Required Oil Flow | 3.97~7.92 GPM |
| Hose Length | 0.5 x 90-in. |
| Tool Diameter | 1.77-in. |
| Finish | Powder-Coated Black/Yellow |
| Suitable Excavator | 1,600~5,000 lb. |
| Operation Weight | 408 lb. |

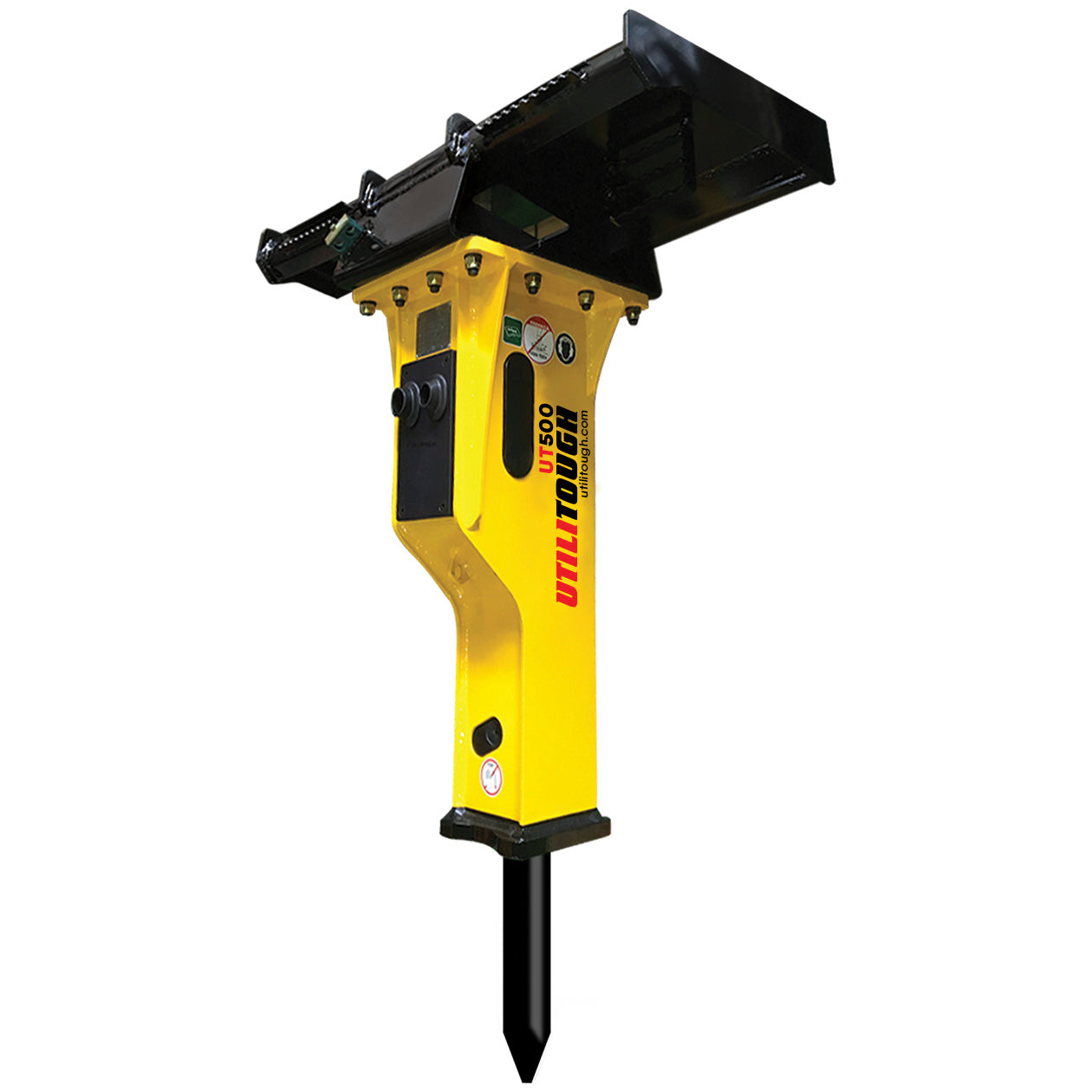

UTILITOUGH 500 SERIES SKID STEER HYDRAULIC BREAKER
| Specification | Details |
|---|---|
| Energy Class | 500 FT/LB |
| Operating Pressure | 1,280~2,702 |
| Blow Rate (Long Stroke) | 600~1,490 BPM |
| Required Oil Flow | 5.28~18.49GPM |
| Hose Length | .5 x 110 |
| Tool Diameter | 2.24in. |
| Finish | Powder-Coated Black/Yellow |
| Suitable Excavator | 9,921~17,637 lb. |
| Operation Weight | 551 lb. |

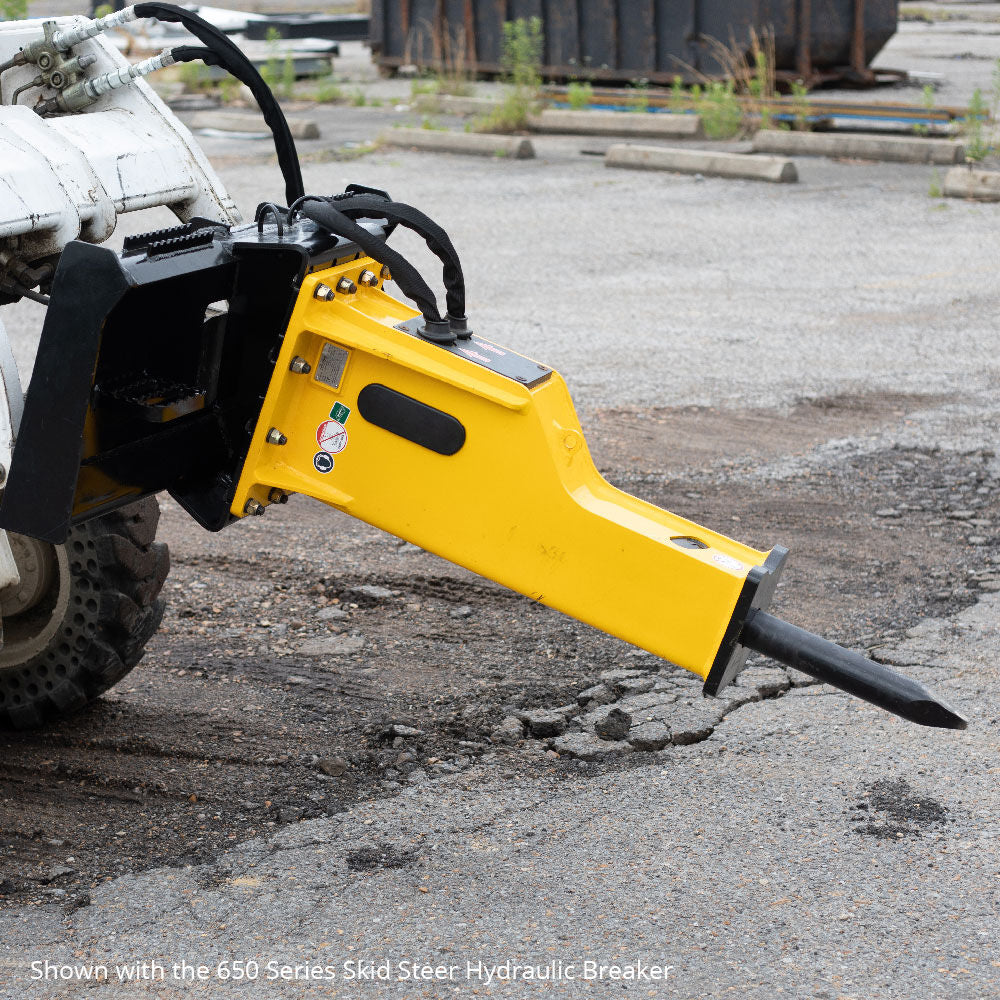

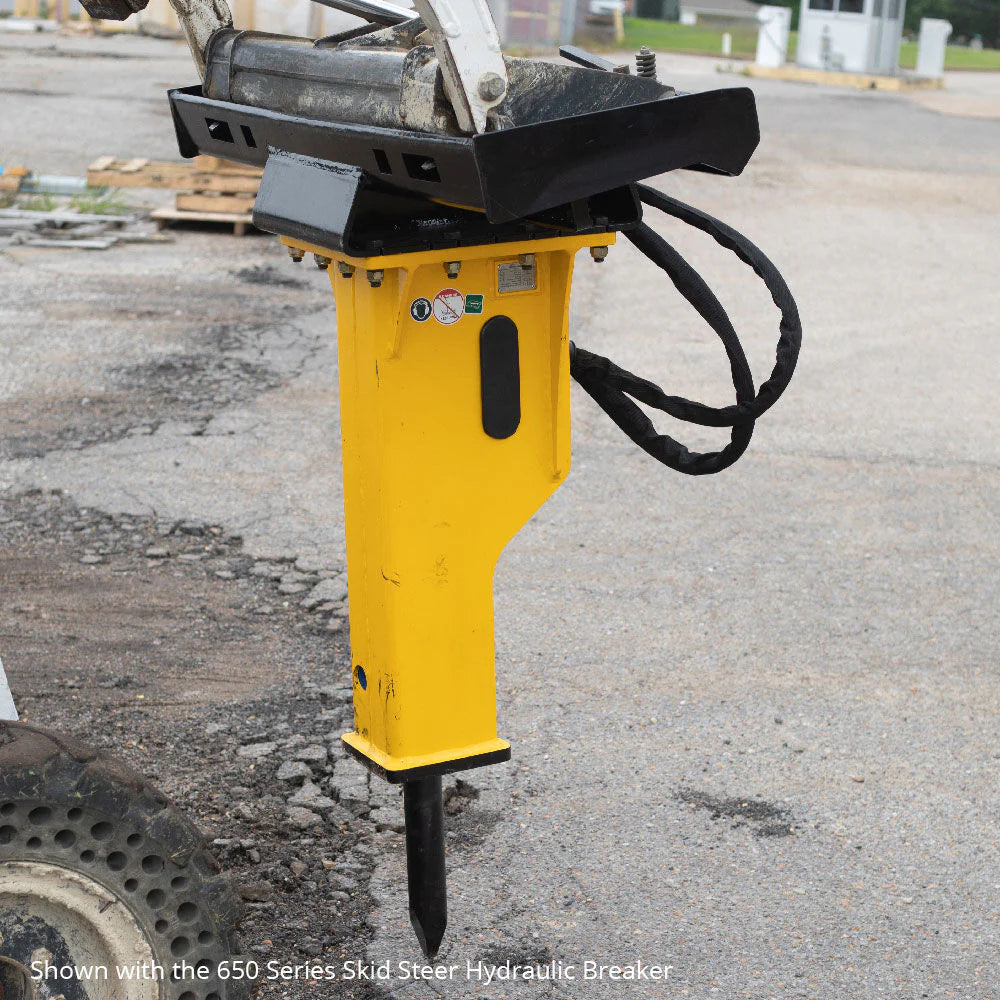

UTILITOUGH 650 SERIES SKID STEER HYDRAULIC BREAKER
| Specification | Details |
|---|---|
| Energy Class | 650 FT/LB |
| Operating Pressure | 1,565~2,702 PSI |
| Blow Rate (Long Stroke) | 550~1,300 BPM |
| Required Oil Flow | 7.9~17.1 GPM |
| Hose Length | 0.5 x 100-in. |
| Tool Diameter | 2.75-in. |
| Operation Weight | 618 lb. |
UTILITOUGH 850 SERIES SKID STEER HYDRAULIC BREAKER
| Specification | Details |
|---|---|
| Energy Class | 850 FT/LB |
| Operating Pressure | 1,280~1,707 PSI |
| Blow Rate (Long Stroke) | 380~1,100 BPM |
| Required Oil Flow | 10.03~29.05 GPM |
| Hose Length | 0.75 x 110-in. |
| Tool Diameter | 2.95-in. |
| Finish | Powder-Coated Black/Yellow |
| Suitable Excavator | 9,921~17,637 lb. |
| Operation Weight | 1,069 lb. |
UTILITOUGH 1000 SERIES SKID STEER HYDRAULIC BREAKER
| Specification | Details |
|---|---|
| Energy Class | 1000 FT/LB |
| Operating Pressure | 1,991~2,702 PSI |
| Blow Rate (Long Stroke) | 380~1,000 BPM |
| Required Oil Flow | 10~23.7 GPM |
| Hose Length | 0.75 x 110-in. |
| Tool Diameter | 3.15-in. |
| Finish | Powder-Coated Black/Yellow |
| Suitable Excavator | 9,921~17,637 lb. |
| Operation Weight | 1,125 lb. |
In Package
- Two Moil Point Tools: Heat-treated for durability and effectiveness.

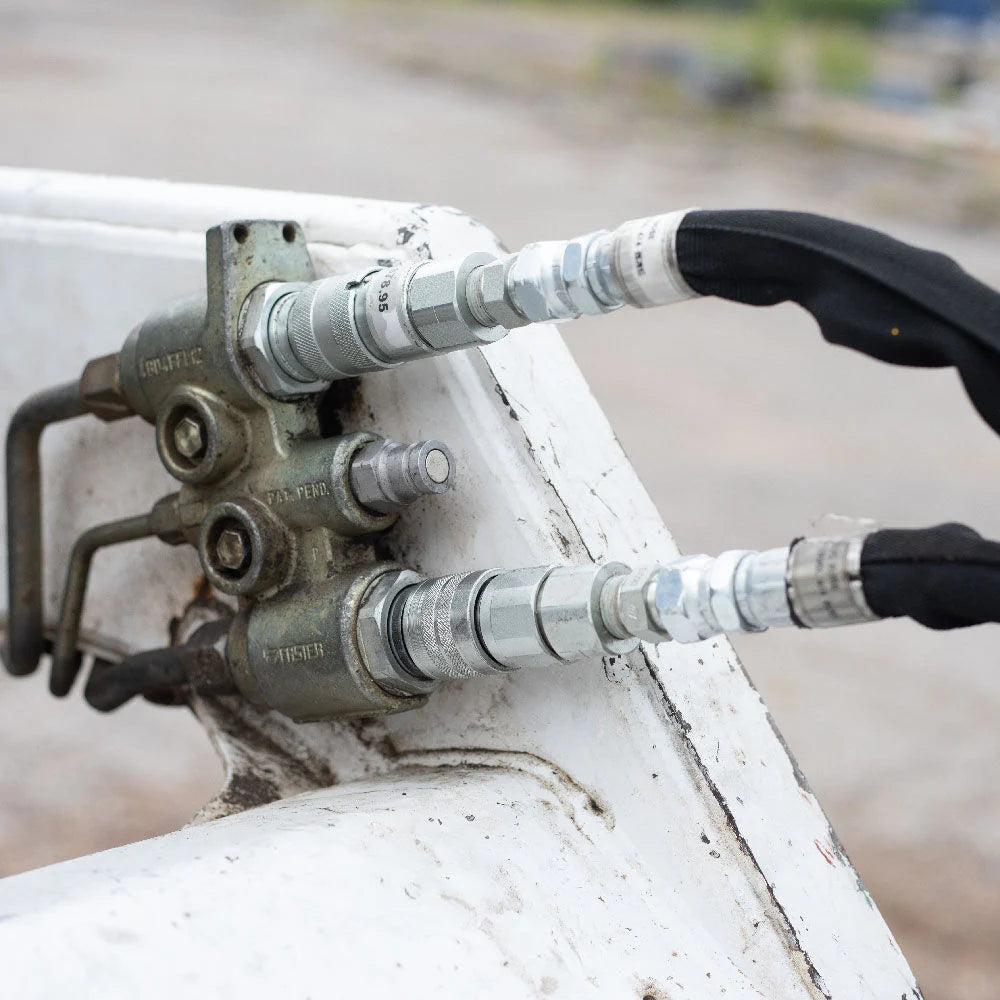

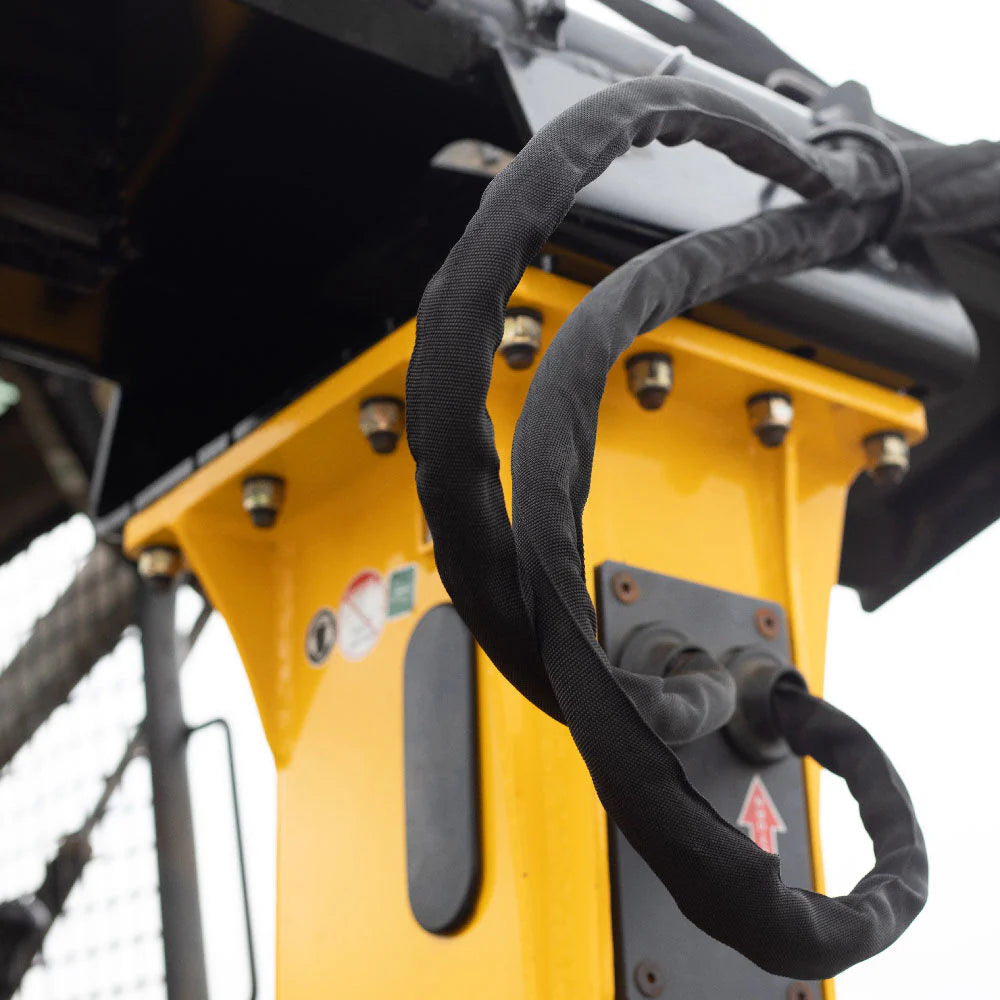

- Hydraulic Hoses with Flat-Faced Couplers: Ensures secure and efficient connections.
- Gas Charging Kit: For easy maintenance and optimal performance.
- Repair Toolbox: Equipped with essential tools for on-site repairs and adjustments.
