Product Description
Utilitough Combo Dual Mount Hydraulic Post Driver | Weight Range 0.8-12.5 Ton | Oil Flow Range 5-30 GPM | For Skid Steer
DESCRIPTION

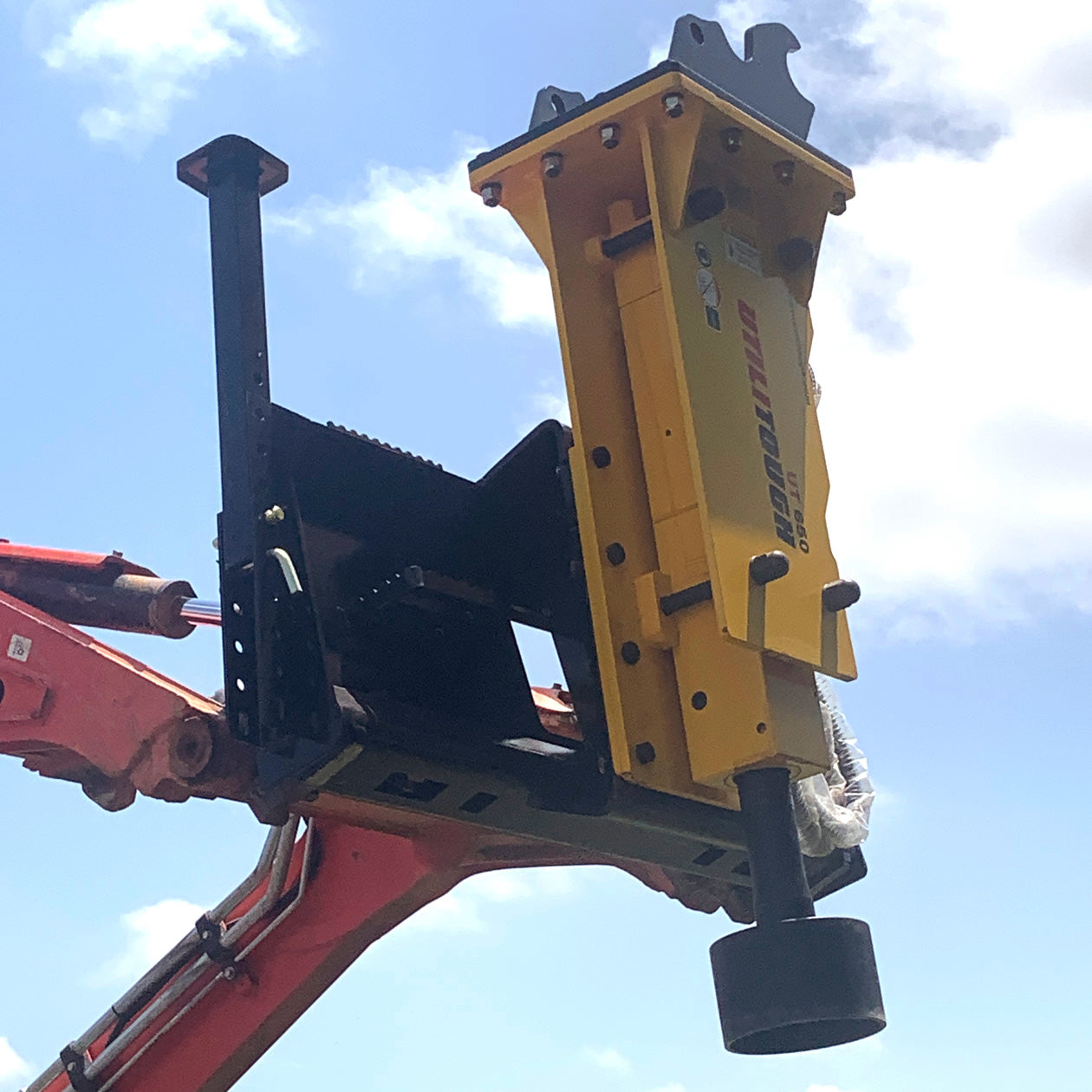

The UtiliTough Combo Dual Mount Hydraulic Post Driver is a versatile and powerful attachment designed for skid steers. Ideal for driving posts, breaking concrete, compacting dirt, and more, this post driver is available in various models to accommodate different carrier weights and hydraulic flow requirements. Its robust construction and efficient performance make it suitable for a wide range of applications.
Key Characteristics:
- Versatile Range: Available in models to suit carrier weights from 0.8 to 12.5 tons.
- Durable Construction: Built to withstand heavy-duty use with robust materials and design.
- High-Performance: Delivers powerful impact energy to efficiently drive posts and break tough materials.
- Hydraulic Compatibility: Compatible with hydraulic flows ranging from 5 to 30 gpm, ensuring versatility across different machines.
- Ease of Maintenance: Low maintenance requirements with easy assembly and disassembly for quick on-site repairs.
Key Features
- Allows for quick interchange between an excavator or skid steer
- The skid steer side mount comes with parking stands
- Clear view while driving wood or steel posts
- Makes driving posts easy
- Safely vibrates posts into ground
- Ease of use ideal for rental applications
- More blows per minute
- Drive a variety of round and square, wood or metal post, 4 foot in the ground in less than one minute
- These versatile units drive post, break concrete, compact dirt, split wood, with optional bits
- The driver can accommodate the post driver tool, moil point, inline wedge V tool, the crosscut wedge H tool, asphalt cutter or tamping pad
- 7", 9", 10" and 12" post driving tool ID Diameter
- Also for walk-behind mini loaders, compact track loaders, and compact wheel loaders
- Chisel paste required
Detailed Specifications
- Impact Energy Class: Varies by model, providing powerful performance for various applications.
- Operating Weight: Ranges from 359 lbs to 1,873 lbs, depending on the model.
- Blow Rate: Adjustable blow rate for precise control during operation.
- Required Oil Flow (gpm): Compatible with hydraulic flows from 5 to 30 gpm, depending on the model.
- Tool Diameter: Features a tool diameter suitable for effective post driving and breaking power.
- Hydraulic Auto-Lube System: Ensures consistent lubrication and reduced maintenance.
- Safety and Protection: Includes a high-strength push bar and motor cover for added protection during operation.
- Universal Quick Attach: Compatible with most skid steers, allowing for quick and easy attachment.
UTPD225 and UTPD500
| Specification | UTPD225 | UTPD500 |
|---|---|---|
| Carrier Weight Range (ton) | 0.8-2.5 | 1.5-4.0 |
| Operating Weight (lb) | 359 | 551 |
| Required Oil Flow (gpm) | 3.97-9.25 | 5.28-18.49 |
| Impact Energy Class (ft-lb) | 225 | 500 |
| Blow Rate (bpm) | 540-1,000 | 500-900 |
| Tool Diameter (in) | 1.77 | 2.36 |
| Operating Pressure (psi) | 1,280-1,707 | 1,450-2,030 |
UTPD650 and UTPD850
| Specification | UTPD650 | UTPD850 |
|---|---|---|
| Carrier Weight Range (ton) | 3.0-6.0 | 4.5-8.0 |
| Operating Weight (lb) | 716 | 1,069 |
| Required Oil Flow (gpm) | 7.92-18.49 | 10.03-29.05 |
| Impact Energy Class (ft-lb) | 650 | 850 |
| Blow Rate (bpm) | 550-1,300 | 450-750 |
| Tool Diameter (in) | 2.75 | 3.15 |
| Operating Pressure (psi) | 1,565-2,347 | 1,600-2,200 |
UTPD1000 and UTPD1200
| Specification | UTPD1000 | UTPD1200 |
|---|---|---|
| Carrier Weight Range (ton) | 4.5-8.8 | 6.0-10.0 |
| Operating Weight (lb) | 1,179 | 1,245 |
| Required Oil Flow (gpm) | 11.88-36.98 | 11-25 |
| Impact Energy Class (ft-lb) | 1,000 | 1,200 |
| Blow Rate (bpm) | 400-700 | 350-650 |
| Tool Diameter (in) | 3.54 | 3.94 |
| Operating Pressure (psi) | 1,800-2,400 | 1,900-2,500 |
UTPD1800
| Specification | UTPD1800 |
|---|---|
| Carrier Weight Range (ton) | 8.0-12.5 |
| Operating Weight (lb) | 1,873 |
| Required Oil Flow (gpm) | 17-30 |
| Impact Energy Class (ft-lb) | 1,800 |
| Blow Rate (bpm) | 300-600 |
| Tool Diameter (in) | 4.33 |
| Operating Pressure (psi) | 2,000-2,600 |
