Product Description

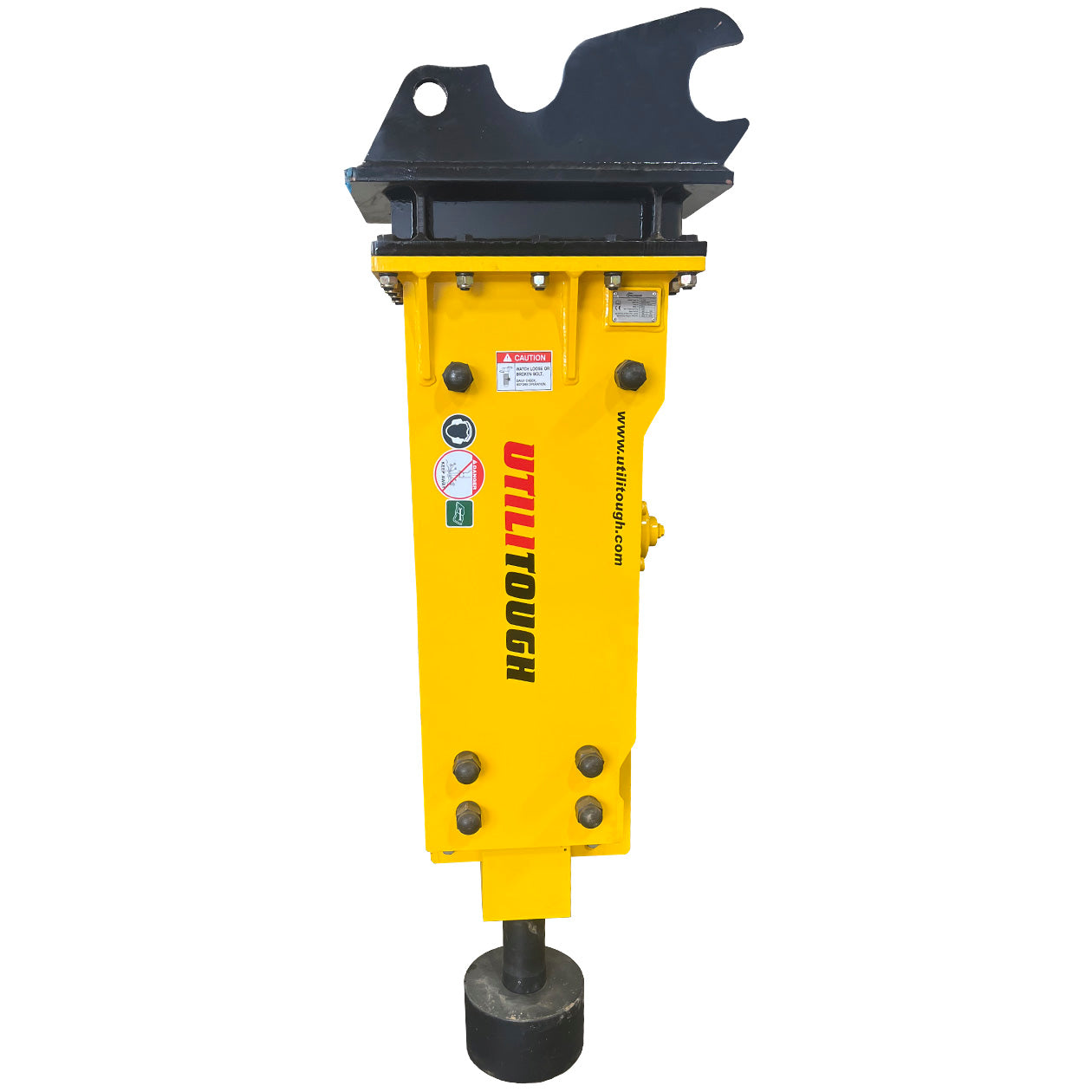

The UtiliTough Combo Dual Mount Hydraulic Post Driver is a versatile and powerful attachment designed for excavators. It is ideal for driving posts, breaking concrete, compacting dirt, and more. This post driver is available in various models to accommodate different carrier weights and hydraulic flow requirements, making it suitable for a wide range of applications.
Key Characteristics:
- Versatile Range: Available in models to suit carrier weights from 0.8 to 12.5 tons.
- Durable Construction: Built to withstand heavy-duty use with robust materials and design.
- High-Performance: Delivers powerful impact energy to efficiently drive posts and break tough materials.
- Hydraulic Compatibility: Compatible with hydraulic flows ranging from 5 to 30 gpm, ensuring versatility across different machines.
-
Ease of Maintenance: Low maintenance requirements with easy assembly and disassembly for quick on-site repairs.
How to Request a Quote
***Online pricing not available, Please request a quote:***
How To Get A Quote:
Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Key Features
- Allows for quick interchange between an excavator or skid steer
- Excavator top mount greatly improves efficiency for the dual purpose of breaking rocks and concrete
- Drive a variety of round and square, wood or metal post 4 foot in the ground in less than one minute
- Clear view while driving wood or steel posts
- Makes driving posts easy
- Safely vibrates posts into ground
- Ease of use ideal for rental applications
- More blows per minute: drive 4, 6-inch post, 4 foot in the ground in less than one minute
- These versatile units drive post, break concrete, compact dirt, split wood, with optional bits
- The driver can accommodate the post driver tool, moil point, inline wedge V tool, the crosscut wedge H tool, asphalt cutter or tamping pad.
- 7", 9", 10" and 12" post driving tool ID Diameter
Detailed Specifications
- Impact Energy Class: Varies by model, providing powerful performance for various applications.
- Operating Weight: Ranges from 269 lbs to 1,873 lbs, depending on the model.
- Blow Rate: Adjustable blow rate for precise control during operation.
- Required Oil Flow (gpm): Compatible with hydraulic flows from 5 to 30 gpm, depending on the model.
- Tool Diameter: Features a tool diameter suitable for effective post driving and breaking power.
- Hydraulic Auto-Lube System: Ensures consistent lubrication and reduced maintenance.
- Safety and Protection: Includes a high-strength push bar and motor cover for added protection during operation.
- Universal Quick Attach: Compatible with most excavators, allowing for quick and easy attachment
| Specification | UTPD225 | UTPD500 | UTPD650 | UTPD850 | UTPD1000 | UTPD1200 | UTPD1800 |
|---|---|---|---|---|---|---|---|
| Carrier Weight Range (ton) | 0.8-2.5 | 1.5-4.0 | 3.0-6.0 | 4.5-8.0 | 4.5-8.8 | 6.0-10.0 | 8.0-12.5 |
| Operating Weight (lb) | 269 | 419 | 618 | 772 | 1,124 | 1,245 | 1,873 |
| Required Oil Flow (gpm) | 3.96-7.92 | 5.2-10.5 | 7.9-17.1 | 10-21.1 | 10-23.7 | 11-25 | 17-30 |
| Impact Energy Class (ft-lb) | 225 | 500 | 650 | 850 | 1,000 | 1,200 | 1,800 |
| Blow Rate (bpm) | 540-1,000 | 500-900 | 550-1,300 | 450-750 | 400-700 | 350-650 | 300-600 |
| Tool Diameter (in) | 1.77 | 2.36 | 2.75 | 3.15 | 3.54 | 3.94 | 4.33 |
| Operating Pressure (psi) | 1,280-1,707 | 1,450-2,030 | 1,565-2,347 | 1,600-2,200 | 1,800-2,400 | 1,900-2,500 | 2,000-2,600 |
