Vantage | Drone | Model Trace UAV Bundle Pro | Wisp Advanced | 12.1 in Wingspan | 2.4GHz Hexaband Radio | Flight Time 40 Min | 2.2 lb Payload | For Tactical Recon, Public Safety & Surveillance

Vantage | Drone | Model Trace UAV Bundle Pro | Wisp Advanced | 12.1 in Wingspan | 2.4GHz Hexaband Radio | Flight Time 40 Min | 2.2 lb Payload | For Tactical Recon, Public Safety & Surveillance

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Flight Time: Up to 40 minutes for extended tactical operations.
  • Weight: 5.8 oz (163 g) for ultra-light portability in the field.
  • Dimensions (Stowed): 5.7" L × 2.5" W × 1.6" H for compact carry.
  • Compatibility: For tactical teams using Vantage Vision2, KTAC, or Grip GCS.
  • Intended Use: Covert aerial surveillance for law enforcement & public safety.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Vantage | Drone | Model Trace UAV Bundle Pro | Wisp Advanced | 12.1 in Wingspan | 2.4GHz Hexaband Radio | Flight Time 40 Min | 2.2 lb Payload | For Tactical Recon, Public Safety & Surveillance

DESCRIPTION

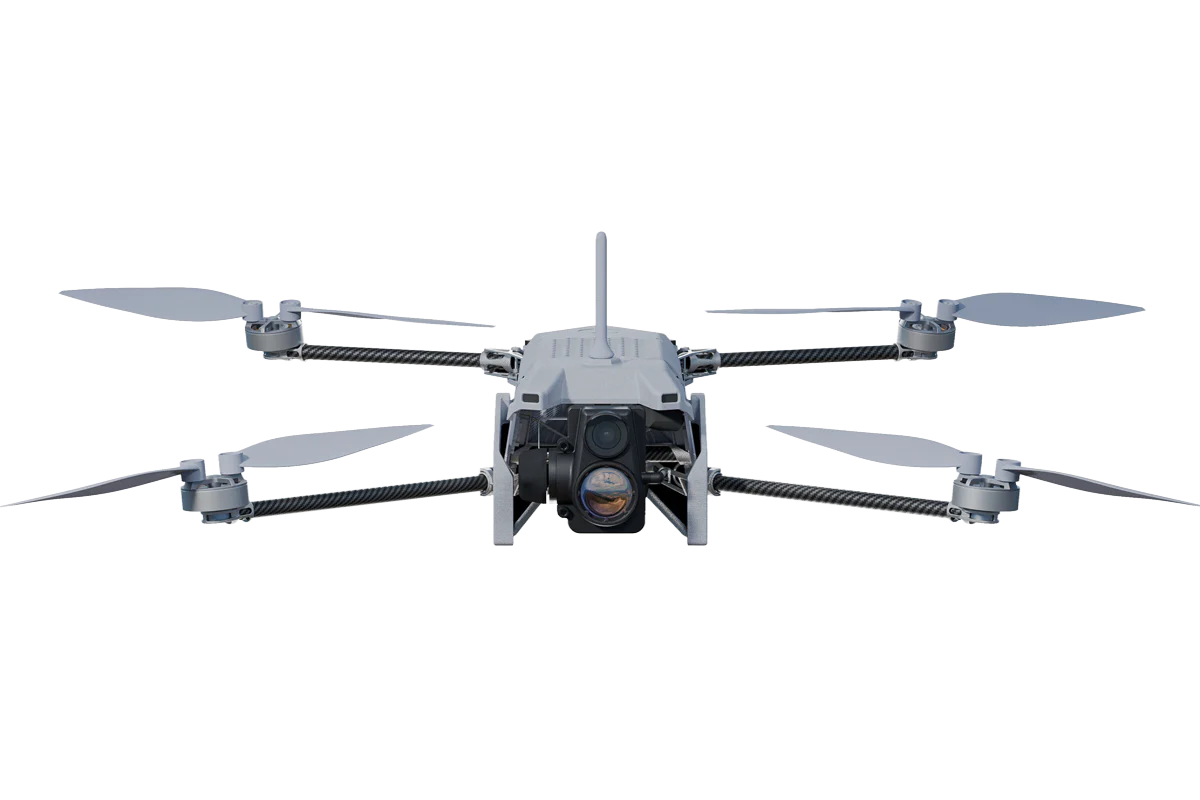

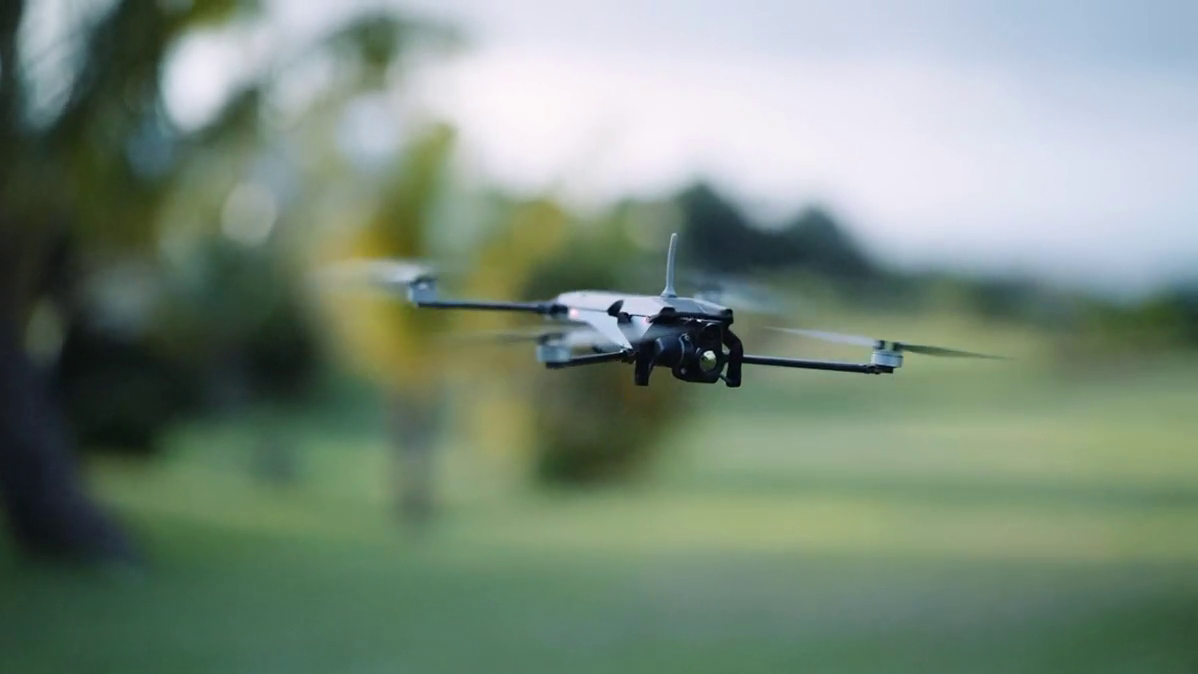

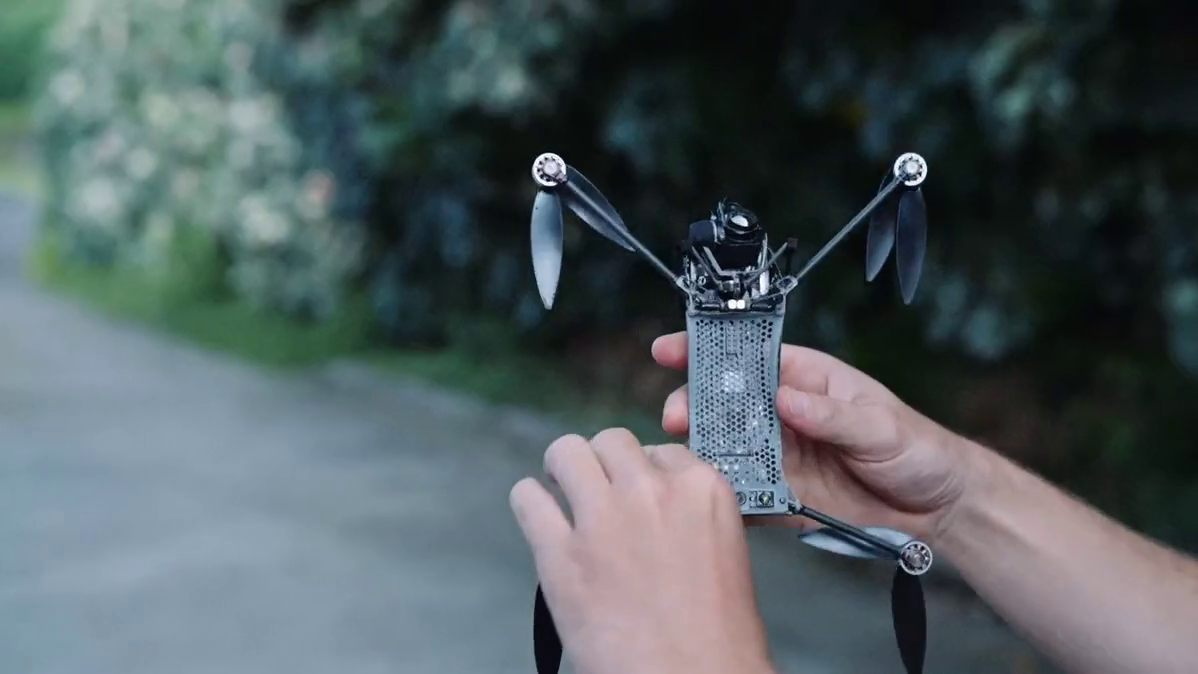

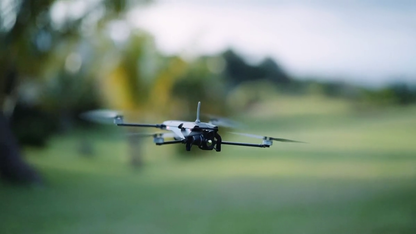

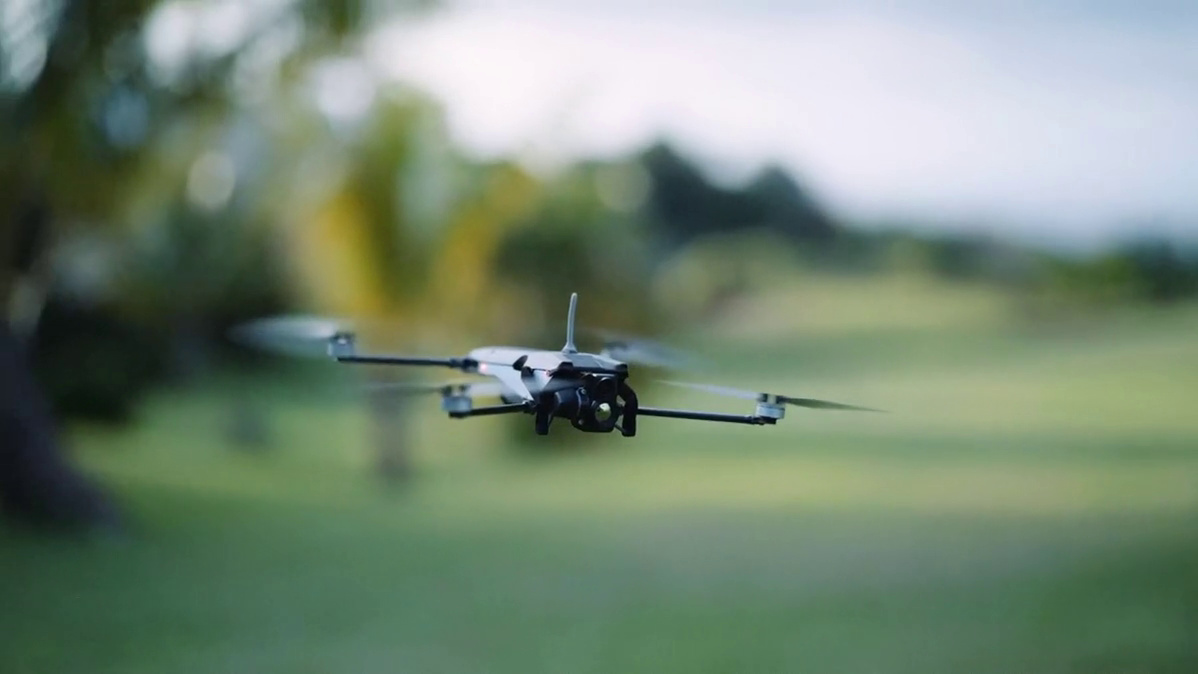

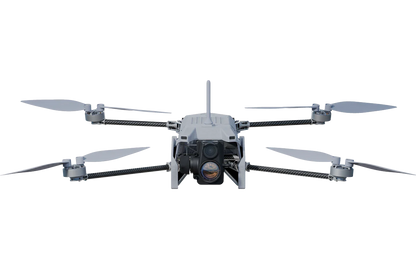

Meet the Vantage Trace UAV Bundle a professional-grade nano drone engineered for the modern demands of public safety, tactical reconnaissance, and covert surveillance. Made in the USA and DoD Blue UAS cleared, this compact powerhouse redefines what’s possible with nano UAV technology.

Weighing just 5.8 oz and deployable in under 30 seconds, the Trace UAV delivers 40 minutes of flight time, unmatched stealth, and cutting-edge sensor capabilities in a drone that fits in the palm of your hand. Whether operating in GPS-denied indoor environments or navigating through high-wind outdoor missions, Trace is the trusted aerial partner for law enforcement, military teams, and first responders.

Equipped with a 48MP EO camera, 320x240 IR thermal sensor, and 25x digital zoom, the Trace drone provides real-time, high-resolution situational awareness day or night. Its whisper-quiet flight and low visual signature ensure operators can observe without being detected, while AES-256 encryption guarantees secure, NDAA-compliant data transmission.

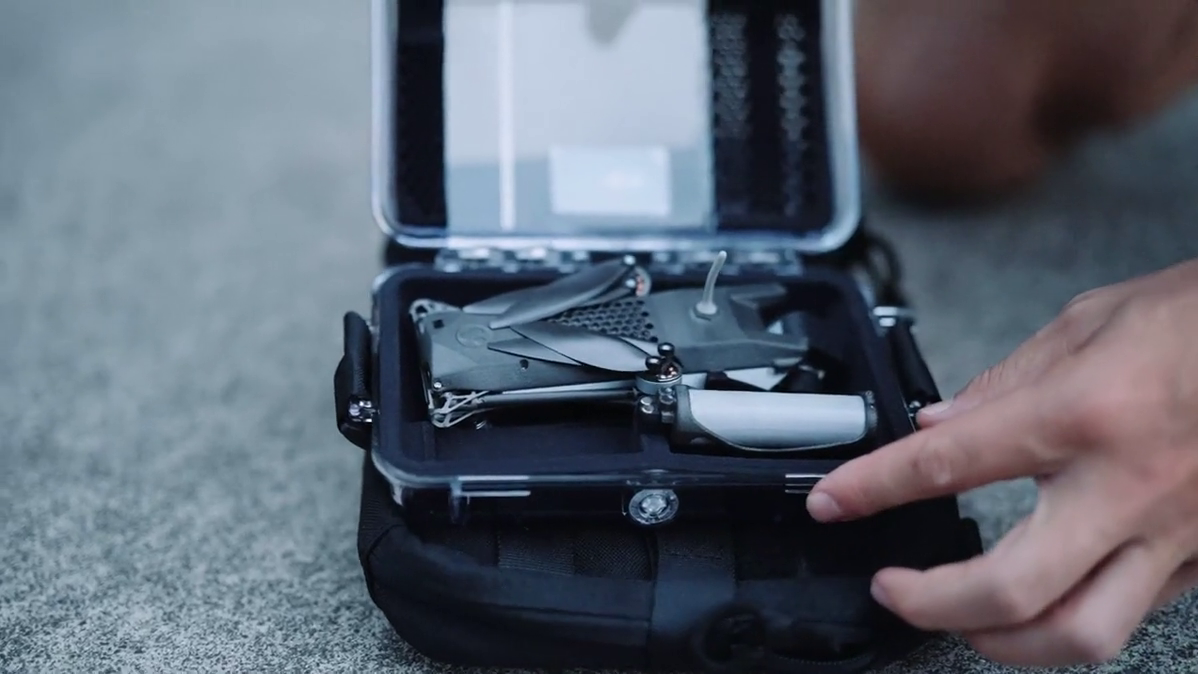

Built tough with IP53 ingress protection and shipped in a crushproof, waterproof IP68 tactical case, the Vantage Trace UAV Bundle is mission-ready whenever and wherever duty calls.

Key Features

  • 40-minute max flight time for extended surveillance and tactical operations.
  • 48MP stabilized EO camera delivers ultra-sharp aerial imagery.
  • 320x240 thermal imaging sensor enhances low-light and night-time ops.
  • 25x digital zoom (67° 2.7° HFOV) for long-range detailed observation.
  • 360° obstacle avoidance ensures safe indoor and GPS-denied navigation.
  • Stealth-class low noise signature inaudible at 30 ft, <34 dBA at 90 ft.
  • Compact & lightweight only 5.8 oz (163 g), ideal for pocket carry.
  • Secure AES-256 encrypted communications for mission-critical data integrity.
  • Deployable in 30 seconds rapid launch when time is critical.

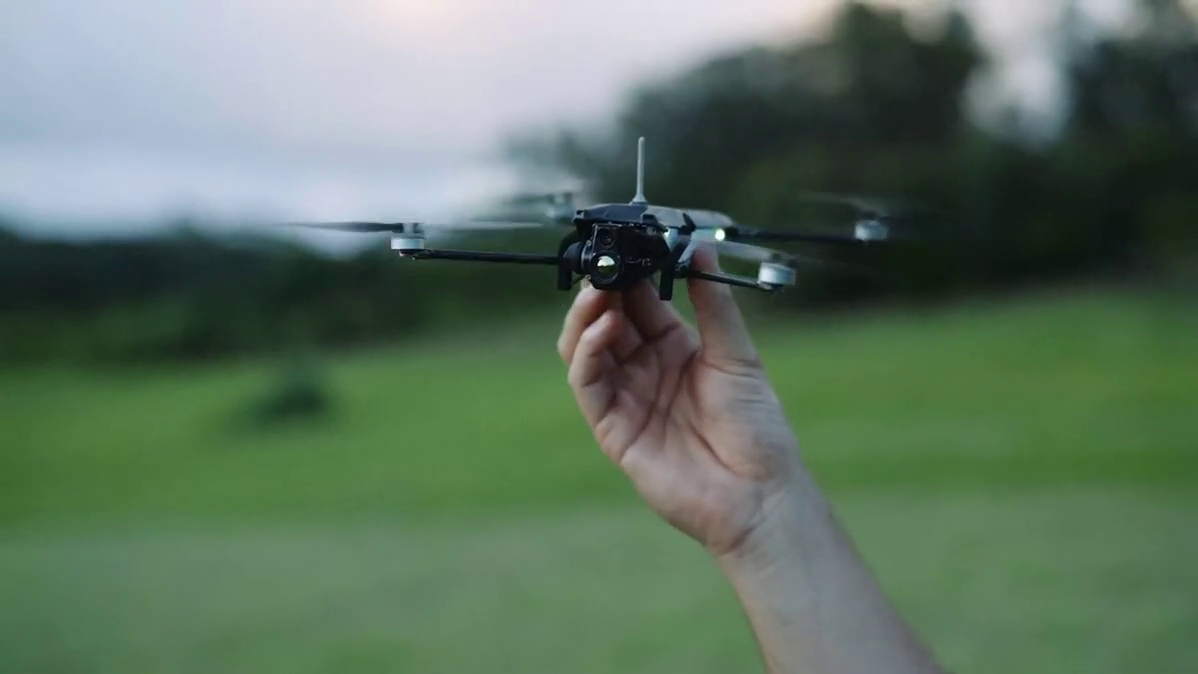

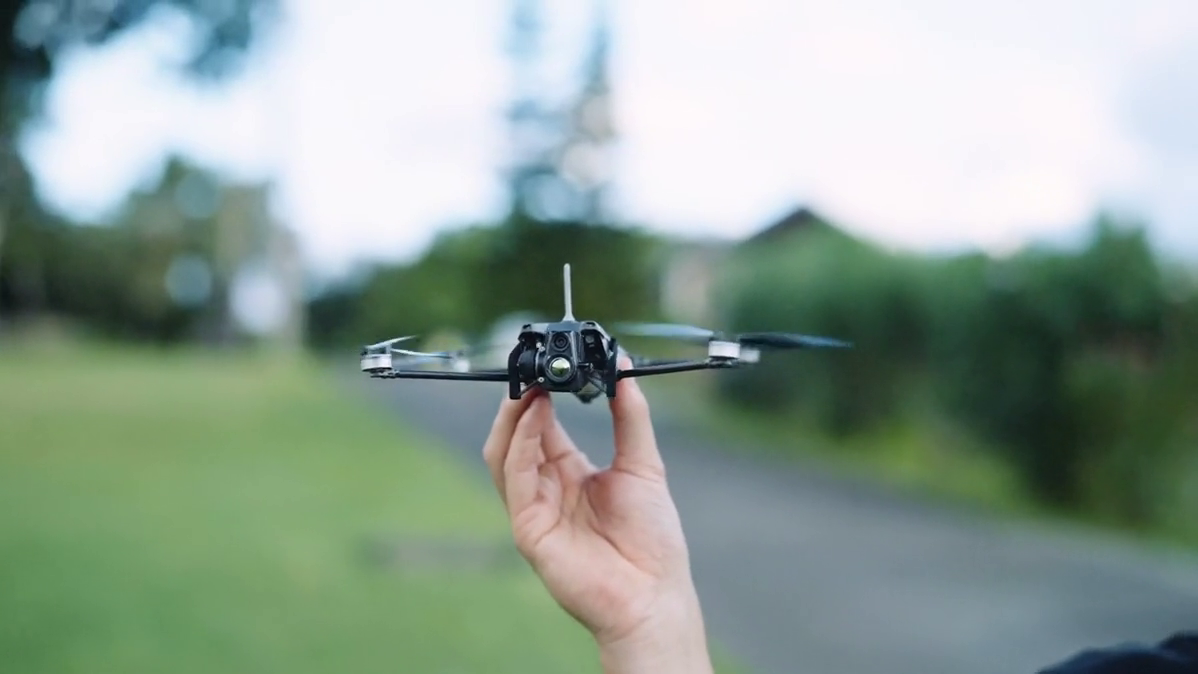

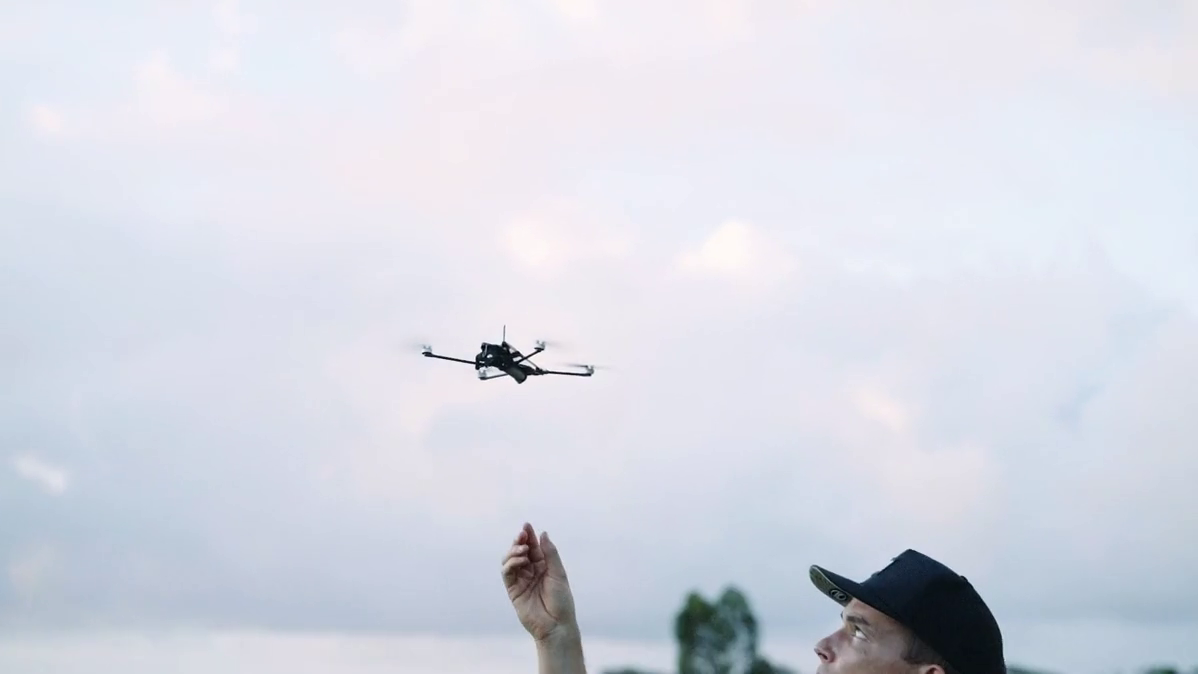

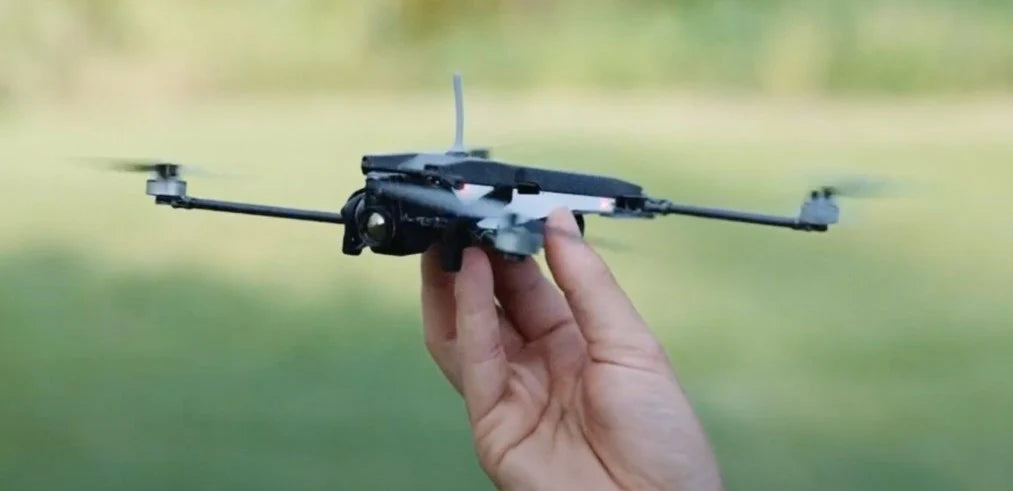

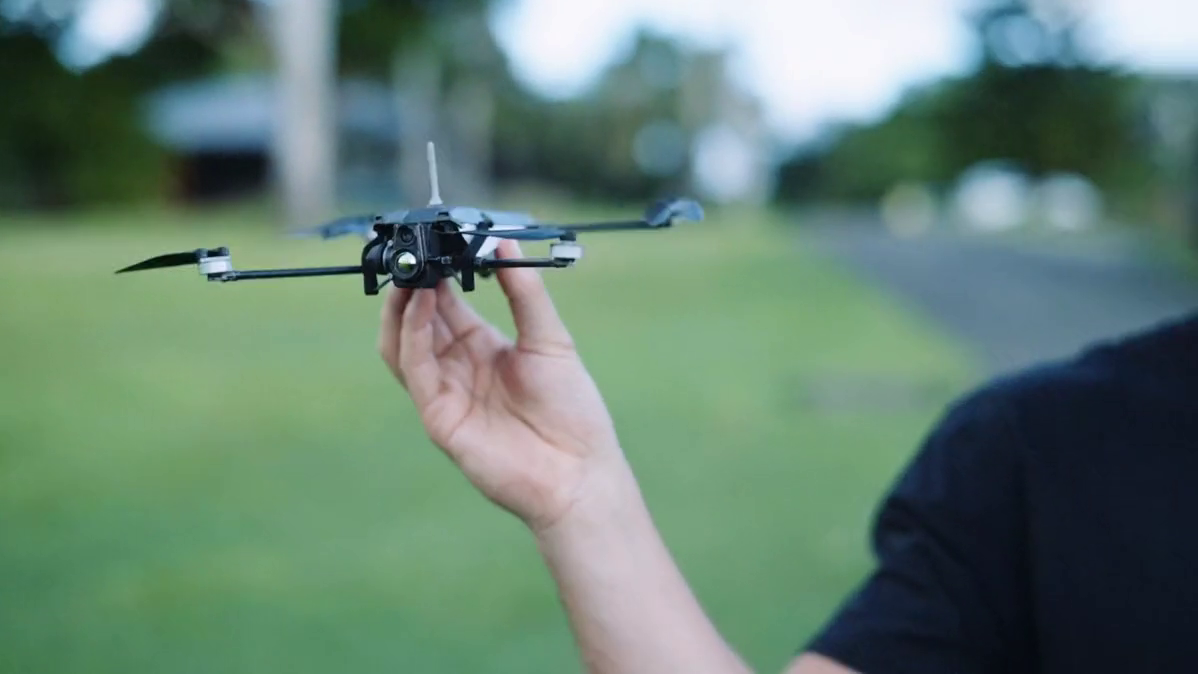

  • Hand or ground launch & perch-and-stare capable for flexible field ops.
  • IP53 rated aircraft resists dust and light rain during missions.
  • Built tough in an IP68 waterproof field case with 90 kg crush tolerance.
  • 2 km LOS and 500m NLOS range with secure channel-hopping radio.
  • Fully compatible with ATAK, QGC, WMI, RAC2 and leading GCS platforms.
  • Designed, sourced, and built in the USA NDAA & DoD “Blue” compliant.

Detailed Specifications

Category Specification
Model Vantage Trace UAV Bundle (2.4GHz)
Flight Time Up to 40 minutes
Takeoff Weight 5.8 oz / 163 g

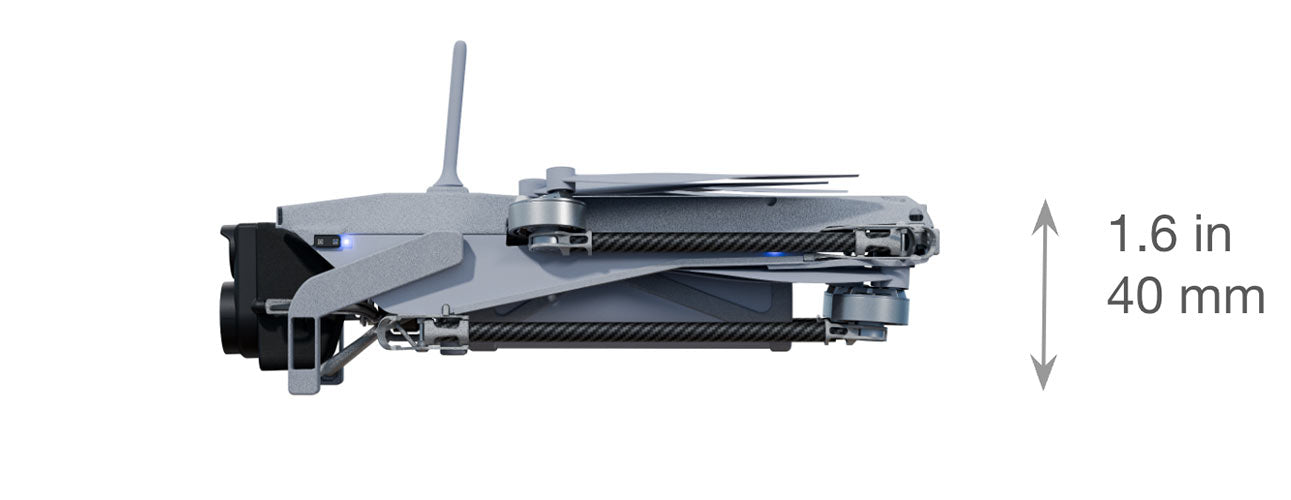

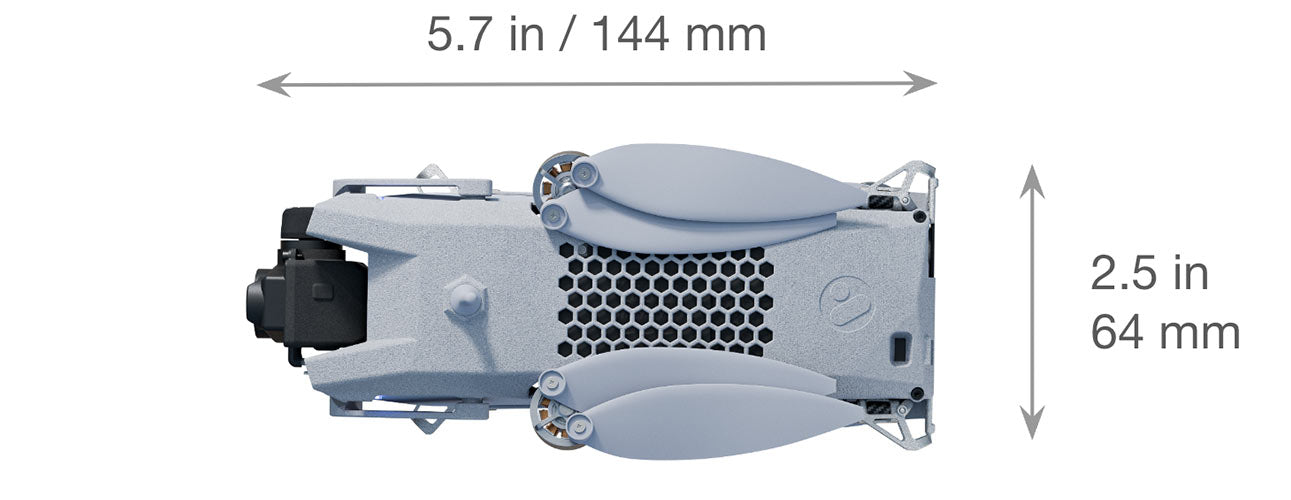

Dimensions (Stowed) 5.7 in (L) × 2.5 in (W) × 1.6 in (H)

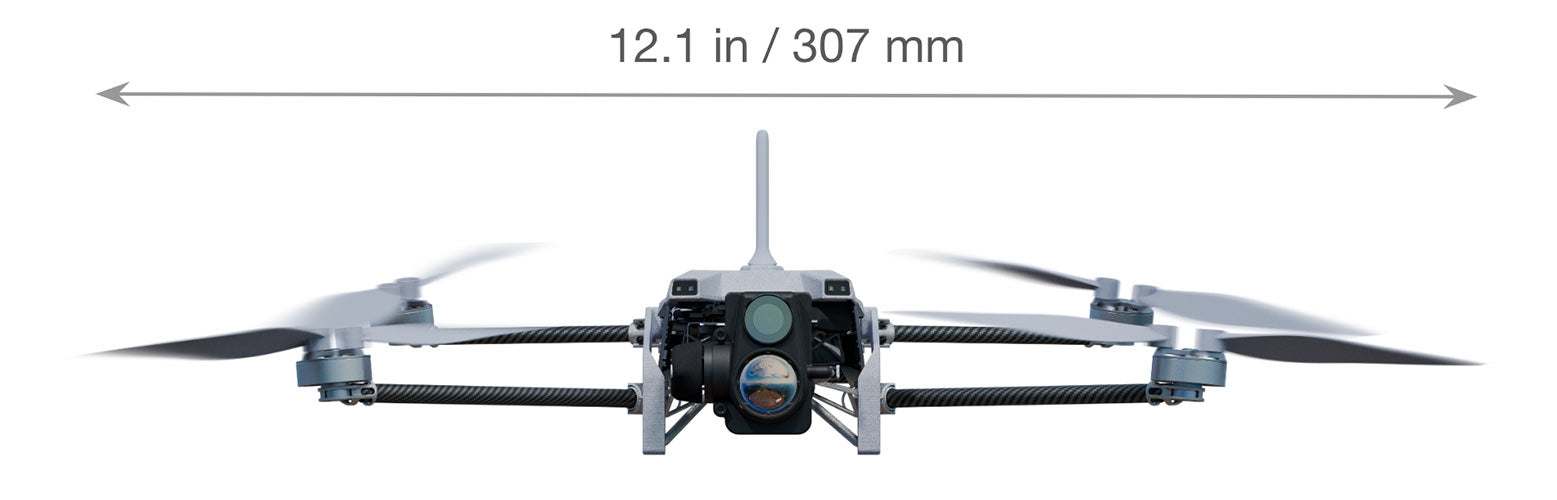

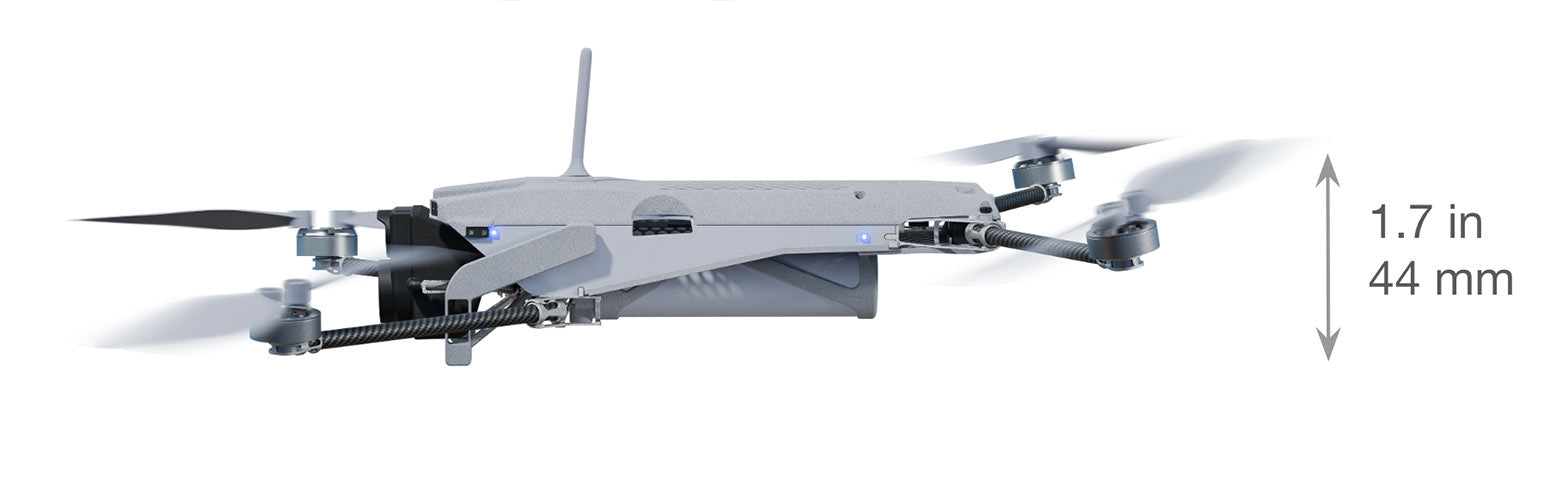

Dimensions (Deployed) 12.1 in (L) × 1.7 in (H)
Top Speed 32 mph (52 kph)
Payload Capacity 2.2 lbs (w/ full tactical config and controller)
Camera (EO) 48MP, 8000x6000 stills, 4K/1080p video, 25x digital zoom
Camera (IR) 320x240 uncooled VOx, 24° HFOV (57° optional), upgradeable to 640x480
Gimbal 2-axis stabilized EO/IR gimbal, pitch -90° to +70°
Stealth Level <34 dBA at 30 m / 90 ft; invisible at 30 ft against terrain
Obstacle Avoidance Full 360° coverage, GPS-denied visual positioning, indoor-safe
Ingress Protection IP53 (aircraft), IP68 (field case)
Launch Method Hand launch or flat surface
Range (LOS) 6 km (depending on radio module)
Range (NLOS) 500 m (30dBi attenuation)
Control Frequencies 2.36 2.5 GHz, automatic channel hopping, AES-256 encryption
Software Compatibility QGC, ATAK, WMI, DroneSense, RAC2

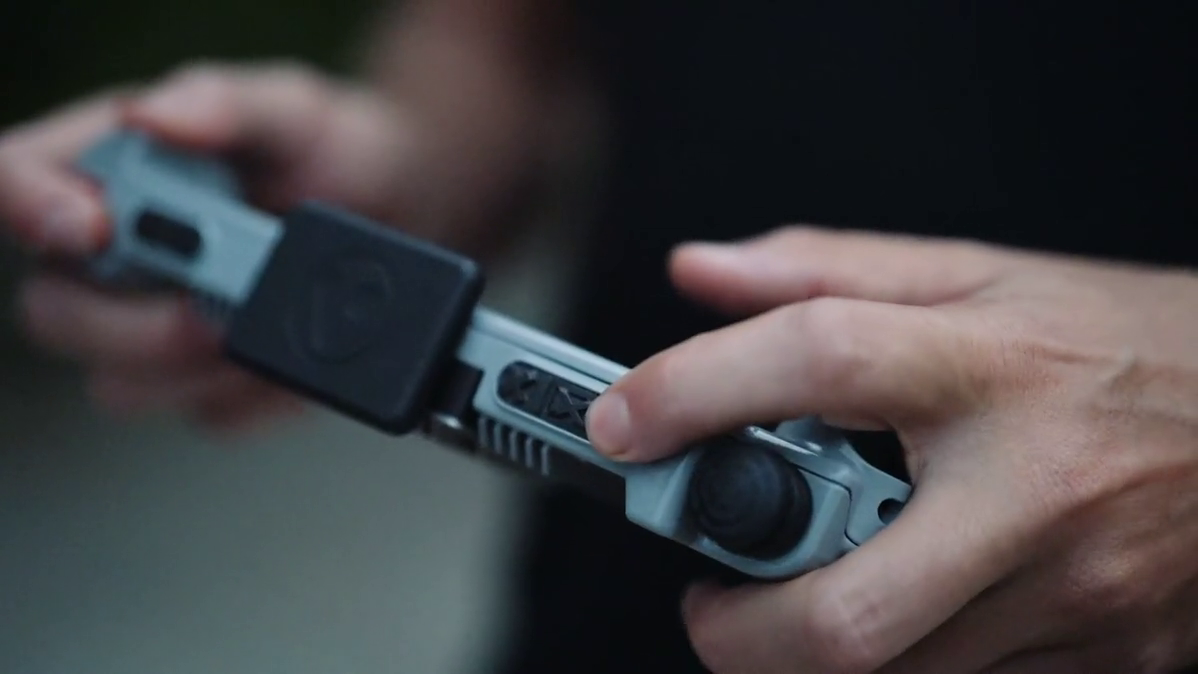

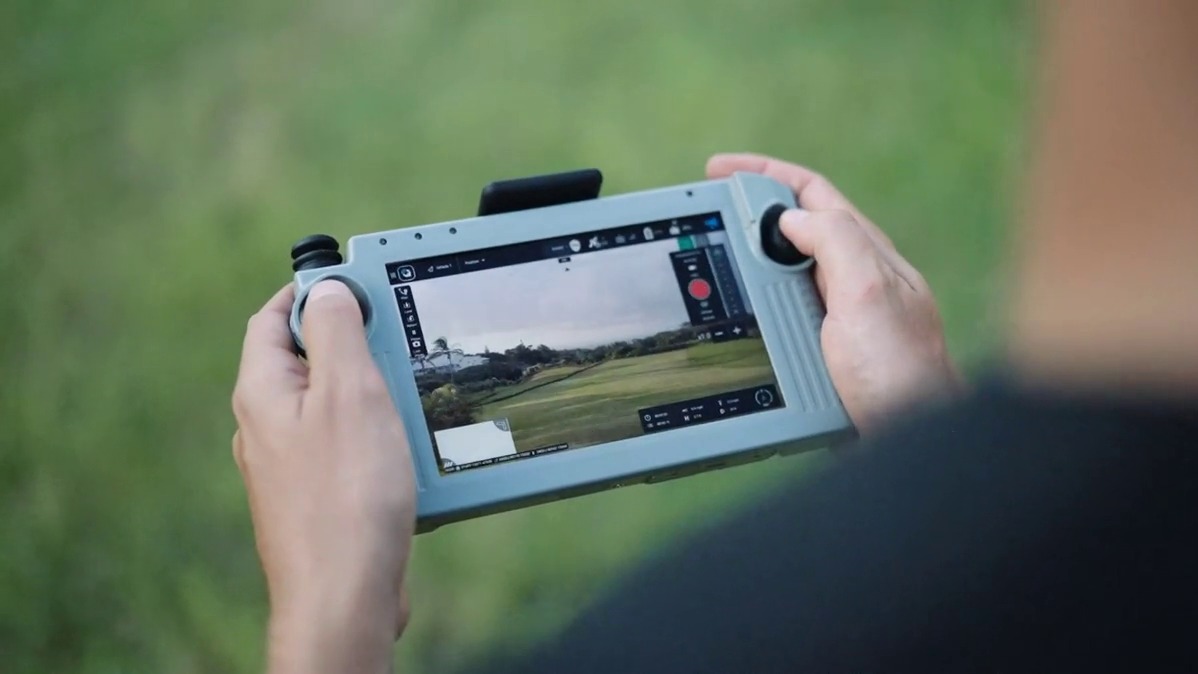

Controller Compatibility Vision2, Kutta KTAC, S20 TE, Tomahawk Mimic or Grip GCS
Temperature Range -4°F to 113°F (-20°C to 45°C)
Wind Tolerance Operates in winds up to 25 knots
Security Compliance DoD Blue UAS, NDAA Compliant, No Remote Data Connections
