Product Description

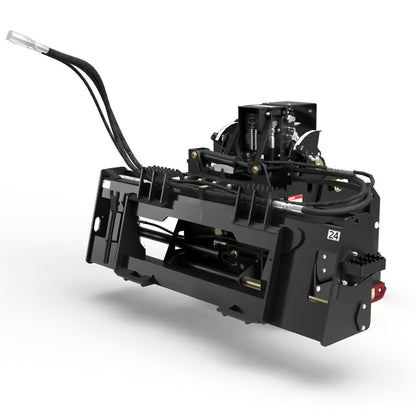

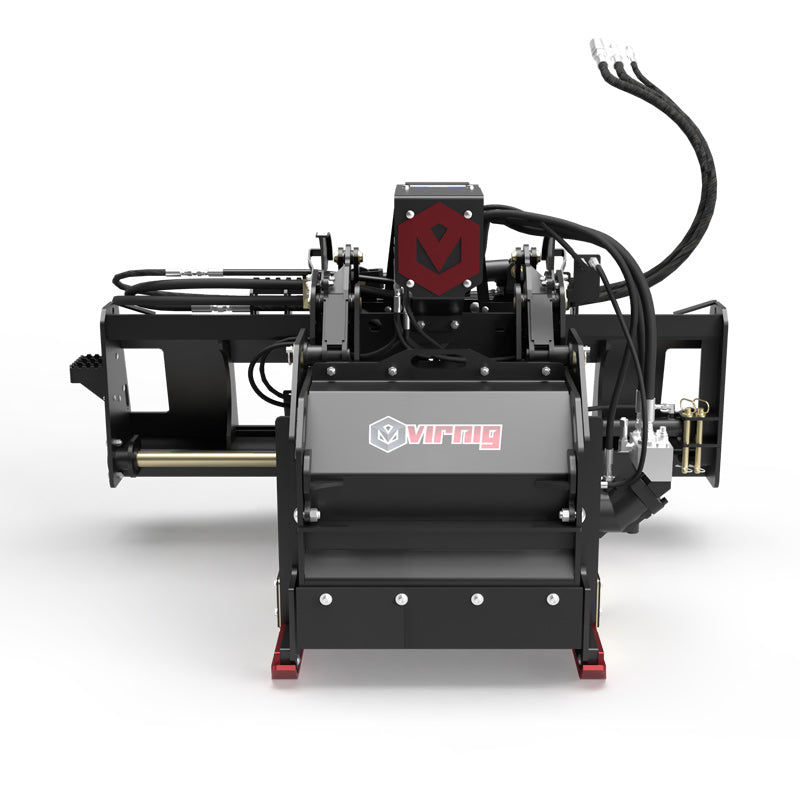

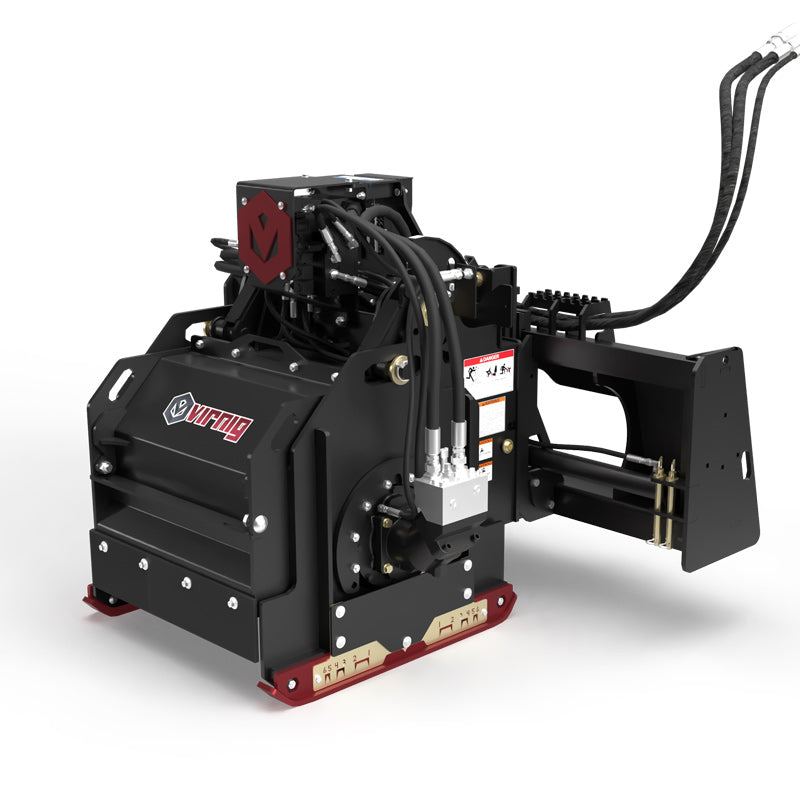

Virnig Cold Planer | Models PLR18 To PLR48 | Widths 18" To 48" | Hydraulic Flow 26 To 50 GPM | For Skid Steer & Track Loaders
DESCRIPTION

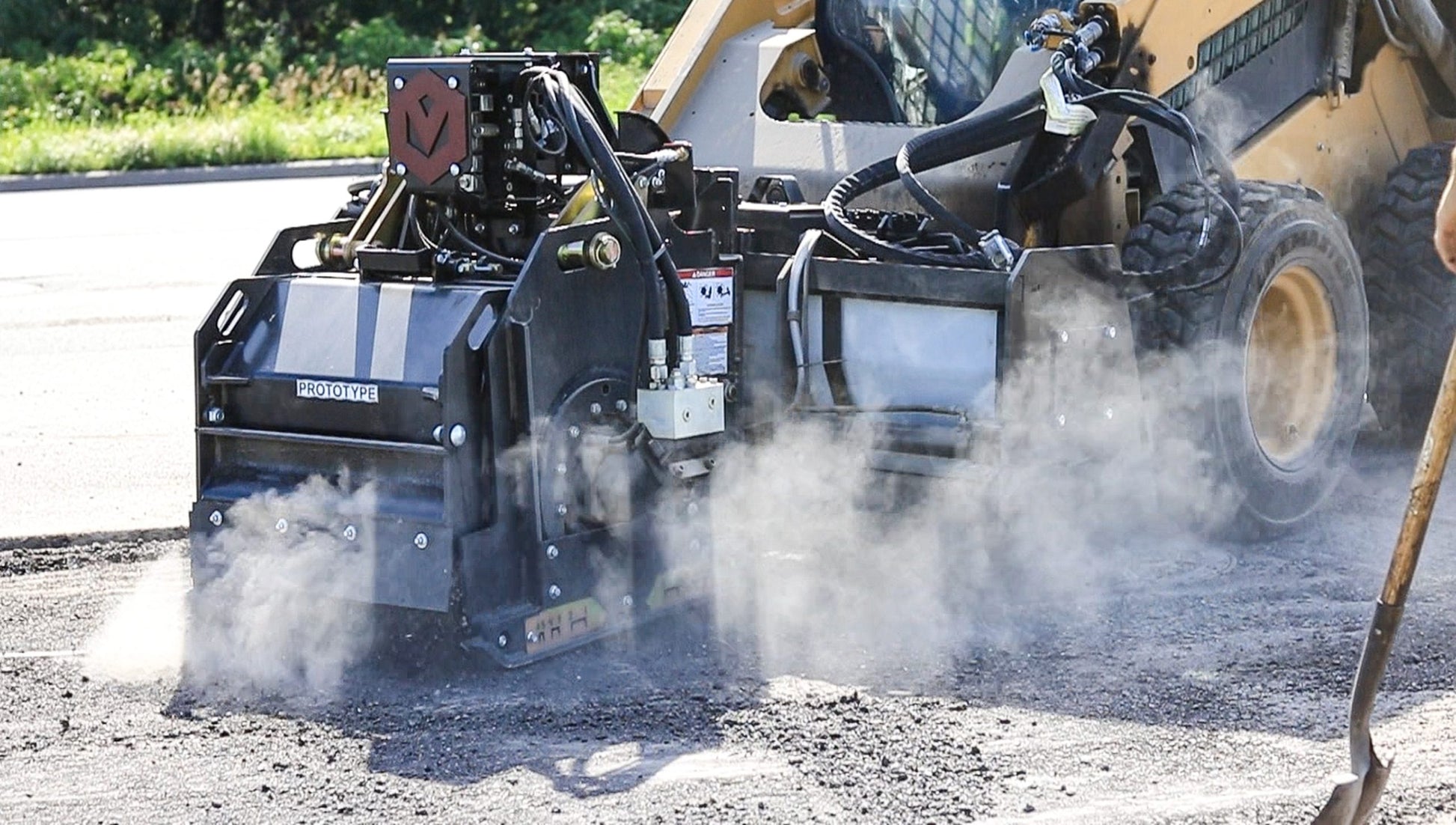

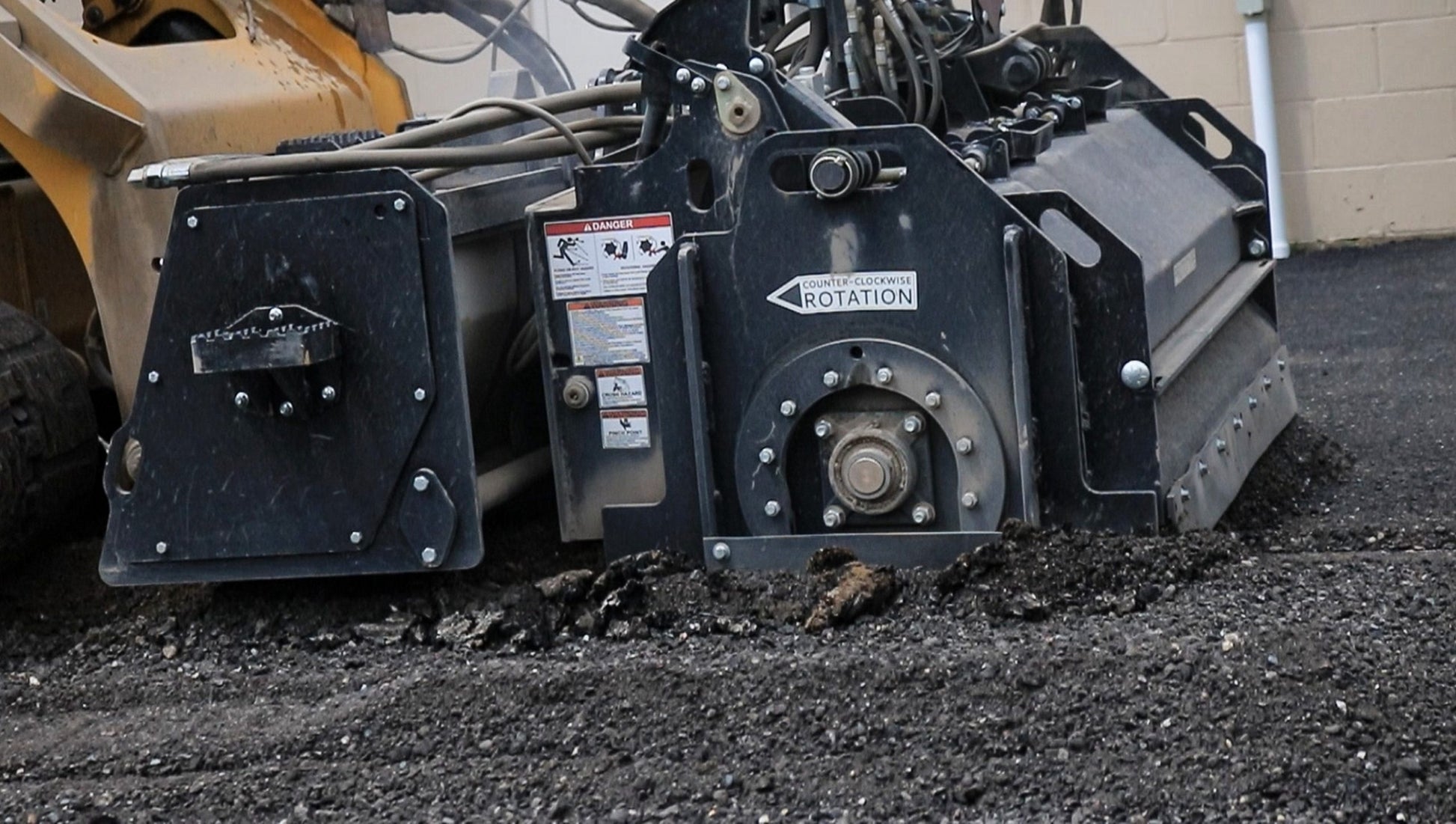

The Virnig Skid Steer Cold Planer is a high-performance milling attachment engineered to cut through asphalt and concrete with precision, speed, and reliability. Built for contractors, road crews, and property maintenance professionals, this attachment delivers the versatility and control needed for patching, resurfacing, and full-depth removal projects.

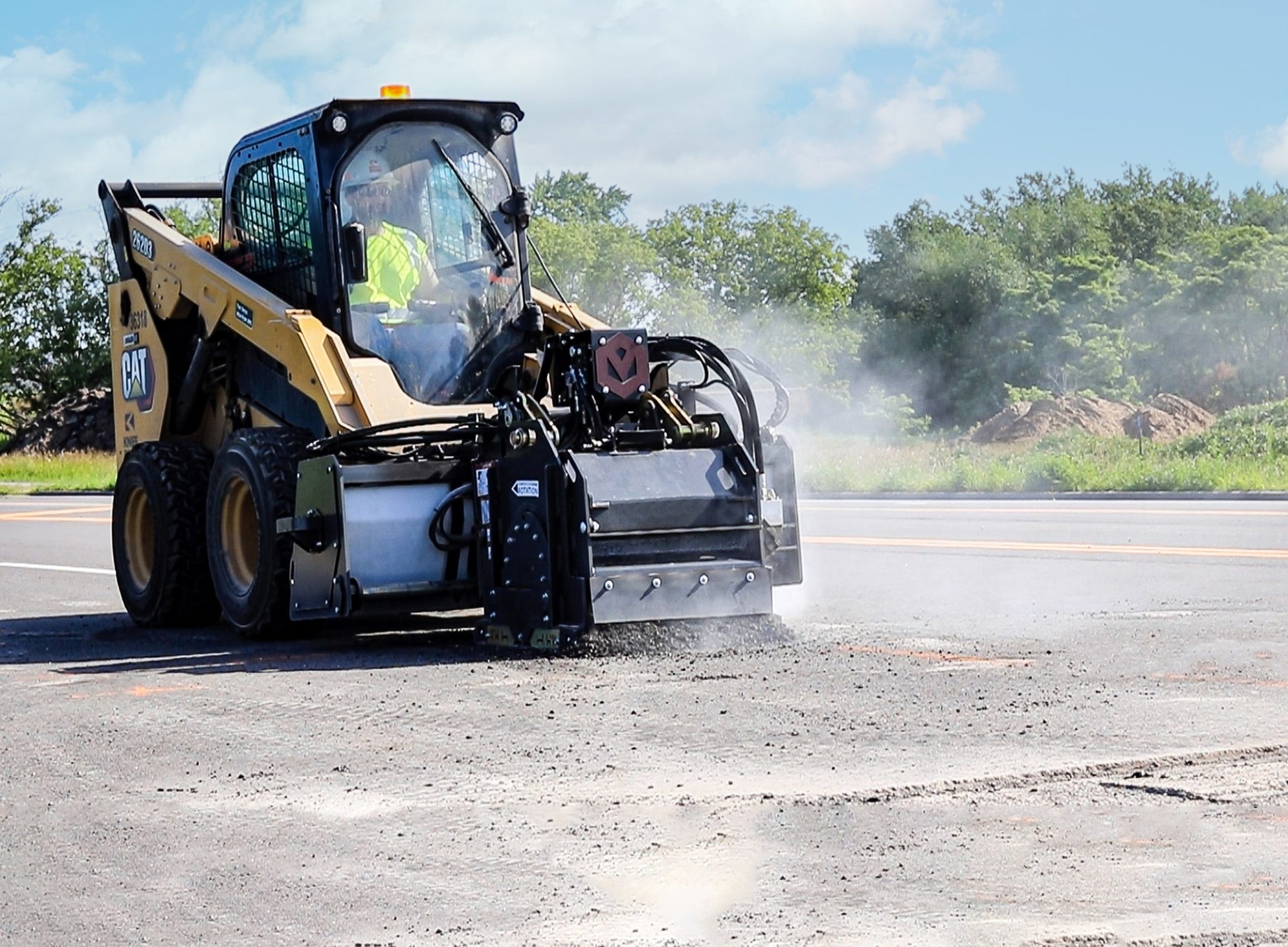

Designed for high-flow skid steers and track loaders (26–50 GPM), the Virnig Cold Planer combines direct-drive hydraulic power with a planetary motor system for efficient, consistent cutting even in the toughest surfaces. Its exclusive user-friendly control system allows operators to toggle between five independent functions tilt, side shift, and dual side plate adjustments at the touch of a button, without complex sequences or extra wiring.
With its self-leveling, floating design, the planer automatically adapts to surface contours, ensuring smooth, uniform passes and professional-grade results. The plug-and-play electrical system connects easily to most skid and track loaders, making setup quick and hassle-free. Add the optional internal 55-gallon water tank to minimize dust and improve jobsite safety and visibility.
Whether you’re milling asphalt, trenching for utilities, or preparing pavement for resurfacing, the Virnig Cold Planer delivers exceptional control, minimal downtime, and maximum productivity built in the USA and made to outperform.
Key Features
- Powerful Direct-Drive Bent-Axis Piston Motor for maximum cutting performance and durability.
- Exclusive Five-Function Operation independently control tilt, side-shift, and dual side plates.
- Plug-and-Play Electrical System quick installation with most high-flow skid steers and track loaders.
- Live Operator Display Controls intuitive interface for seamless function selection and real-time feedback.
- Self-Leveling Floating Design automatically maintains consistent depth for smooth, even milling.
- Outer Drum Pick Placement reduces risk of curb, apron, or concrete edge damage.
- Optional 55-Gallon Internal Water Tank minimizes dust and promotes safer, cleaner work environments.
- Replaceable AR400 Skid Shoes with depth indicators for accurate cutting reference.
- Planetary Low-Pressure Oil Vent protects seals and extends planetary motor life.
- Case Drain Connection Indicator provides visual confirmation of proper function.
- Free-Spinning, Replaceable Carbide Picks optimized for asphalt with optional concrete picks available.
- Heavy-Duty Frame Design built for longevity in demanding commercial and municipal applications.
- Precision Side-Shift Travel up to 23.5" right and 2.5" left for edge milling and tight spaces.
- High Hydraulic Flow Range (26–50 GPM) ensures compatibility with most high-flow loaders.
- Made in the USA quality construction and components designed for years of dependable service.
Detailed Specifications
| Specification | PLR18 | PLR24 |
|---|---|---|
| Cut Width (inches) | 18.0 | 24.0 |
| Max Cut Depth (inches) | 6.0 | 6.0 |
| Overall Width (with Step / Frame) (inches) | 76.4 / 72.7 | 76.4 / 72.7 |
| Overall Height (inches) | 45.1 | 45.1 |
| Overall Length (Without / With Water Tank) (inches) | 52.6 / 61.5 | 52.6 / 61.5 |
| Side Shift Travel From Center (Right / Left) (inches) | 23.5 / 2.5 | 23.5 / 2.5 |
| Tilt Angle (degrees) | ±12° | ±12° |
| Number of Picks | 44 | 54 |
| Minimum Flow Rate (GPM @3000 PSI) | 26 | 28 |
| Minimum Flow Rate (GPM @3500 PSI) | 26 | 26 |
| Minimum Flow Rate (GPM @4000 PSI) | 26 | 26 |
| Maximum Hydraulic Flow (GPM / PSI) | 50 / 4500 | 50 / 4500 |
| Approximate Weight (lbs) | 2160 | 2310 |
| Weight with Water Tank (Empty / Full) (lbs) | 2490 / 2950 | 2645 / 3105 |
| Recommended Loader Capacity (No Tank / With Tank) (lbs) | 2160 / 2950 | 2310 / 3105 |
| Optional Water Tank | 55 Gallon Internal Poly Tank | 55 Gallon Internal Poly Tank |
| Optional Picks | Asphalt (Standard) / Concrete (Optional) | Asphalt (Standard) / Concrete (Optional) |
| Recommended Hydraulic Flow Range | 26–50 GPM | 26–50 GPM |
| Compatible Loader Type | High-Flow Skid Steer or Track Loader | High-Flow Skid Steer or Track Loader |
| Specification | PLR30 | PLR40 |
|---|---|---|
| Cut Width (inches) | 30.0 | 40.0 |
| Max Cut Depth (inches) | 6.0 | 6.0 |
| Overall Width (with Step / Frame) (inches) | 76.4 / 72.7 | 76.4 / 72.7 |
| Overall Height (inches) | 45.1 | 45.1 |
| Overall Length (Without / With Water Tank) (inches) | 52.6 / 61.5 | 52.6 / 61.5 |
| Side Shift Travel From Center (Right / Left) (inches) | 23.5 / 2.5 | 23.5 / 2.5 |
| Tilt Angle (degrees) | ±10° | ±6° |
| Number of Picks | 66 | 82 |
| Minimum Flow Rate (GPM @3000 PSI) | 32 | 37 |
| Minimum Flow Rate (GPM @3500 PSI) | 29 | 32 |
| Minimum Flow Rate (GPM @4000 PSI) | 26 | 29 |
| Maximum Hydraulic Flow (GPM / PSI) | 50 / 4500 | 50 / 4500 |
| Approximate Weight (lbs) | 2450 | 2735 |
| Weight with Water Tank (Empty / Full) (lbs) | 2790 / 3250 | 3080 / 3540 |
| Recommended Loader Capacity (No Tank / With Tank) (lbs) | 2450 / 3250 | 2735 / 3540 |
| Optional Water Tank | 55 Gallon Internal Poly Tank | 55 Gallon Internal Poly Tank |
| Optional Picks | Asphalt (Standard) / Concrete (Optional) | Asphalt (Standard) / Concrete (Optional) |
| Recommended Hydraulic Flow Range | 26–50 GPM | 26–50 GPM |
| Compatible Loader Type | High-Flow Skid Steer or Track Loader | High-Flow Skid Steer or Track Loader |
| Specification | PLR48 |
|---|---|
| Cut Width (inches) | 48.0 |
| Max Cut Depth (inches) | 6.0 |
| Overall Width (with Step / Frame) (inches) | 78.4 / 74.7 |
| Overall Height (inches) | 45.1 |
| Overall Length (Without / With Water Tank) (inches) | 52.6 / 61.5 |
| Side Shift Travel From Center (Right / Left) (inches) | 23.5 / 2.5 |
| Tilt Angle (degrees) | ±6° |
| Number of Picks | 96 |
| Minimum Flow Rate (GPM @3000 PSI) | – |
| Minimum Flow Rate (GPM @3500 PSI) | 36 |
| Minimum Flow Rate (GPM @4000 PSI) | 32 |
| Maximum Hydraulic Flow (GPM / PSI) | 50 / 4500 |
| Approximate Weight (lbs) | 2920 |
| Weight with Water Tank (Empty / Full) (lbs) | 3270 / 3730 |
| Recommended Loader Capacity (No Tank / With Tank) (lbs) | 2920 / 3730 |
| Optional Water Tank | 55 Gallon Internal Poly Tank |
| Optional Picks | Asphalt (Standard) / Concrete (Optional) |
| Recommended Hydraulic Flow Range | 26–50 GPM |
| Compatible Loader Type | High-Flow Skid Steer or Track Loader |
