Virnig Hay Handling Machine Pointed Bale Spears | Models BSV48, BFV48, CBV48, SSV48 & BASS66 | Widths 45.5" To 66.5" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
Virnig Hay Handling Machine Pointed Bale Spears | Models BSV48, BFV48, CBV48, SSV48 & BASS66 | Widths 45.5" To 66.5" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
Regular price
$970.00
Regular price
Sale price
$970.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Virnig Hay Handling Machine Pointed Bale Spears | Models BSV48, BFV48, CBV48, SSV48 & BASS66 | Widths 45.5" To 66.5" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
DESCRIPTION
Handle hay bales with confidence, precision, and unmatched strength using the Virnig Machine-Pointed Bale Spears expertly engineered for skid steer loaders and compact track loaders. Designed for farmers, ranchers, and agricultural professionals who demand dependable performance in the field, these bale spears deliver exceptional lifting power and stability for moving both round and square bales up to 2,000 lbs.
Each model is built with 1045 Cold Finished Stress Relieved (CFSR) round stock, offering a 100,000 PSI minimum yield strength for superior durability and long life. The replaceable machine-pointed spears are precision-machined for easy maintenance, while the universal skid steer mount ensures compatibility across most loader brands.
Whether you’re feeding cattle, stacking hay, or loading trailers, Virnig Bale Spears provide the confidence to move your operation forward safely, efficiently, and with the strength you can trust.
Key Features
- Heavy-Duty Construction Built from 1045 CFSR round stock with a 100,000 PSI minimum yield strength for superior toughness.
- Replaceable Machine-Pointed Spears Easy-to-service and maintain, keeping downtime to a minimum.
- High-Capacity Performance Safely handles bales up to 2,000 lbs when secured against the frame.
- Optimized for Skid Steers Universal mount fits most SSL and CTL models for seamless attachment.
- Precision Engineered Spears Machine-pointed design ensures accurate bale penetration without tearing wrap or netting.
- Balanced Frame Design Provides excellent visibility and control while lifting or stacking.
- Variety of Models Choose from Round Bale, Bale Fork, Round/Square Combo, Square, or Big Square Bale Spears.
- Hydraulic Compatibility Ideal for loaders with 15–25 GPM hydraulic flow for optimal handling power.
- Single-Bale Operation Purpose-built for one-bale handling to maintain control and safety.
- Corrosion-Resistant Finish Industrial-grade powder coat resists rust and wear in all weather conditions.
- Stable Lifting Geometry Wide frame and stabilizer spears keep bales steady during transport.
- Rugged Mounting System Reinforced backplate ensures long-term reliability under constant use.
- Compact, Easy Storage Efficient frame design minimizes footprint for convenient storage.
- American Engineering Excellence Designed and manufactured by Virnig, a trusted name in agricultural attachments.
- Perfect for Daily Hay Operations Move, load, and stack hay effortlessly season after season.
Detailed Specifications

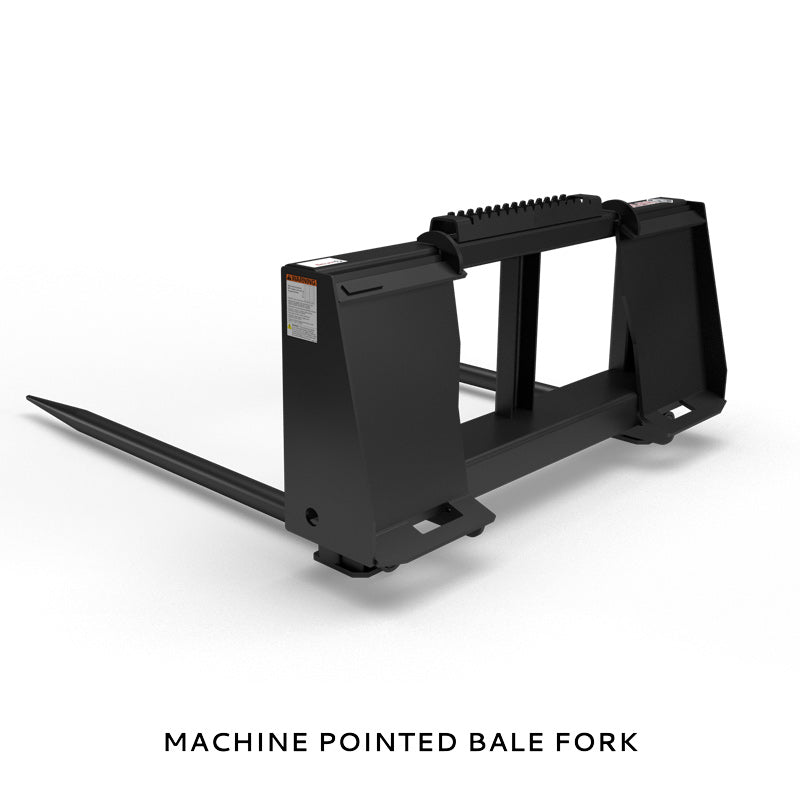

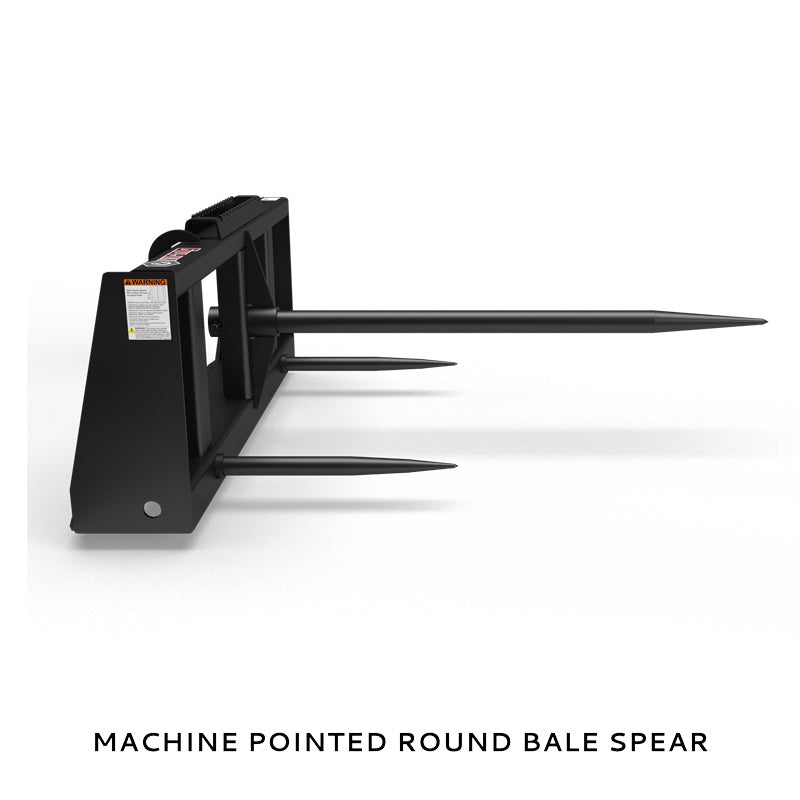

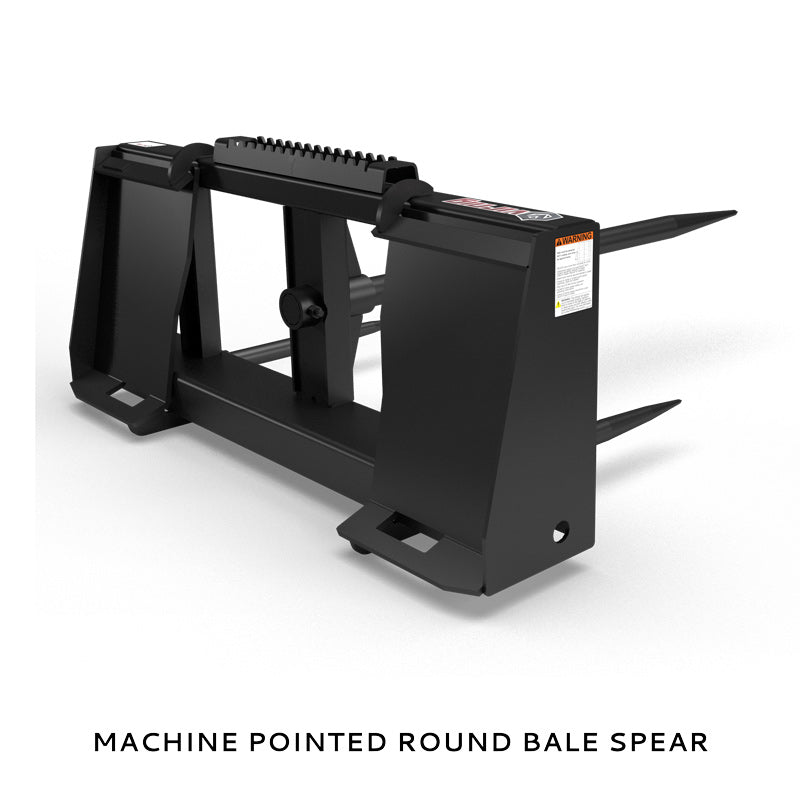

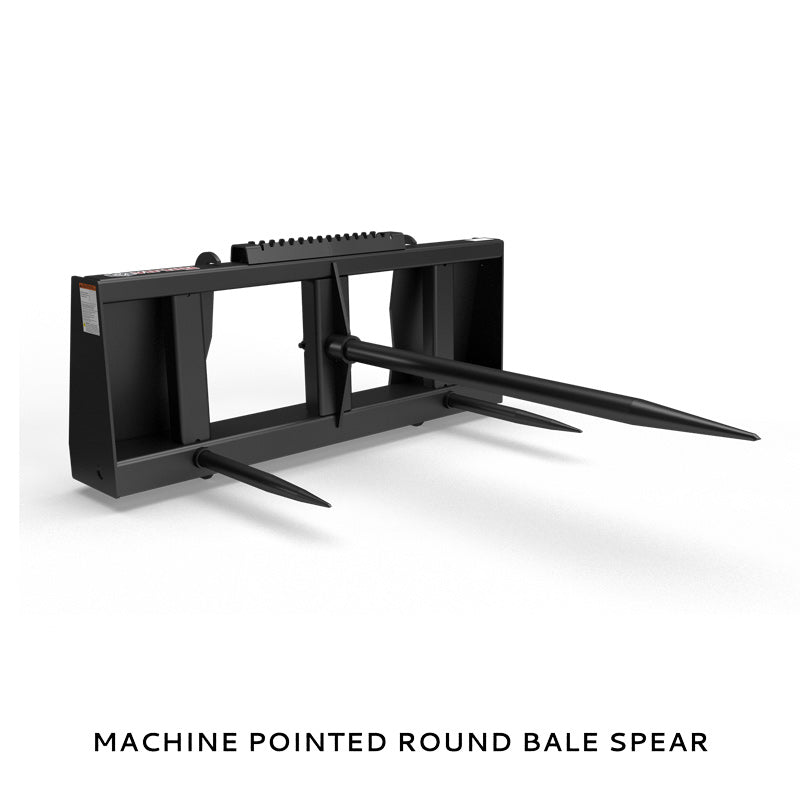

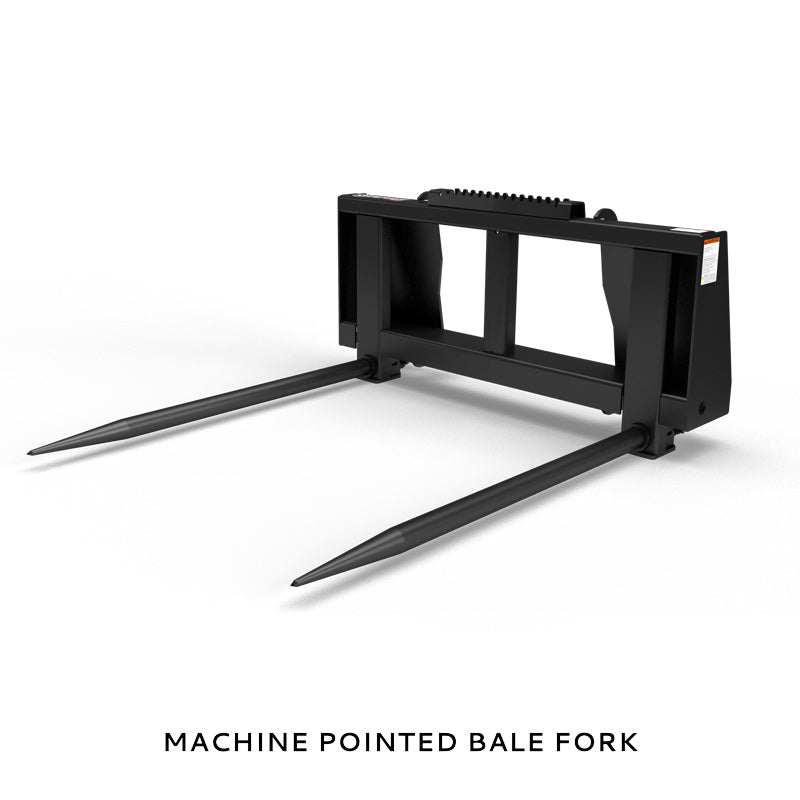

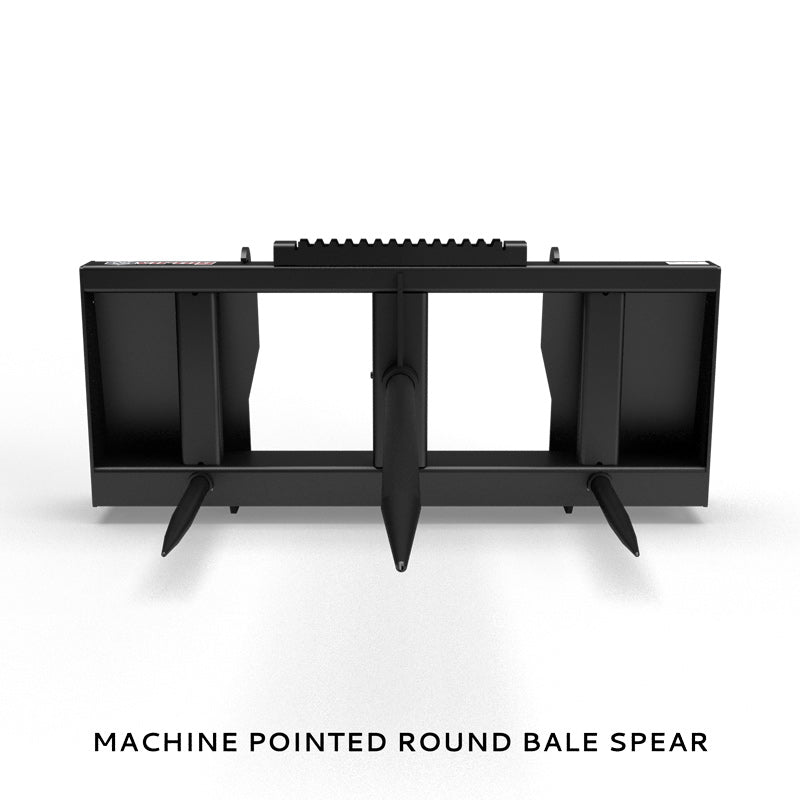

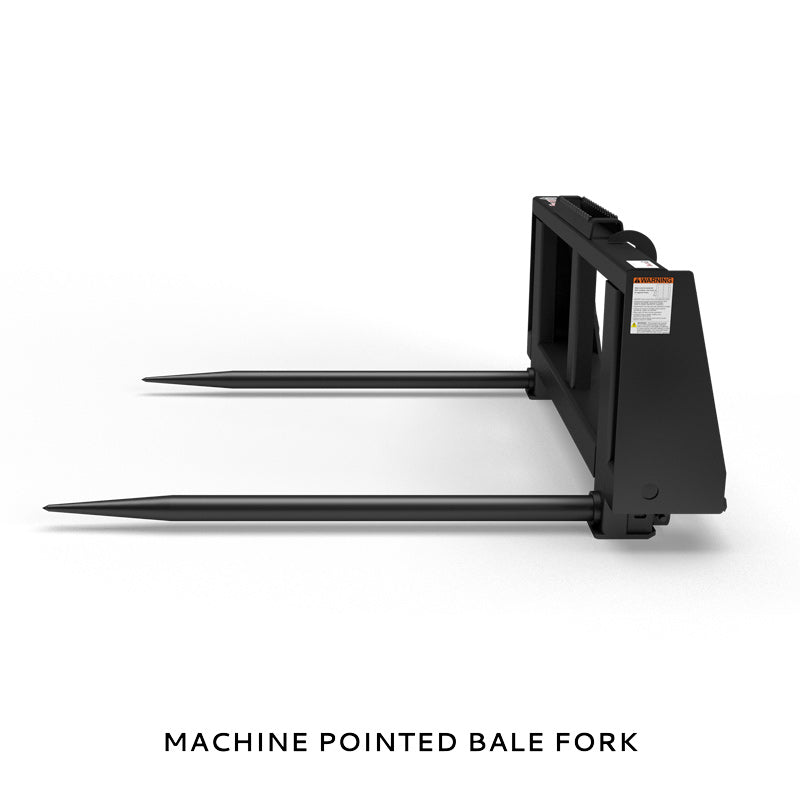

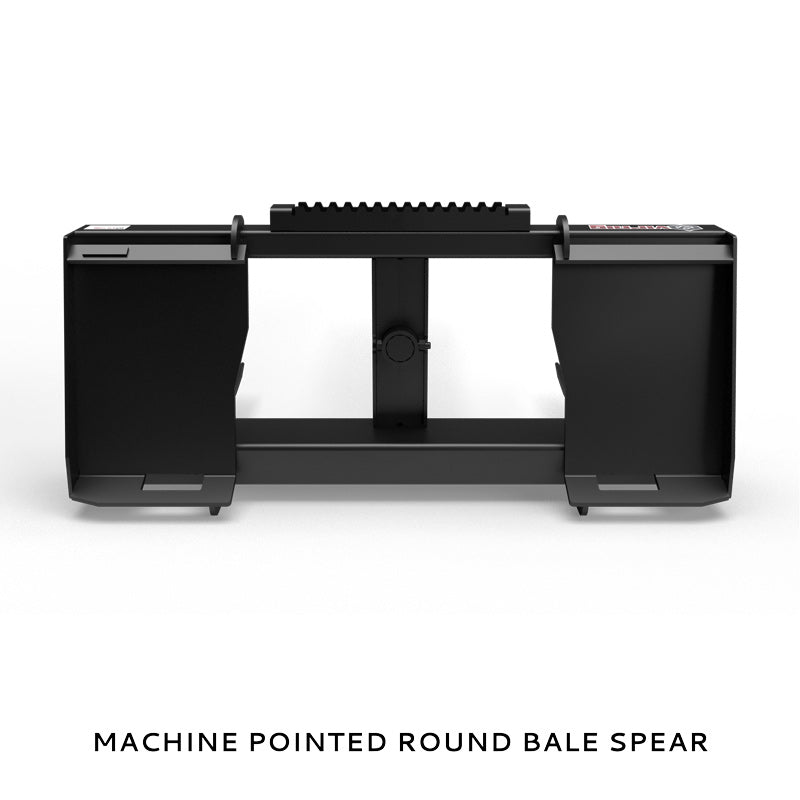

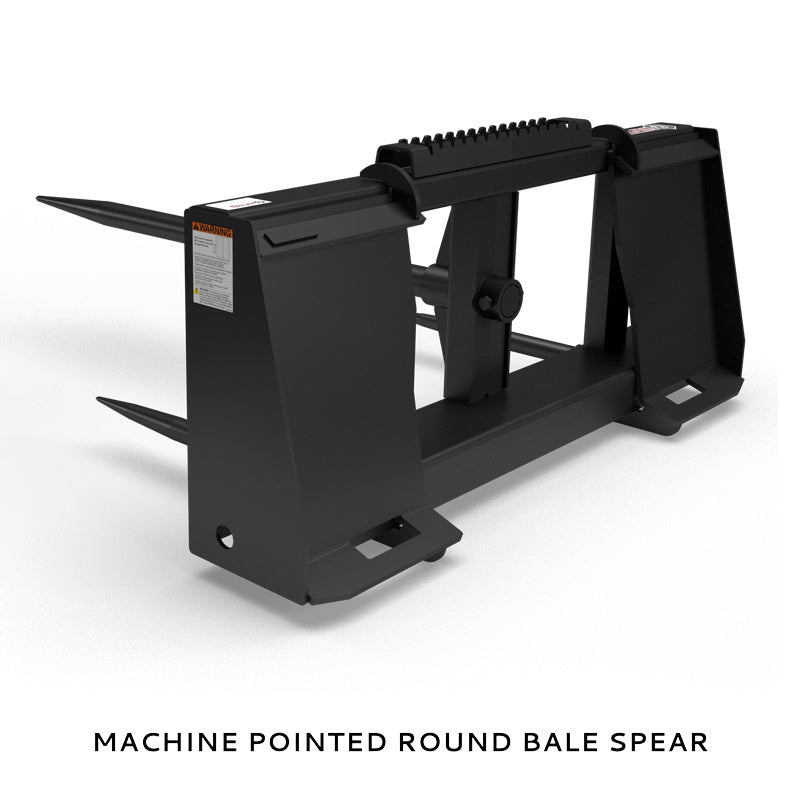

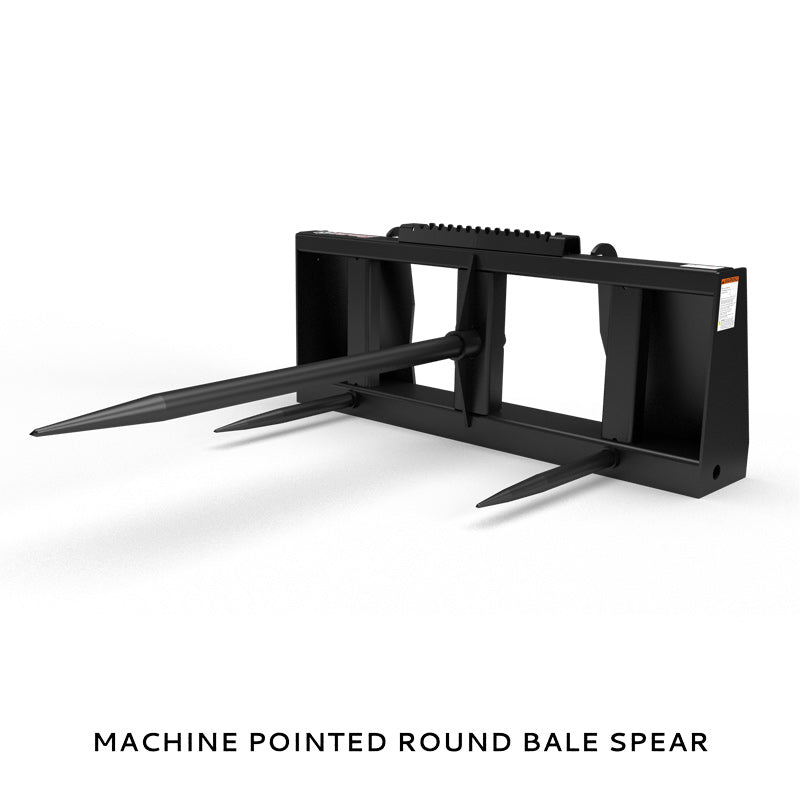

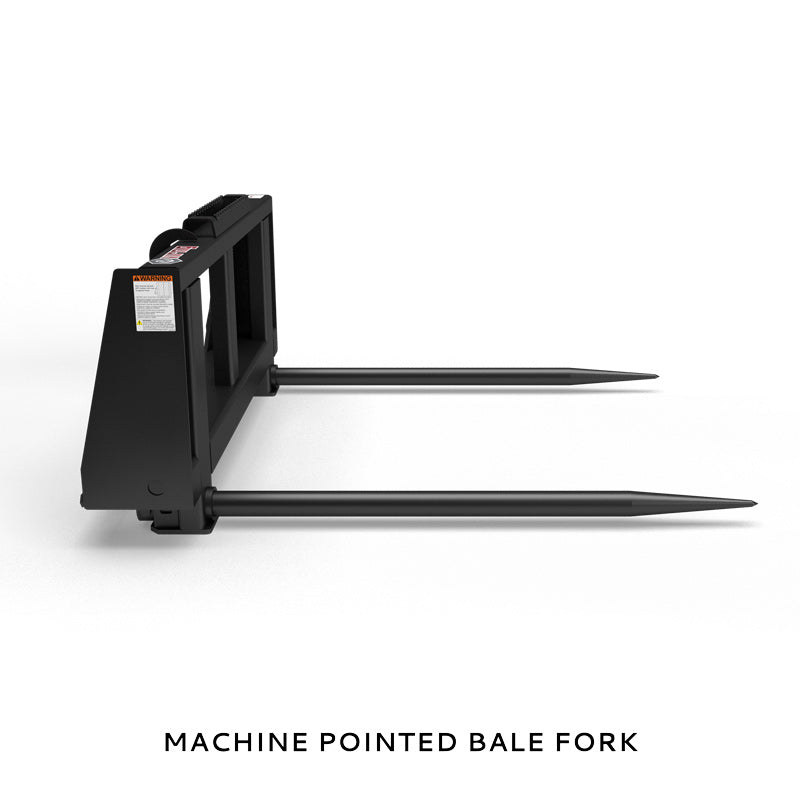

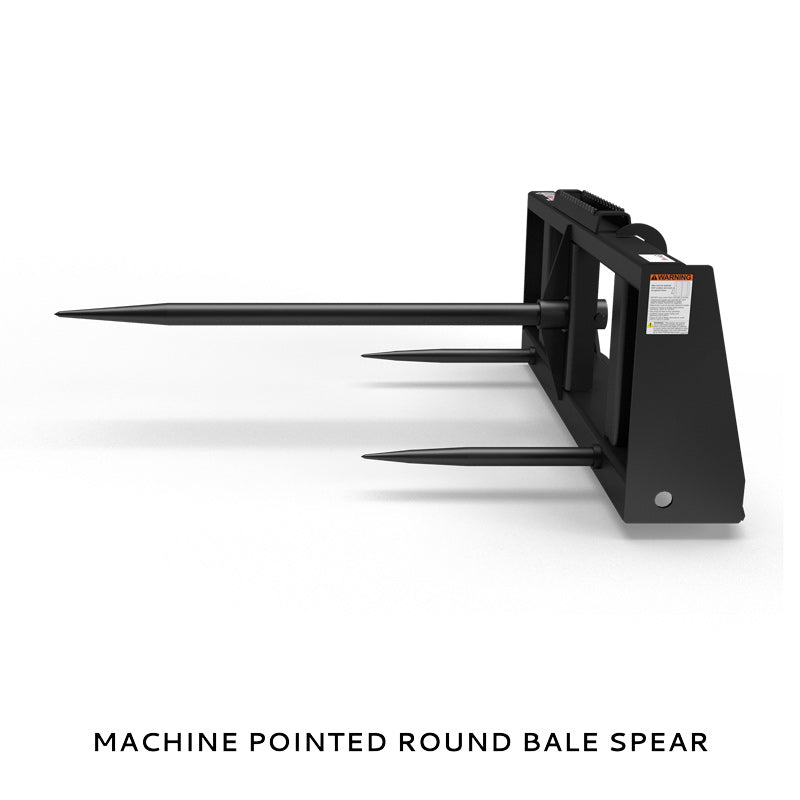

| Specification | BSV48 Round Bale Spear | BFV48 Bale Fork |
|---|---|---|

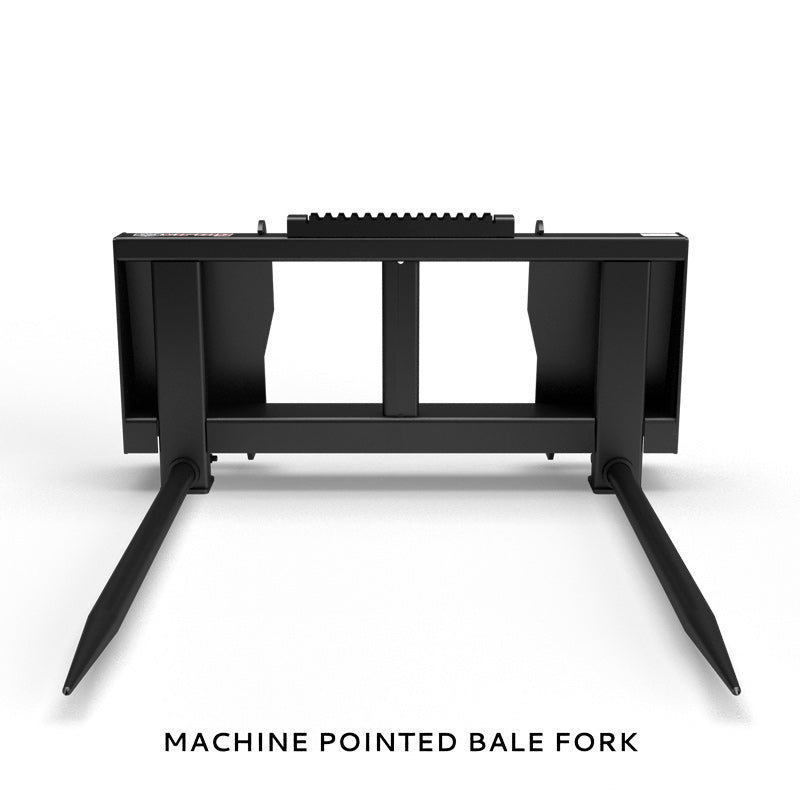

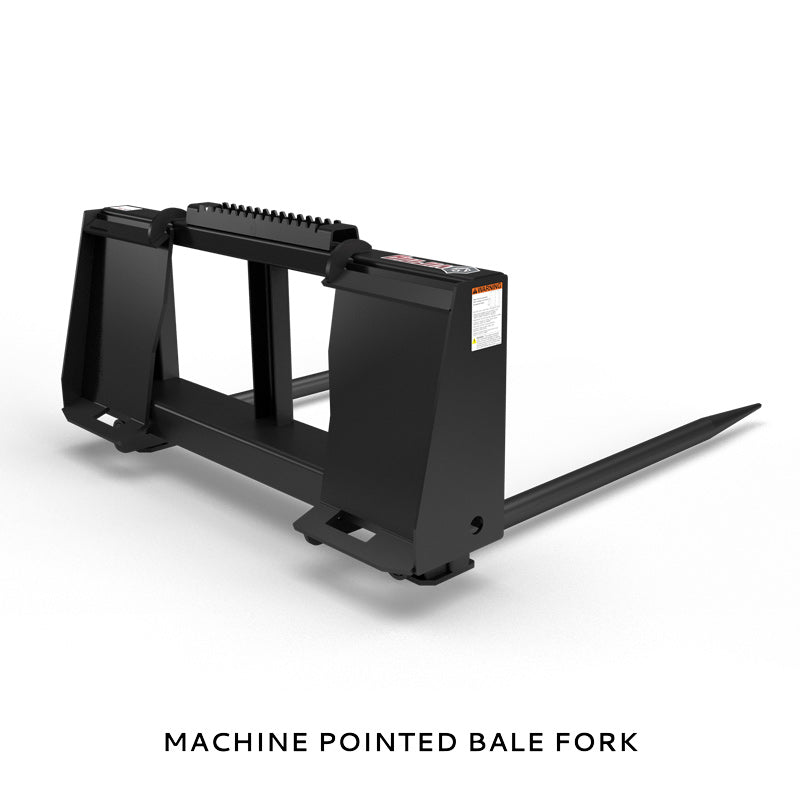

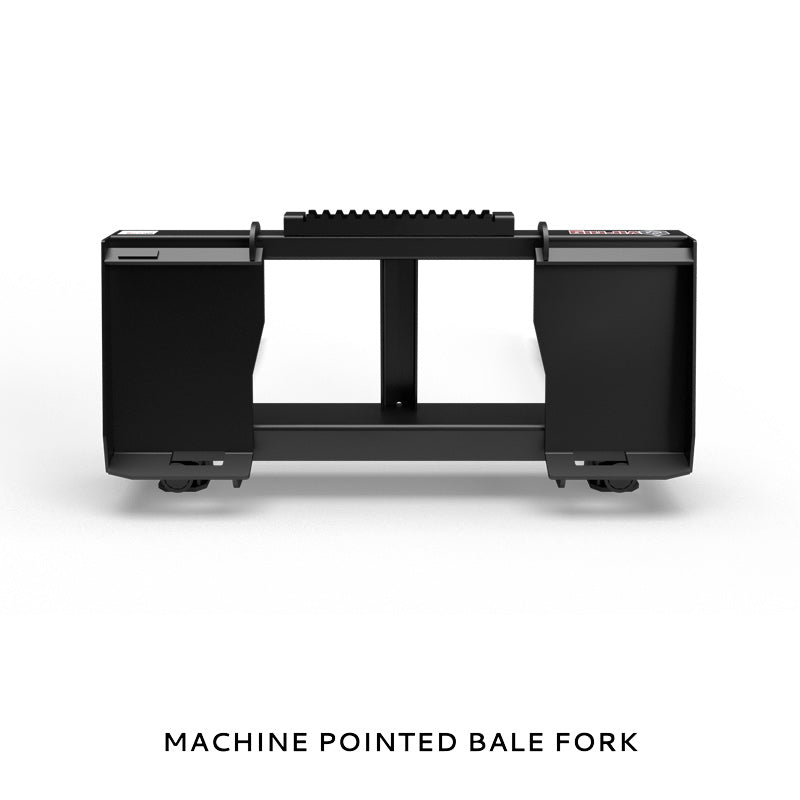

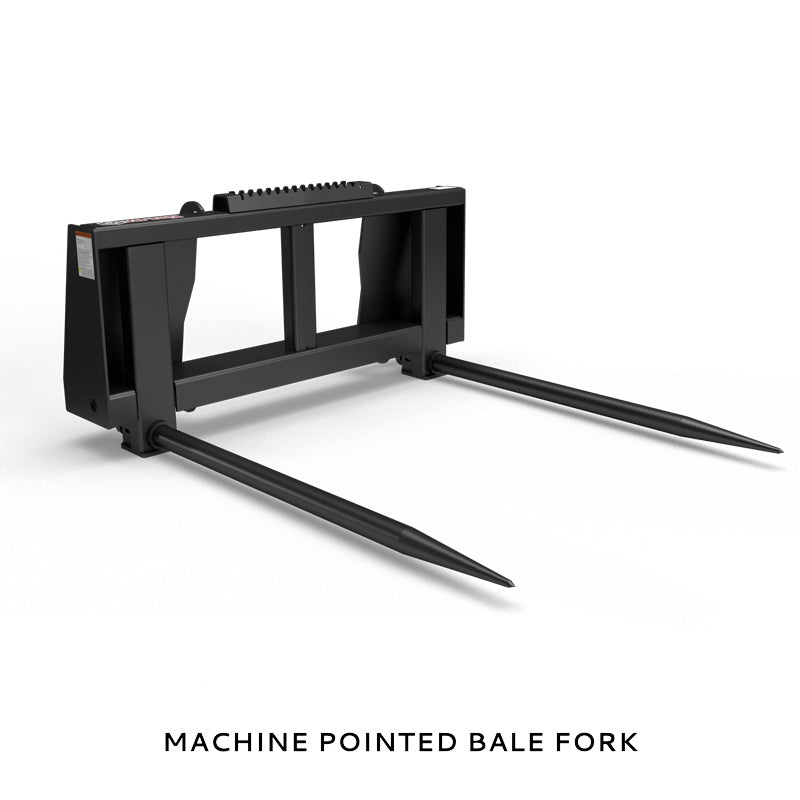

| Bale Type | Round Bale | Round Bale (Fork Style) |
| Overall Width (in) | 45.5 | 45.5 |
| Overall Height (in) | 20.8 | 20.8 |
| Overall Depth (in) | 53.6 | 51.7 |
| Main Spears (Qty / Size) | 1 × 2" × 48" | 2 × 2" × 48" |
| Usable Main Spear Length (in) | 42.3 | 42.3 |
| Stabilizer Spears (Qty / Size) | 2 × 1.5" × 18" | – |
| Usable Stabilizer Spear Length (in) | 17.4 | – |
| Bottom Spear Spacing (in) | – | 36.0 |
| Approx. Weight (lbs) | 230 | 270 |
| Capacity (lbs, Bale Against Frame) | 2000 | 2000 |
| Material | 1045 CFSR Round Stock | 1045 CFSR Round Stock |
| Hydraulic Flow (GPM) | 15–25 | 15–25 |
| Machine Type | Skid Steer / CTL | Skid Steer / CTL |

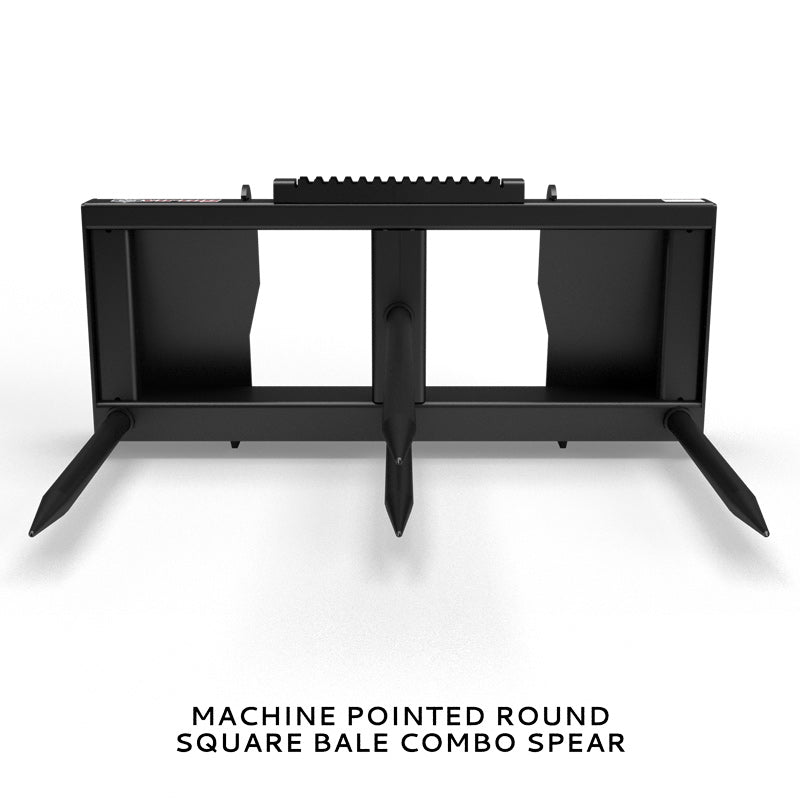

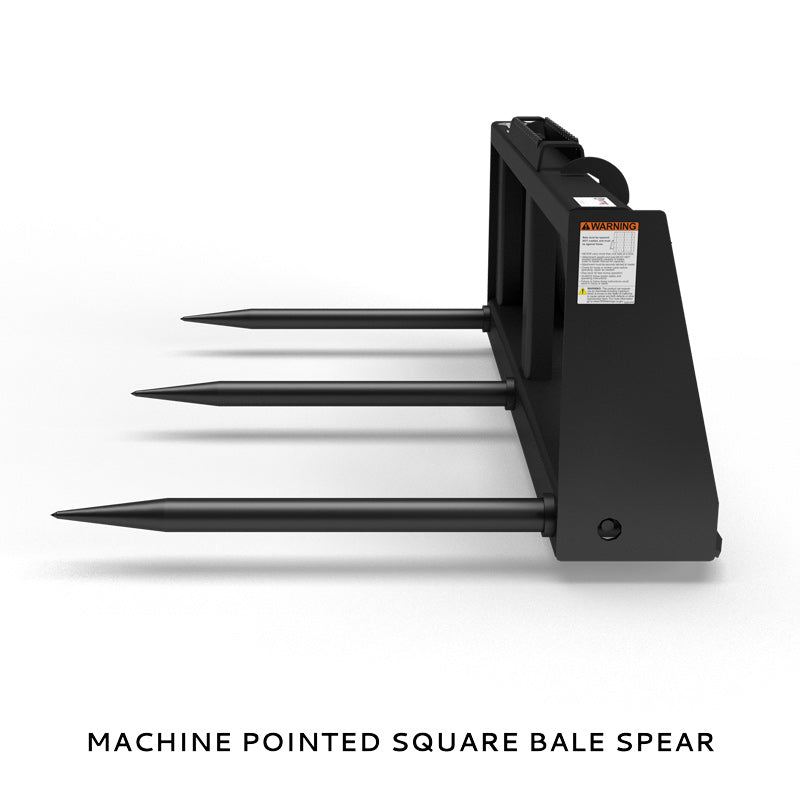

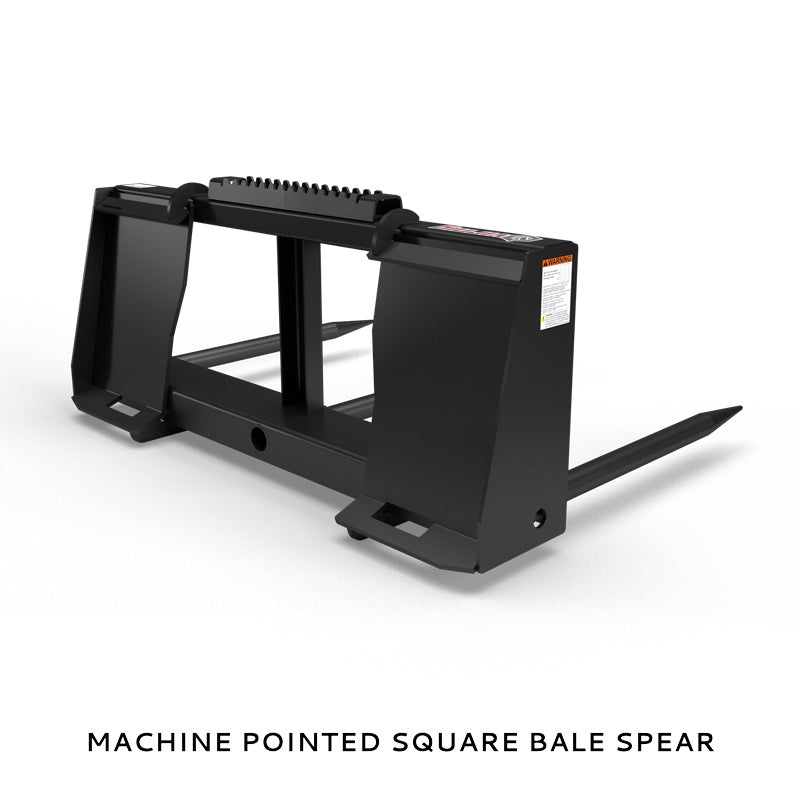

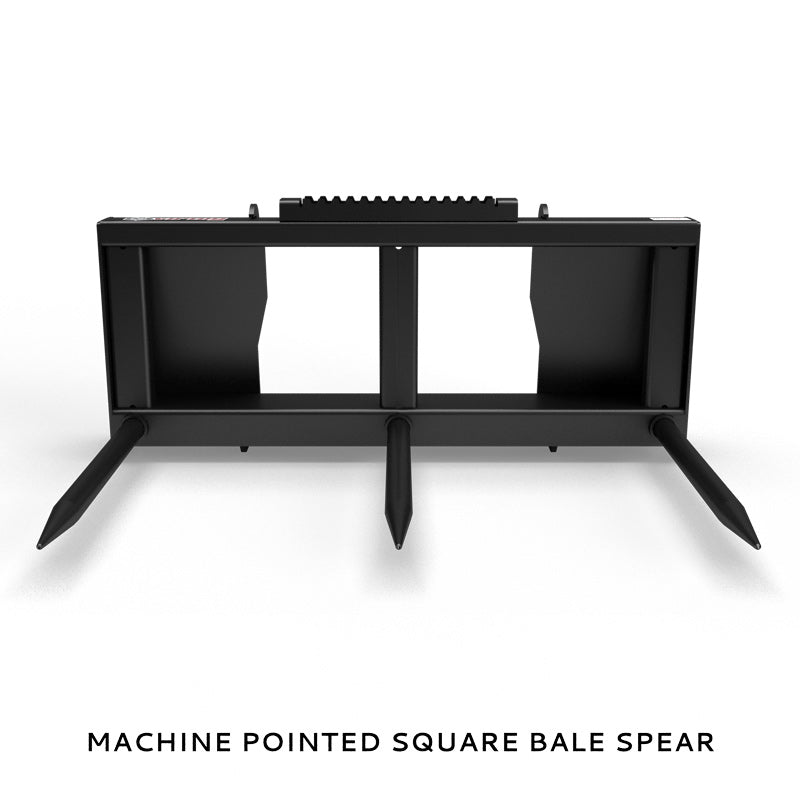

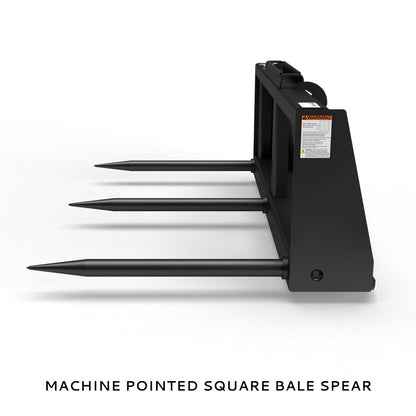

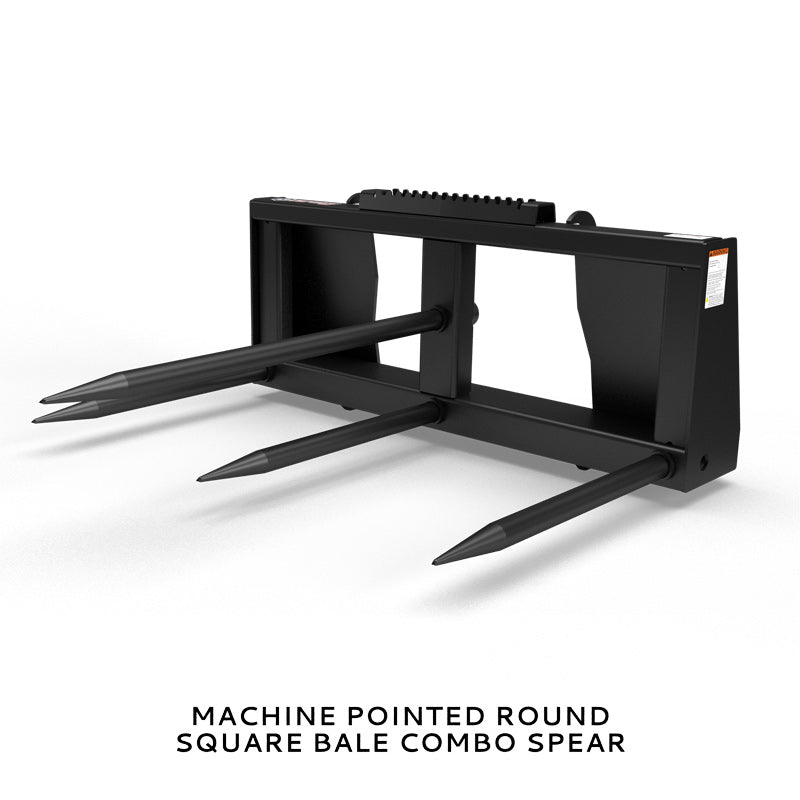

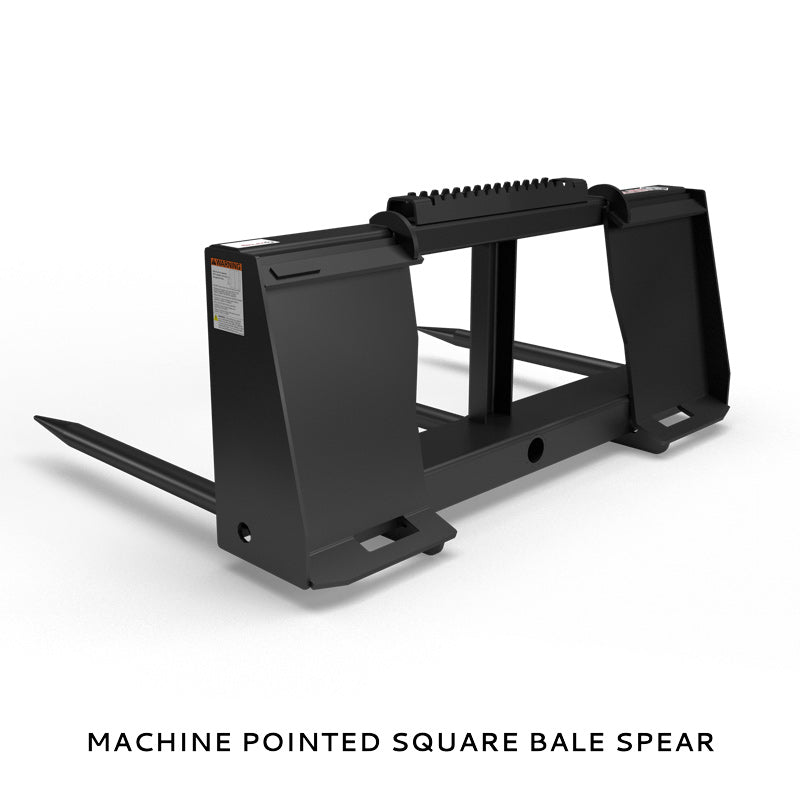

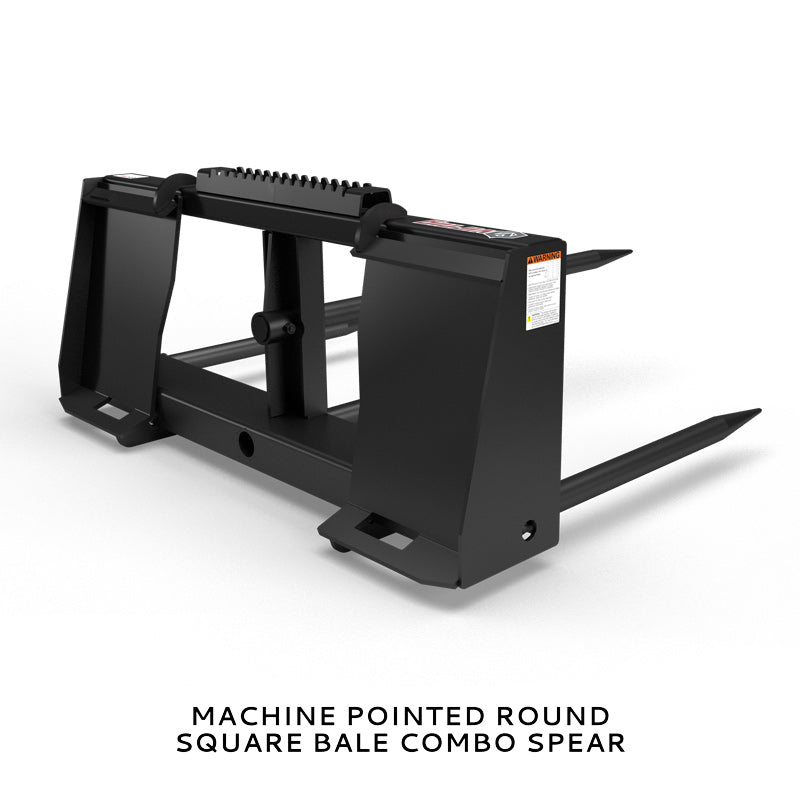

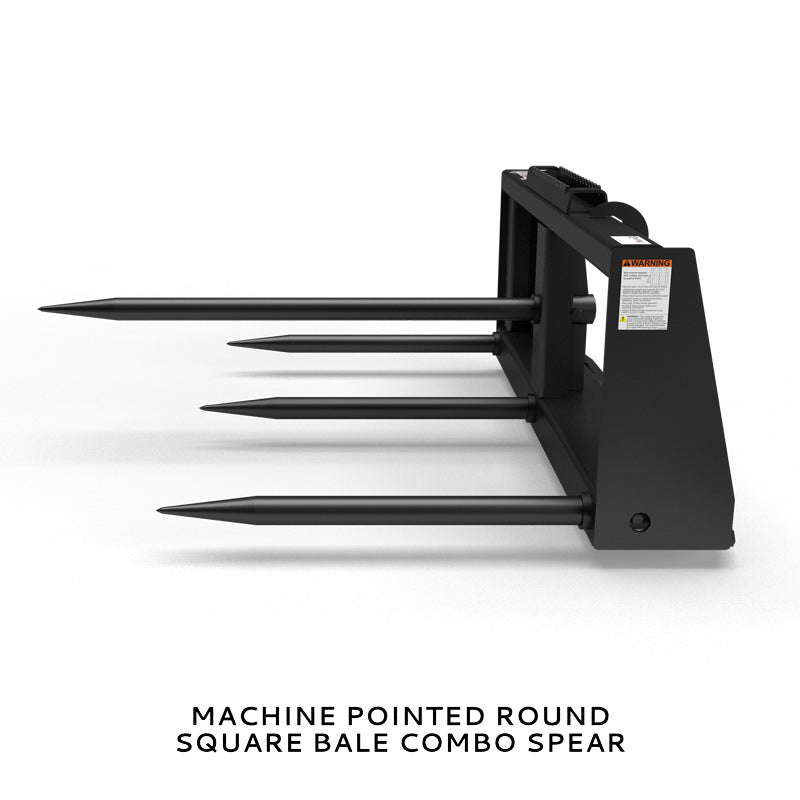

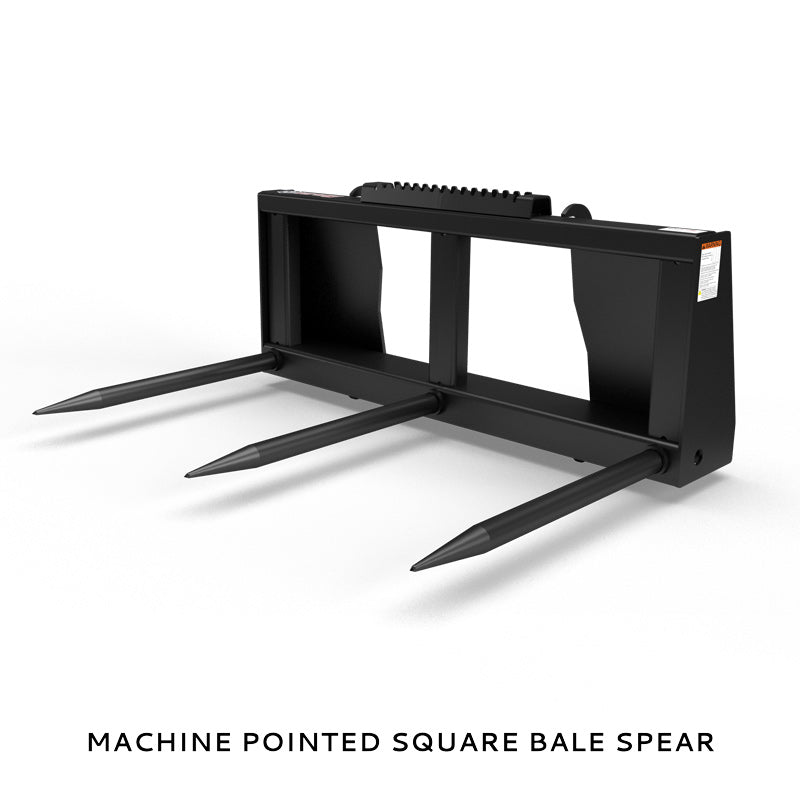

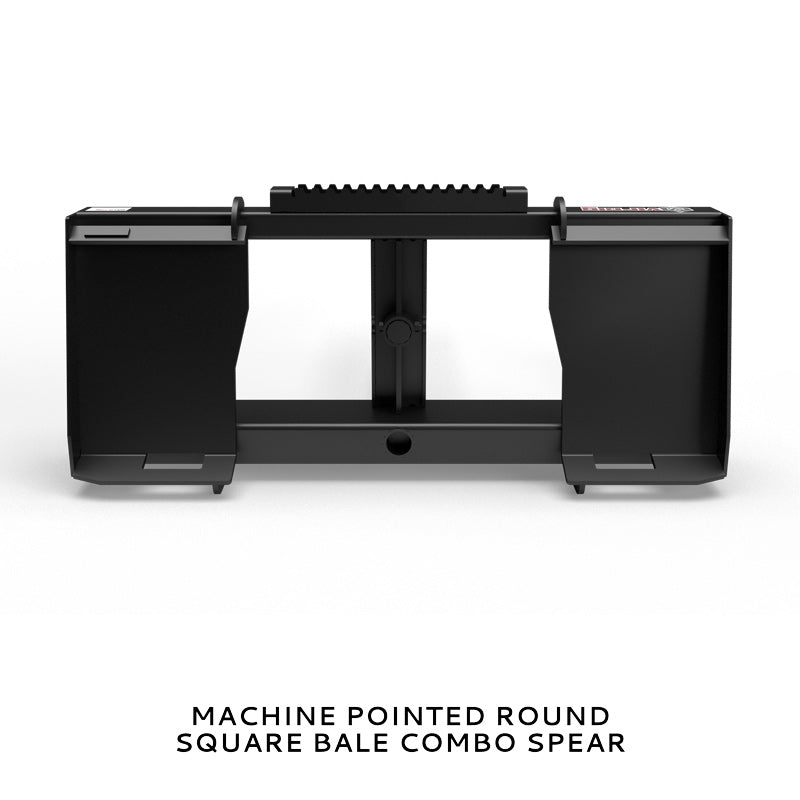

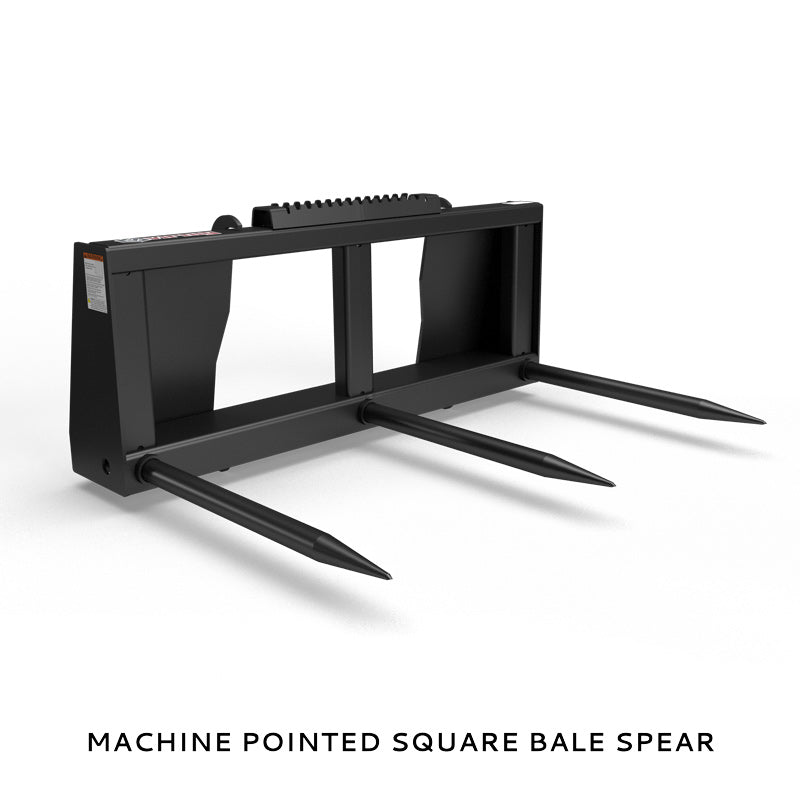

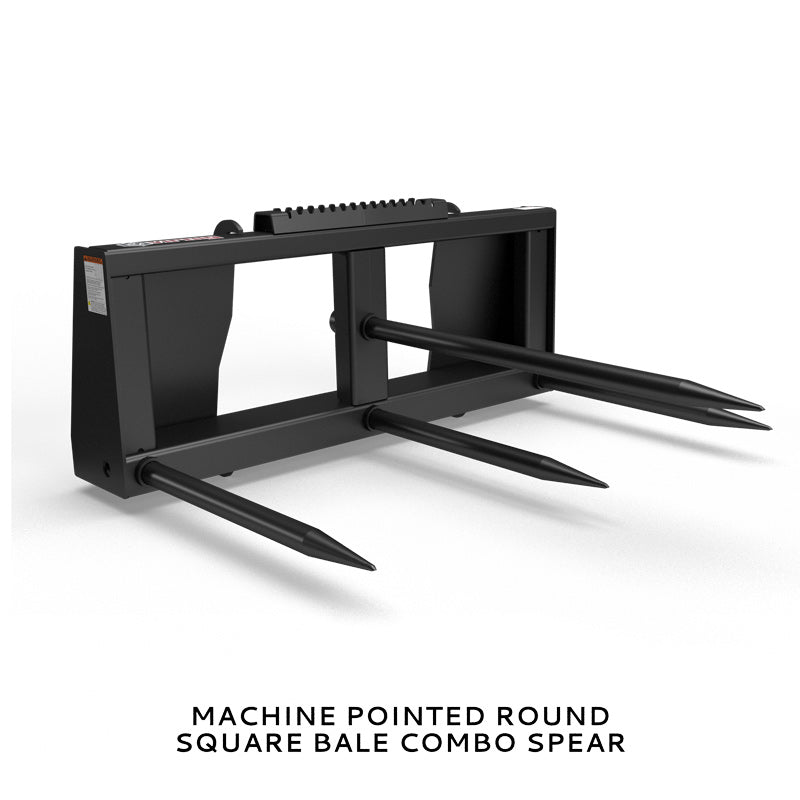

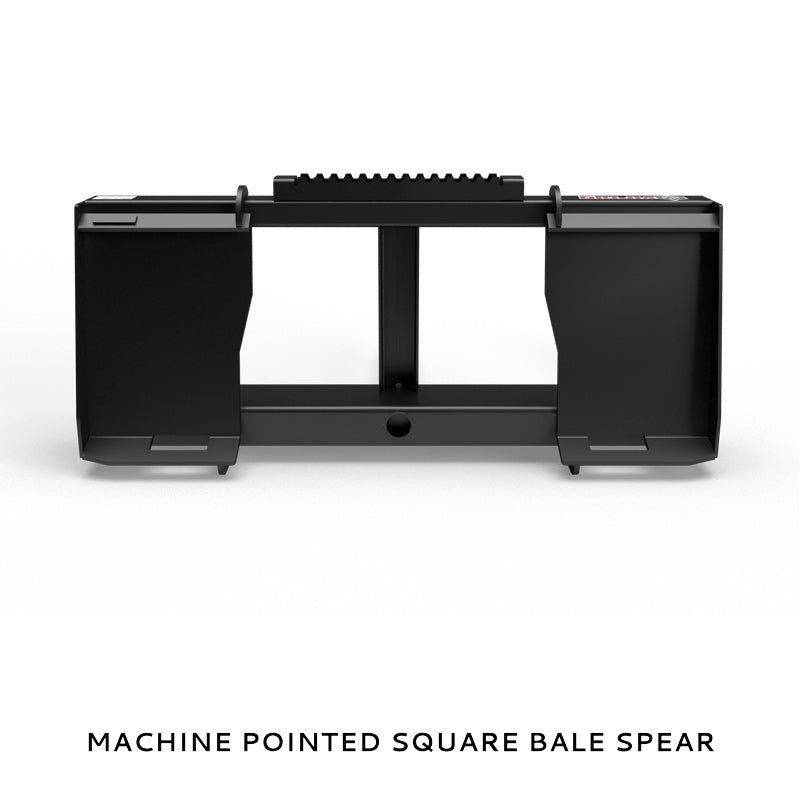

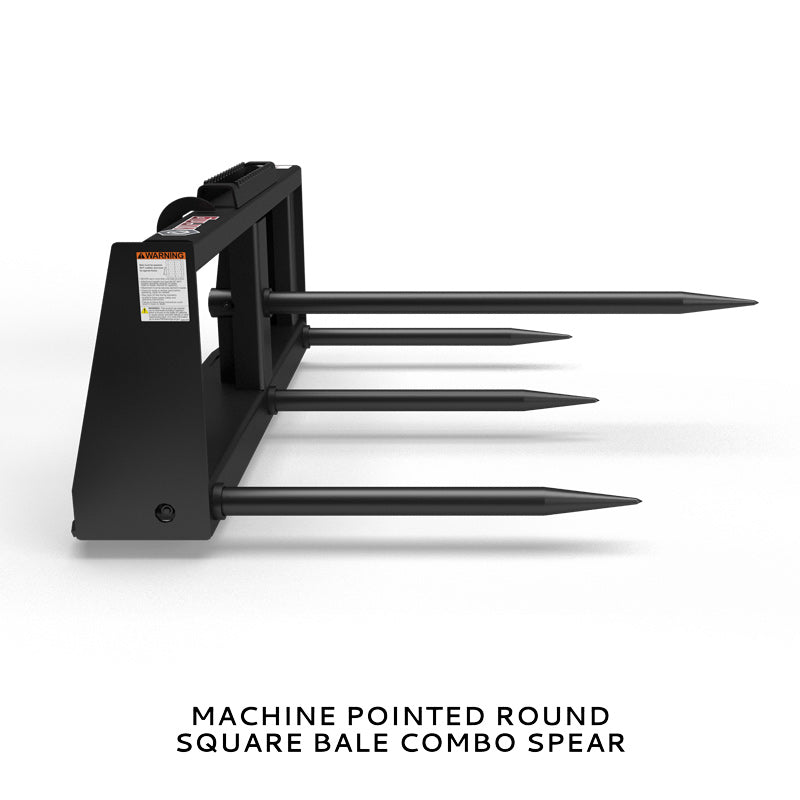

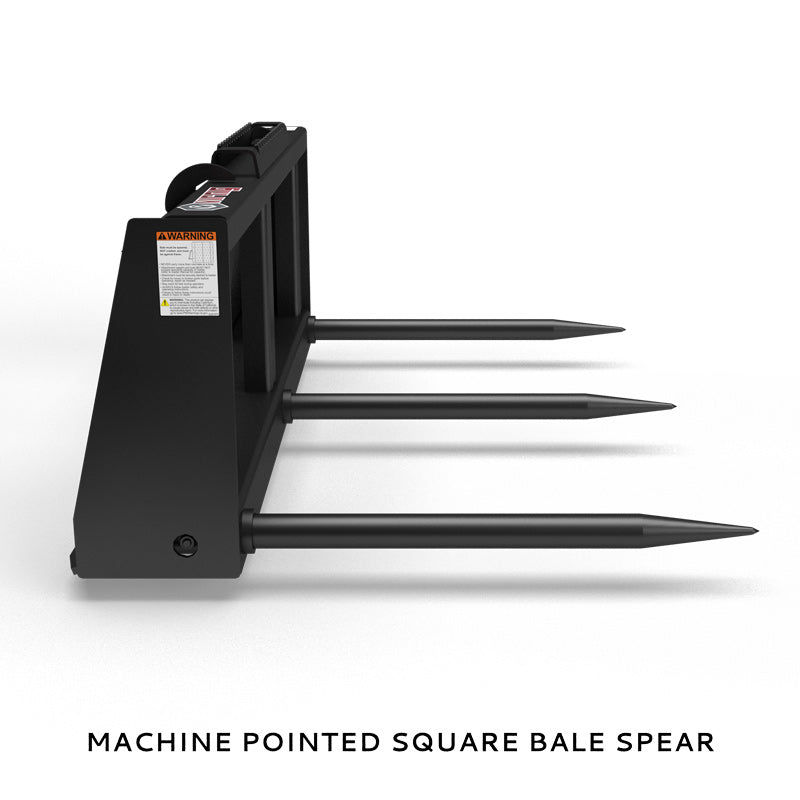

| Specification | CBV48 Round/Square Combo Spear | SSV48 Square Bale Spear |
|---|---|---|
| Bale Type | Round & Square Combo | Square Bale |
| Overall Width (in) | 45.5 | 45.5 |
| Overall Height (in) | 20.8 | 20.8 |
| Overall Depth (in) | 46.7 | 34.8 |
| Main Spears (Qty / Size) | 1 × 1.75" × 42" | 3 × 1.75" × 30" |
| Usable Main Spear Length (in) | 37.8 | 25.8 |
| Stabilizer Spears (Qty / Size) | 3 × 1.75" × 30" | – |
| Usable Stabilizer Spear Length (in) | 25.8 | – |
| Approx. Weight (lbs) | 260 | 225 |
| Capacity (lbs, Bale Against Frame) | 2000 | 2000 |
| Material | 1045 CFSR Round Stock | 1045 CFSR Round Stock |
| Hydraulic Flow (GPM) | 15–25 | 15–25 |
| Machine Type | Skid Steer / CTL | Skid Steer / CTL |

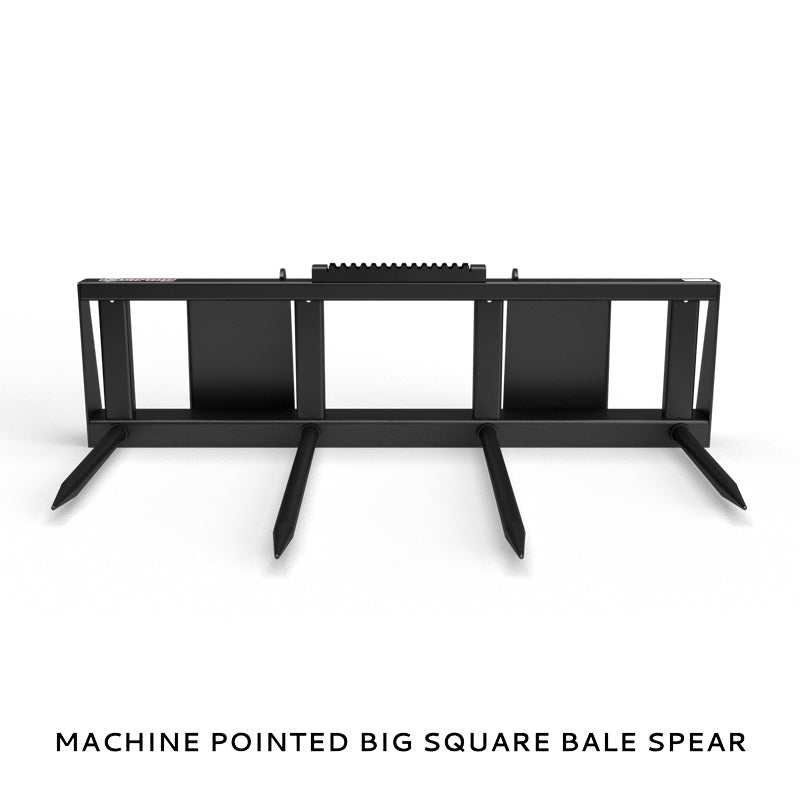

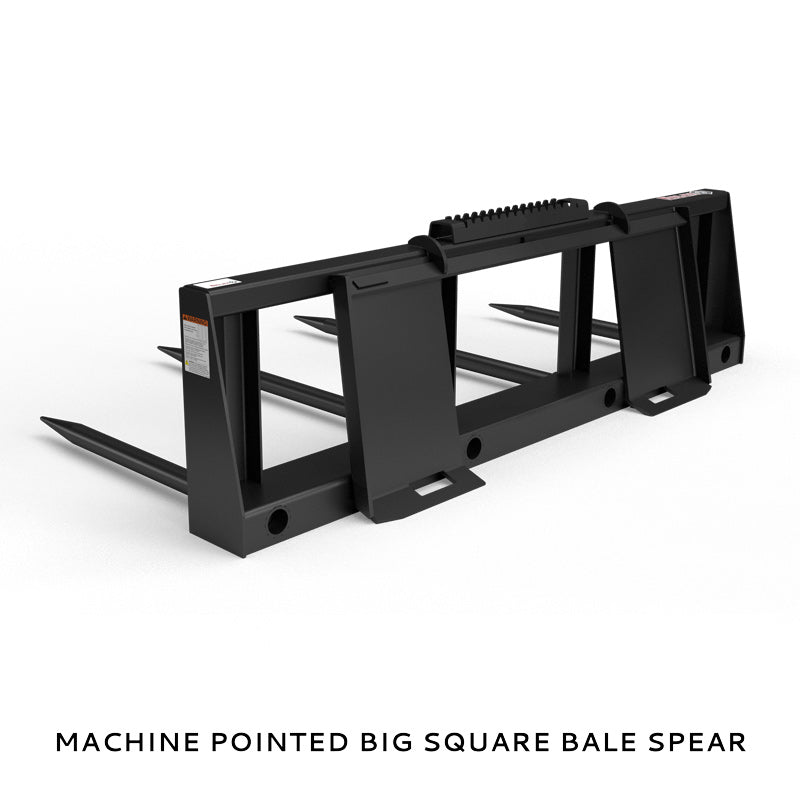

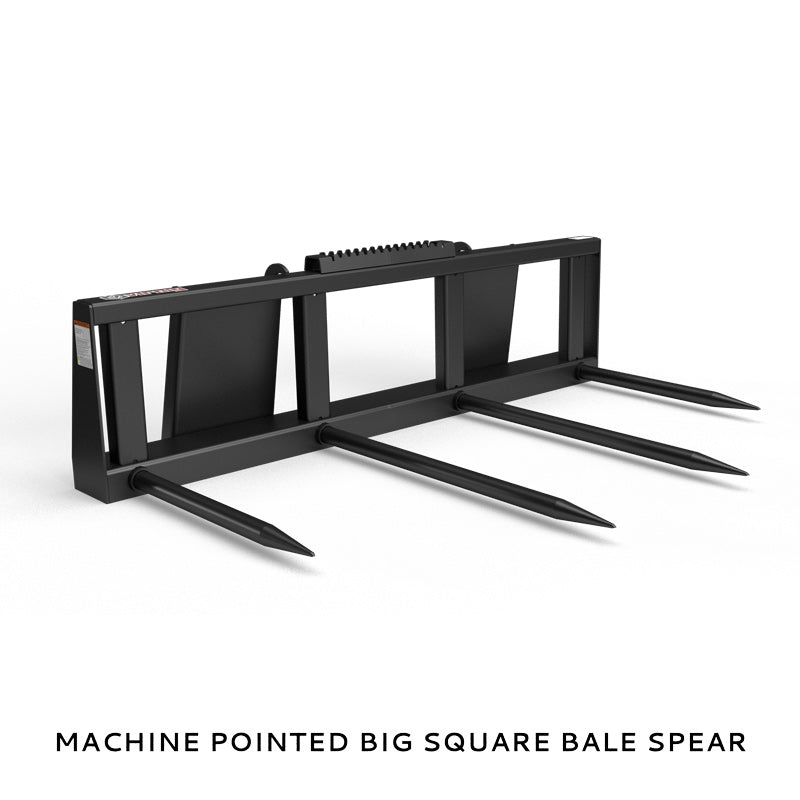

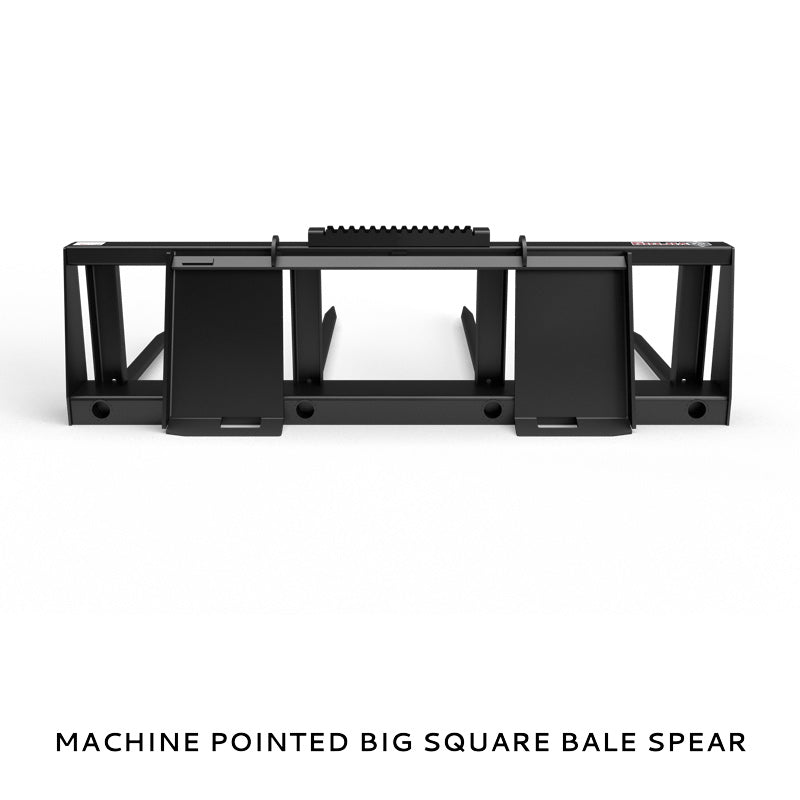

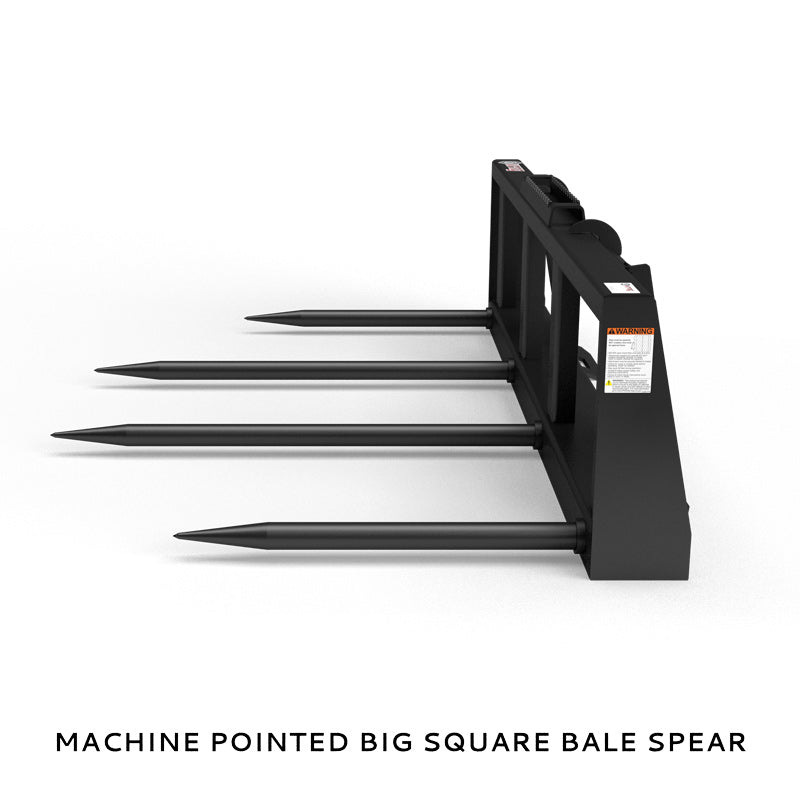

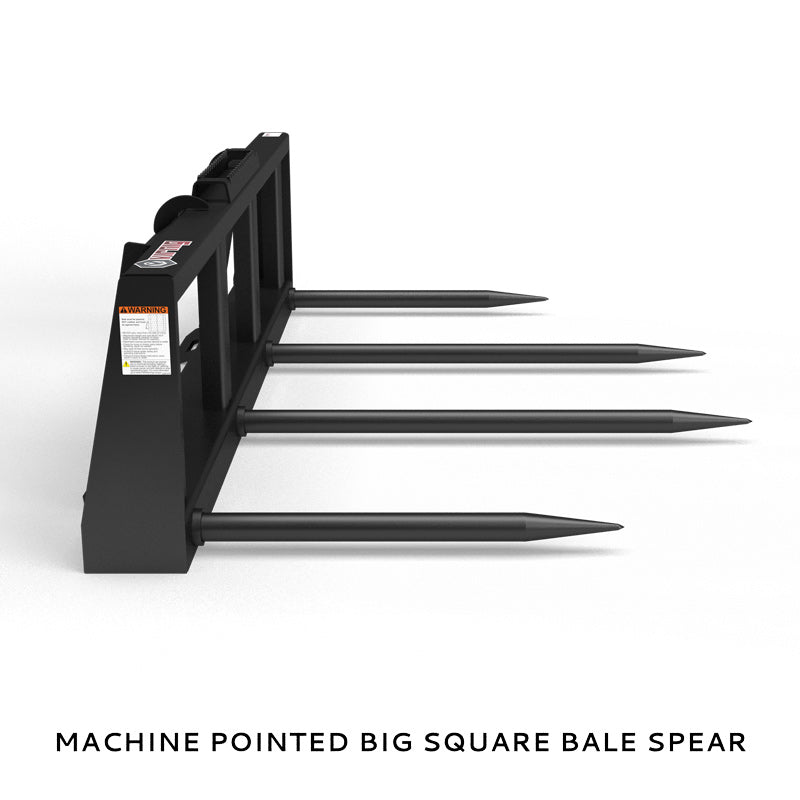

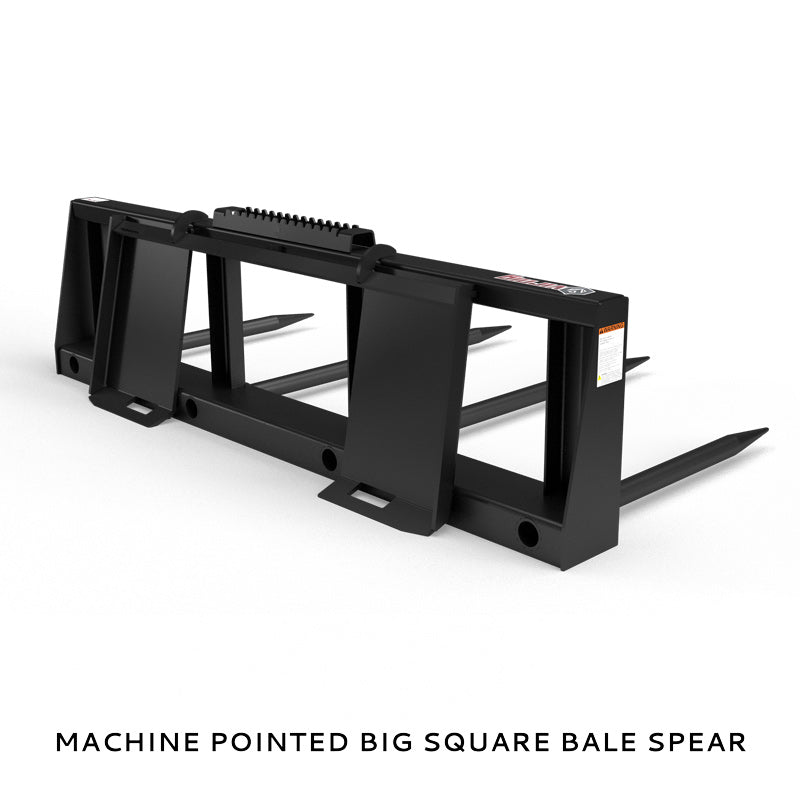

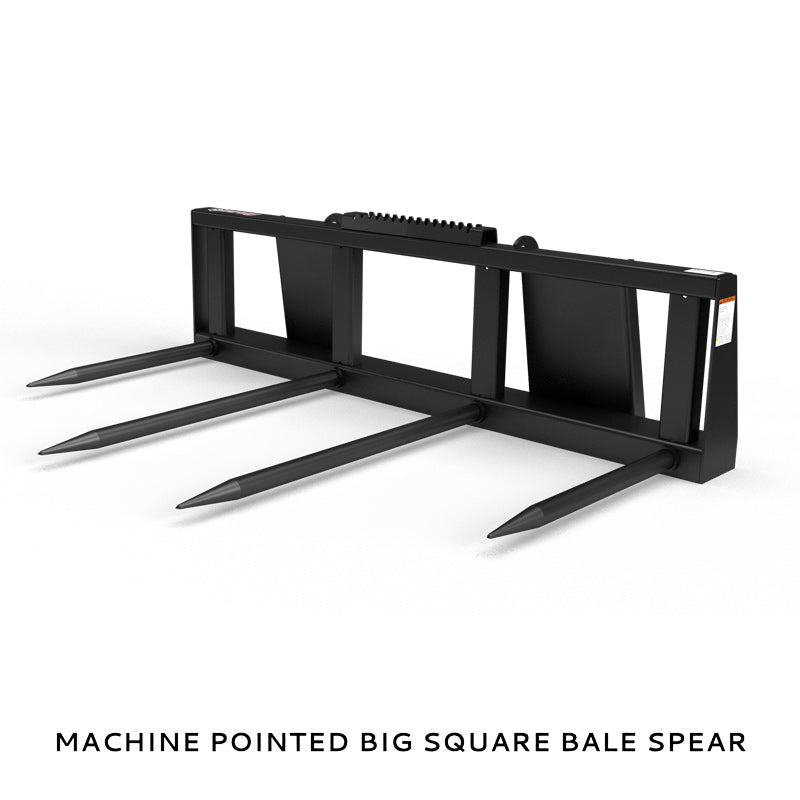

| Specification | BASS66 Big Square Bale Spear |
|---|---|
| Bale Type | Big Square Bale |
| Overall Width (in) | 66.5 |
| Overall Height (in) | 20.8 |
| Overall Depth (in) | 46.8 |
| Main Spears (Qty / Size) | 2 × 1.75" × 42" |
| Usable Main Spear Length (in) | 37.8 |
| Stabilizer Spears (Qty / Size) | 2 × 1.75" × 30" |
| Usable Stabilizer Spear Length (in) | 25.8 |
| Approx. Weight (lbs) | 310 |
| Capacity (lbs, Bale Against Frame) | 2000 |
| Material | 1045 CFSR Round Stock |
| Hydraulic Flow (GPM) | 15–25 |
| Machine Type | Skid Steer / CTL |
