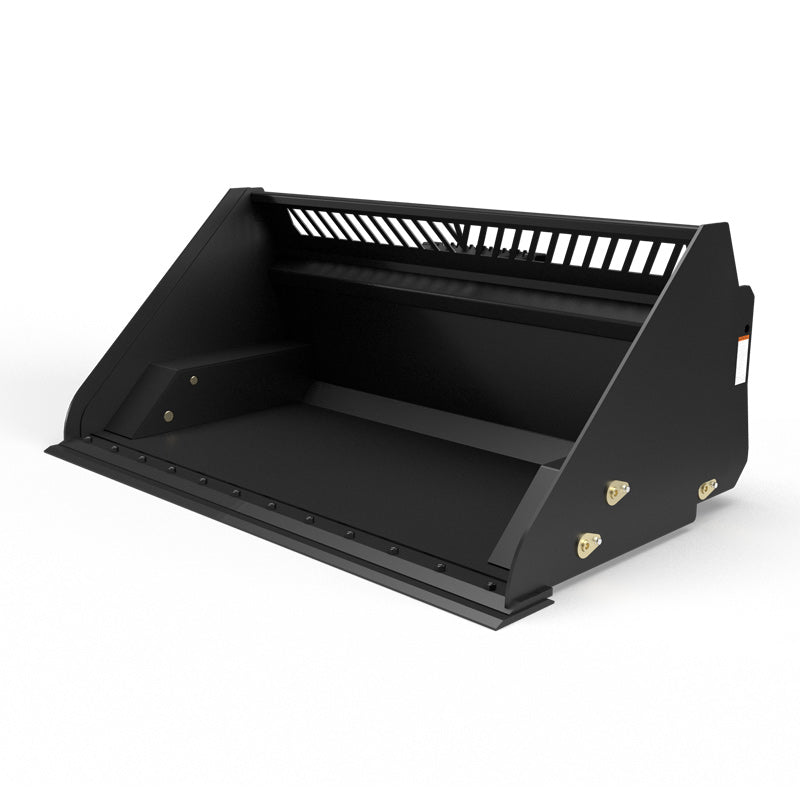

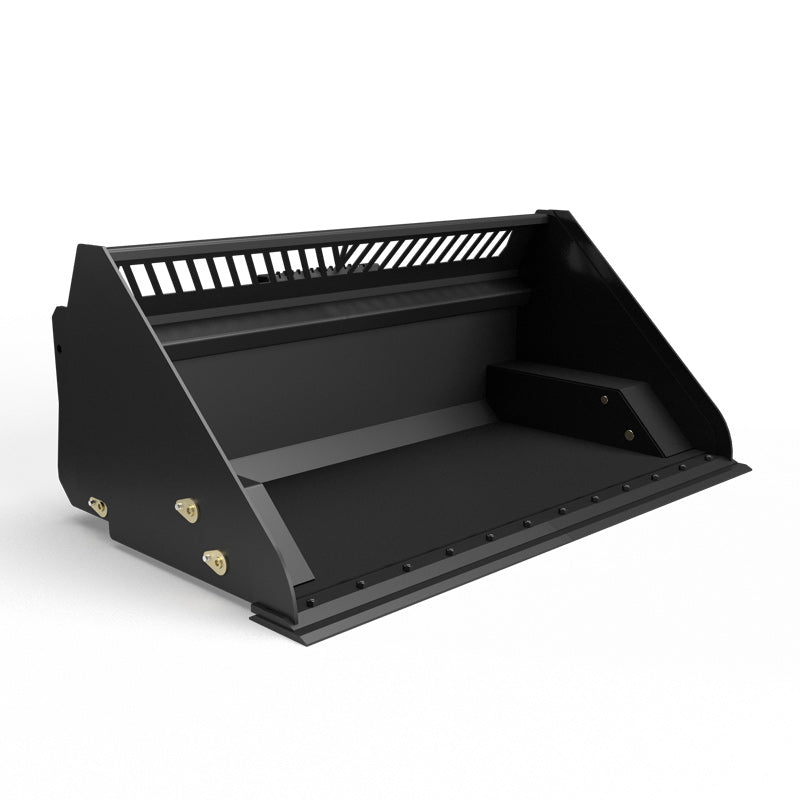

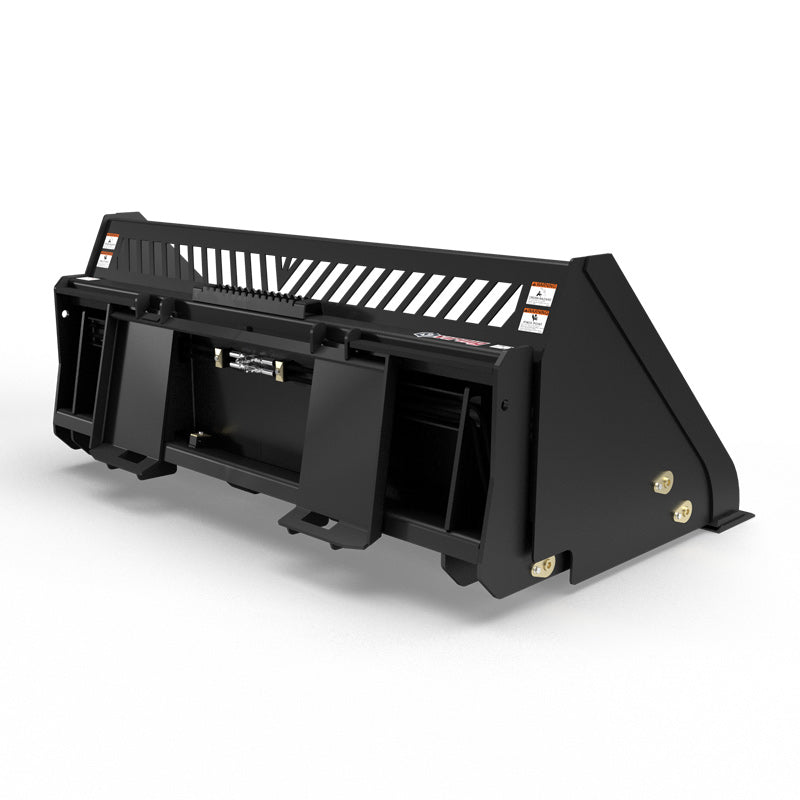

Virnig Skid Steer High Dump Bucket | Models DMP60, DMP72, DMP84 & DMP96 | Widths 60" To 96" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
DESCRIPTION

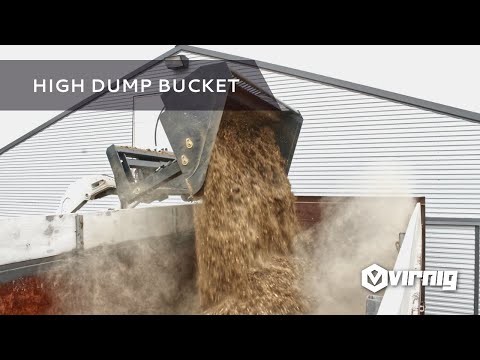

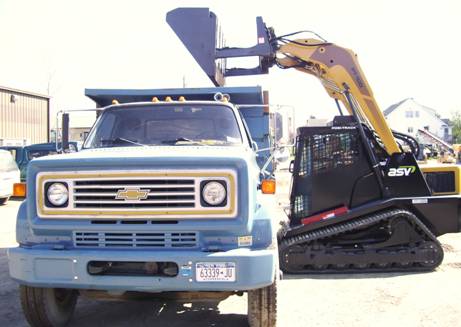

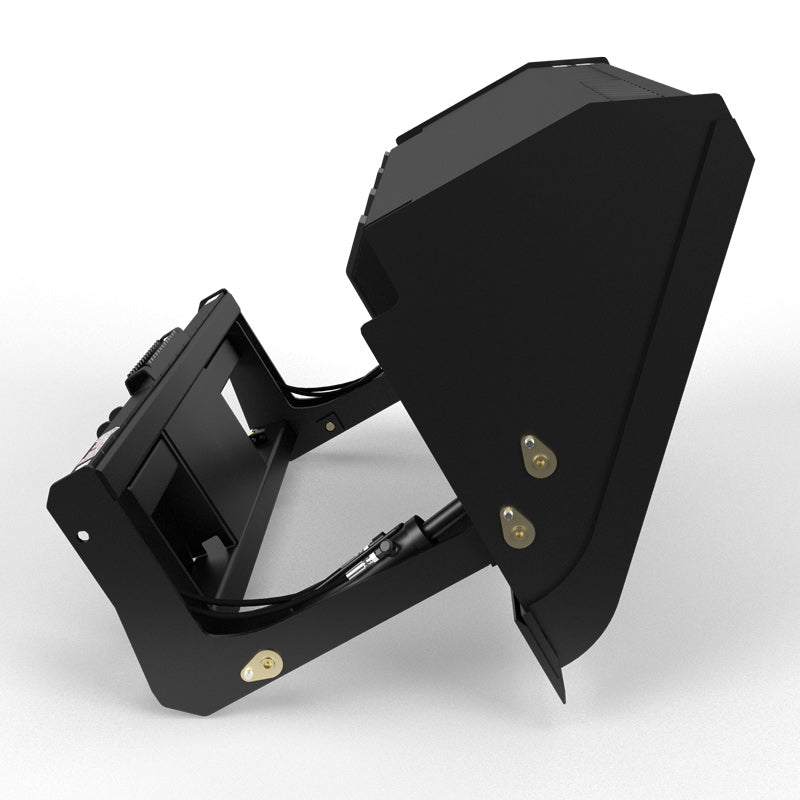

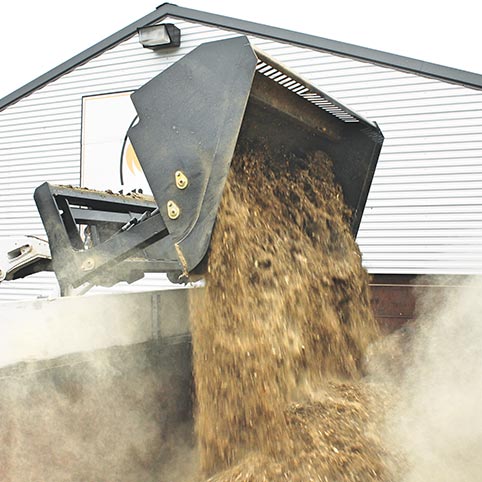

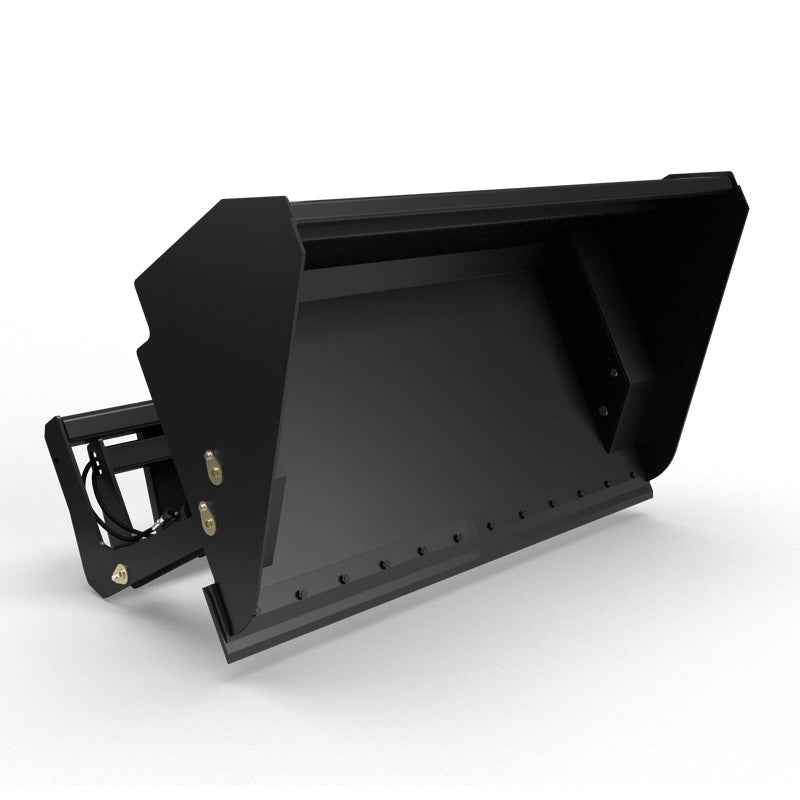

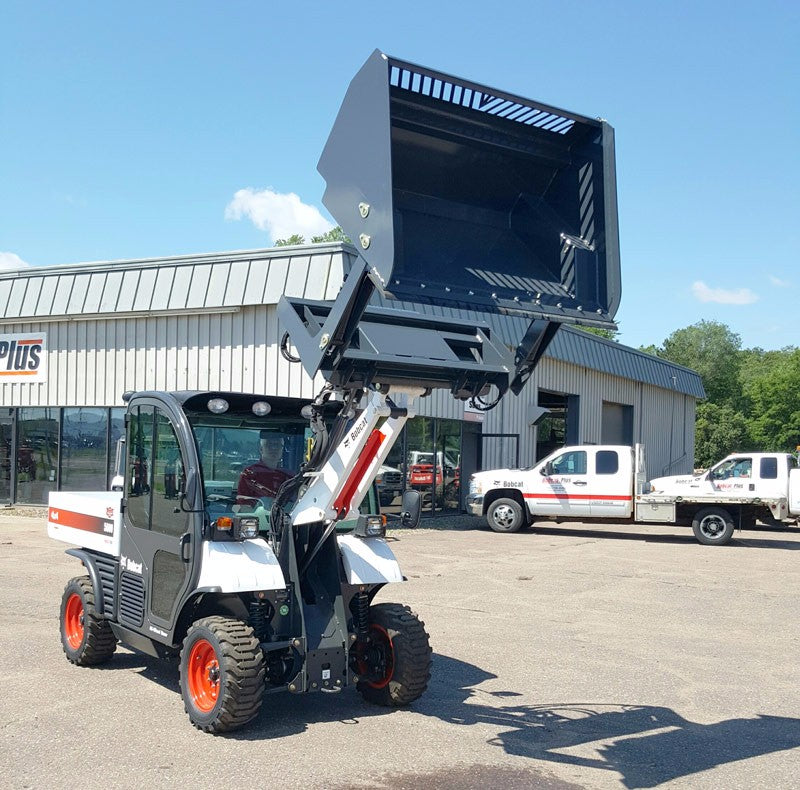

Maximize your loader’s reach, lift, and efficiency with the Virnig High Dump Bucket, engineered for skid steer operators who demand superior dump height, precision, and durability. Designed to increase vertical lift up to 44 inches and extend reach up to 13 inches, this heavy-duty attachment allows you to load taller trucks, feed mixers, and hoppers with ease no ramps, no mess, and no wasted motion.
Built with NITROSTEEL® cylinder rods and Teflon®-coated bushings on every pivot, the High Dump Bucket ensures long-lasting performance and smooth, low-maintenance operation. Its full 90-degree dump rotation delivers fast, complete material release, while the operator visibility window helps you work confidently and safely in tight spaces.
Whether you’re working in agriculture, construction, landscaping, or material handling, the Virnig High Dump Bucket transforms your skid steer into a precision loading powerhouse.
Key Features
- Increases vertical lift by up to 44" easily load tall trucks and feed mixers without extra equipment.
- Extends horizontal reach by 13" ideal for clearing high-sided containers or tight loading areas.

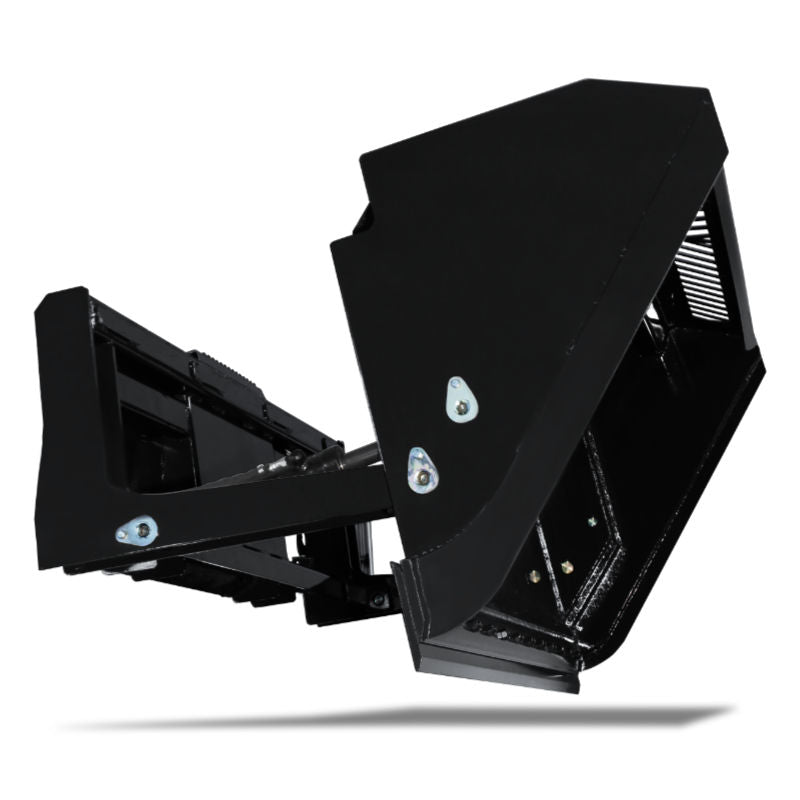

- Full 90° dump rotation for fast, complete emptying of materials.
- Optimized for skid steers with hydraulic flow of 15–25 GPM and loader capacity over 1,800 lbs.
- Premium NITROSTEEL® cylinder rods for corrosion resistance and long service life.

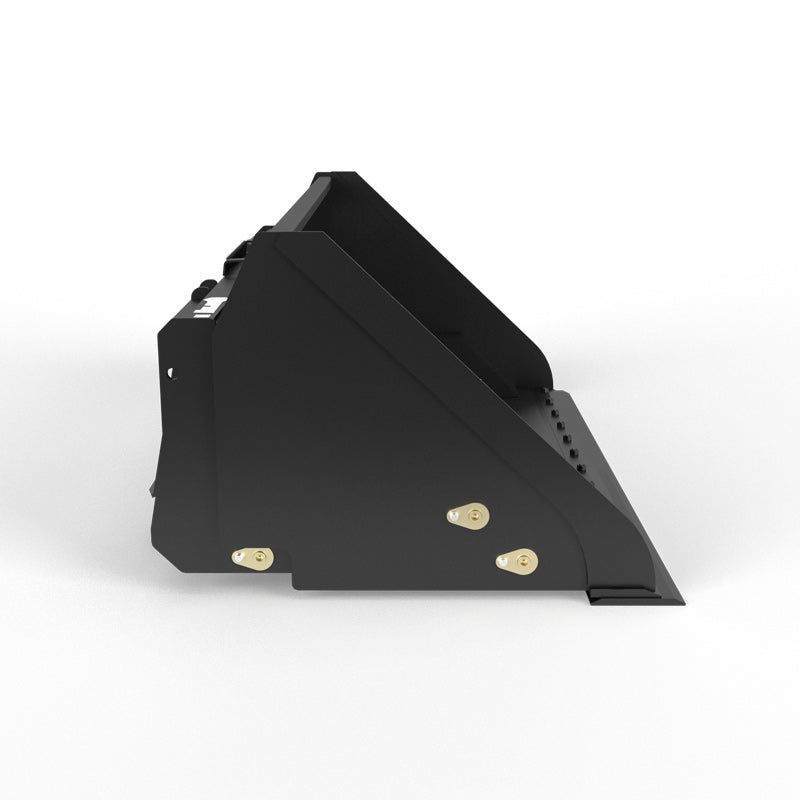

- Teflon®-coated bushings on all pivots reduce friction and wear for smoother performance.

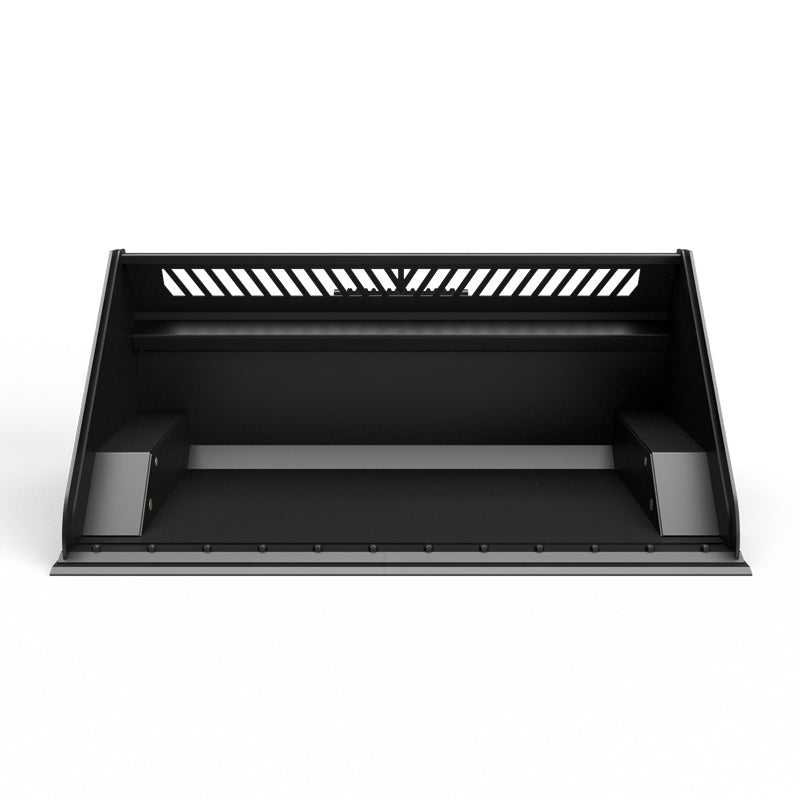

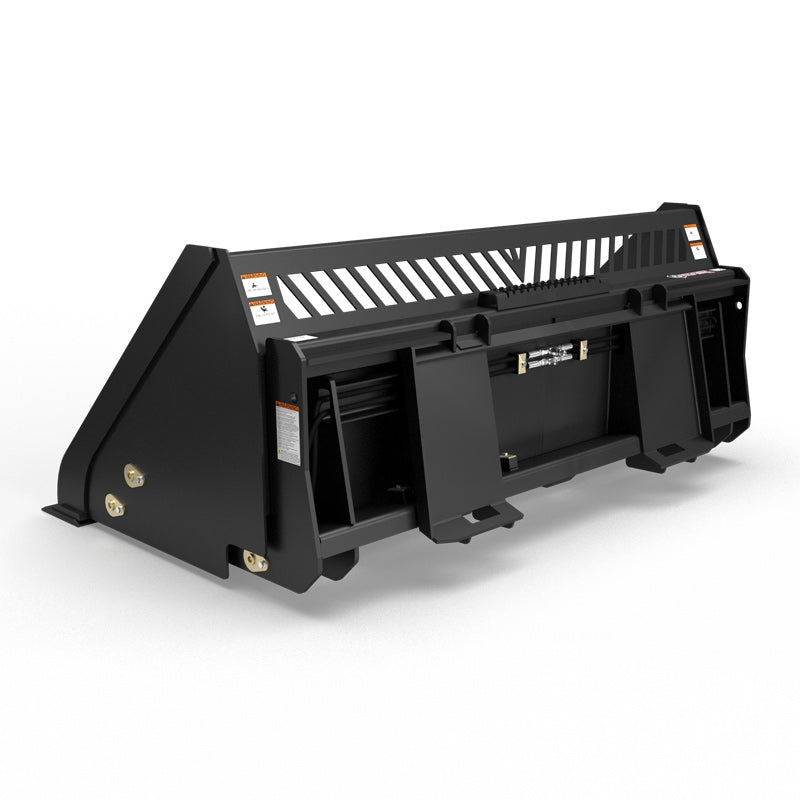

- Visibility windows in the bucket shell for better operator line-of-sight during loading.
- Heavy-duty ¾" x 6" weld-on edge for superior durability in demanding environments.
- Optional bolt-on edge extends bucket lifespan and simplifies maintenance.
- Optional serrated edge acts like a toothbar for breaking up compacted soil.
- High structural strength with multiple ½" x 4" wear bars for long-term ground contact protection.
- Precision-engineered dump geometry maintains control throughout the lift cycle.
- Powder-coated finish for superior corrosion and abrasion resistance.
- Ideal for feedlots, aggregate yards, recycling facilities, and construction sites.
- Designed and manufactured in the USA by Virnig Mfg. built for professional-grade reliability.
Detailed Specifications
| Specification | DMP60 | DMP72 |
|---|---|---|
| Overall Width (in) | 61.5 | 73.5 |
| Inside Width (in) | 59.3 | 71.3 |
| Overall Height (in) | 29.8 | 29.8 |
| Overall Depth (in) | 46.2 | 46.2 |
| Inside Depth (in) | 36.6 | 36.6 |
| Window Height (in) | 4.0 | 4.0 |
| Dump Angle (°) | 86.0 | 86.0 |
| Capacity (cu ft) — Struck / Heaped | 22.8 / 27.4 | 27.4 / 32.9 |
| Structural Wear Bars (½" x 4") | 3 | 4 |
| Cylinder Bore / Stroke (in) | 2.0 / 8.375 | 2.0 / 8.375 |
| Cylinder Pins / Hinge Pins Diameter (in) | 1.25 / 1.563 | 1.25 / 1.563 |
| Approx. Weight (lbs) | 1,015 | 1,115 |
| Recommended Loader Capacity (lbs) | >1,800 | >1,800 |
| Hydraulic Flow (GPM) | 15–25 | 15–25 |
| Machine Compatibility | Skid Steer Loaders | Skid Steer Loaders |
| Increased Vertical Lift | Up to 44" | Up to 44" |
| Increased Reach | Up to 13" | Up to 13" |
| Specification | DMP84 | DMP96 |
|---|---|---|
| Overall Width (in) | 85.5 | 97.5 |
| Inside Width (in) | 83.3 | 85.3 |
| Overall Height (in) | 29.8 | 29.8 |
| Overall Depth (in) | 46.2 | 46.2 |
| Inside Depth (in) | 36.6 | 36.6 |
| Window Height (in) | 4.0 | 4.0 |
| Dump Angle (°) | 86.0 | 86.0 |
| Capacity (cu ft) — Struck / Heaped | 32.0 / 38.4 | 36.6 / 43.9 |
| Structural Wear Bars (½" x 4") | 4 | 4 |
| Cylinder Bore / Stroke (in) | 2.0 / 8.375 | 2.0 / 8.375 |
| Cylinder Pins / Hinge Pins Diameter (in) | 1.25 / 1.563 | 1.25 / 1.563 |
| Approx. Weight (lbs) | 1,215 | 1,310 |
| Recommended Loader Capacity (lbs) | >1,800 | >1,800 |
| Hydraulic Flow (GPM) | 15–25 | 15–25 |
| Machine Compatibility | Skid Steer Loaders | Skid Steer Loaders |
| Increased Vertical Lift | Up to 44" | Up to 44" |
| Increased Reach | Up to 13" | Up to 13" |
