Product Description
Virnig High Dump Bucket | Models DMP60 To DMP96 | Widths 60" To 96" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
DESCRIPTION

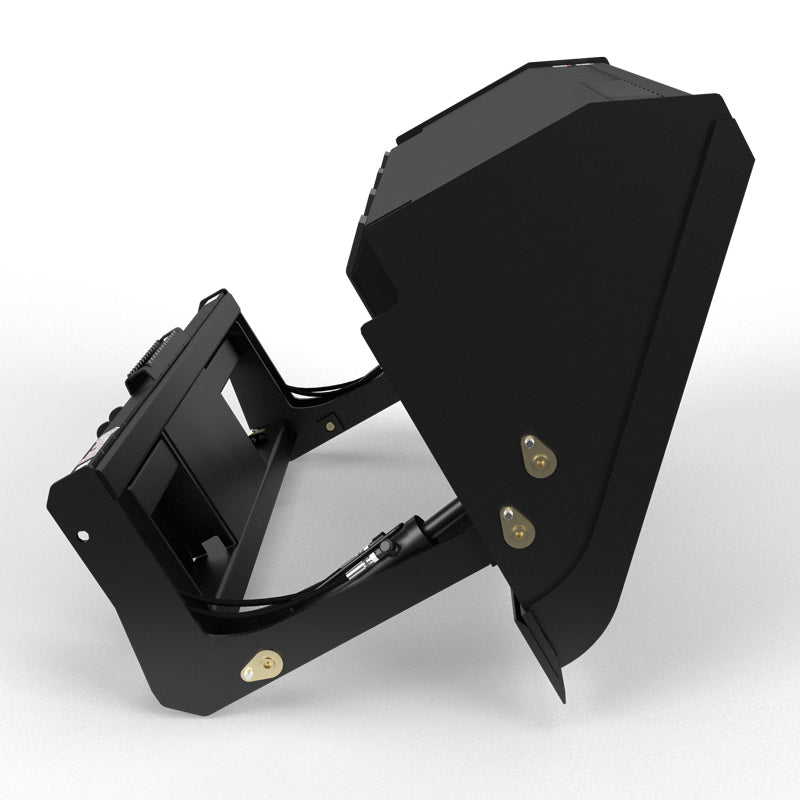

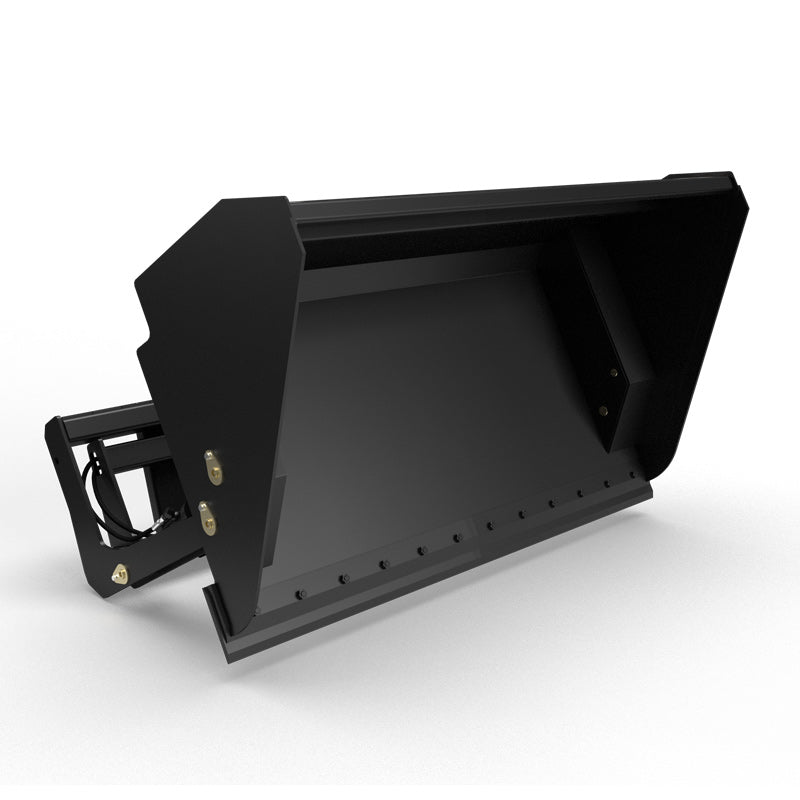

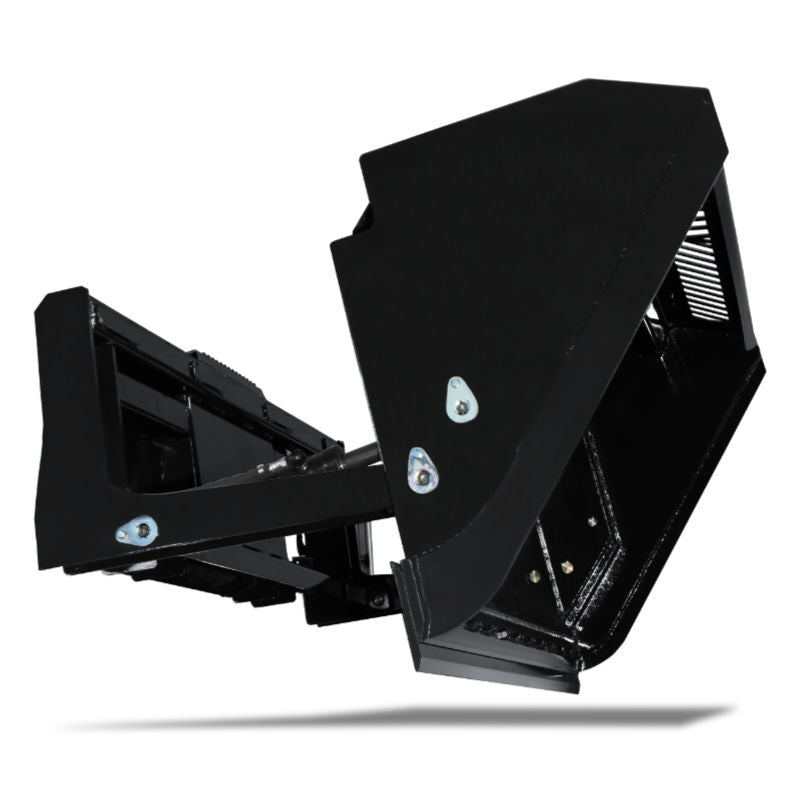

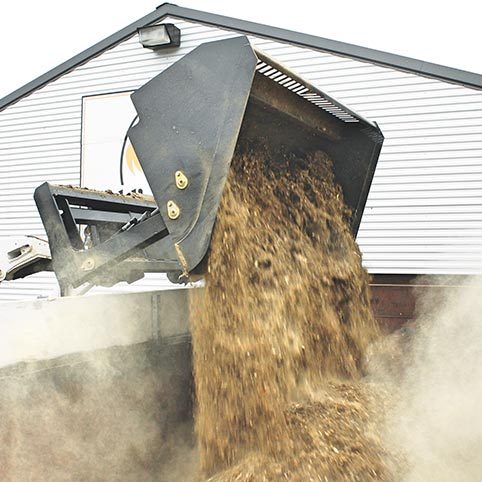

The Virnig High Dump Bucket Attachment is built for professionals who need more lift, more reach, and more efficiency from their skid steer loader. Perfect for loading feed mixers, dump trucks, silage wagons, hoppers, and elevated bins, this powerful rollout-style bucket boosts your machine’s performance increasing vertical lift by 44 inches and horizontal reach by 13 inches.
Precision-engineered in the USA, the High Dump Bucket features NITROSTEEL® cylinder rods, TEFLON® coated bushings, and a durable ¾″ × 6″ weld-on edge, ensuring lasting strength and smooth operation in demanding environments. Operator-friendly visibility windows give you a clear line of sight into the bucket for accurate loading and safer operation.
Available in four sizes 60", 72", 84", and 96" each model is designed for skid steers with a rated operating capacity over 1,800 lbs and standard-flow hydraulics (15–25 GPM). Optional Bolt-On or Serrated Cutting Edges are available to extend edge life or improve digging power.
Whether you’re feeding livestock, loading aggregates, or handling debris, the Virnig High Dump Bucket turns your skid steer into a high-performance lifting machine built for productivity, precision, and durability.
Key Features

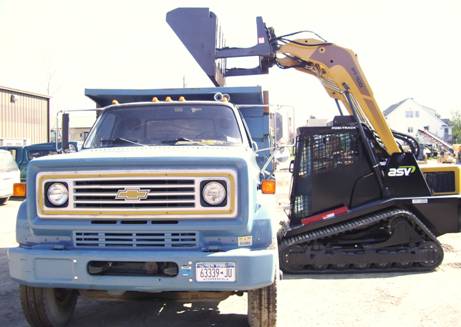

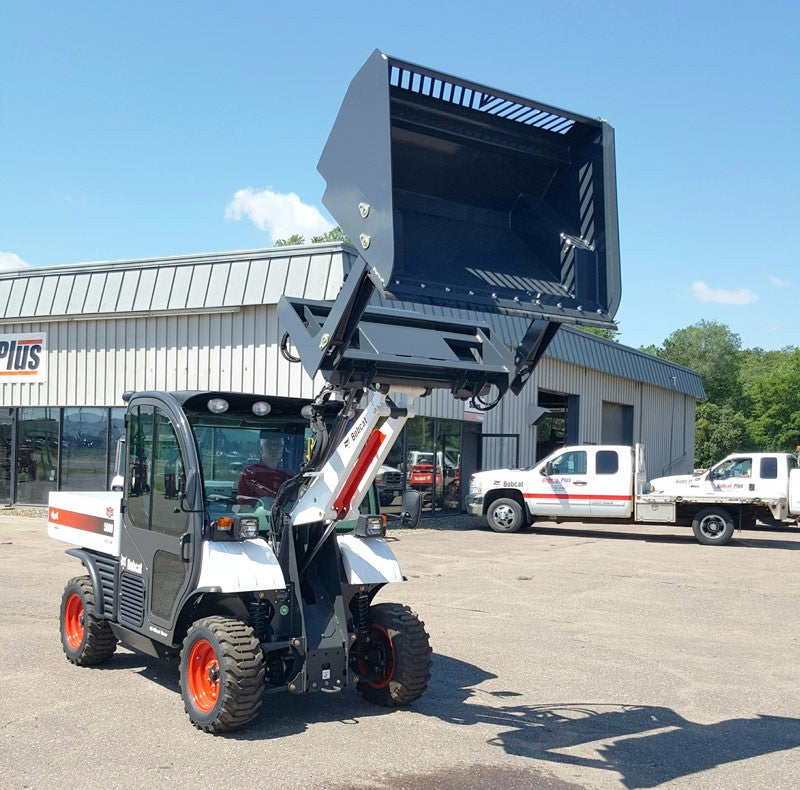

- Increases vertical lift by up to 44" for easy dumping into tall trucks, hoppers, and mixers.
- Extends horizontal reach by approximately 13", improving loading flexibility and positioning.

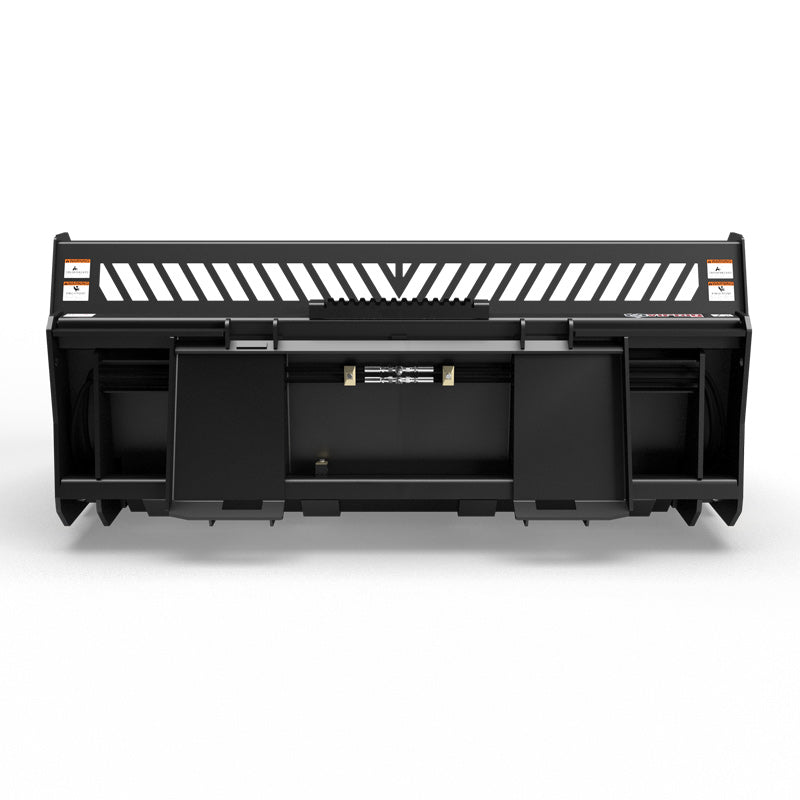

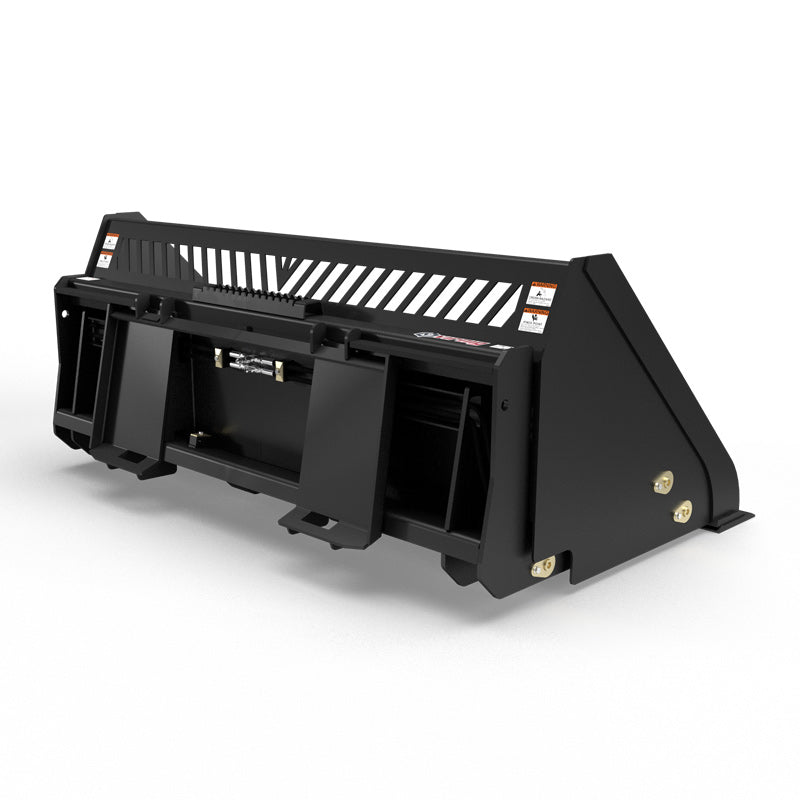

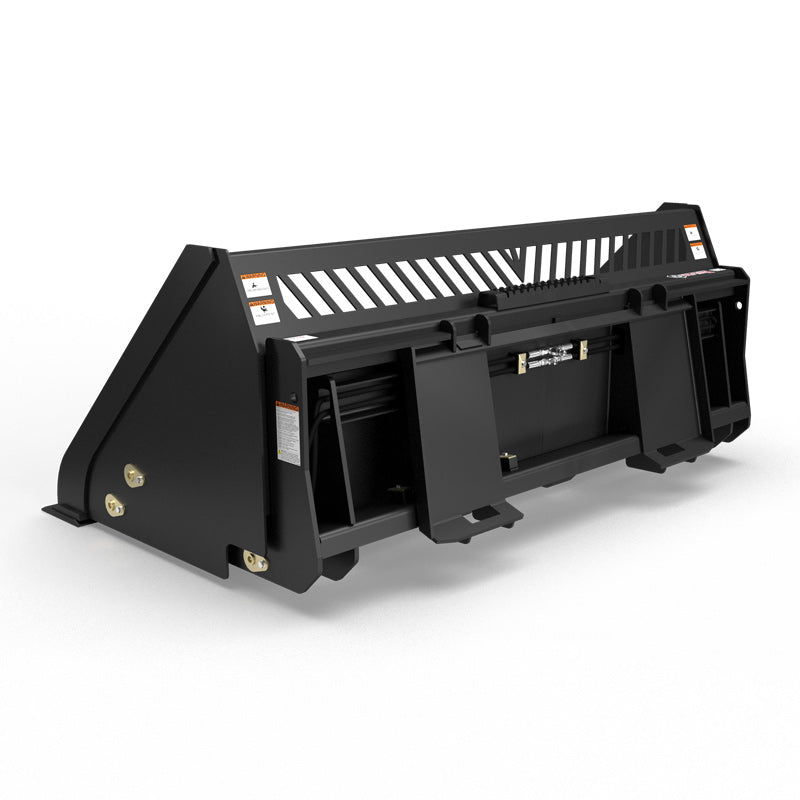

- Universal skid steer mount fits all major brands Bobcat, Cat, Case, John Deere, Kubota, and more.

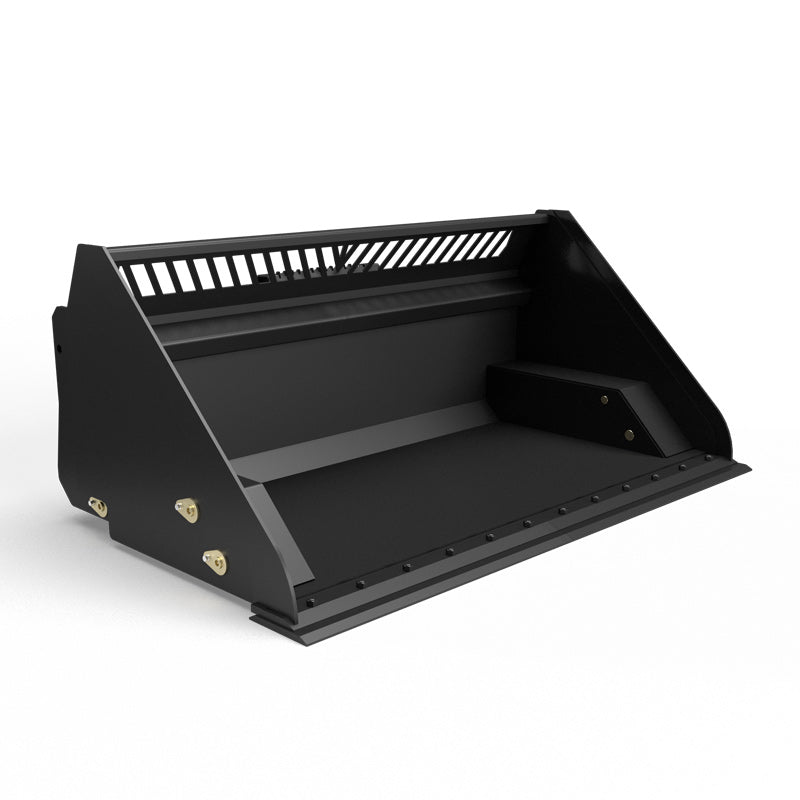

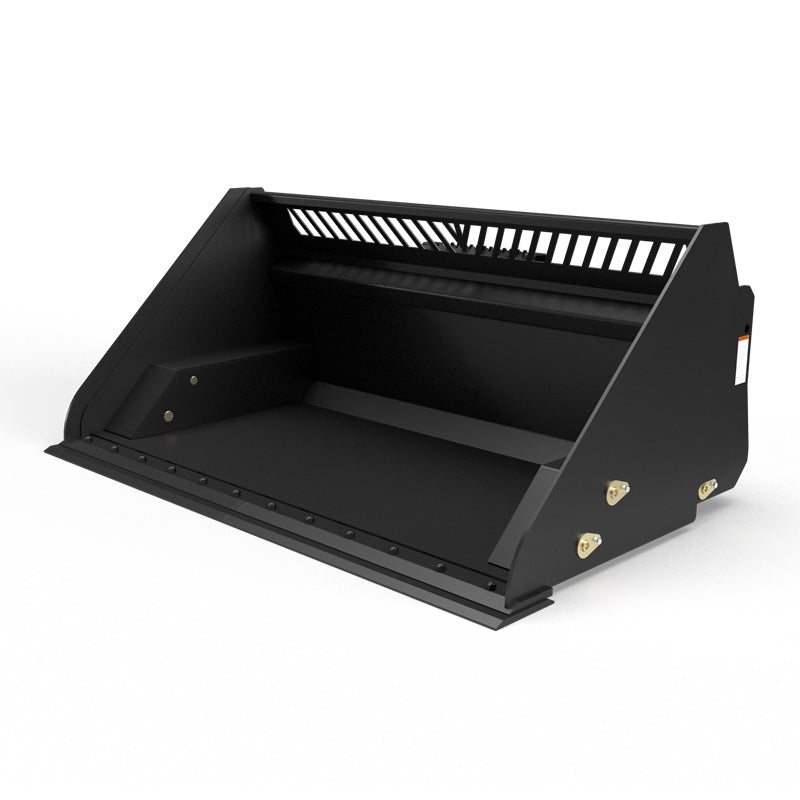

- Durable ¾″ × 6″ weld-on edge with holes for optional Bolt-On or Serrated Edges.
- Optional reversible bolt-on cutting edge extends wear life and reduces maintenance.
- Optional serrated edge breaks up compacted soil an excellent alternative to toothbars.

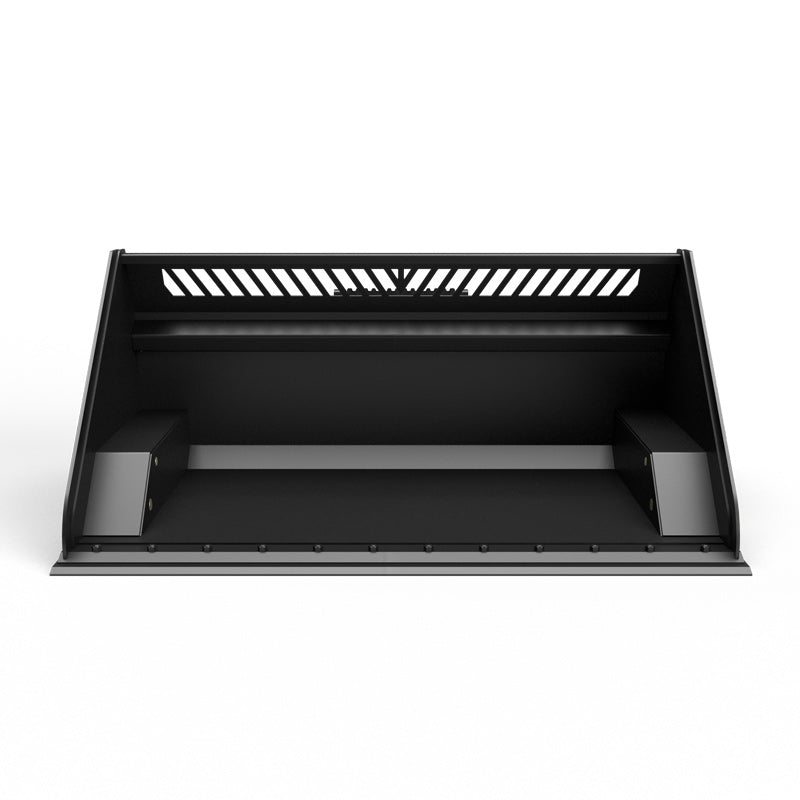

- 4" operator visibility windows allow for precise, confident material handling.
- 86° dump angle ensures a complete and clean material release.
- Heavy-duty build reinforced with ½″ × 4″ structural wear bars underneath the bucket.
- Dual hydraulic cylinders provide strong, even dump power.
- NITROSTEEL® cylinder rods resist corrosion, denting, and flaking extending service life.
- TEFLON® coated bushings on all pivots for smooth, maintenance-friendly operation.
- Standard flow compatible (15–25 GPM) no high-flow hydraulics needed.
- Recommended for skid steers 1,800+ lb ROC, ensuring stability and control.
- Available in multiple widths (60", 72", 84", 96") to match your specific loader and workload.
Detailed Specifications
| Specification | DMP60 | DMP72 |
|---|---|---|
| Overall Width (in) | 61.5 | 73.5 |
| Inside Width (in) | 59.3 | 71.3 |
| Overall Height (in) | 29.8 | 29.8 |
| Overall Depth (in) | 46.2 | 46.2 |
| Inside Depth (in) | 36.6 | 36.6 |
| Window Height (in) | 4.0 | 4.0 |
| Dump Angle (°) | 86 | 86 |
| Vertical Lift Increase (in) | 44 | 44 |
| Horizontal Reach Increase (in) | 13 | 13 |
| Struck Capacity (cu ft) | 22.8 | 27.4 |
| Heaped Capacity (cu ft) | 27.4 | 32.9 |
| Structural Wear Bars (½″ × 4″) | 3 | 4 |
| Cylinder Bore / Stroke (in) | 2.0 / 8.375 | 2.0 / 8.375 |
| Cylinder Pin / Hinge Pin Dia. (in) | 1.25 / 1.563 | 1.25 / 1.563 |
| Approximate Weight (lbs) | 1,015 | 1,115 |
| Recommended Loader ROC (lbs) | 1,800+ | 1,800+ |
| Required Hydraulic Flow (GPM) | 15–25 | 15–25 |
| Mount Type | Universal Skid Steer | Universal Skid Steer |
| Specification | DMP84 | DMP96 |
|---|---|---|
| Overall Width (in) | 85.5 | 97.5 |
| Inside Width (in) | 83.3 | 85.3 |
| Overall Height (in) | 29.8 | 29.8 |
| Overall Depth (in) | 46.2 | 46.2 |
| Inside Depth (in) | 36.6 | 36.6 |
| Window Height (in) | 4.0 | 4.0 |
| Dump Angle (°) | 86 | 86 |
| Vertical Lift Increase (in) | 44 | 44 |
| Horizontal Reach Increase (in) | 13 | 13 |
| Struck Capacity (cu ft) | 32.0 | 36.6 |
| Heaped Capacity (cu ft) | 38.4 | 43.9 |
| Structural Wear Bars (½″ × 4″) | 4 | 4 |
| Cylinder Bore / Stroke (in) | 2.0 / 8.375 | 2.0 / 8.375 |
| Cylinder Pin / Hinge Pin Dia. (in) | 1.25 / 1.563 | 1.25 / 1.563 |
| Approximate Weight (lbs) | 1,215 | 1,310 |
| Recommended Loader ROC (lbs) | 1,800+ | 1,800+ |
| Required Hydraulic Flow (GPM) | 15–25 | 15–25 |
| Mount Type | Universal Skid Steer | Universal Skid Steer |
Manuals & Documents
Specification Sheet
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

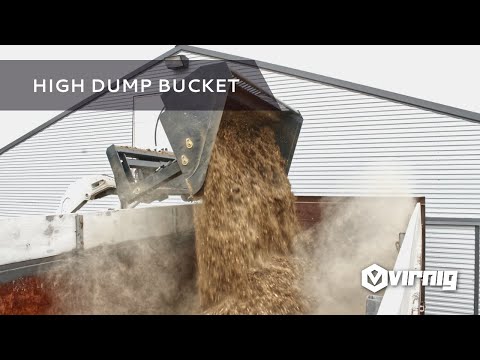

Videos
