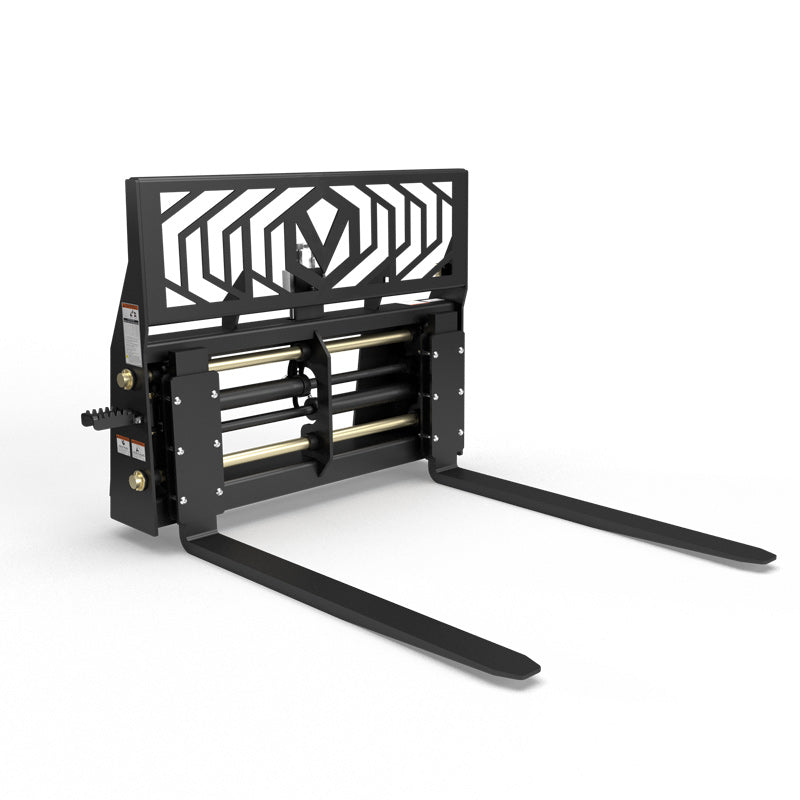

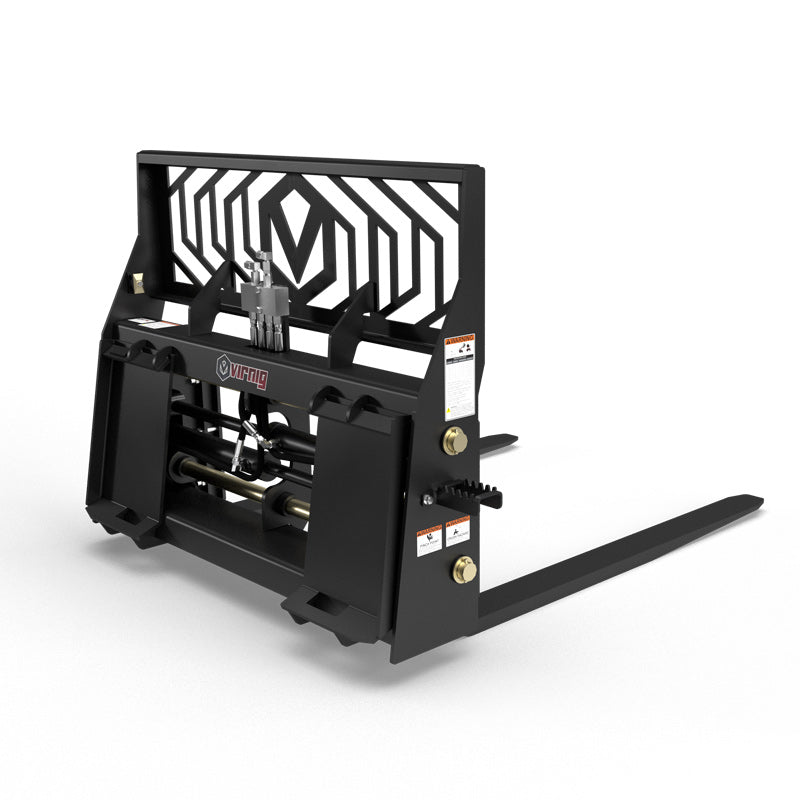

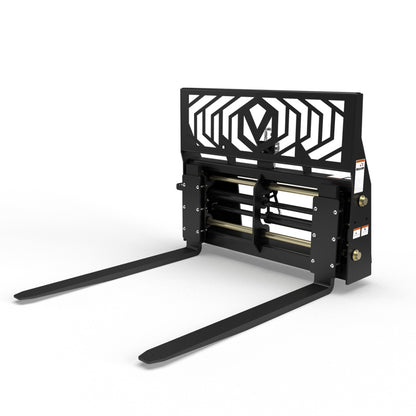

Virnig Hydraulic Adjust Pallet Fork | Models PFHA48 & PFHA60 | Widths 48" & 60" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
Virnig Hydraulic Adjust Pallet Fork | Models PFHA48 & PFHA60 | Widths 48" & 60" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Virnig Hydraulic Adjust Pallet Fork | Models PFHA48 & PFHA60 | Widths 48" & 60" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
DESCRIPTION
The Virnig Hydraulic Adjust Pallet Fork is engineered for operators who demand speed, precision, and total in-cab control. Designed for skid steer loaders, this attachment allows you to hydraulically adjust both fork tines simultaneously from 8" to 38" wide without ever leaving the cab.
Whether you're moving pallets, lumber, concrete blocks, or heavy materials around construction sites, farms, sawmills, or warehouses, this pallet fork delivers unmatched visibility, strength, and operator efficiency.
Virnig’s angled mount plate improves coupling and visibility, while the high-visibility brickguard offers clear sightlines for precise tine placement. Built around ITA Class II forged tines with a 5,500 lb capacity, this attachment is ideal for owners and operators who need a rugged, dependable, and productivity-boosting hydraulic pallet fork for everyday use.
With a heavy-duty 1-9/16" diameter shaft, bolt-on step, and durable cylinder assembly, the Virnig Hydraulic Adjust Pallet Fork is a professional-grade material handling solution that stands up to relentless job-site demands.
Key Features
- Hydraulic tine adjustment from 8"–38" improves efficiency by eliminating the need to leave the cab.
- Compatible with all major skid steer loaders requiring 15–25 GPM hydraulic flow.
- ITA Class II forged tines with 5,500 lb capacity handle heavy palletized and bulk materials.
- Available with 48" or 60" forks to match job-site material sizes.
- High-visibility brickguard increases sightlines for safer and more precise loading.
- Angled skid steer mount plate provides easier attachment and improved operator visibility.
- Heavy-duty 1-9/16" diameter shaft delivers long-lasting structural durability.
- Hydraulic cylinder with 2" bore and 16" stroke ensures smooth, controlled tine movement.
- Frame height of 40.1" offers a balanced mix of strength and visibility.
- Recommended for skid steers with loader lift capacities over 1,500 lbs.
- Bolt-on step installs on either side for safer and easier cab access.
- Standard-tine holder design avoids costly shaft-style tine replacements.
- Ideal for construction, agriculture, lumber yards, warehouses, and industrial material handling.
- Approximate weight of 705 lbs (PFHA48) and 755 lbs (PFHA60) provides stability under heavy loads.
- Built for demanding daily use where quick tine adjustments increase productivity and material throughput.
Detailed Specifications
| Model | PFHA48 |
|---|---|
| Overall Width w/ Step (in) | 53.9 |
| Frame Width (in) | 50.1 |
| Overall Height (in) | 40.1 |
| Tine Length (in) | 48.0 |
| Tine Width (in) | 4.0 |
| Tine Thickness (in) | 1.5 |
| Adjustable Tine Spacing (min/max in) | 7.8 – 38.2 |
| Cylinder Bore × Stroke (in) | 2.0 × 16.0 |
| Cylinder Pin Diameter (in) | 1.0 |
| Approx. Weight (lbs) | 705 |
| Lift Capacity (lbs) | 5,500 |
| Recommended Loader Lift Capacity | >1,500 lbs |
| Hydraulic Flow Range | 15–25 GPM |
| Machine Compatibility | Skid Steer Loaders |
| Model | PFHA60 |
|---|---|
| Overall Width w/ Step (in) | 53.9 |
| Frame Width (in) | 50.1 |
| Overall Height (in) | 40.1 |
| Tine Length (in) | 60.0 |
| Tine Width (in) | 4.0 |
| Tine Thickness (in) | 1.5 |
| Adjustable Tine Spacing (min/max in) | 7.8 – 38.2 |
| Cylinder Bore × Stroke (in) | 2.0 × 16.0 |
| Cylinder Pin Diameter (in) | 1.0 |
| Approx. Weight (lbs) | 755 |
| Lift Capacity (lbs) | 5,500 |
| Recommended Loader Lift Capacity | >1,500 lbs |
| Hydraulic Flow Range | 15–25 GPM |
| Machine Compatibility | Skid Steer Loaders |
