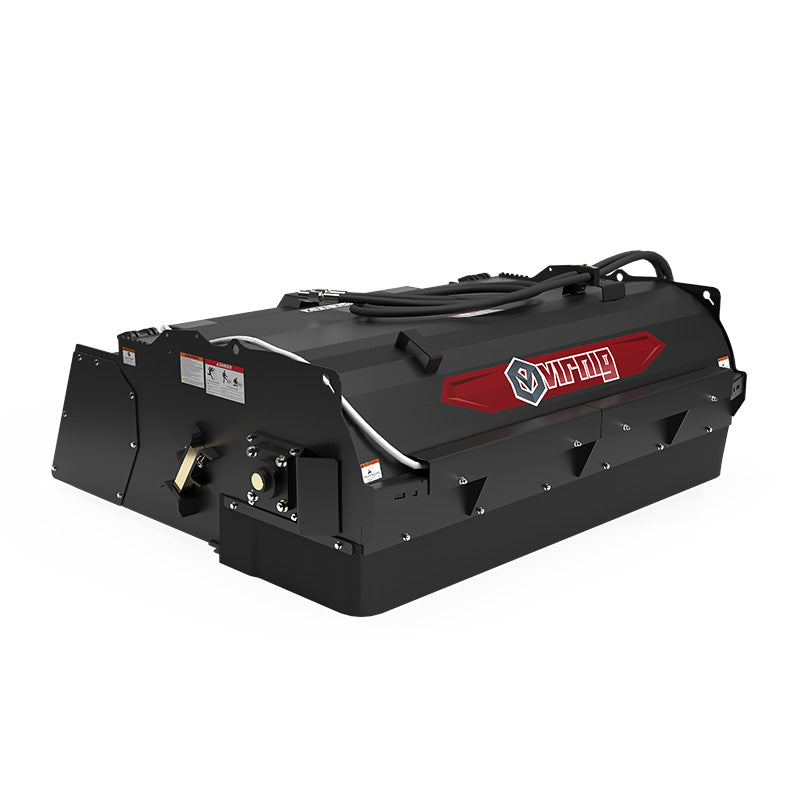

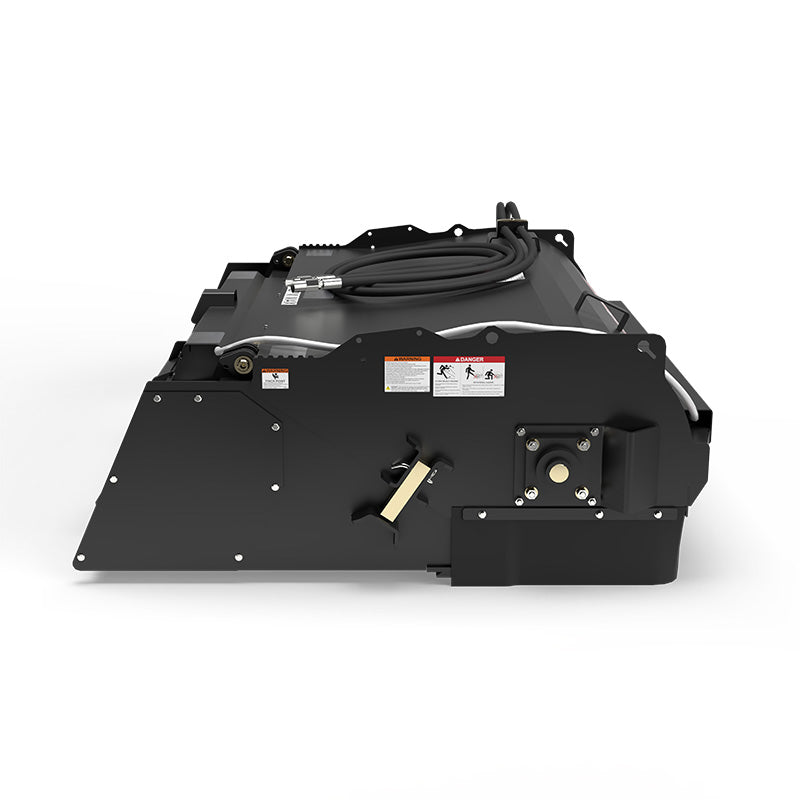

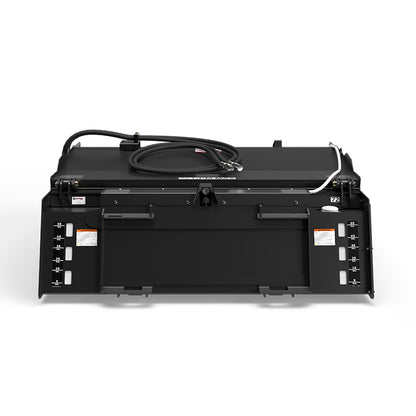

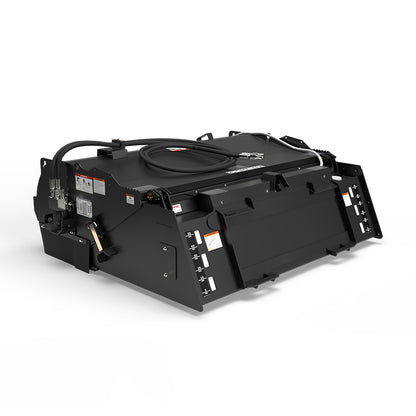

Virnig Pick-Up Broom – Internal Water Tank | Models PBWI72 & PBWI84 | Widths 72" & 84" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
DESCRIPTION
Take dust control and sweeping performance to the next level with the Virnig Pick-Up Broom – Internal Water Tank. Designed for professional contractors, municipalities, and facility maintenance teams, this innovative skid steer broom combines powerful debris pickup with patented dust suppression technology all packed into a clean, integrated design.
The 55-gallon internal water tank sets a new industry benchmark, providing up to 35 minutes of continuous runtime to keep dust down even in the toughest environments. Spray nozzles are built directly into the push bar, giving the broom a streamlined look and protecting key components from damage.
Engineered for skid steers with a standard-flow hydraulic system (15–25 GPM) and a loader capacity above 2,000 lb, the Virnig PBWI72 and PBWI84 models deliver rugged dependability and unmatched sweeping precision. The heavy-duty bucket, reinforced quick-tach mount, and easy bristle height adjustments make this broom ideal for year-round clean-up from construction sites and streets to parking lots and warehouses.
If you need a professional-grade skid steer broom attachment that controls dust, reduces maintenance, and keeps your job site spotless, the Virnig Pick-Up Broom with Internal Water Tank is built for you.
Key Features
- Patented Internal Water Tank Design 55-gallon capacity delivers up to 35 minutes of continuous dust suppression.

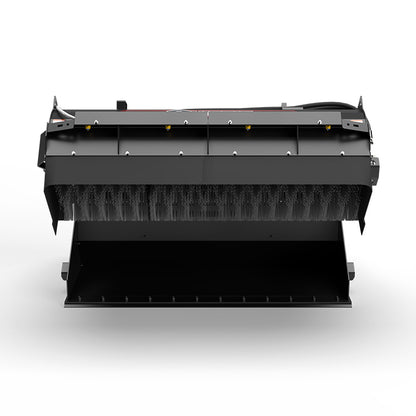

- Integrated Spray System Spray nozzles built into the push bar protect lines and simplify routing.
- Adjustable Water Flow Fine-tune water pressure and flow rate with a convenient control knob.
- Heavy-Duty Construction Rugged bucket with wear bars, bolt-on cutting edge, and reinforced quick-tach mount for maximum durability.
- Protected Motor System Recessed, guarded motor and greasable 2″ bearing for long service life.
- 8-Position Height Adjustment Easily adjust bristle height in ¾″ increments for consistent sweeping performance.
- Fast Bristle Replacement Change wafers quickly without disconnecting hydraulic hoses.
- Hybrid Poly/Wire Wafers Standard alternating poly/wire wafers provide effective sweeping on concrete, asphalt, and gravel.
- Dust-Control Efficiency Keeps fine particles down, improving operator visibility and site cleanliness.
- Optimized for Standard-Flow Hydraulics Compatible with 15–25 GPM skid steer systems.
- Balanced Design Stable, easy operation even when the hopper is full.
- Increased Productivity Wide sweep path (72″ or 84″) for faster clean-up on large surfaces.
- Low Maintenance Greaseable fittings and easily accessible components simplify upkeep.
- Safe & Secure Hose Routing Internal routing minimizes wear and risk of snagging.
- Professional-Grade Performance Ideal for contractors, municipalities, landscapers, and property managers.
Detailed Specifications
| Model | PBWI72 |
|---|---|
| Sweeping Width | 72.0 in |
| Overall Width | 79.3 in |
| Overall Height | 30.8 in |
| Overall Depth | 68.6 in |
| Wafer Diameter | 26 in |
| Number of Wafers | 35 |
| Wafer Type | Alternating Poly/Wire or All Poly |
| Recommended Hydraulic Flow | 15–25 GPM (Standard Flow Only) |
| Approximate Weight | 1,365 lb |
| Recommended Loader Capacity | Greater than 2,000 lb |
| Water Tank Capacity | 55 gallons |
| Continuous Dust Control Runtime | 35 minutes |
| Bristle Height Adjustment | 8 Positions, ¾″ Increments |
| Hydraulic Angle | No |
| Compatibility | Standard Skid Steer Loaders |
| Model | PBWI84 |
|---|---|
| Sweeping Width | 84.0 in |
| Overall Width | 91.3 in |
| Overall Height | 30.8 in |
| Overall Depth | 68.6 in |
| Wafer Diameter | 26 in |
| Number of Wafers | 41 |
| Wafer Type | Alternating Poly/Wire or All Poly |
| Recommended Hydraulic Flow | 15–25 GPM (Standard Flow Only) |
| Approximate Weight | 1,400 lb |
| Recommended Loader Capacity | Greater than 2,000 lb |
| Water Tank Capacity | 55 gallons |
| Continuous Dust Control Runtime | 35 minutes |
| Bristle Height Adjustment | 8 Positions, ¾″ Increments |
| Hydraulic Angle | No |
| Compatibility | Standard Skid Steer Loaders |
Manuals & Documents
Specification Sheet
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

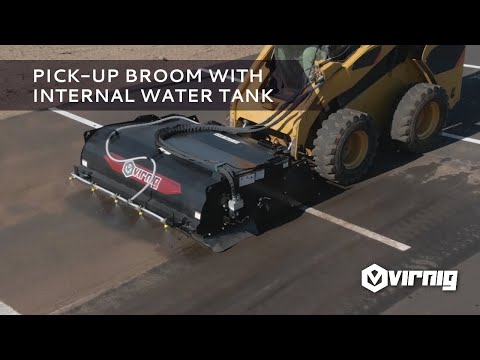

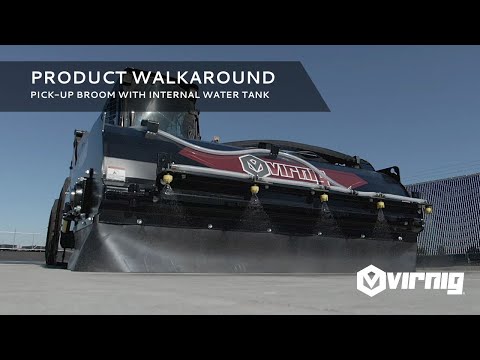

Videos
