Product Description

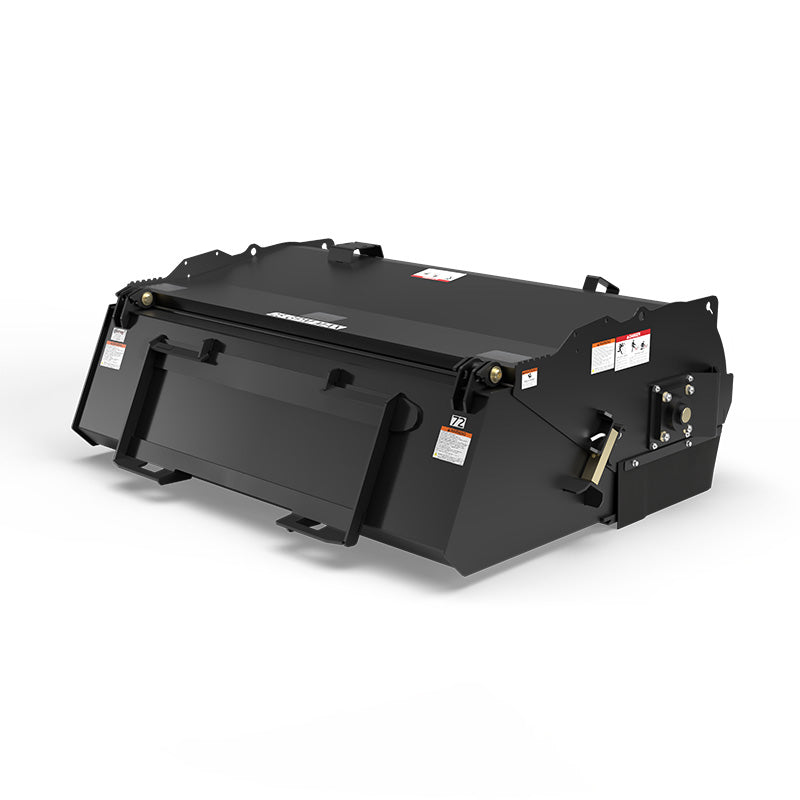

Virnig Pick-Up Broom | Models PUB60, PUB72 & PUB84 | Widths 60" To 84" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
DESCRIPTION

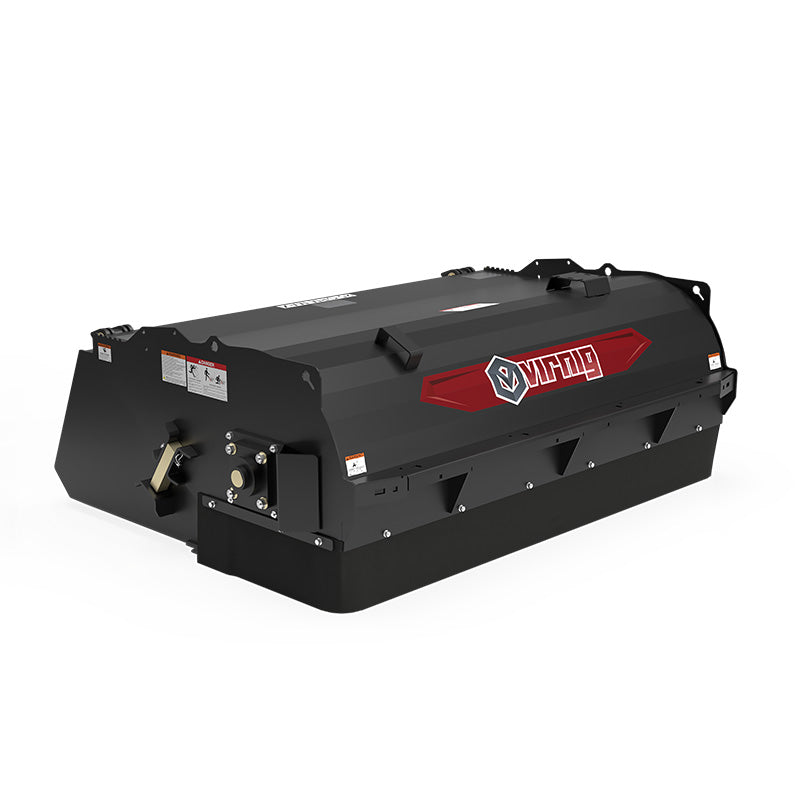

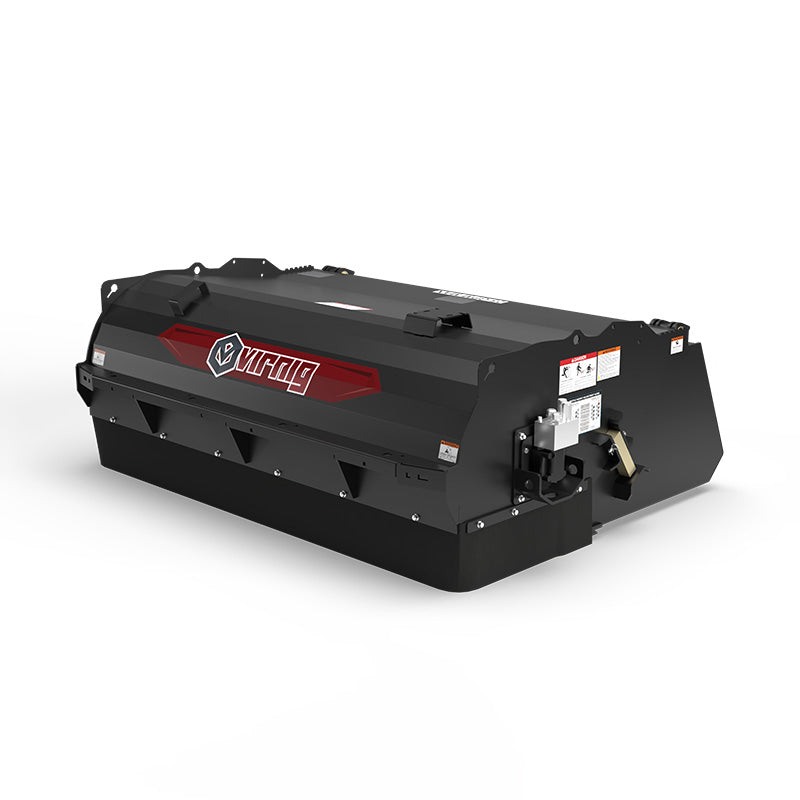

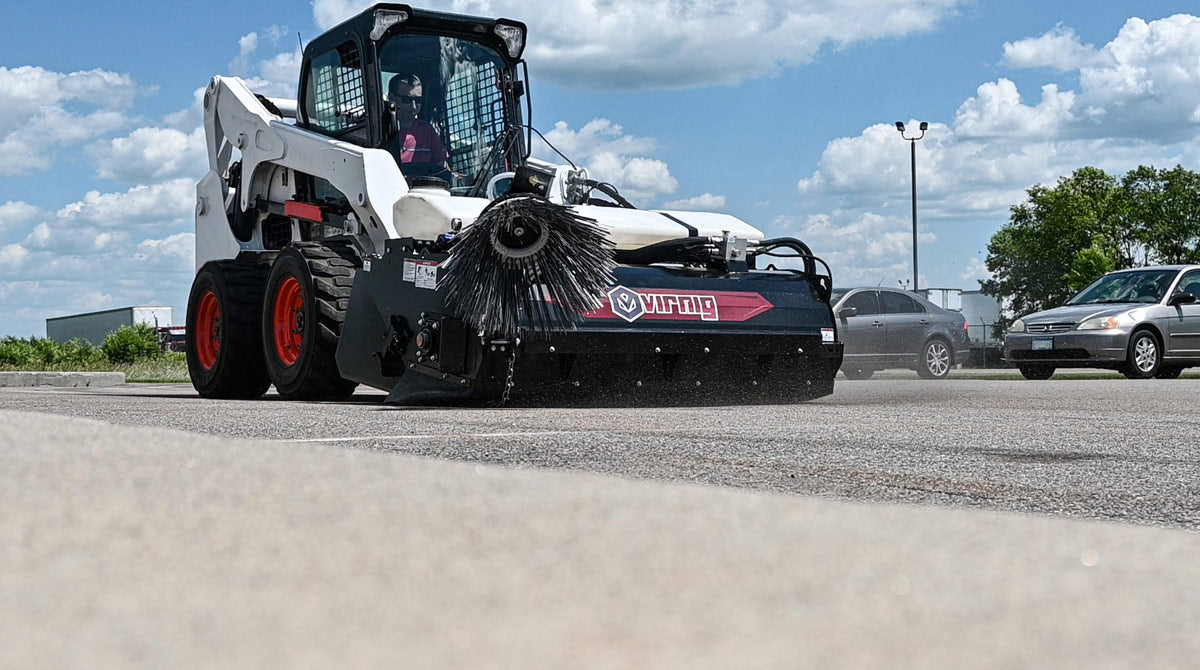

Keep your job site impeccably clean and maximize your skid steer’s productivity with the Virnig Pick-Up Broom. Engineered for durability and efficiency, this rugged attachment makes sweeping asphalt, gravel, dirt, and debris effortless whether for commercial landscaping, municipal maintenance, or construction cleanup.
Designed for skid steer loaders with 15–25 GPM hydraulic flow, the PUB series combines high-performance Eaton® direct-drive motors with intelligent design features to deliver long-lasting reliability. Its recessed and guarded motor, greasable bearings, and reinforced heavy-duty bucket ensure minimal downtime and optimal performance.
Adjustable in 3/4" increments, the 8-position pin system allows precise bristle height control to tackle any surface. Standard poly/wire wafers clean effectively, while optional all-poly wafers, gutter brushes, and a 40-gallon water kit expand versatility. Easy wafer replacement without disconnecting hoses ensures maintenance is quick and hassle-free.
Whether you’re a contractor, landscaper, or municipal maintenance professional, the Virnig Pick-Up Broom is built to meet your toughest sweeping challenges with unmatched reliability and efficiency.
Key Features

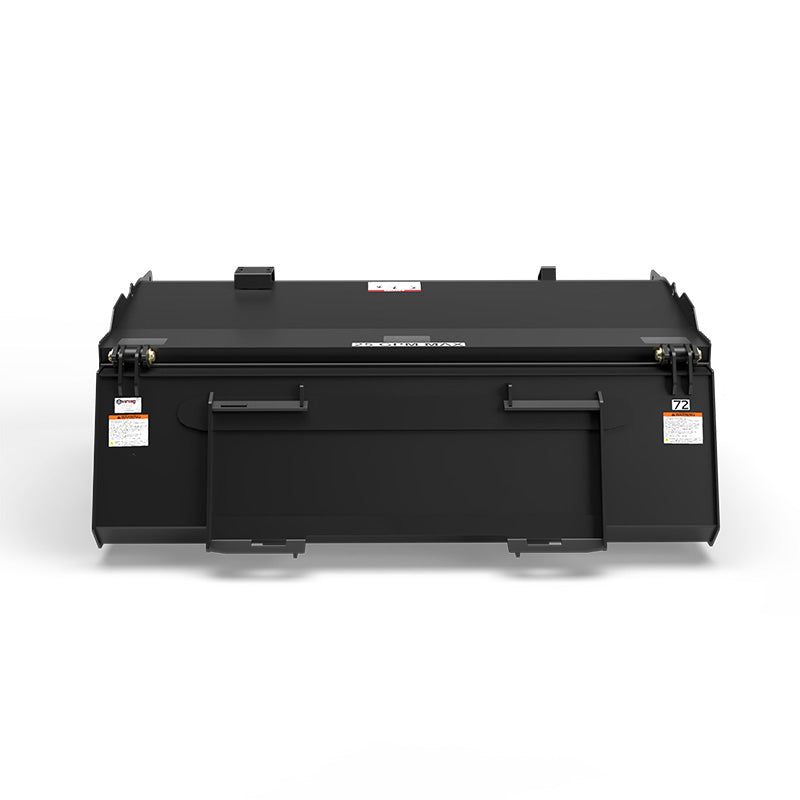

- Heavy-Duty Construction: Reinforced QT mount, wear bars, and bolt-on edges withstand continuous commercial use.

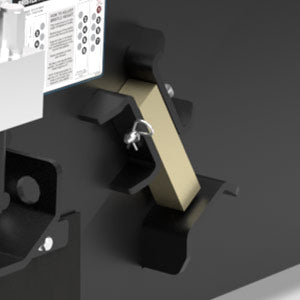

- Adjustable Bristle Height: 8-position pin system adjusts in 3/4" increments for precise sweeping on various surfaces.
- Direct Drive Motor: Eaton® hydraulic motor ensures consistent power and long-lasting performance.

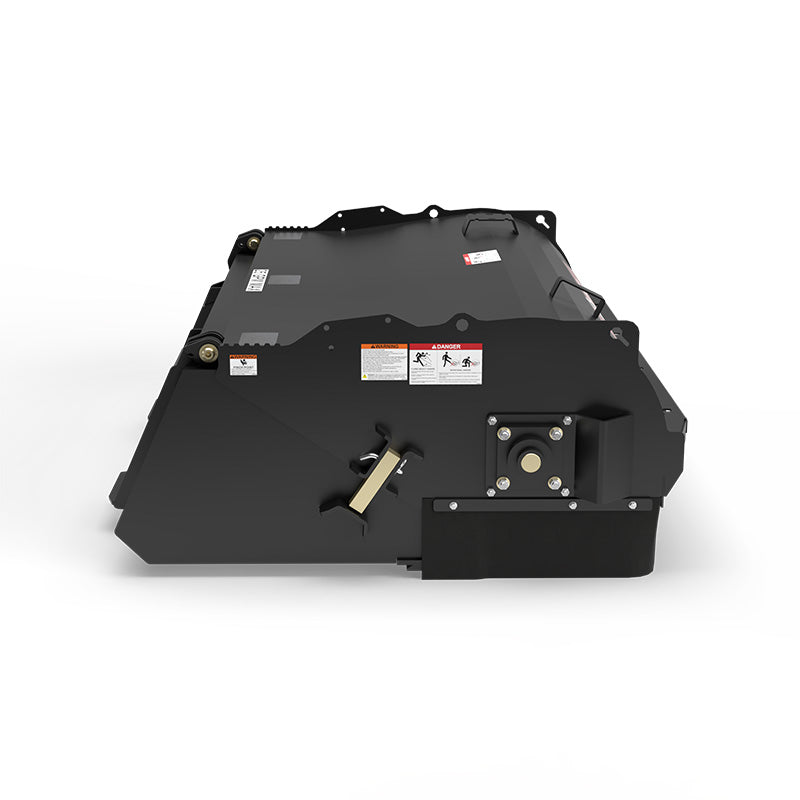

- Recessed & Guarded Motor: Protects the motor from debris for extended durability.
- Greaseable Bearings: Easy maintenance with 2" greasable bearings that reduce wear.
- Versatile Wafer Options: Standard poly/wire wafers with optional all-poly for specialized surfaces.
- Quick Wafer Replacement: Swap out wafers without disconnecting hydraulic hoses.

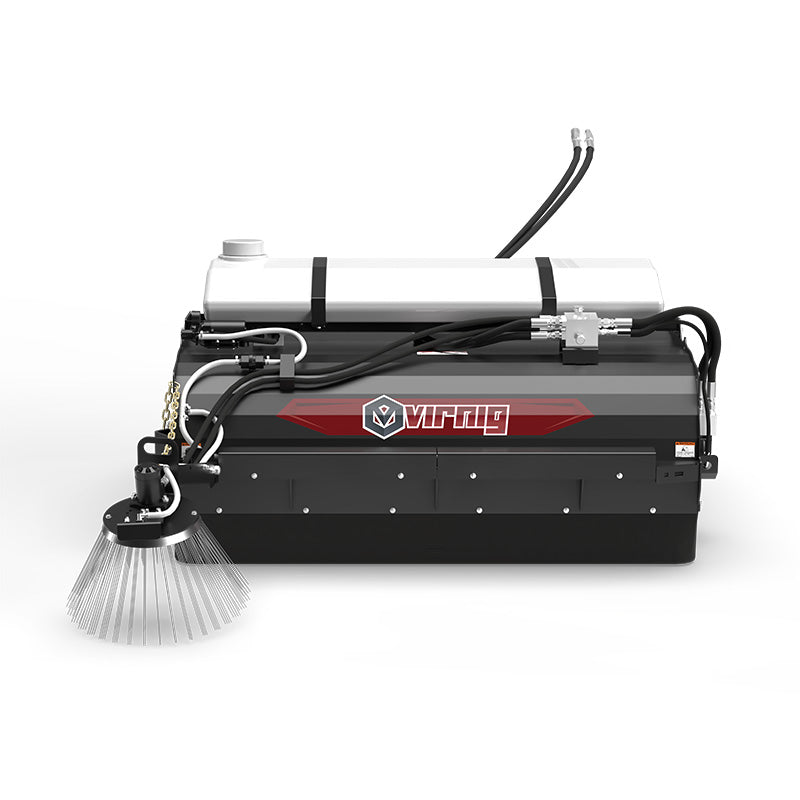

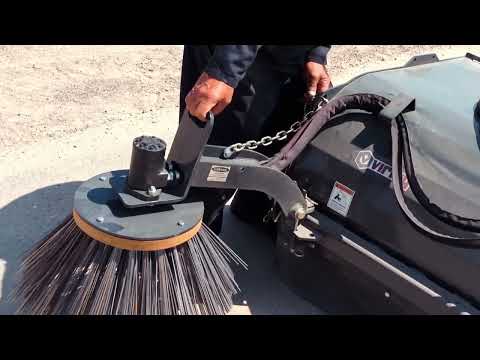

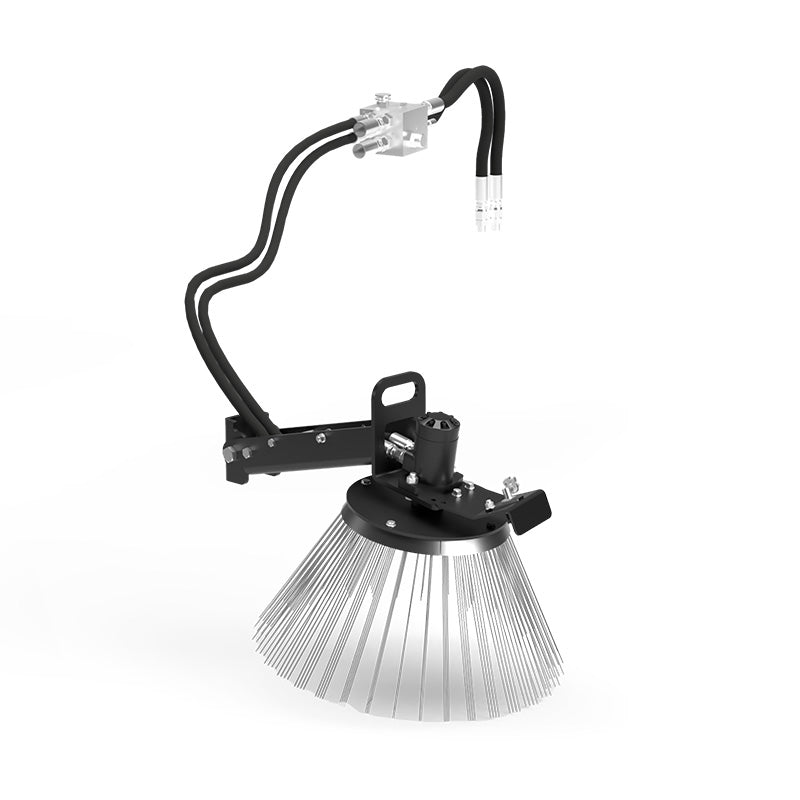

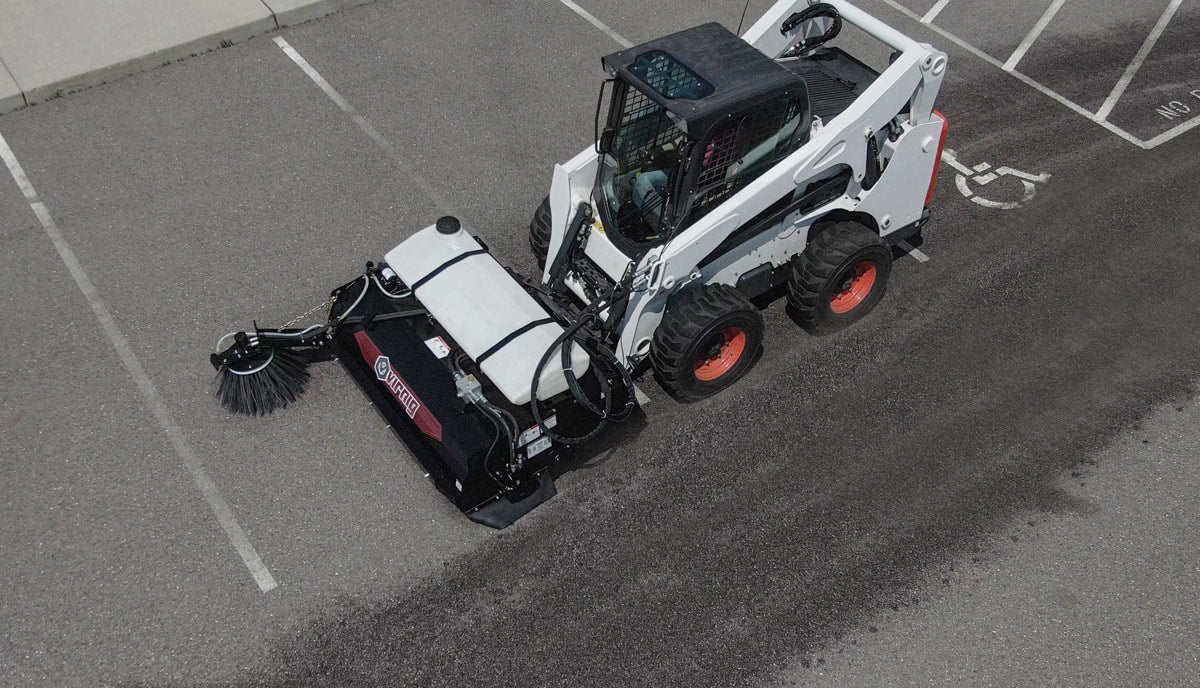

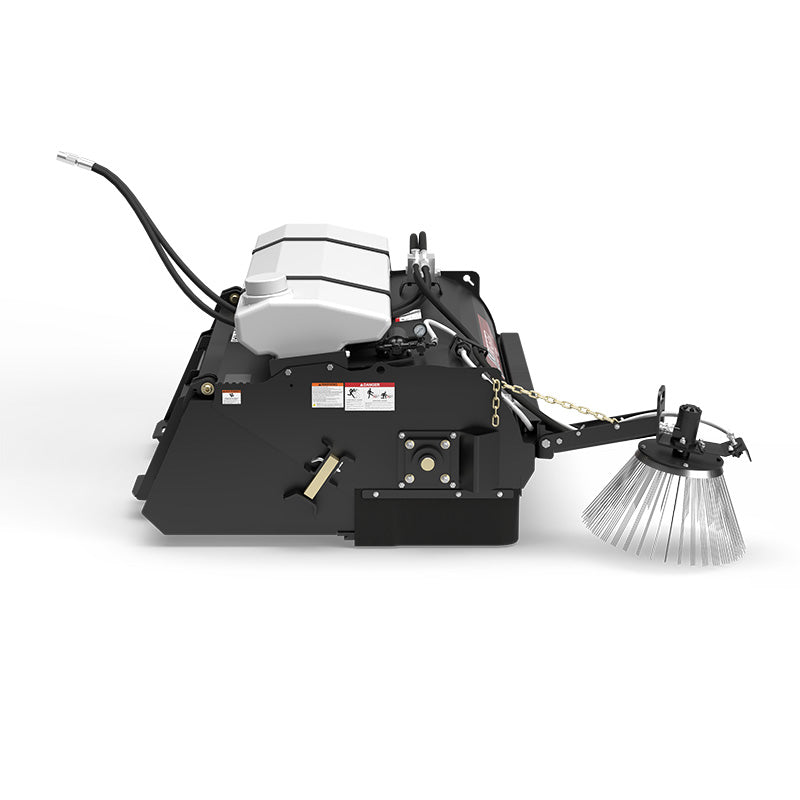

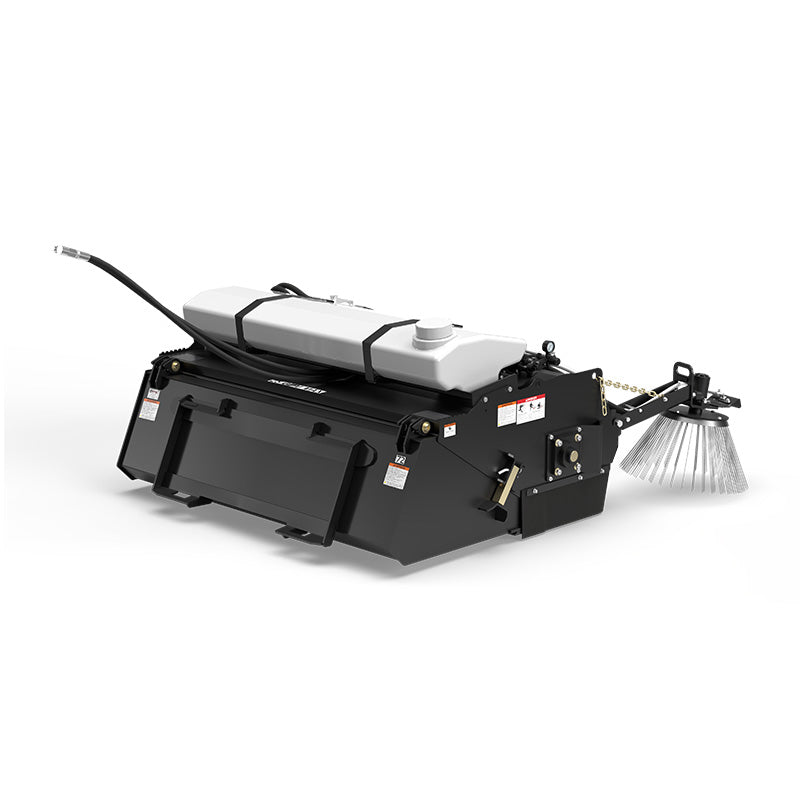

- Optional Gutter Brush: Adds 12" sweeping width for curbs, edges, and tight spaces.

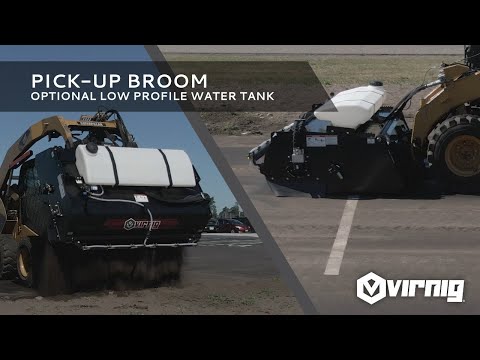

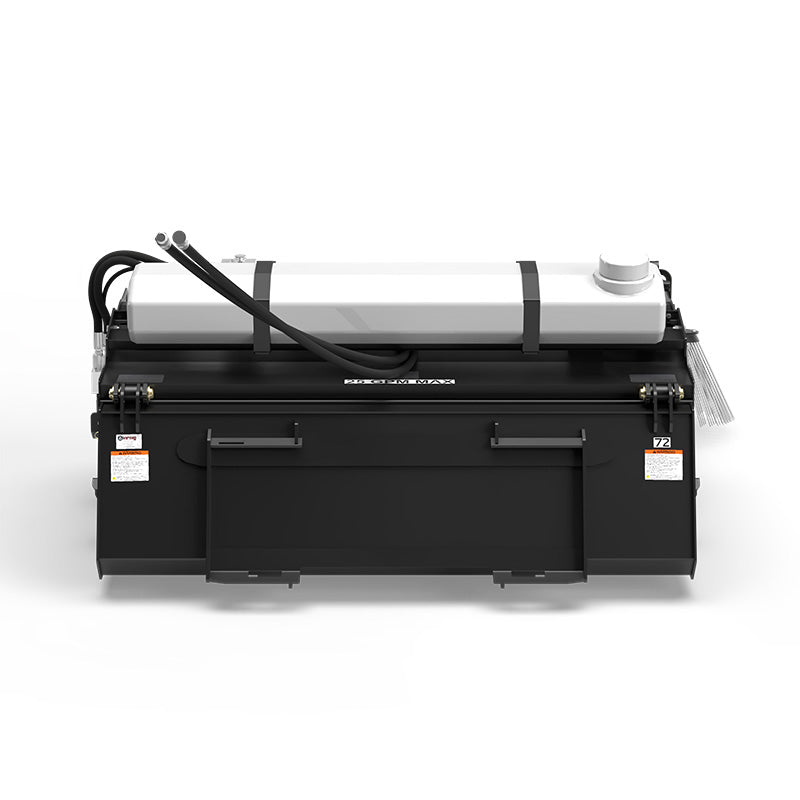

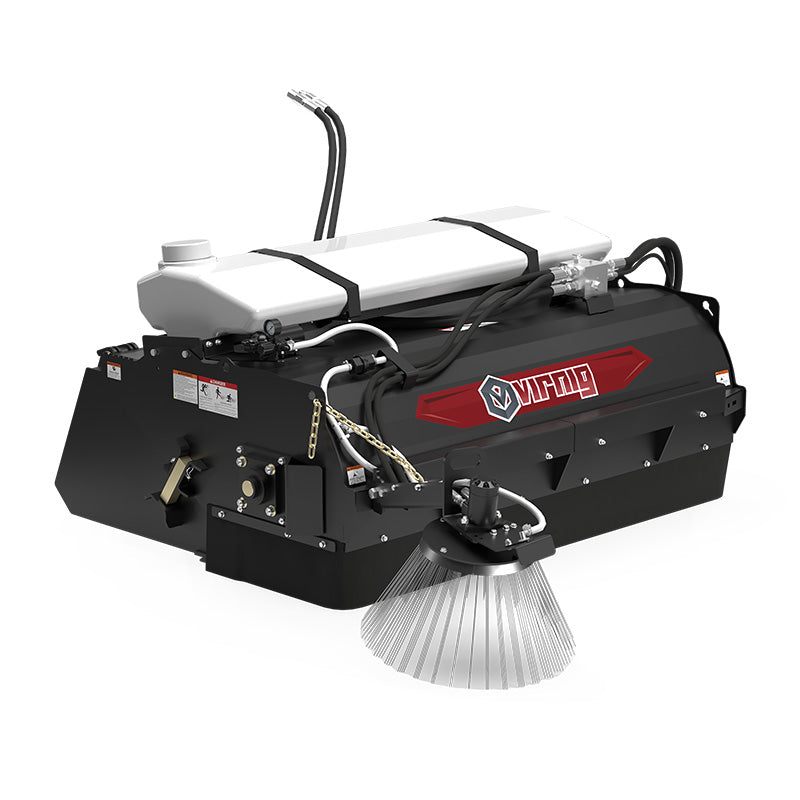

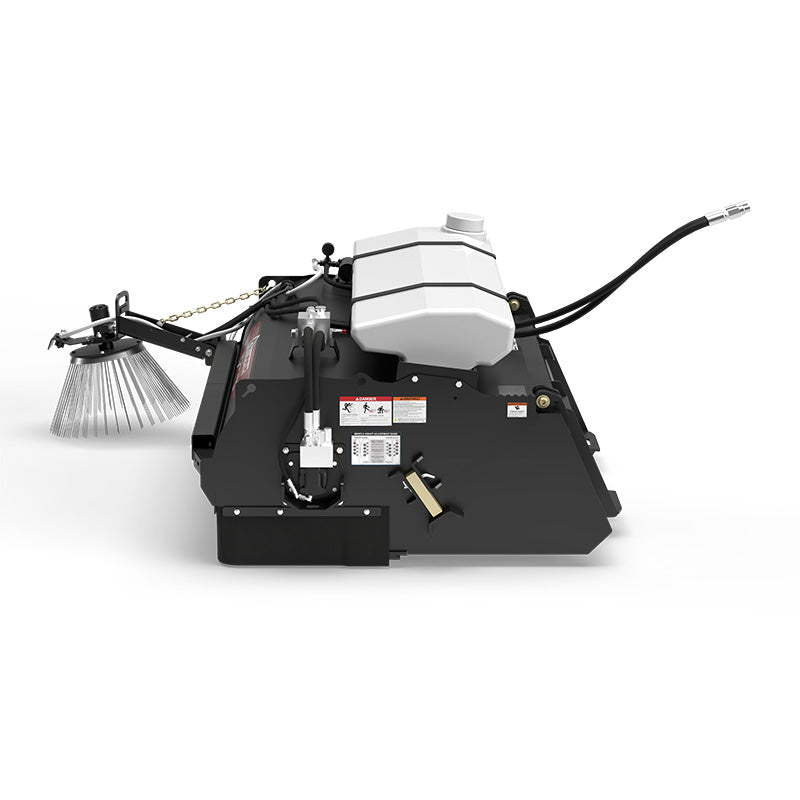

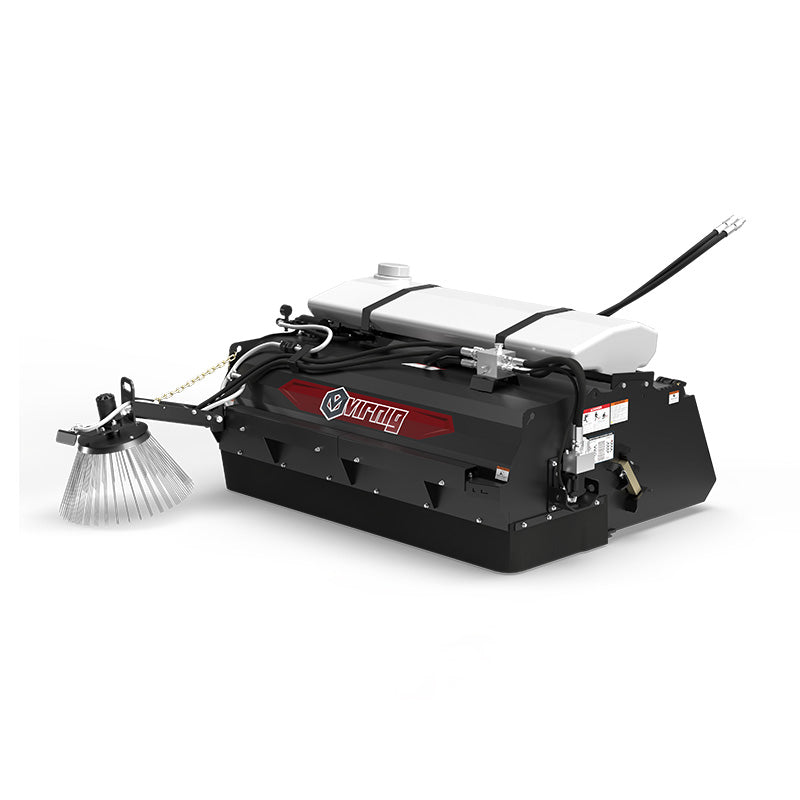

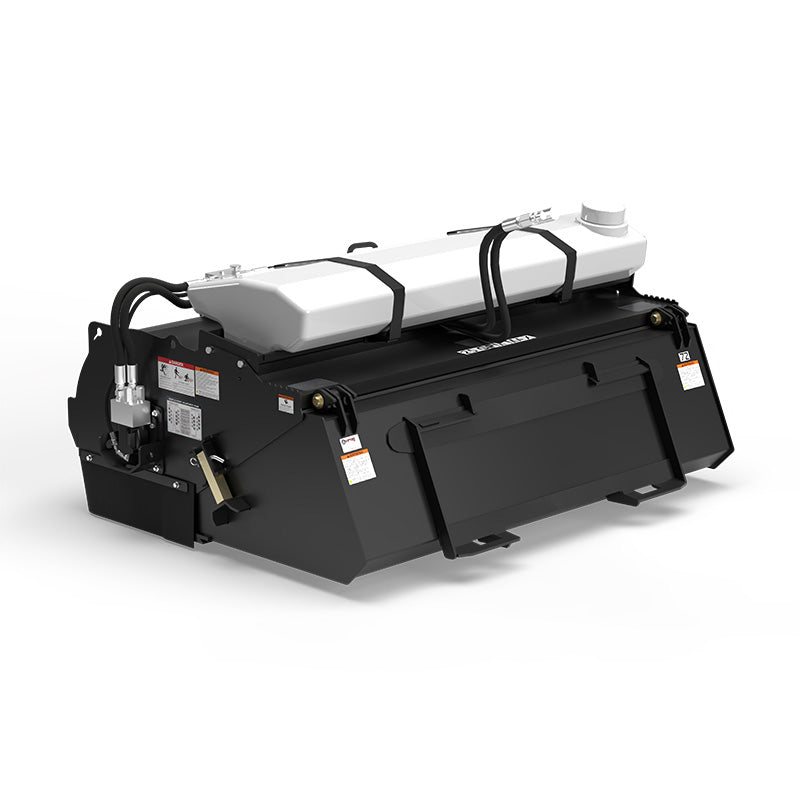

- Water Kit Ready: Optional 40-gallon water tank suppresses dust for cleaner results.
- Wide Model Range: Sweeping widths from 60" to 84" fit most skid steer loaders.
- Efficient Debris Pickup: Collects dirt, gravel, leaves, and light debris in one pass.
- Compact Footprint: Overall dimensions designed for maneuverability in tight job sites.
- Recommended Flow Rate: 15–25 GPM ensures peak hydraulic performance.
- High Capacity: Supports skid steer loaders with 1,500+ lbs lifting capacity; 1,800 lbs with water kit.
- Durable Construction: Welded heavy-duty bucket and reinforced frame provide years of dependable use.
Detailed Specifications
| Feature | PUB60 | PUB72 |
|---|---|---|
| Sweeping Width (inches) | 60.0 | 72.0 |
| Overall Width (inches) | 67.3 | 79.3 |
| Overall Height (inches) | 30.8 | 30.8 |
| Overall Depth (inches) | 61.8 | 61.8 |
| Number of 26" Diameter Wafers | 29 | 35 |
| Wafer Types | Poly/Wire standard, All-Poly optional | Poly/Wire standard, All-Poly optional |
| Recommended Hydraulic Flow (GPM) | 15–25 | 15–25 |
| Approximate Weight (lbs) | 975 | 1100 |
| Recommended Loader Capacity (lbs) | >1,500 | >1,500 |
| Optional Water Kit | Yes | Yes |
| Optional Gutter Brush | Yes | Yes |
| Feature | PUB84 |
|---|---|
| Sweeping Width (inches) | 84.0 |
| Overall Width (inches) | 91.3 |
| Overall Height (inches) | 30.8 |
| Overall Depth (inches) | 61.8 |
| Number of 26" Diameter Wafers | 41 |
| Wafer Types | Poly/Wire standard, All-Poly optional |
| Recommended Hydraulic Flow (GPM) | 15–25 |
| Approximate Weight (lbs) | 1225 |
| Recommended Loader Capacity (lbs) | >1,500 |
| Optional Water Kit | Yes |
| Optional Gutter Brush | Yes |
