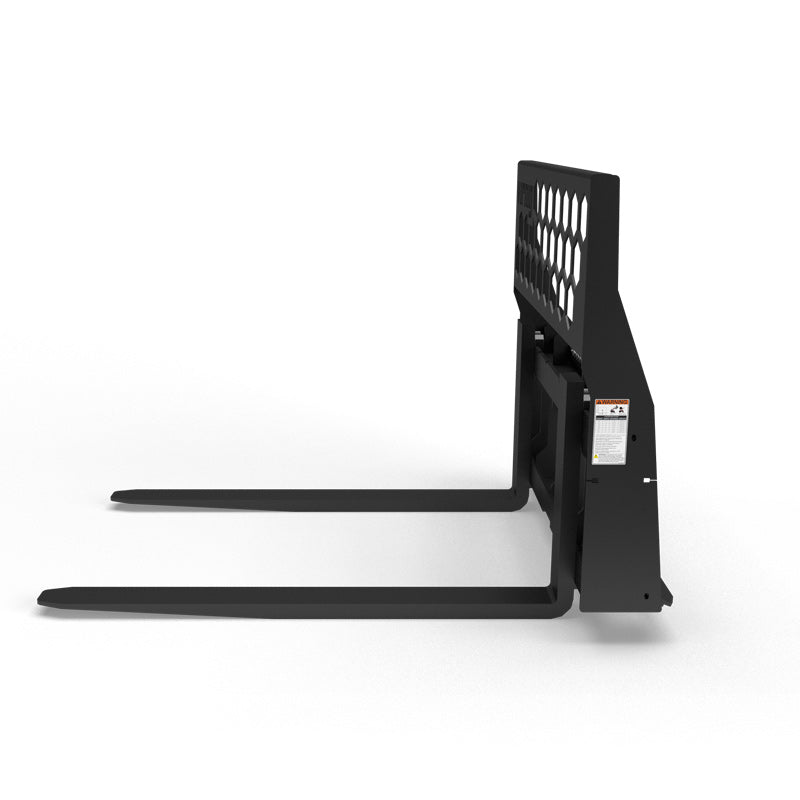

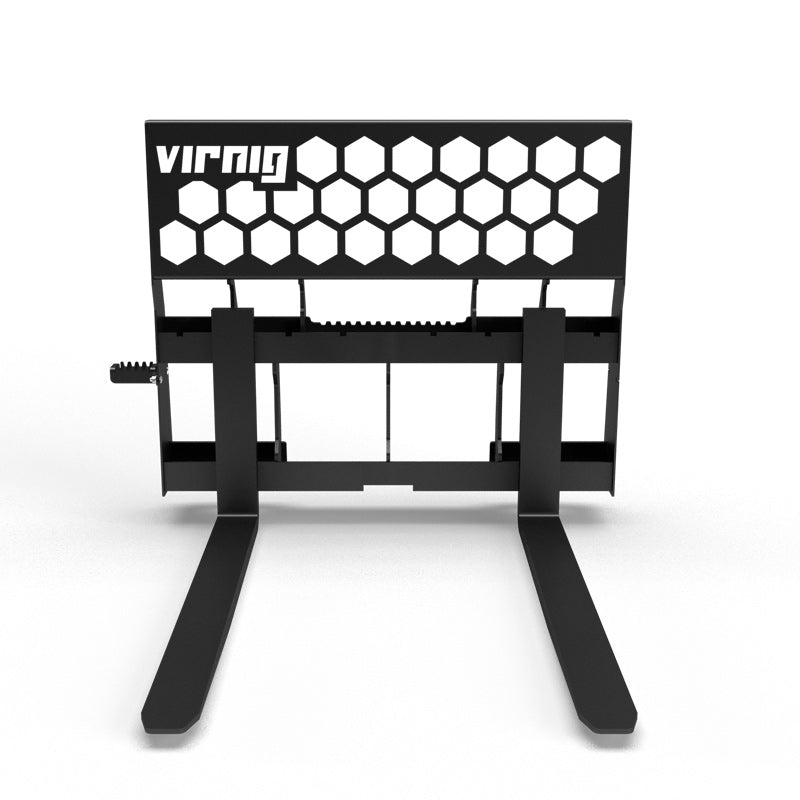

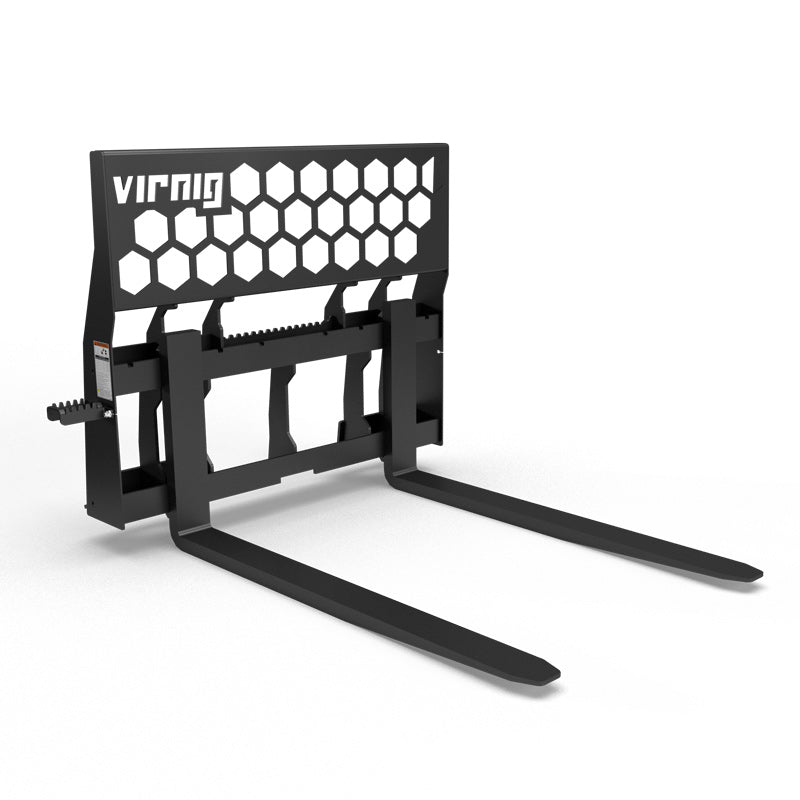

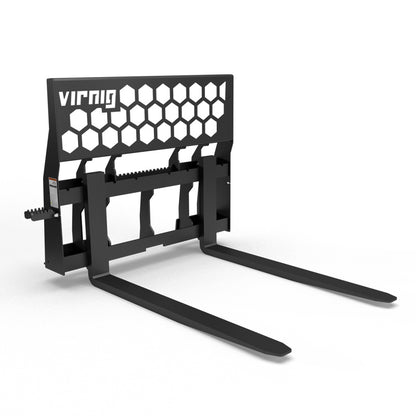

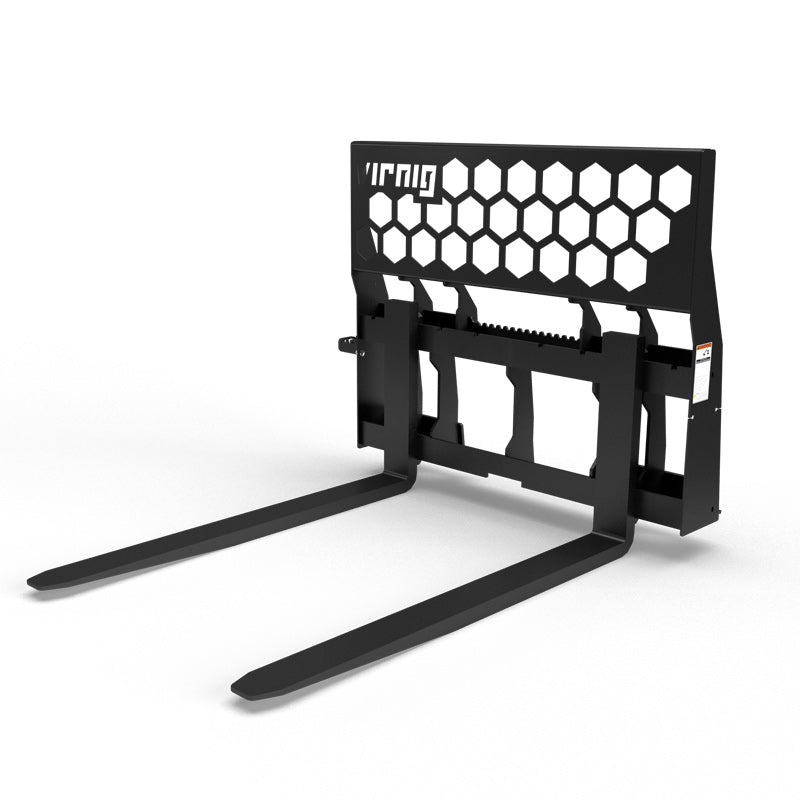

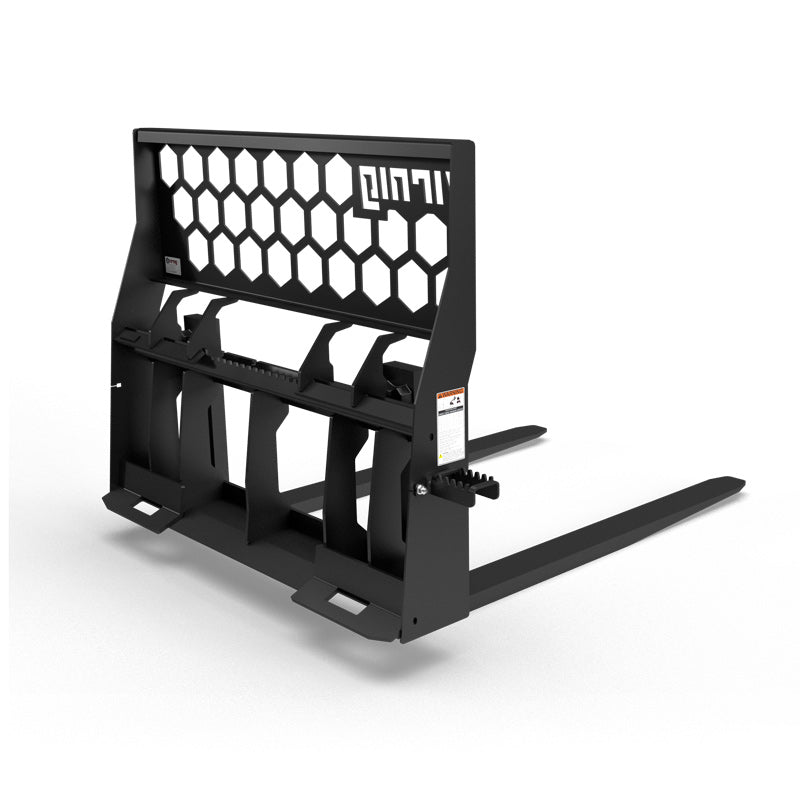

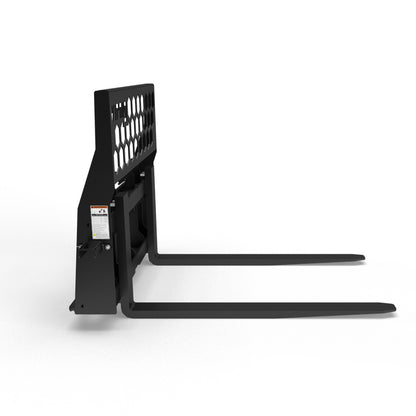

Virnig Rail Pallet Fork: Hex-Guard | Models PFHG4240 To PFHG4862 | Tine Lengths 42” To 72” | Widths 50.5" / 45.5" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
Virnig Rail Pallet Fork: Hex-Guard | Models PFHG4240 To PFHG4862 | Tine Lengths 42” To 72” | Widths 50.5" / 45.5" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
Regular price
$1,355.00
Regular price
Sale price
$1,355.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Virnig Rail Pallet Fork: Hex-Guard | Models PFHG4240 To PFHG4862 | Tine Lengths 42” To 72” | Widths 50.5" / 45.5" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
DESCRIPTION

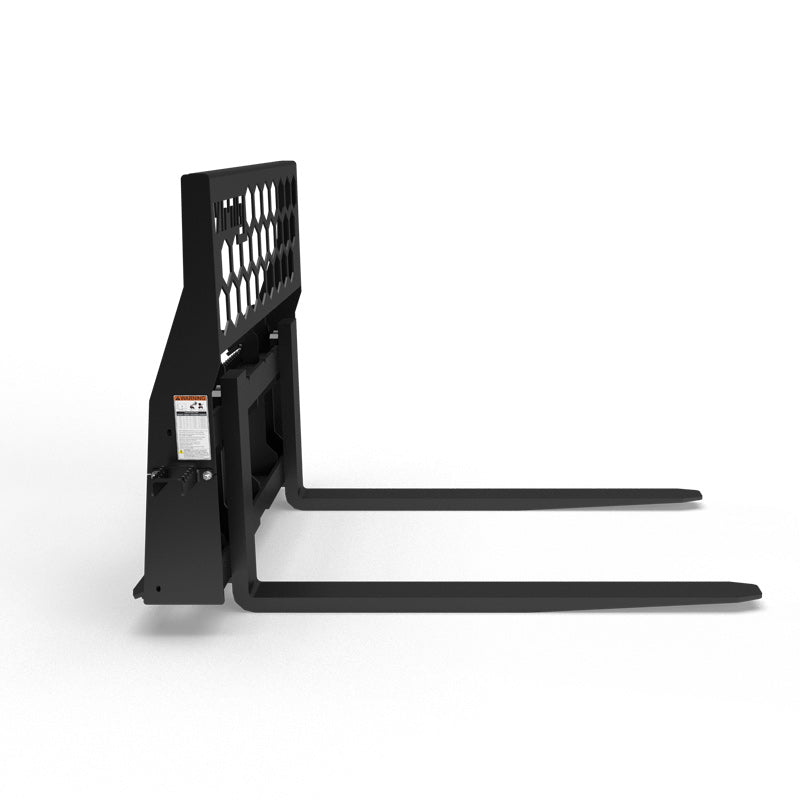

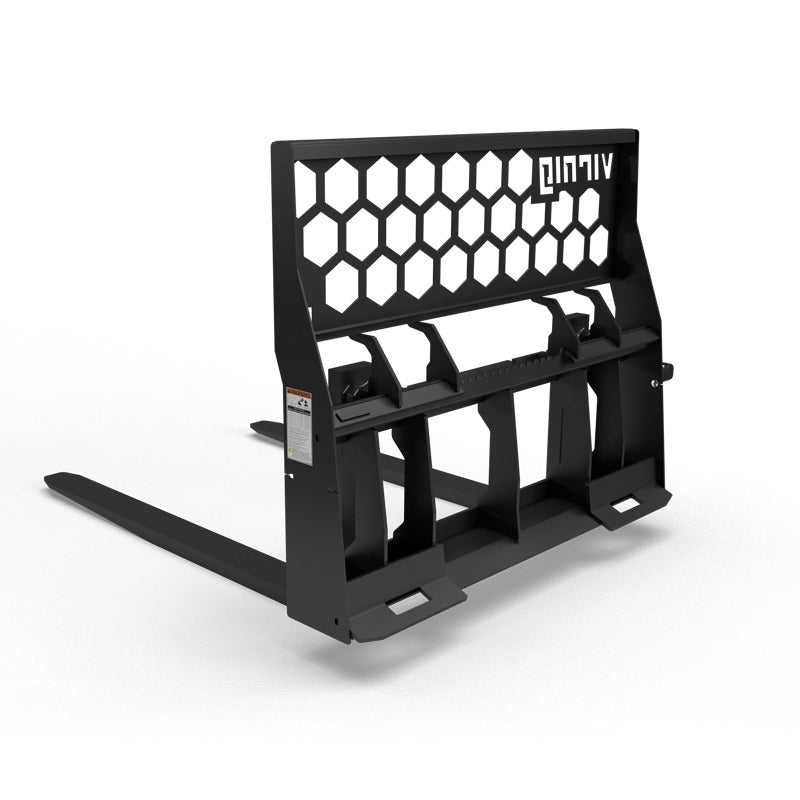

The Virnig Hex-Guard Rail Pallet Fork is engineered for operators who demand strength, stability, and flawless load handling from their skid steer. Built with forged ITA Class II tines, a reinforced beveled rail, and Virnig’s iconic 3/16" Classic Brickguard, this pallet fork delivers professional-grade performance for everything from construction sites and lumber yards to farms, material yards, and industrial job sites.
Every detail is designed around ease of use and maximum load control. The brickguard sits flush with the tines to stabilize tall or shifting loads, while the centered bracing on the quick-tach makes for fast, frustration-free hookup. Operators appreciate the bolt-on step mountable on either side which adds safe, convenient entry and exit from the skid steer.
Choose from multiple models with lifting capacities from 4,000 to 6,200 lbs, tine lengths from 42" to 60", and durable rail thicknesses up to 1.75". No matter the size of your skid steer or the demands of your work, the Virnig Hex-Guard Pallet Fork provides the rock-solid reliability needed to lift, move, and place materials with confidence.
Key Features
- Heavy-Duty ITA Class II Forged Tines Delivers premium strength and consistent load handling for construction, agriculture, and industrial applications.
- Virnig 3/16" Classic Brickguard Enhances load stability and protects the operator during high-stack operations.
- Flush Brickguard-to-Tine Alignment Helps secure pallets, lumber, and irregular loads with reduced shifting.
- Hydraulic Flow Range Compatible with machines delivering 15–25 GPM.
- 3/4" Beveled Rail Adds rigidity to withstand daily heavy lifting and long-term use.
- Centered Quick-Tach Bracing Allows fast and simple attachment to any compatible skid steer.
- Bolt-On Operator Step Mounts on either side for safer machine entry and exit.
- Adjustable Tine Spacing Wide 8.8"–40.9" range offers versatility for different load sizes.
- High Load Capacities Rated from 4,000 to 6,200 lbs to meet demanding jobsite requirements.
- Multiple Width and Tine Options Choose 42", 48", or 60" tines to match your machine and task.
- Non-Hydraulic Operation No GPM or horsepower requirements; compatible with any skid steer using standard quick-tach.
- Reinforced Frame Construction Built for durability in harsh working conditions.
- Precision-Cut Steel Components Ensures long-term reliability and alignment under stress.
- Ideal for Material Handling Perfect for pallets, lumber, pipe, bulk materials, and jobsite transport.
- Smooth, Controlled Load Positioning Designed to improve operator confidence and handling accuracy.
- Engineered for Professional Use A top-choice pallet fork for contractors, farmers, landscapers, and equipment rental fleets.
Detailed Specifications
| Specification | PFHG4240 | PFHG4840 |
|---|---|---|
| Overall Width w/ Step (In.) | 50.5 | 50.5 |
| Frame Width (In.) | 45.5 | 45.5 |
| Overall Height (In.) | 37.0 | 37.0 |
| Tine Length (In.) | 42.0 | 48.0 |
| Tine Width (In.) | 4.0 | 4.0 |
| Tine Thickness (In.) | 1.375 | 1.375 |
| Tine Space Min/Max (In.) | 8.8 / 40.9 | 8.8 / 40.9 |
| Approximate Weight (lbs.) | 345 | 365 |
| Capacity (lbs.) | 4000 | 4000 |
| Specification | PFHG4255 | PFHG4855 |
|---|---|---|
| Overall Width w/ Step (In.) | 50.5 | 50.5 |
| Frame Width (In.) | 45.5 | 45.5 |
| Overall Height (In.) | 37.0 | 37.0 |
| Tine Length (In.) | 42.0 | 48.0 |
| Tine Width (In.) | 4.0 | 4.0 |
| Tine Thickness (In.) | 1.5 | 1.5 |
| Tine Space Min/Max (In.) | 8.8 / 40.9 | 8.8 / 40.9 |
| Approximate Weight (lbs.) | 365 | 380 |
| Capacity (lbs.) | 5500 | 5500 |
| Specification | PFHG6055 | PFHG7255 |
|---|---|---|
| Overall Width w/ Step (In.) | 50.5 | 50.5 |
| Frame Width (In.) | 45.5 | 45.5 |
| Overall Height (In.) | 37.0 | 37.0 |
| Tine Length (In.) | 60.0 | 72.0 |
| Tine Width (In.) | 4.0 | 4.0 |
| Tine Thickness (In.) | 1.5 | 1.5 |
| Tine Space Min/Max (In.) | 8.8 / 40.9 | 8.8 / 40.9 |
| Approx. Weight (lbs.) | 415 | 450 |
| Capacity (lbs.) | 5500 | 6500 |
| Specification | PFHG4862 |
|---|---|
| Overall Width w/ Step (In.) | 50.5 |
| Frame Width (In.) | 45.5 |
| Overall Height (In.) | 37.0 |
| Tine Length (In.) | 48.0 |
| Tine Width (In.) | 4.0 |
| Tine Thickness (In.) | 1.75 |
| Tine Space Min/Max (In.) | 8.8 / 40.9 |
| Approx. Weight (lbs.) | 395 |
| Capacity (lbs.) | 6200 |
Manuals & Documents
Specification Sheet
