Product Description

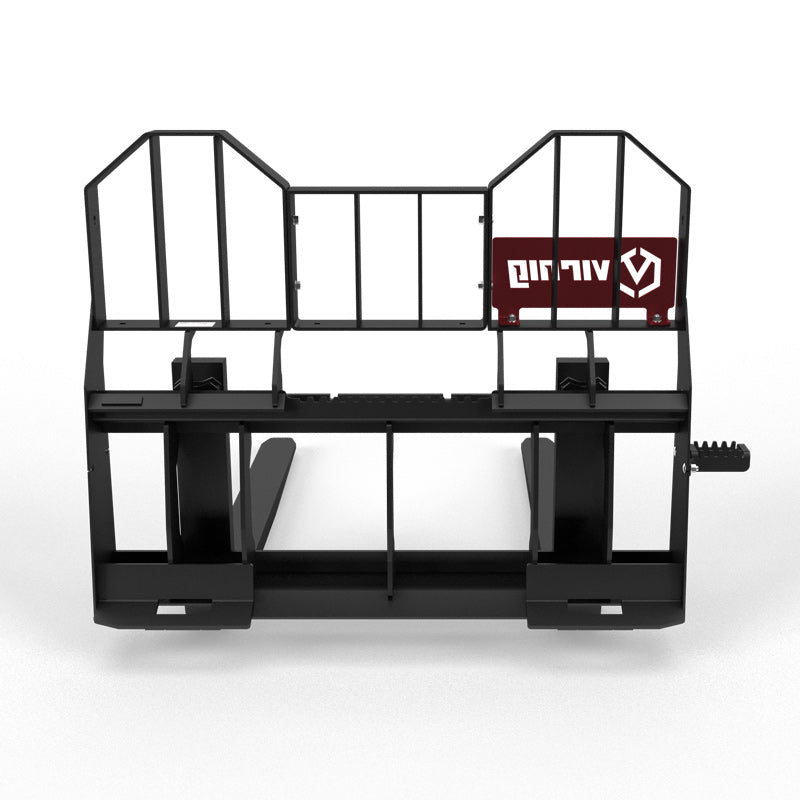

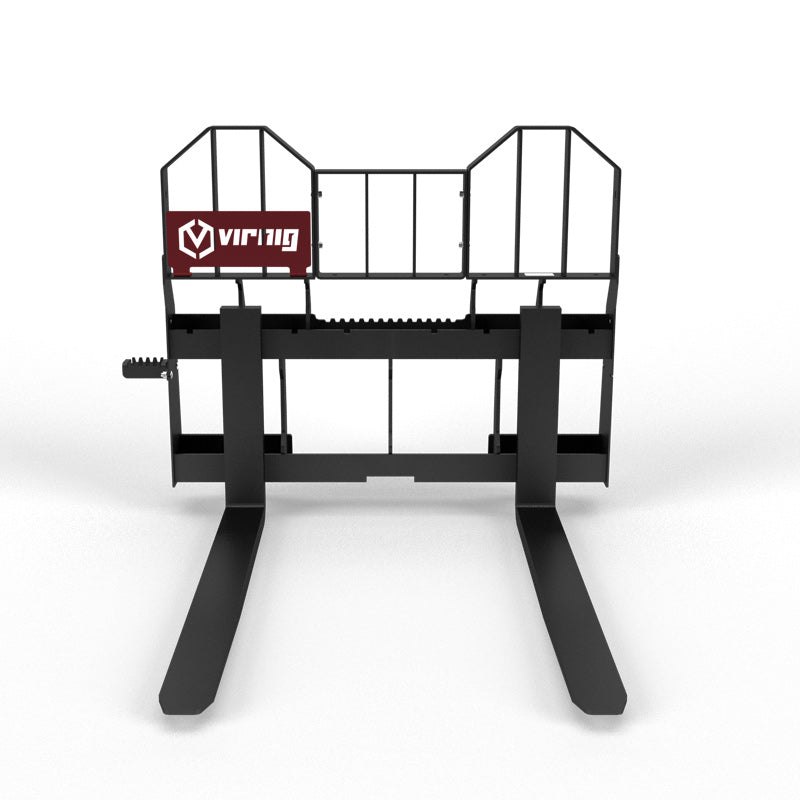

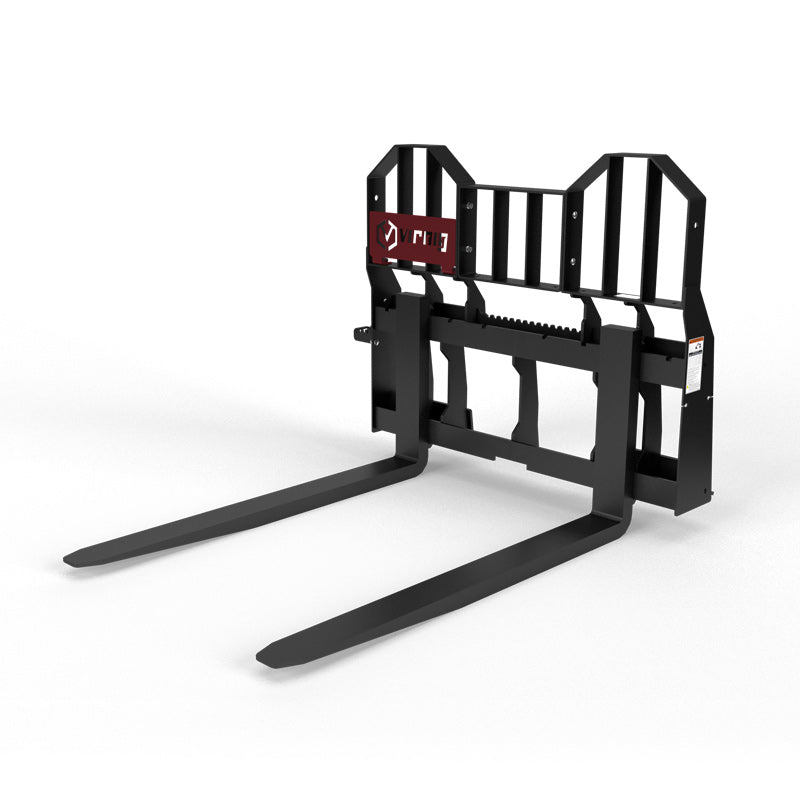

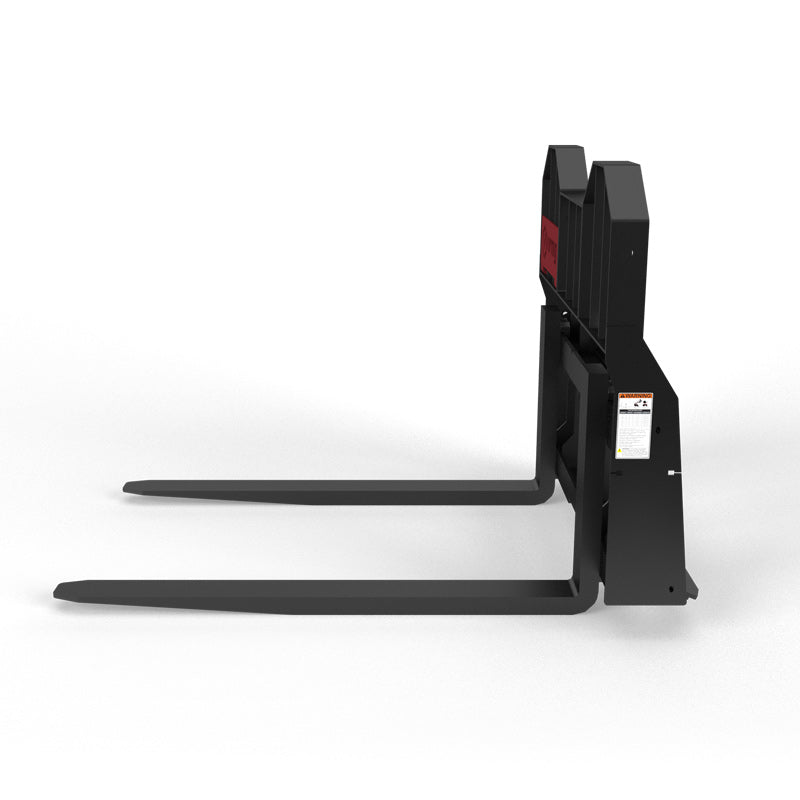

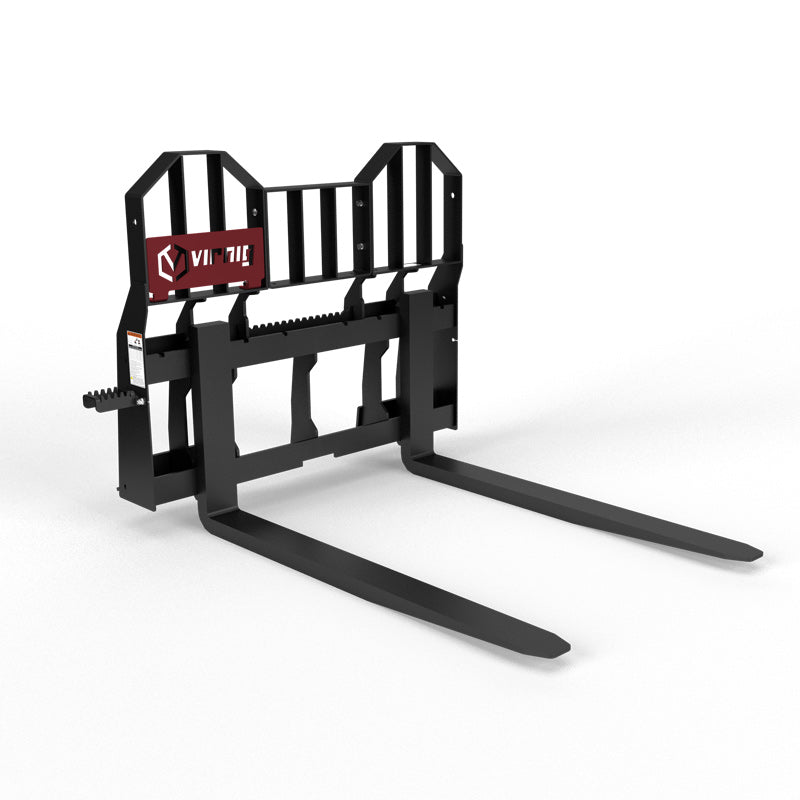

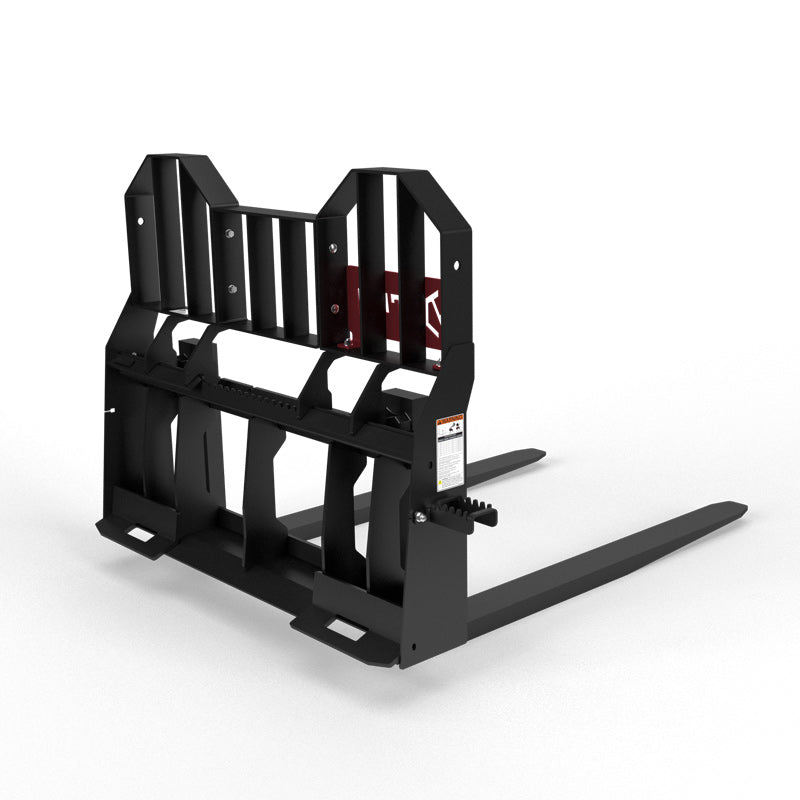

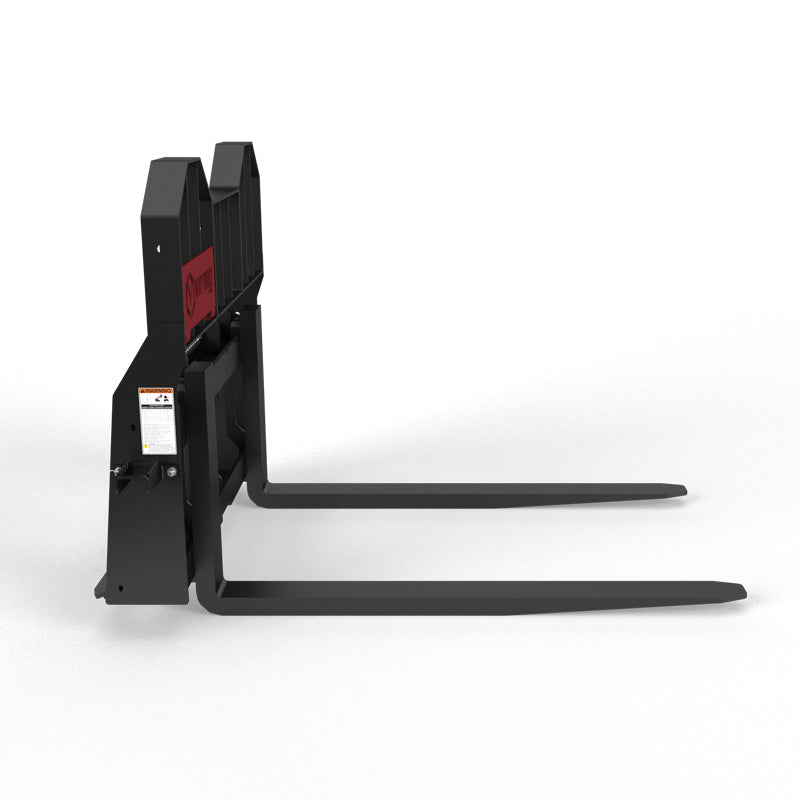

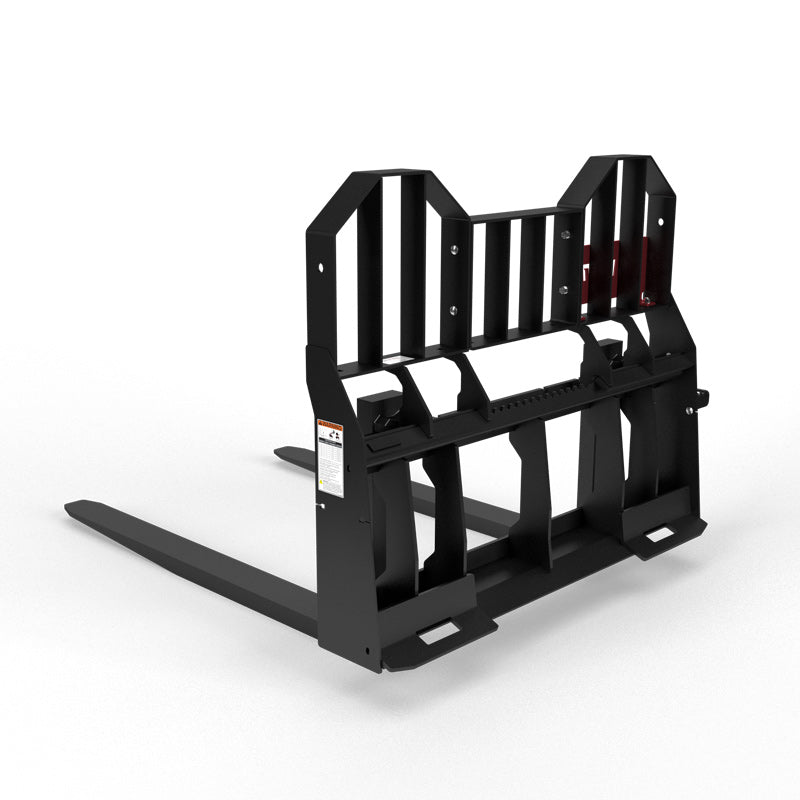

Virnig Rail Pallet Fork: Hi-Vis | Models PF4240 To PF4862 | Tine Length 42" To 72" | Widths 50.5" / 45.5" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
DESCRIPTION
Elevate your material handling with the Virnig Rail Pallet Fork: Hi-Vis, the ultimate attachment for skid steers designed to combine strength, precision, and visibility. Engineered for operators who demand efficiency and safety, these high-visibility pallet forks streamline heavy lifting, pallet transport, and construction site workflows.
With adjustable ITA Class II forged tines and a smart brickguard design, the Hi-Vis Pallet Fork gives you the confidence to handle heavy loads up to 6,200 lbs with ease. The bolt-on step and centered bracing make attachment quick and secure, while the flush brickguard stabilizes even the most awkward loads. Whether you’re navigating tight job sites, transporting pallets, or stacking materials, these forks deliver unmatched reliability, visibility, and performance.
Built to last, easy to maintain, and designed with operator safety in mind, the Virnig Rail Pallet Fork is more than just a skid steer attachment it’s a productivity powerhouse.
Key Features
- H,igh-Visibility Safety: 1/4" hi-vis brickguard ensures clear sight lines while lifting and transporting materials.
- Adjustable ITA Class II Tines: Adaptable spacing from 8.8" to 40.9" accommodates a wide range of pallets and loads.
- Heavy-Duty Construction: Forged steel tines and reinforced frame handle up to 6,200 lbs.
- Hydraulic Flow Range Compatible with machines delivering 15–25 GPM.
- Flush Brickguard Design: Stabilizes loads for safer transport of bricks, blocks, and lumber.
- Bolt-On Step: Easily installs on either side for safer operator access.
- Quick-Tach Center Bracing: Simplifies attachment to skid steer for faster workflow.
- Wide Model Range: Multiple sizes from 42" to 60" for versatility across projects.
- Optimal Load Capacity: From 4,000 to 6,200 lbs, suitable for industrial and construction applications.
- Enhanced Jobsite Efficiency: Quick adjustments and durable design minimize downtime.
- Precision Handling: Even weight distribution improves maneuverability and control.
- Corrosion-Resistant Finish: Keeps forks looking new and performing at peak level.
- Operator-Friendly: Step and brickguard layout designed to reduce fatigue and improve safety.
- Customizable Options: Center section can be removed to convert to walk-through brickguard configuration.
- Compatible with All Skid Steers: Designed for Class II quick-attach skid steer mounts.
- Trusted Brand Quality: Virnig Mfg. craftsmanship ensures reliability and long-term performance.
Detailed Specifications
| Specification | PF4240 | PF4840 |
|---|---|---|
| Overall Width (in) | 50.5 / 45.5 | 50.5 / 45.5 |
| Overall Height (in) | 37.0 | 37.0 |
| Tine Length / Width / Thickness (in) | 42 / 4.0 / 1.375 | 48 / 4.0 / 1.375 |
| Tine Spacing Min / Max (in) | 8.8 / 40.9 | 8.8 / 40.9 |
| Approx. Weight (lbs) | 370 | 390 |
| Load Capacity (lbs) | 4,000 | 4,000 |
| Hydraulic Flow Range (GPM) | 15–25 | 15–25 |
| Skid Steer Compatibility | Class II Quick-Tach, 50–75 HP | Class II Quick-Tach, 50–75 HP |
| Intended Use | Material handling, pallet transport | Material handling, pallet transport |
| Specification | PF4255 | PF4855 |
|---|---|---|
| Overall Width (in) | 50.5 / 45.5 | 50.5 / 45.5 |
| Overall Height (in) | 37.0 | 37.0 |
| Tine Length / Width / Thickness (in) | 42 / 4.0 / 1.5 | 48 / 4.0 / 1.5 |
| Tine Spacing Min / Max (in) | 8.8 / 40.9 | 8.8 / 40.9 |
| Approx. Weight (lbs) | 390 | 405 |
| Load Capacity (lbs) | 5,500 | 5,500 |
| Hydraulic Flow Range (GPM) | 15–25 | 15–25 |
| Skid Steer Compatibility | Class II Quick-Tach, 50–75 HP | Class II Quick-Tach, 50–75 HP |
| Intended Use | Material handling, pallet transport | Material handling, pallet transport |
| Specification | PF6055 | PF7255 |
|---|---|---|
| Overall Width (in) | 50.5 / 45.5 | 72 / 65* |
| Overall Height (in) | 37.0 | 37.0* |
| Tine Length / Width / Thickness (in) | 60 / 4.0 / 1.5 | 72 / 4.0 / 1.75* |
| Tine Spacing Min / Max (in) | 8.8 / 40.9 | 8.8 / 66* |
| Approx. Weight (lbs) | 440 | 480* |
| Load Capacity (lbs) | 5,500 | 6,200* |
| Hydraulic Flow Range (GPM) | 15–25 | 15–25 |
| Skid Steer Compatibility | Class II Quick-Tach, 50–75 HP | Class II Quick-Tach, 50–75 HP |
| Intended Use | Material handling, pallet transport | Material handling, pallet transport |
| Specification | PF4862 |
|---|---|
| Overall Width (in) | 50.5 / 45.5 |
| Overall Height (in) | 37.0 |
| Tine Length / Width / Thickness (in) | 48 / 4.0 / 1.75 |
| Tine Spacing Min / Max (in) | 8.8 / 40.9 |
| Approx. Weight (lbs) | 420 |
| Load Capacity (lbs) | 6,200 |
| Hydraulic Flow Range (GPM) | 15–25 |
| Skid Steer Compatibility | Class II Quick-Tach, 50–75 HP |
| Intended Use | Material handling, pallet transport |
Manuals & Documents
Specification Sheet
