Product Description

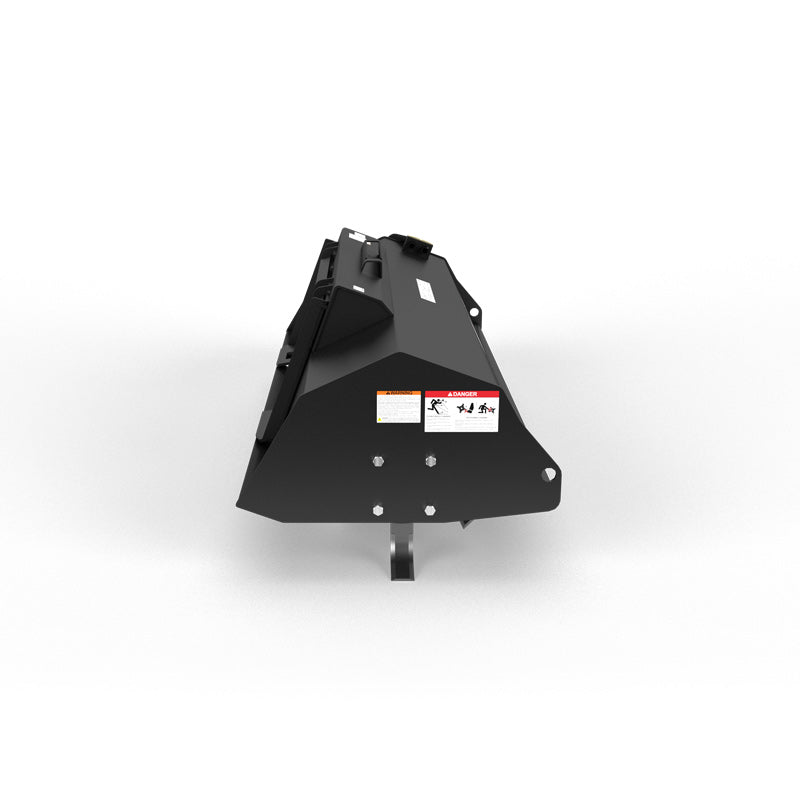

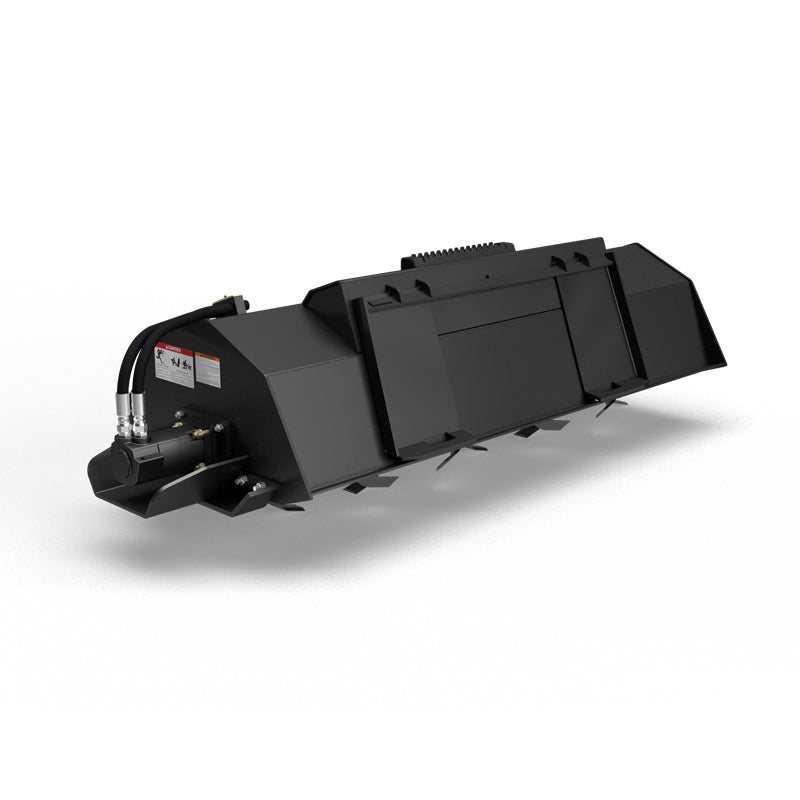

Virnig Tiller | Models TLR54 & TLR72 | Widths 54" & 72" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
DESCRIPTION
Transform hard-packed ground into rich, workable soil with the Virnig TLR-Series Skid Steer Tillers, available in 54-inch (TLR54) and 72-inch (TLR72) models. Designed for professional landscapers, farmers, and contractors, these powerful attachments redefine soil preparation efficiency covering wide areas quickly while maintaining precise control near obstacles.
The offset design lets operators till right up against buildings, fences, and sidewalks while fully covering skid steer tire tracks. A bi-directional direct-drive motor delivers exceptional torque and allows forward or reverse tilling, creating a perfectly mixed soil bed every pass. Built with heat-treated, dual-edge tines and a 2-inch bearing-supported drum shaft, the Virnig tiller thrives in demanding environments, easily breaking through compacted clay and rocky ground.
Compatible with all major skid steer loaders equipped with standard-flow hydraulics (15–25 GPM) and rated operating capacity over 1,300 lbs, the TLR-Series combines power, precision, and low maintenance. Whether you’re prepping landscapes, food plots, gardens, or construction sites, this tiller attachment is engineered for long-lasting performance and dependable results.
Key Features
- Universal Skid Steer Quick-Attach Mount Fits all standard skid steer models with quick-tach plates.
- Available in 54" and 72" Widths Choose the perfect size for your machine and job site.
- Offset Frame Design Allows close-edge tilling along structures while covering loader tire paths.
- 15–25 GPM Hydraulic Flow Range Optimized for standard-flow skid steers.
- Bi-Directional Tilling Action Operate in forward or reverse to break, mix, and blend soil thoroughly.
- Direct-Drive Hydraulic Motor Eliminates chains and belts, reducing wear and downtime.
- 2" Bearing-Supported Shaft Reinforced on both sides for drum stability and extended motor life.
- Heat-Treated Dual-Edge Tines Replaceable bolt-on tines deliver maximum cutting strength in tough soils.
- 22" Heavy-Duty Drum Diameter Promotes consistent tilling depth and excellent soil turnover.
- 6" Maximum Tilling Depth Ideal for landscaping, seedbed prep, and agricultural applications.

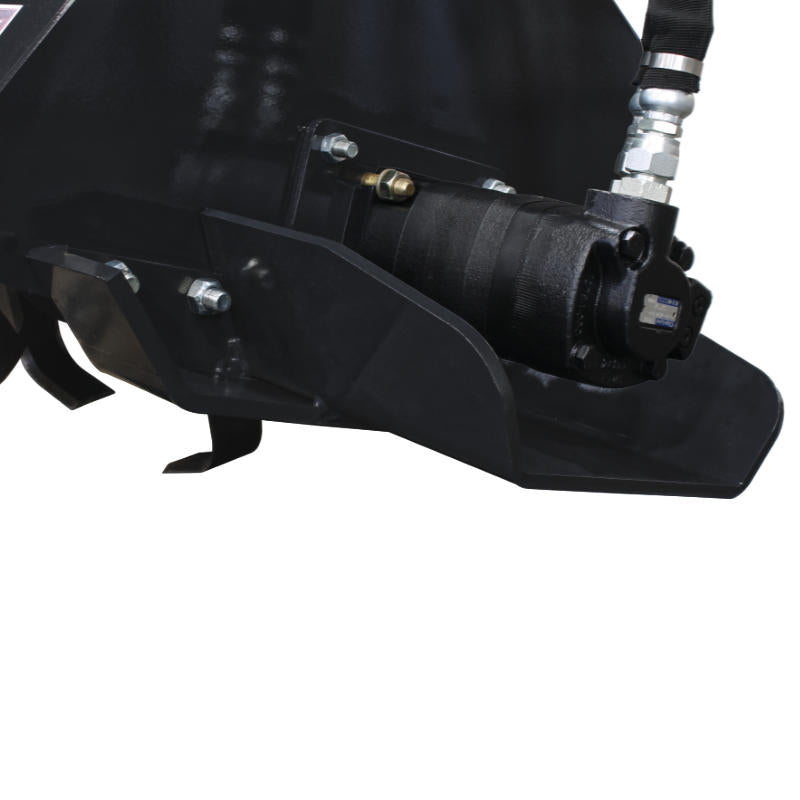

- Guarded Motor Housing Shields motor from rocks, stumps, and debris impact.
- Balanced Weight Distribution Enhances traction, control, and operator comfort.
- Low-Maintenance Engineering Simplified direct-drive design minimizes service needs.
- Made in the USA Quality Precision-built with high-strength steel and premium components.
- Professional-Grade Versatility Perfect for contractors, farmers, and maintenance crews seeking dependable soil preparation performance.
Detailed Specifications
| Specification | TLR54 |
|---|---|
| Attachment Type | Skid Steer Tiller |
| Mounting Style | Universal Skid Steer Quick Attach |
| Working Width | 54.0 in |
| Overall Width | 70.5 in |
| Loader Width Coverage (Outside Tire) | 68.0 in |
| Overall Height | 28.0 in |
| Overall Depth | 32.0 in |
| Maximum Tilling Depth | 6.0 in |
| Working Offset | 7.0 in |
| Drum Diameter | 22.0 in |
| Number of Tines | 28 |
| Recommended Hydraulic Flow | 15–25 GPM (Standard Flow) |
| Approximate Weight | 900 lbs |
| Recommended Loader Capacity (ROC) | Greater than 1,300 lbs |
| Operation Mode | Forward or Reverse |
| Tine Type | Bolt-On, Heat-Treated Dual-Edge |
| Motor Protection | Guarded Bottom & Sides |
| Specification | TLR72 |
|---|---|
| Attachment Type | Skid Steer Tiller |
| Mounting Style | Universal Skid Steer Quick Attach |
| Working Width | 72.0 in |
| Overall Width | 88.5 in |
| Loader Width Coverage (Outside Tire) | 80.0 in |
| Overall Height | 28.0 in |
| Overall Depth | 32.0 in |
| Maximum Tilling Depth | 6.0 in |
| Working Offset | 4.0 in |
| Drum Diameter | 22.0 in |
| Number of Tines | 36 |
| Recommended Hydraulic Flow | 15–25 GPM (Standard Flow) |
| Approximate Weight | 1,050 lbs |
| Recommended Loader Capacity (ROC) | Greater than 1,300 lbs |
| Operation Mode | Forward or Reverse |
| Tine Type | Bolt-On, Heat-Treated Dual-Edge |
| Motor Protection | Guarded Bottom & Sides |
Manuals & Documents
Specification Sheet
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

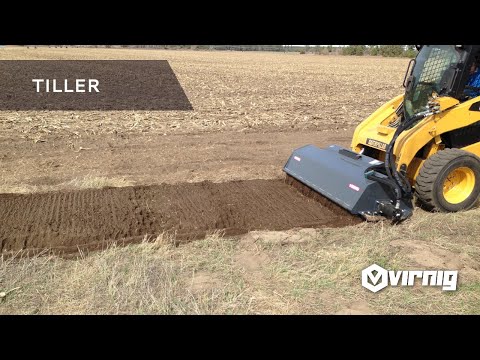

Videos
