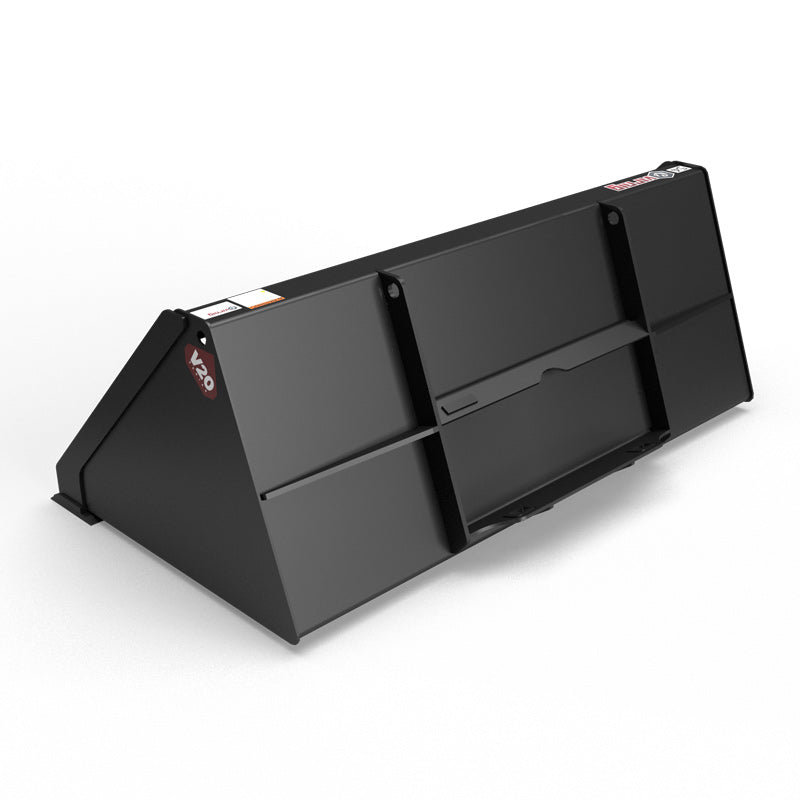

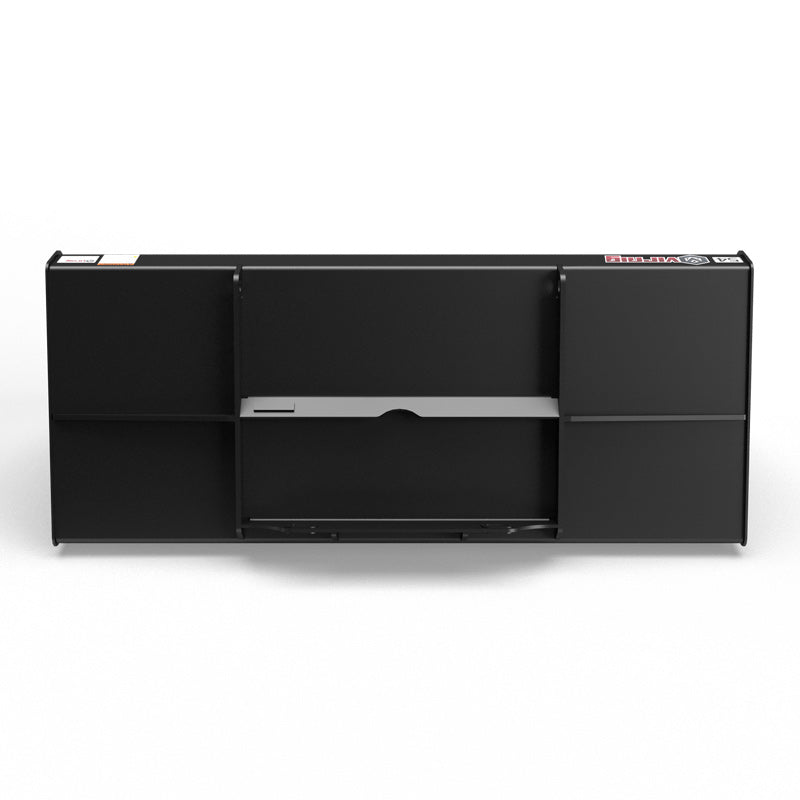

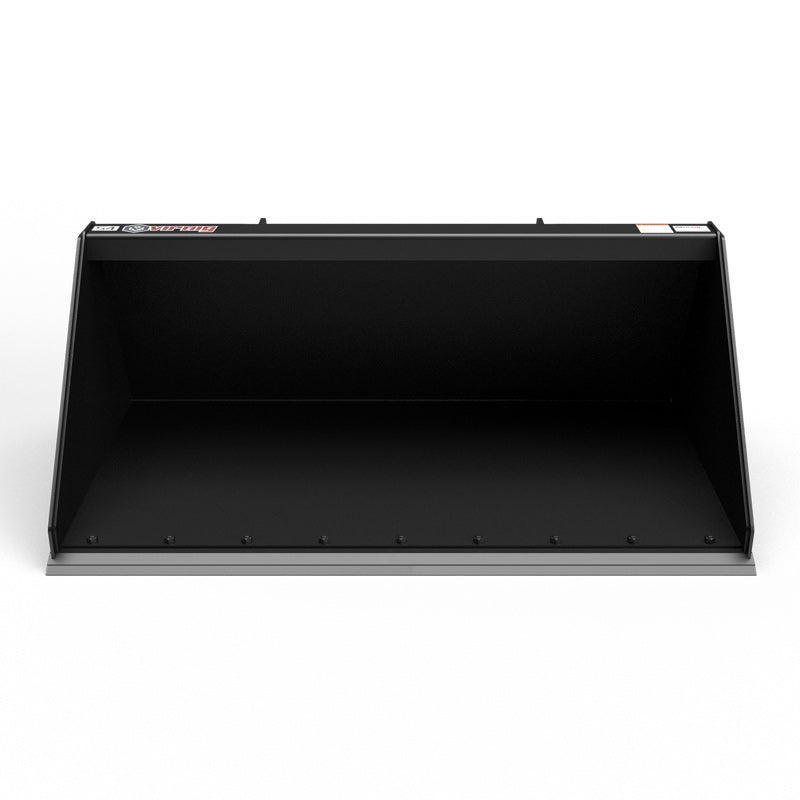

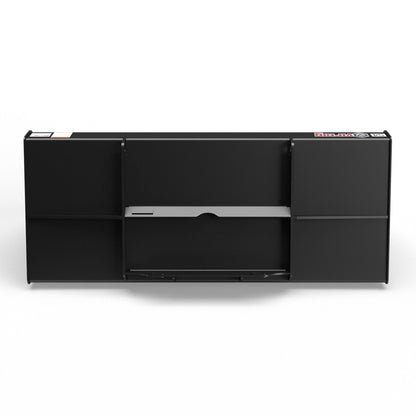

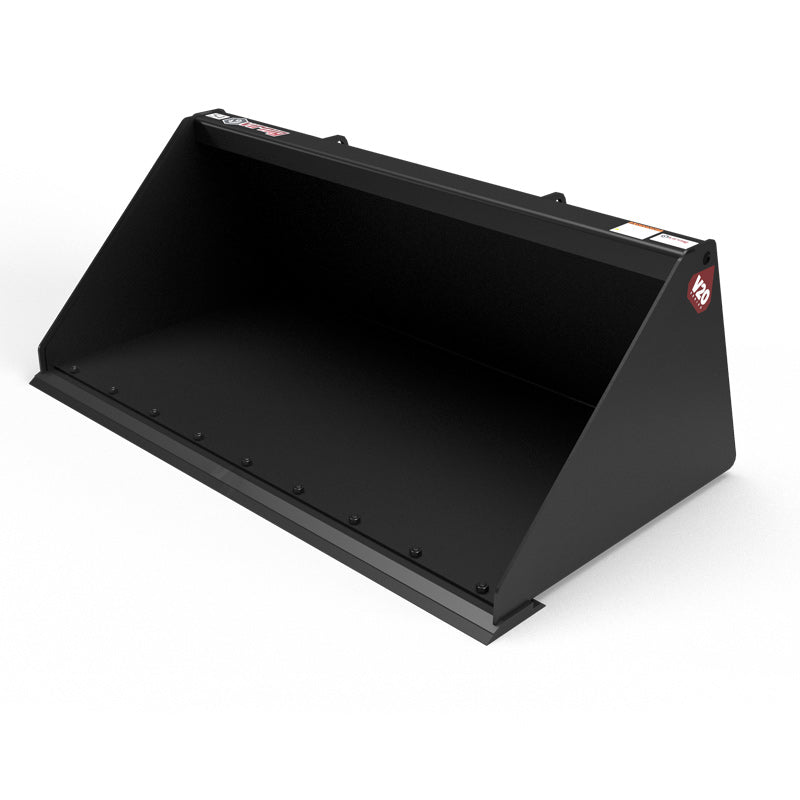

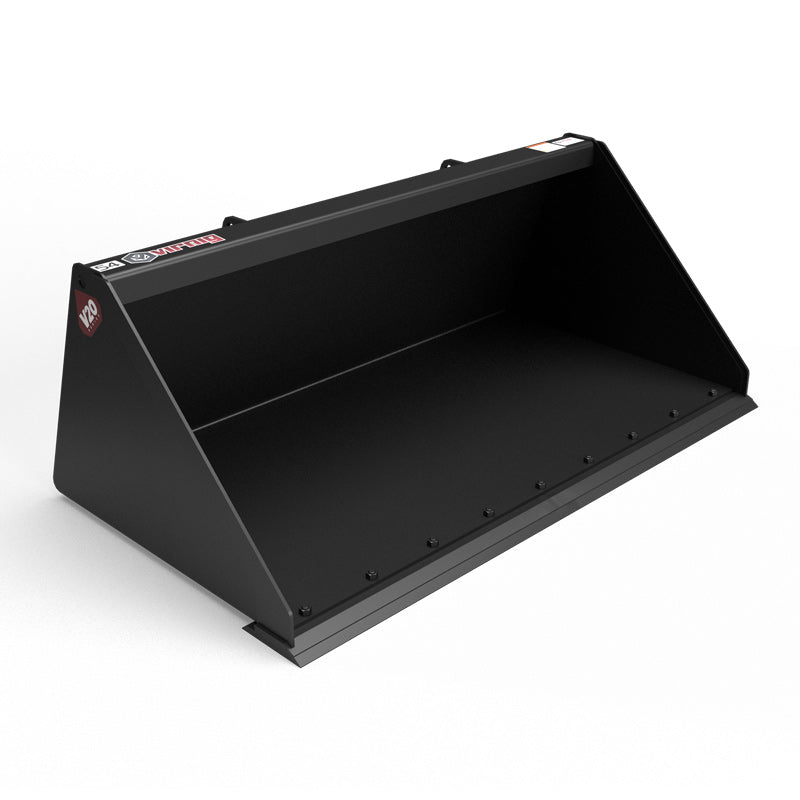

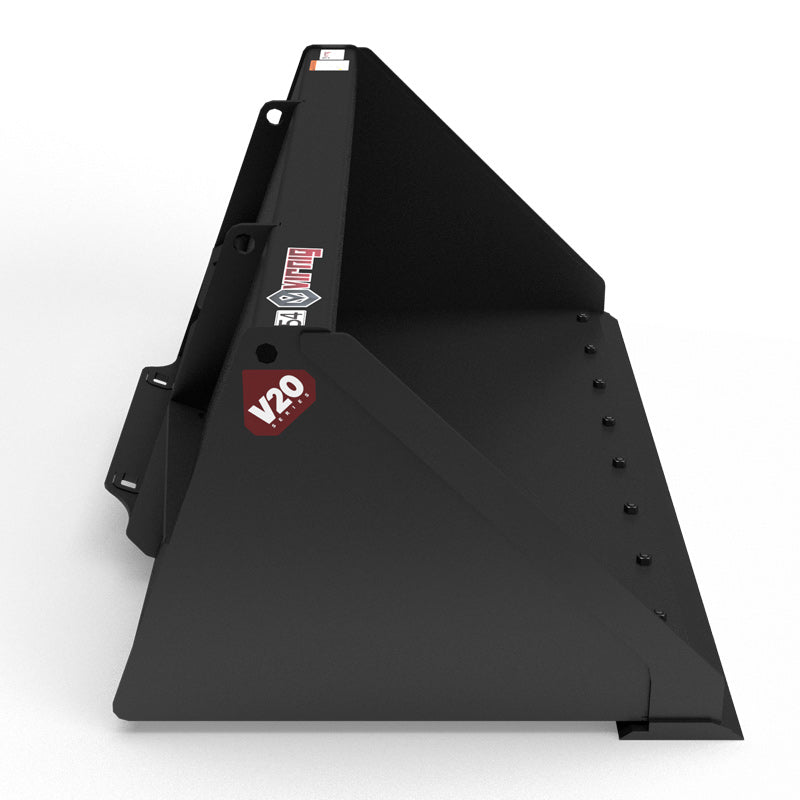

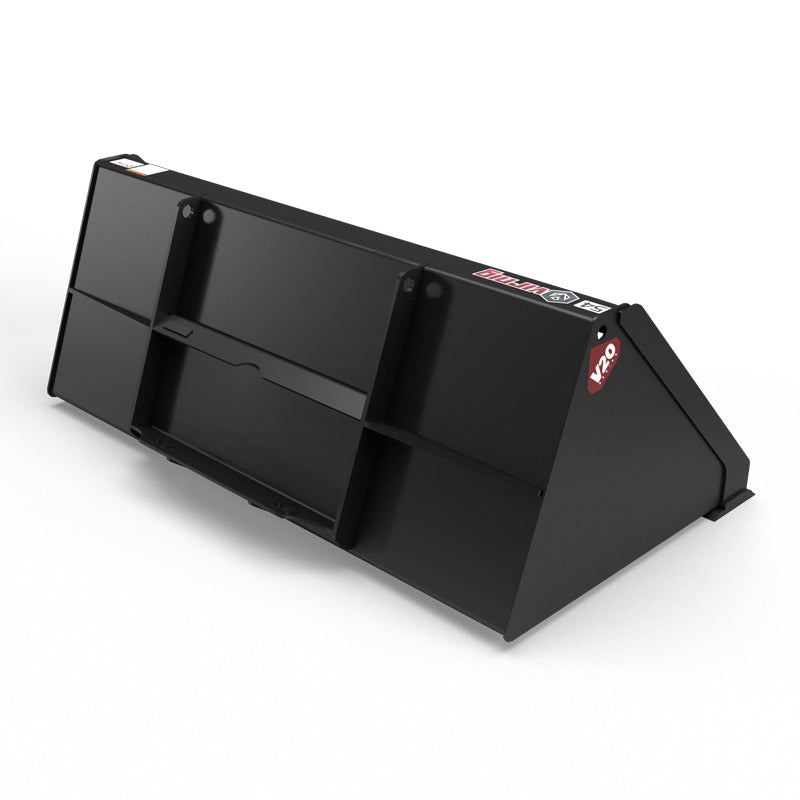

Virnig V20 Mini Skid Steer High Capacity Dirt Bucket | Models CHCB36, CHCB42, CHCB44, CHCB48 & CHCB54 | Widths 36" To 54" | Hydraulic Flow Range 15 To 25 GPM | For Mini Skid Steer
Virnig V20 Mini Skid Steer High Capacity Dirt Bucket | Models CHCB36, CHCB42, CHCB44, CHCB48 & CHCB54 | Widths 36" To 54" | Hydraulic Flow Range 15 To 25 GPM | For Mini Skid Steer
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Virnig V20 Mini Skid Steer High Capacity Dirt Bucket | Models CHCB36, CHCB42, CHCB44, CHCB48 & CHCB54 | Widths 36" To 54" | Hydraulic Flow Range 15 To 25 GPM | For Mini Skid Steer
DESCRIPTION
Upgrade your mini skid steer with the V20 Mini Skid Steer High Capacity Dirt Bucket, designed for maximum durability and superior performance in tough conditions. Perfect for landscaping, construction, and agricultural projects, this bucket offers an increased capacity, allowing you to move more material with fewer trips. With its heavy-duty construction and specialized features, it’s built to handle demanding tasks such as digging, lifting, and transporting heavy loads of dirt, gravel, or snow.
The V20 High Capacity Dirt Bucket features a high-backed design, optimizing the bucket’s capacity and giving you more volume per scoop. The sturdy, welded shell, reinforced side plates, and a rugged 1/2" x 4" weld-on cutting edge ensure exceptional strength and long-lasting performance. Whether you're leveling soil, hauling materials, or digging trenches, this bucket is designed to work harder and last longer, all while improving your productivity on the job.
With five available widths ranging from 36" to 54", it’s the perfect match for your mini skid steer, offering versatility and a precise fit for various loader types. Additionally, this attachment is designed for use requiring hydraulic flow 15-25 GPM, meaning you can easily swap it out without any extra setup or equipment, making it the ideal choice for both novice and experienced operators.
Key Features
- High Capacity Design: Larger capacity for moving more material in fewer passes.
- Durable Construction: 1/4" shell thickness and 3/16" side plates for exceptional strength and durability.
- Grading Bend: Perfect for optimal reverse grading and smoothing surfaces.
- Heavy-Duty Weld-On Edge: 1/2" x 4" cutting edge for durability and long wear.
- Compact and Versatile: Available in five widths (36", 42", 44", 48", 54") to fit a variety of mini skid steers.
- Maximum Efficiency: Increases load capacity requiring hydraulic flow 15-25 GPM, making it easy to use.
- Wide Compatibility: Designed for mini skid steers with a weight capacity of less than 1650 lbs, including models from brands like Bobcat® and ASV®.
- Stability and Control: Bucket back angle of 70° ensures better material handling.
- Easy to Maintain: Replaceable wear edges available to prolong the bucket’s lifespan.
- Heavy Lifting Power: Ideal for landscaping, construction, and digging projects.
- Lightweight for Power: Despite its high capacity, this bucket weighs between 2,351 lbs and 3,151 lbs, providing optimal performance without being too heavy for your mini skid steer.
- Perfect for Tight Spaces: The compact size makes it a great choice for narrow areas where maneuverability is key.
- Enhanced Performance: Designed for efficient dirt, gravel, snow, and light material handling.
- Quick Mount System: Easy to mount, compatible with Mini Universal, Bobcat®, and ASV® Mini mounts.
- All-Weather Durability: Built to handle tough conditions, from wet, muddy terrain to frozen ground.
Detailed Specifications
| Specification | CHCB36 | CHCB42 |
|---|---|---|
| Width (Inches) | 36" | 42" |
| Capacity (Struck/Heaped, Cubic Feet) | 7.2 / 8.6 | 8.4 / 10.1 |
| Weight (Pounds) | 2,351 | 2,601 |
| Recommended Loader Capacity (lbs) | Less than 1650 | Less than 1650 |
| Bucket Back Angle (Degrees) | 70° | 70° |
| Shell Thickness (Inches) | 0.25" | 0.25" |
| Side Plate Thickness (Inches) | 0.19" | 0.19" |
| Overall Height (Inches) | 20.8" | 20.8" |
| Overall Depth (Inches) | 32.7" | 32.7" |
| Inside Depth (Inches) | 29.3" | 29.3" |
| Specification | CHCB44 | CHCB48 |
|---|---|---|
| Width (Inches) | 44" | 48" |
| Capacity (Struck/Heaped, Cubic Feet) | 8.8 / 10.6 | 9.6 / 11.5 |
| Weight (Pounds) | 2,701 | 2,901 |
| Recommended Loader Capacity (lbs) | Less than 1650 | Less than 1650 |
| Bucket Back Angle (Degrees) | 70° | 70° |
| Shell Thickness (Inches) | 0.25" | 0.25" |
| Side Plate Thickness (Inches) | 0.19" | 0.19" |
| Overall Height (Inches) | 20.8" | 20.8" |
| Overall Depth (Inches) | 32.7" | 32.7" |
| Inside Depth (Inches) | 29.3" | 29.3" |
| Specification | CHCB54 |
|---|---|
| Width (Inches) | 54" |
| Capacity (Struck/Heaped, Cubic Feet) | 10.8 / 13.0 |
| Weight (Pounds) | 3,151 |
| Recommended Loader Capacity (lbs) | Less than 1650 |
| Bucket Back Angle (Degrees) | 70° |
| Shell Thickness (Inches) | 0.25" |
| Side Plate Thickness (Inches) | 0.19" |
| Overall Height (Inches) | 20.8" |
| Overall Depth (Inches) | 32.7" |
| Inside Depth (Inches) | 29.3" |
