Product Description
Virnig V20 Mini Skid Steer Land Leveler | Models CLL36, CLL42, CLL48 & CLL54 | Widths 36" To 54" | Hydraulic Flow Range 15 To 25 GPM | For Mini Skid Steers
DESCRIPTION

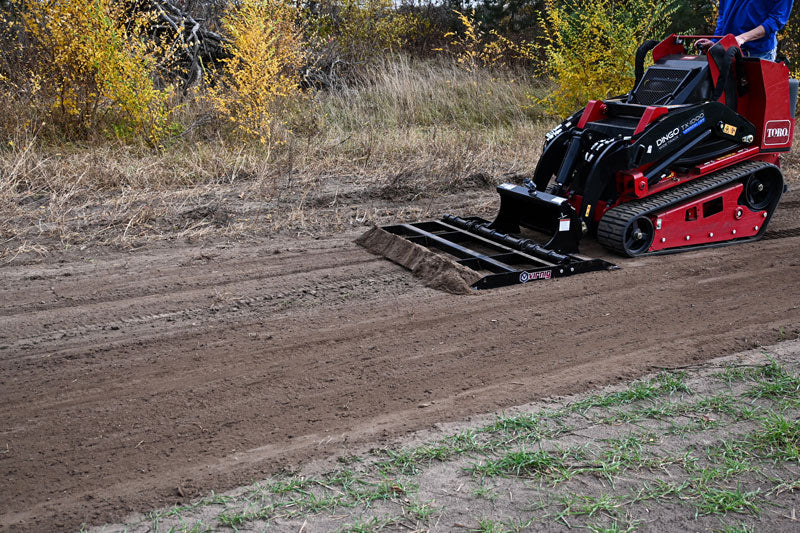

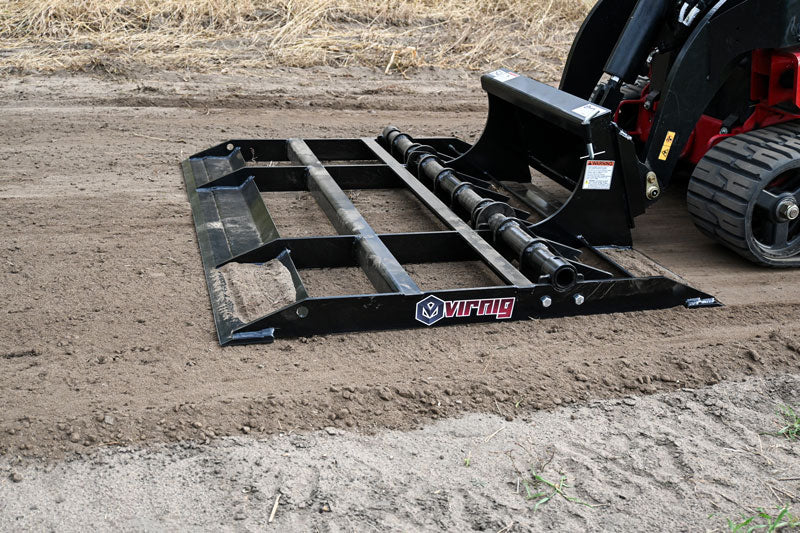

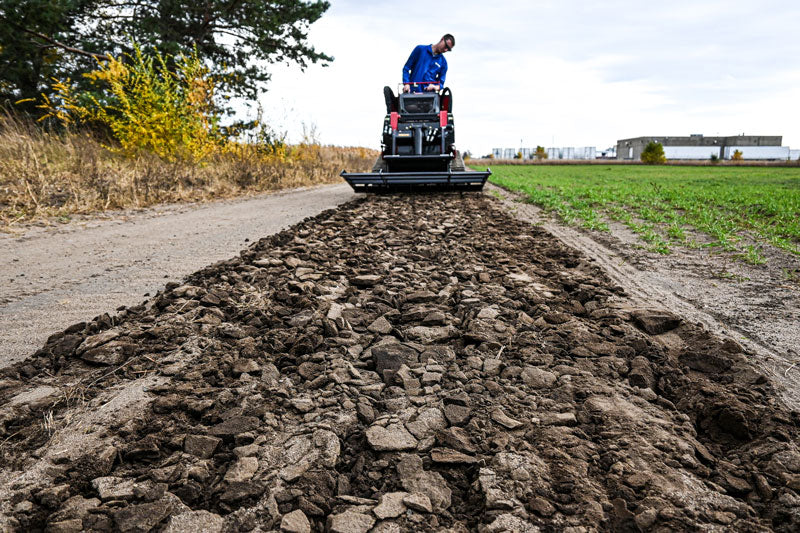

The Virnig V20 Mini Skid Steer Land Leveler is a compact, high-performance ground-prep attachment designed for contractors, landscapers, homeowners, and site-prep professionals who need clean, accurate grading in tight spaces. Whether you’re preparing a yard for sod, leveling gravel, repairing driveways, or cutting high spots before finishing grade, this attachment delivers exceptional control and smooth, consistent results.

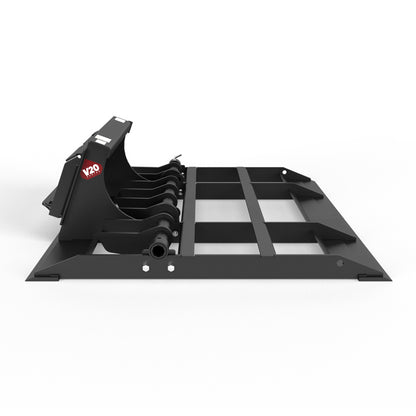

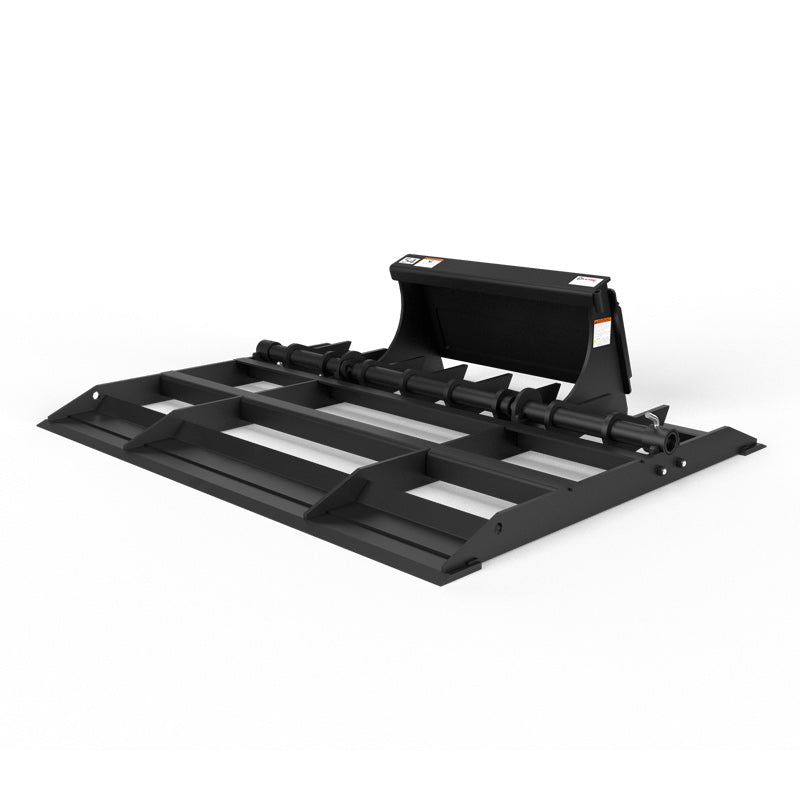

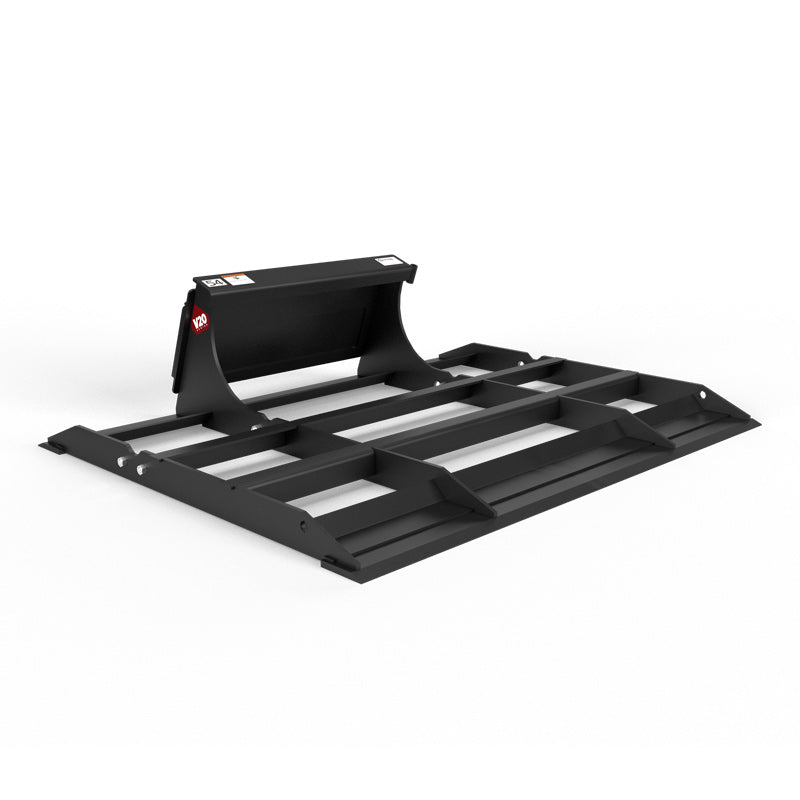

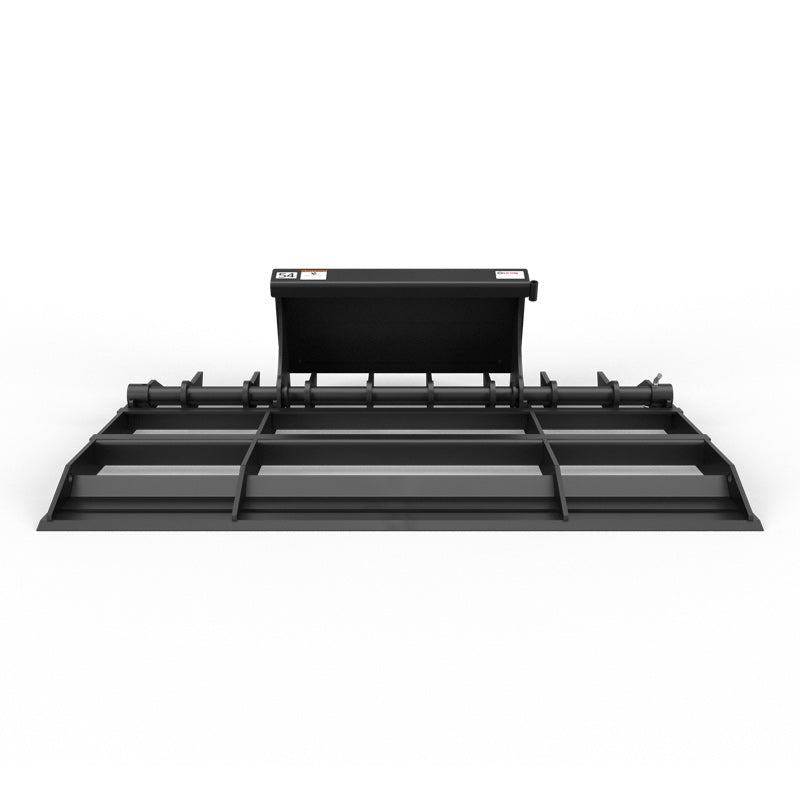

Built with dual ½" × 4" cutting edges, the V20 Land Leveler cuts, grades, and levels soil efficiently in both forward and reverse. Its open, low-back design gives operators clear cutting-edge visibility, while the flat top doubles as a stable platform for carrying tools or materials around the jobsite. Optional scarifying teeth made from AR400 steel break up compacted soil with ease, helping you achieve a perfect sub-grade even in challenging conditions.
Compatible with Mini Universal, Bobcat® Mini, and ASV® Mini mounts (model availability varies), this land leveler fits most mini skid steers on the market. With a recommended loader rating under 1,650 lbs and ideal for machines in the 20–35 HP range, it’s a highly capable tool for small machines that need big performance.
Key Features
- Precision Ground Prep: Cuts, levels, and grades soil with ease—ideal for landscaping, site prep, driveway repair, and material spreading.
- Dual ½" × 4" Cutting Edges: Work efficiently in both forward and reverse to increase jobsite productivity.

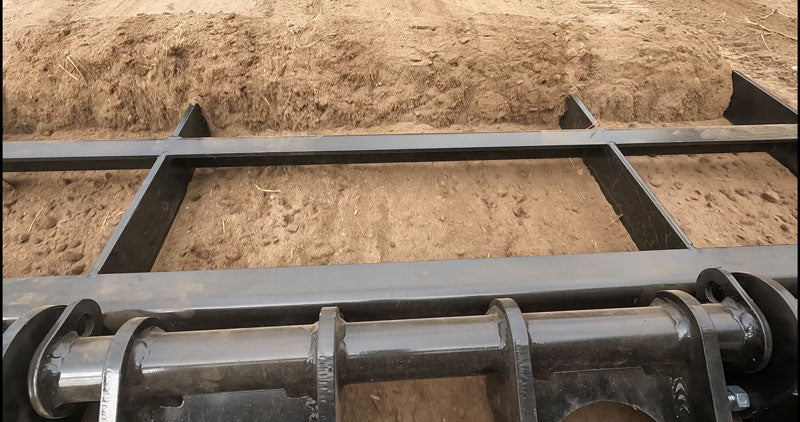

- Open, Low-Back Visibility Design: Enhances operator accuracy with an unobstructed view of the cutting edges.
- Flat-Top Surface for Transporting Tools: Allows operators to carry buckets, bags, or small materials from point to point.

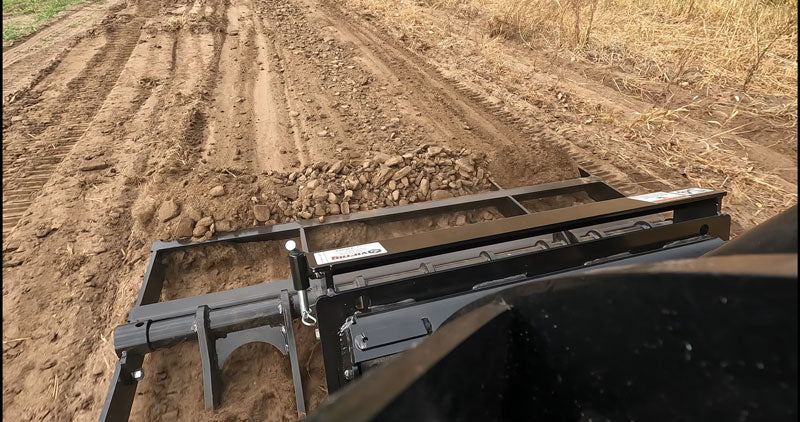

- Heavy-Duty AR400 Scarifier Teeth: Slice 4.6" deep to break compacted soil manually lock stowed when not needed.
- Ideal for Compact Machines: Works perfectly with mini skid steers in the 20–35 HP range.
- No Hydraulics Required: Simple, durable, and low-maintenance mechanical operation.
- Hydraulic Flow Range Listed per Requirement: Hydraulic Flow Range 15–25 GPM.
- Multiple Mount Options: Mini Universal, Bobcat® Mini, and ASV® Mini to match your machine.
- Mount Compatibility Notes Included: ASV® mount available for CLL48 & CLL54 only.
- Excellent for Tight-Access Work: Compact frame sizes from 36" to 54" handle confined jobsite spaces.
- High-Strength Weld-On Cutting Edges: Long-lasting ¼" × 4" edges for aggressive material cutting.
- Efficient Forward & Reverse Leveling: Save time by cutting and smoothing in both directions.
- Rugged, Jobsite-Ready Build: Engineered to withstand daily contractor use.
- Lightweight for Smaller Machines: Weights range from 185–225 lbs to maintain optimal lifting and maneuverability.
Detailed Specifications
| Model | CLL36 | CLL42 |
|---|---|---|
| Overall Width (in.) | 36.0 | 42.0 |
| Overall Height (in.)Toro® / Bobcat® / ASV® | 14.9 / 20.9 / 17.2 | 14.9 / 20.9 / 17.2 |
| Overall Depth (in.) | 46.2 | 46.2 |
| Weld-On Edges (in.) | ¼" × 4" | ¼" × 4" |
| Approx. Weight (lbs) | 185¹ | 200¹ |
| Recommended Loader Capacity | < 1,650 lbs | < 1,650 lbs |
| Scarifier Teeth | AR400, ½" thick, cuts 4.6" deep | AR400, ½" thick, cuts 4.6" deep |
| Machine Power Requirement | 20–35 HP | 20–35 HP |
| Hydraulic Flow Requirement | 15–25 GPM | 15–25 GPM |
| Model | CLL48 | CLL54 |
|---|---|---|
| Overall Width (in.) | 48.0 | 54.0 |
| Overall Height (in.)Toro® / Bobcat® / ASV® | 14.9 / 20.9 / 17.2 | 14.9 / 20.9 / 17.2 |
| Overall Depth (in.) | 46.2 | 46.2 |
| Weld-On Edges (in.) | ¼" × 4" | ¼" × 4" |
| Approx. Weight (lbs) | 210¹ | 225¹ |
| Recommended Loader Capacity | < 1,650 lbs | < 1,650 lbs |
| Scarifier Teeth | AR400, ½" thick, cuts 4.6" deep | AR400, ½" thick, cuts 4.6" deep |
| Machine Power Requirement | 20–35 HP | 20–35 HP |
| Hydraulic Flow Requirement | 15–25 GPM | 15–25 GPM |
Manuals & Documents
Specification Sheet
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!
