Product Description
Virnig V20 Mini Skid Steer Open Front Rotary Brush Cutter | Models CBC42-O & CBC48-O | Widths 42" & 48" | Hydraulic Flow 11 To 18 GPM | For Mini Skid Steers
DESCRIPTION
The V20 Mini Skid Steer Open Front Rotary Brush Cutter is built for operators who need serious cutting power in compact spaces. Whether you're clearing underbrush, tackling thick grass, or taking down trees up to 3 inches in diameter, this heavy-duty open-front design delivers speed, precision, and exceptional durability.
Engineered for mini skid steer loaders, this cutter features a direct-drive Eaton® hydraulic motor, a circular flywheel with three updraft blades, and an aggressive open-front mouth that allows you to bite into material faster. Operators will appreciate the hydraulic braking system that stops the flywheel in under ten seconds, enhancing control and safety in tight working areas.
Choose from Mini Universal, Bobcat® Mini, or ASV® Mini mounts (CBC42-O not compatible with ASV®). The attachment is ideal for landscapers, land-clearing professionals, property managers, and contractors who demand top-tier performance from compact machinery.
For hydraulic horsepower, operators should expect to supply an estimated 19–32 hydraulic HP, based on typical 11–18 GPM systems at ~3000 PSI.
Compact, powerful, and purpose-built this brush cutter turns your mini skid steer into a serious land-clearing machine.
Key Features

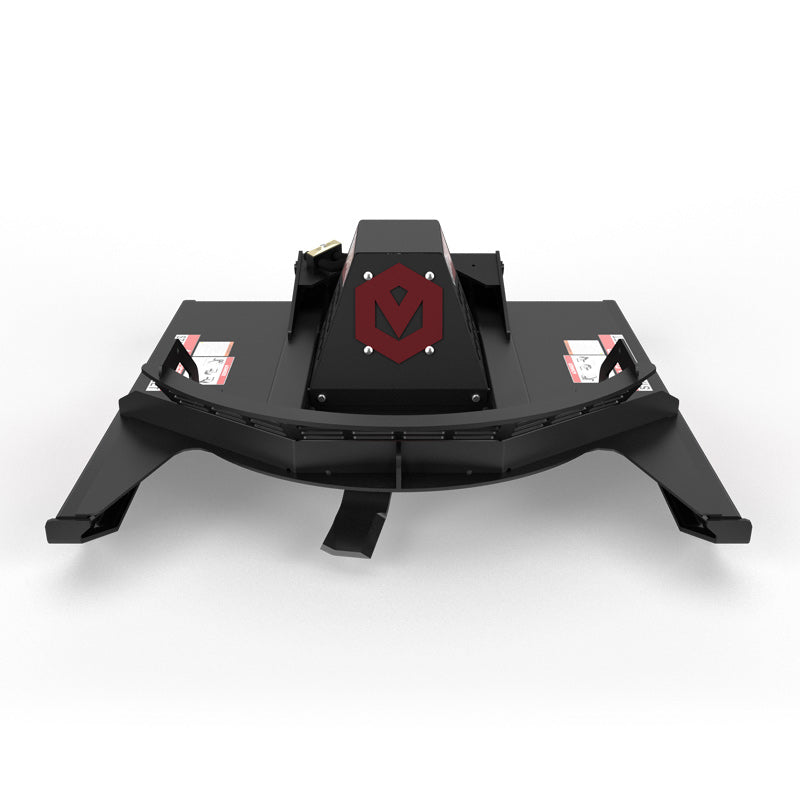

- Open-front rotary cutter design allows faster entry into brush, saplings, and trees.
- Cuts trees up to 3 inches in diameter for effective land clearing.

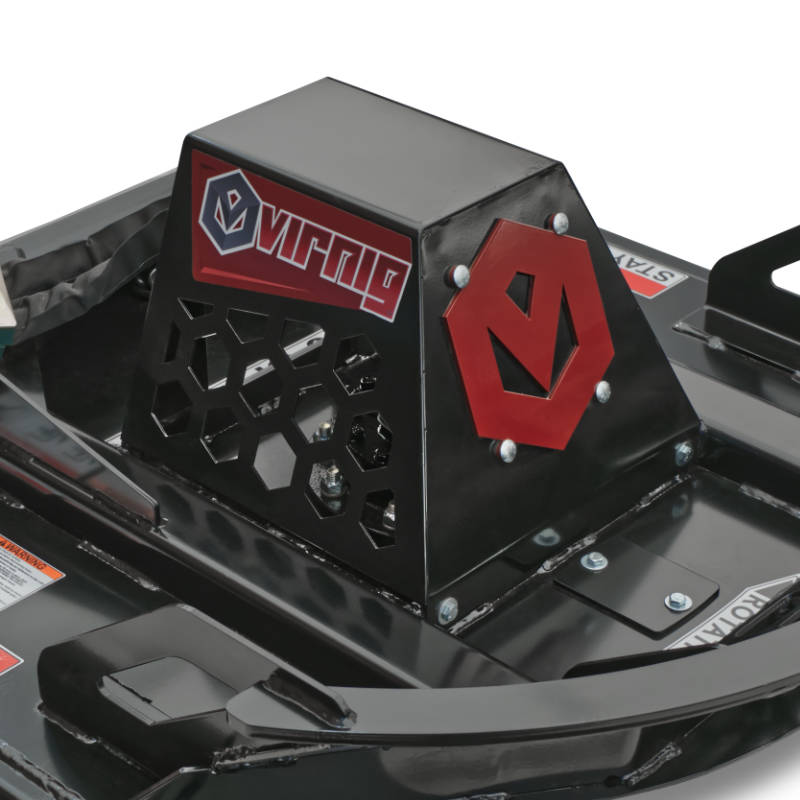

- Direct-drive Eaton® motor ensures reliable power and long-lasting performance.
- Hydraulic braking system stops the flywheel in under 10 seconds for improved safety.

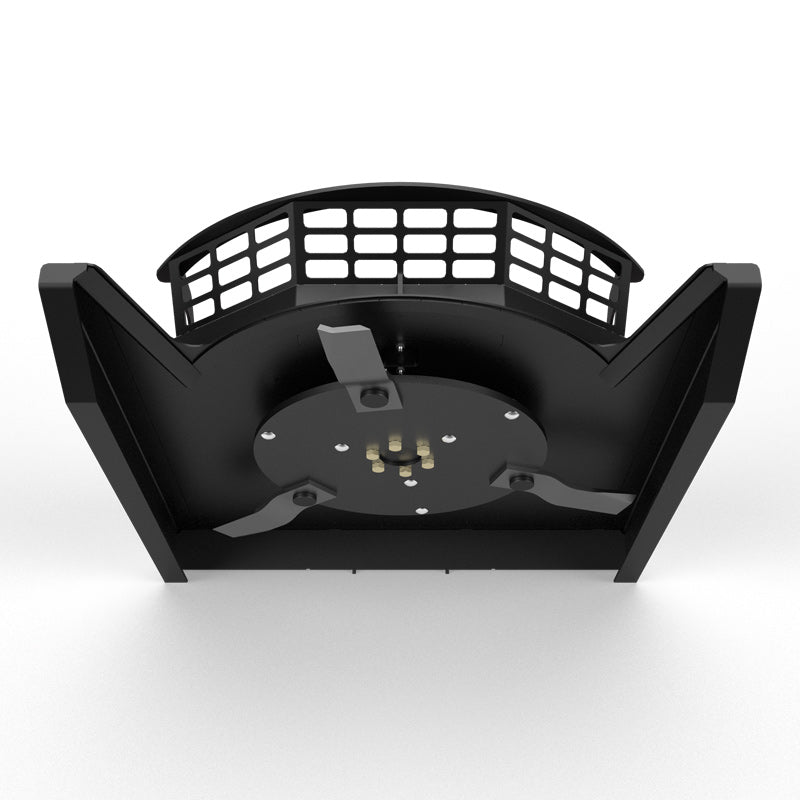

- Circular flywheel with three updraft blades provides smoother cutting and bounce-off protection from stumps.
- High blade-tip speeds (up to 13,070 FPM) maximize cutting efficiency and finish quality.
- Available in 42" and 48" cutting widths for flexibility in confined or open spaces.
- Durable 0.19" Grade 50 steel deck resists impacts and wear in rugged environments.
- Compatible with Mini Universal, Bobcat®, and ASV® mini mounts (CBC42-O not ASV-compatible).
- Ideal for mini skid steer brush cutting, property maintenance, and forestry mulching prep.
- Recommended 11–18 GPM hydraulic flow works with most major mini skid steer brands.
- Lightweight yet heavy-duty build enhances maneuverability without sacrificing strength.
- Open-front design improves visibility during precision cutting and ground-level trimming.
- Engineered for professional-grade vegetation management in residential, commercial, and agricultural settings.
- Estimated hydraulic horsepower requirement: 19–32 HP, depending on machine flow & pressure.
Detailed Specifications
| Specification | CBC42-O |
|---|---|
| Cut Width (in.) | 42" |
| Overall Width (in.) | 47" |
| Overall Height (in.) | 20.5" |
| Overall Depth (in.) | 51.3" |
| Deck Height (in.) | 6.5" |
| Minimum Cut Height (in.) | 2.0" |
| Cutting Capacity (in. diameter) | 3.0" |
| Deck Thickness (Top/Side) | 0.19" / 0.19" (Grade 50 Steel) |
| Recommended Flow (GPM) | 11–18 GPM |
| Approx. Weight (lbs) | 590 lbs (add 35 lbs for Bobcat® mount, 40 lbs for ASV®) |
| Recommended Loader Capacity (lbs) | >590 lbs |
| Blade Count | 3 |
| Flywheel Weight | 150 lbs |
| Blade Tip Speed @ 11 GPM | 6,980 FPM |
| Blade Tip Speed @ 18 GPM | 11,430 FPM |
| Mount Options | Mini Universal, Bobcat® Mini |
| Front Type | Open Front |
| Machine Type | Mini Skid Steer |
| Estimated Hydraulic HP Requirement | 19–32 HP |
| Specification | CBC48-O |
|---|---|
| Cut Width (in.) | 48" |
| Overall Width (in.) | 53" |
| Overall Height (in.) | 20.5" |
| Overall Depth (in.) | 57.3" |
| Deck Height (in.) | 6.5" |
| Minimum Cut Height (in.) | 2.0" |
| Cutting Capacity (in. diameter) | 3.0" |
| Deck Thickness (Top/Side) | 0.19" / 0.19" (Grade 50 Steel) |
| Recommended Flow (GPM) | 11–18 GPM |
| Approx. Weight (lbs) | 690 lbs (add 35 lbs for Bobcat® mount, 40 lbs for ASV®) |
| Recommended Loader Capacity (lbs) | >590 lbs |
| Blade Count | 3 |
| Flywheel Weight | 150 lbs |
| Blade Tip Speed @ 11 GPM | 7,980 FPM |
| Blade Tip Speed @ 18 GPM | 13,070 FPM |
| Mount Options | Mini Universal, Bobcat® Mini, ASV® Mini |
| Front Type | Open Front |
| Machine Type | Mini Skid Steer |
| Estimated Hydraulic HP Requirement | 19–32 HP |
Manuals & Documents
Specification Sheet
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

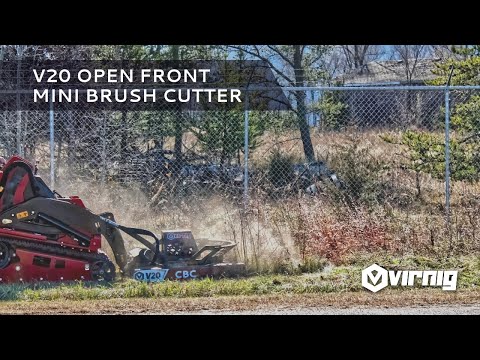

Videos
