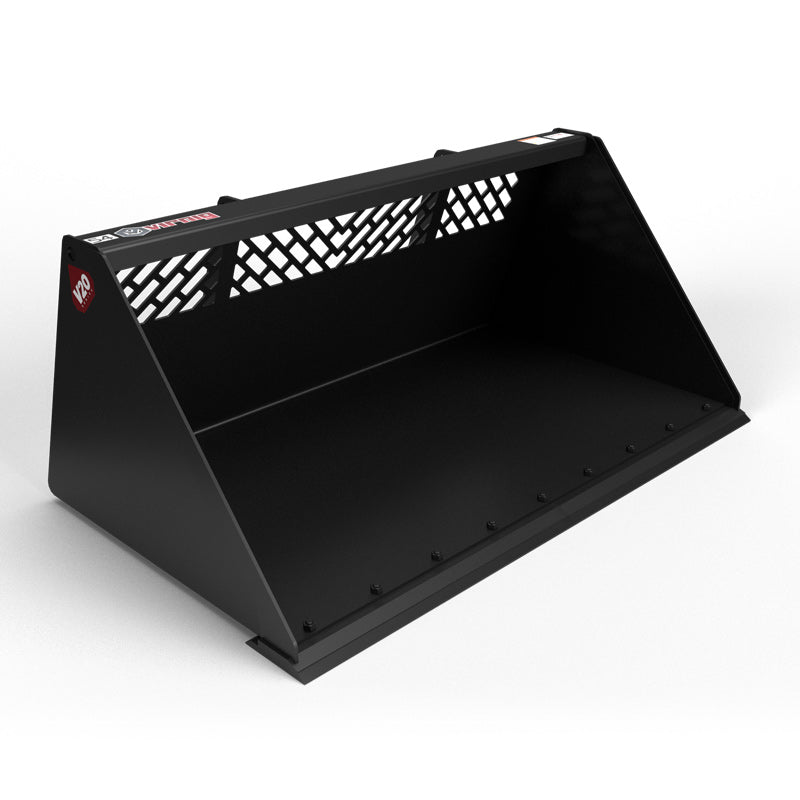

Virnig V20 Mini Skid Steer Snow/Light Material Bucket | Models CLMB36 To CLMB60 | Widths 36" To 60" | Hydraulic Flow Range 15 To 25 GPM | For Mini Skid Steer
Virnig V20 Mini Skid Steer Snow/Light Material Bucket | Models CLMB36 To CLMB60 | Widths 36" To 60" | Hydraulic Flow Range 15 To 25 GPM | For Mini Skid Steer
Regular price
$955.00
Regular price
Sale price
$955.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Virnig V20 Mini Skid Steer Snow/Light Material Bucket | Models CLMB36 To CLMB60 | Widths 36" To 60" | Hydraulic Flow Range 15 To 25 GPM | For Mini Skid Steer
DESCRIPTION
The Virnig V20 Mini Skid Steer Snow/Light Material Bucket is designed for operators who demand the best performance when moving snow, mulch, sand, or other light materials. Available in a range of widths from 36" to 60", this attachment features a high-volume design that excels in both light snow clearing and material hauling, allowing you to get the job done faster with minimal effort.
Engineered for durability and easy operation, the V20 Mini Skid Steer Snow/Light Material Bucket is perfect for a variety of tasks on construction sites, landscaping projects, and seasonal snow management. With advanced visibility and high-strength materials, it enhances your mini skid steer’s versatility while keeping your operation smooth and efficient.
Whether you're pushing snow in winter or moving mulch in the spring, this bucket is built to withstand the toughest conditions. It's compatible with a range of mini skid steer models, and with 15 To 25 GPM hydraulic flow required, it's simple to use and incredibly efficient.
Key Features
- Versatile Use: Ideal for snow removal, hauling light materials like mulch, dirt, and sand.
- Multiple Widths: Available in 36", 42", 48", 54", and 60" widths to suit different project sizes and mini skid steer models.
- Durable Construction: Built with 3/16" thick shell and side plates for exceptional strength and longevity.
- Heavy-Duty Weld-On Edge: Features a 1/2" x 4" weld-on cutting edge for superior performance and wear resistance.
- Enhanced Visibility: Designed with windows for better operator visibility, ensuring safe and precise material handling.
- Solid Back Option: Available with a solid back for extra durability in tougher environments.
- Lightweight Yet Strong: Weighs between 215 lbs (CLMB36) and 295 lbs (CLMB60), making it easy to handle while still tough enough for demanding tasks.
- Universal Mounting: Compatible with multiple mini skid steer brands, including Mini Universal, Bobcat® Mini, and ASV® Mini (Note: Not compatible with universal skid steer mounts).
- Low Maintenance: With 15 To 25 GPM hydraulic flow required, the attachment is easy to use with minimal maintenance.
- High Capacity: Struck/Heaped capacities range from 8.3/9.9 cubic feet (CLMB36) to 14.3/17.1 cubic feet (CLMB60), allowing you to carry more with each load.
- Maximized Loader Capacity: Designed for mini skid steers with a recommended loader capacity of less than 1650 lbs.
- Optional Bolt-On Edge: Bolt-on reversible wear edge for extended bucket life, available on all models (except skeleton rock buckets).
- Wide Compatibility: Available in multiple sizes to suit different mini skid steer configurations and project needs.
Detailed Specifications
| Specification | CLMB36 | CLMB42 |
|---|---|---|
| Width | 36" | 42" |
| Height | 23.3" | 23.3" |
| Depth | 34.7" | 34.7" |
| Struck Capacity (Cu. Ft.) | 8.3 | 9.8 |
| Heaped Capacity (Cu. Ft.) | 9.9 | 11.7 |
| Shell/Side Plate Thickness | 3/16" | 3/16" |
| Weight (lbs) | 215 | 235 |
| Recommended Loader Capacity | Less than 1650 lbs | Less than 1650 lbs |
| Mount Type | Mini Universal, Bobcat® Mini, ASV® Mini | Mini Universal, Bobcat® Mini, ASV® Mini |
| Hydraulic Flow Range | 15–25 GPM | 15–25 GPM |
| Use | For Mini Skid Steers | For Mini Skid Steers |
| Specification | CLMB48 | CLMB54 |
|---|---|---|
| Width | 48" | 54" |
| Height | 23.3" | 23.3" |
| Depth | 34.7" | 34.7" |
| Struck Capacity (Cu. Ft.) | 11.3 | 12.8 |
| Heaped Capacity (Cu. Ft.) | 13.5 | 15.3 |
| Shell/Side Plate Thickness | 3/16" | 3/16" |
| Weight (lbs) | 255 | 275 |
| Recommended Loader Capacity | Less than 1650 lbs | Less than 1650 lbs |
| Mount Type | Mini Universal, Bobcat® Mini, ASV® Mini | Mini Universal, Bobcat® Mini, ASV® Mini |
| Hydraulic Flow Range | 15–25 GPM | 15–25 GPM |
| Use | For Mini Skid Steers | For Mini Skid Steers |
| Specification | CLMB60 |
|---|---|
| Width | 60" |
| Height | 23.3" |
| Depth | 34.7" |
| Struck Capacity (Cu. Ft.) | 14.3 |
| Heaped Capacity (Cu. Ft.) | 17.1 |
| Shell/Side Plate Thickness | 3/16" |
| Weight (lbs) | 295 |
| Recommended Loader Capacity | Less than 1650 lbs |
| Mount Type | Mini Universal, Bobcat® Mini, ASV® Mini |
| Hydraulic Flow Range | 15–25 GPM |
| Use | For Mini Skid Steers |
