Product Description

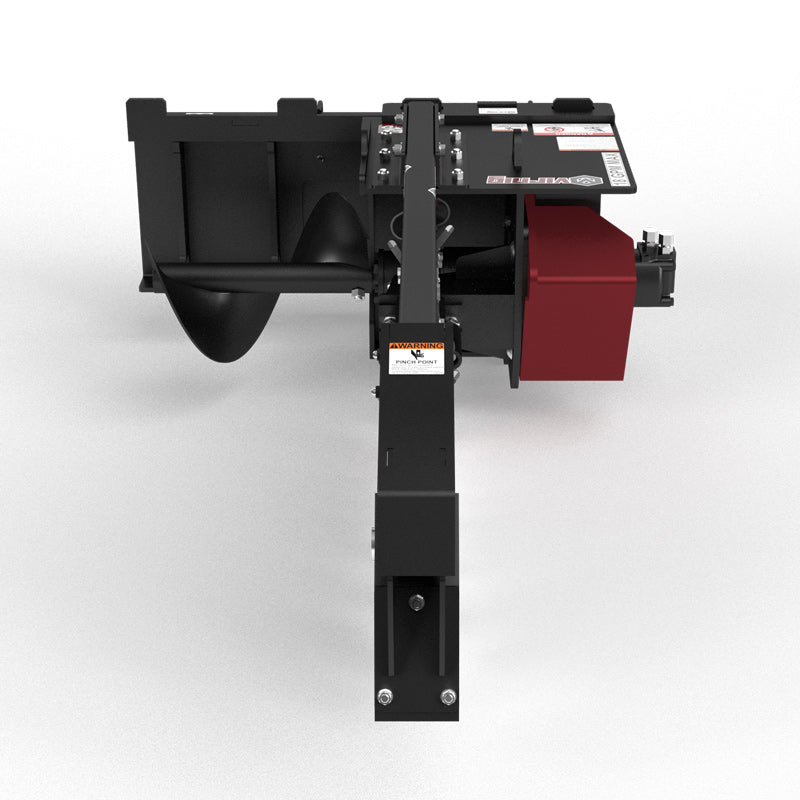

Virnig V20 Mini Skid Steer Trencher | Models CTRN36-18 & CTRN48-18 | 36" To 48" Dig Depth | Hydraulic Flow 10 To 18 GPM | For Mini Skid Steers
DESCRIPTION

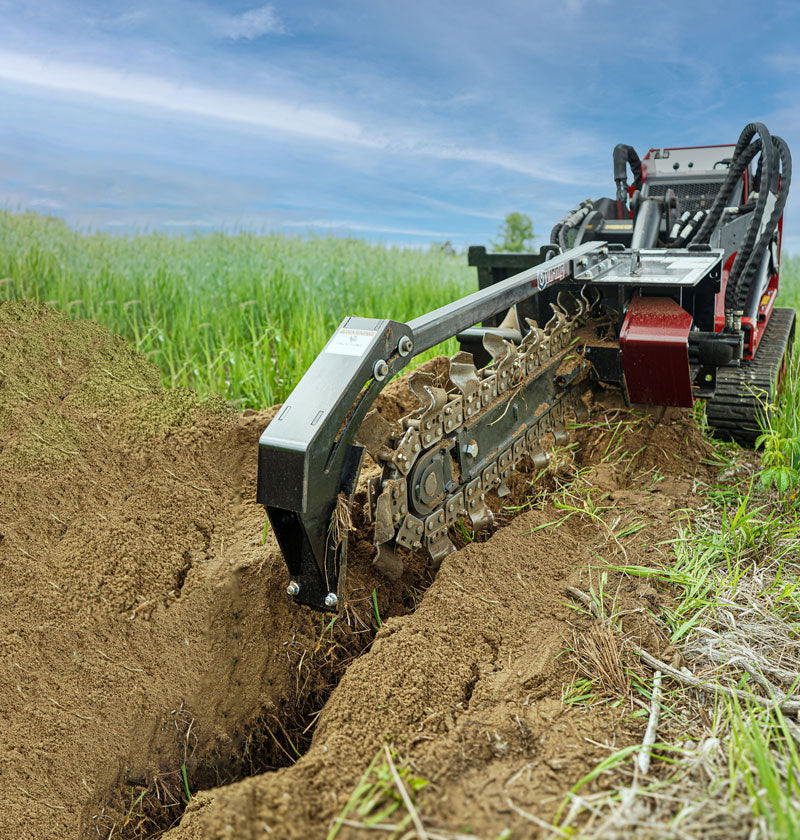

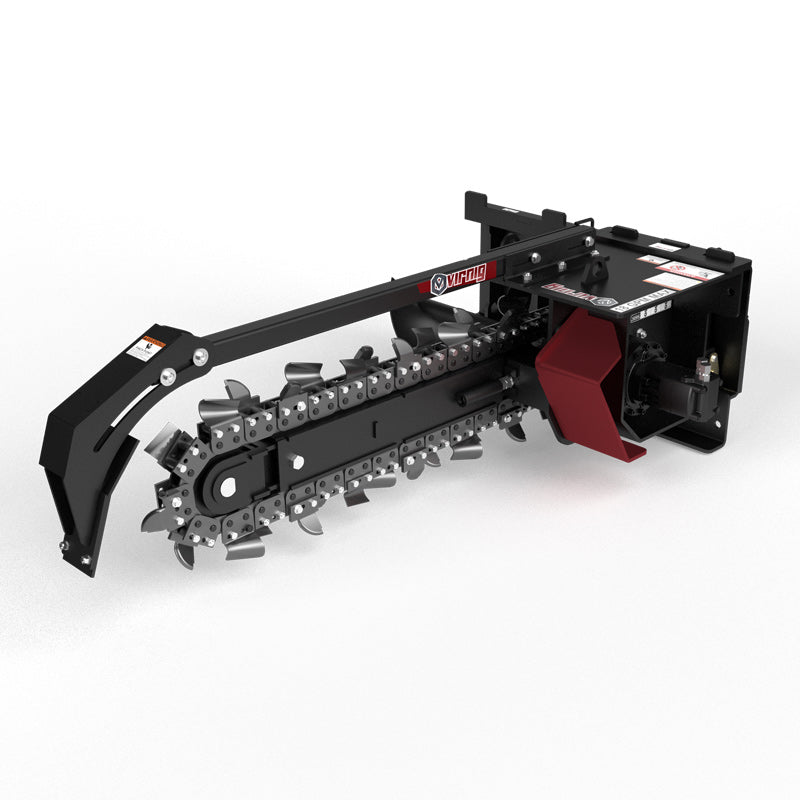

The Virnig v20 Mini Skid Steer Trencher is engineered to turn your compact loader into a high-performance trench-cutting machine. Designed for landscapers, utility contractors, property managers, and rental fleets, this trencher brings precision, power, and durability to every job.
Its 4-position depth adjustment system allows you to quickly set the perfect trench depth, while the anti-back flex chain, bi-directional rotation, and standard crumber ensure clean, consistent results even in challenging soils. A manual side-shift with a removable auger lets you work tight against structures, fences, buildings, and obstacles with confidence.

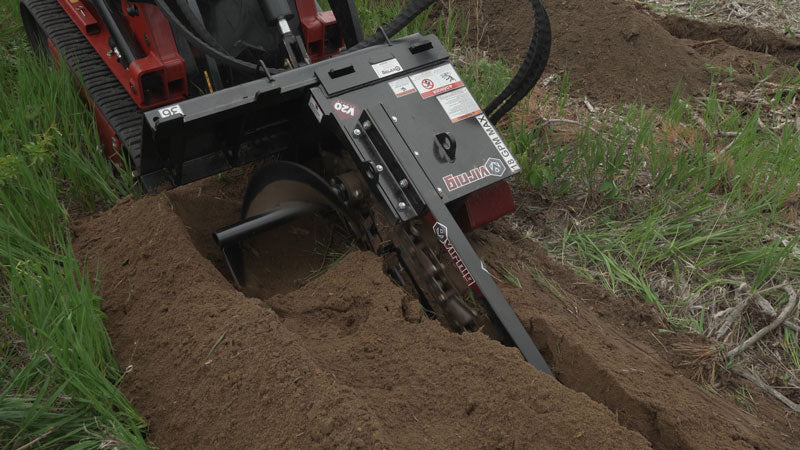

Whether you're installing irrigation, underground utilities, or landscape lighting, the v20 Trencher pairs strong hydraulic performance with rugged construction to deliver fast digging speeds, reduced downtime, and superior trench quality.
Compatible with Mini Universal, Bobcat® Mini, and ASV® Mini mounting systems, this attachment is built to maximize the productivity of any mini skid steer in your fleet.
Key Features
- 4-Position Adjustable Dig Depth for quick setup and consistent trenching productivity

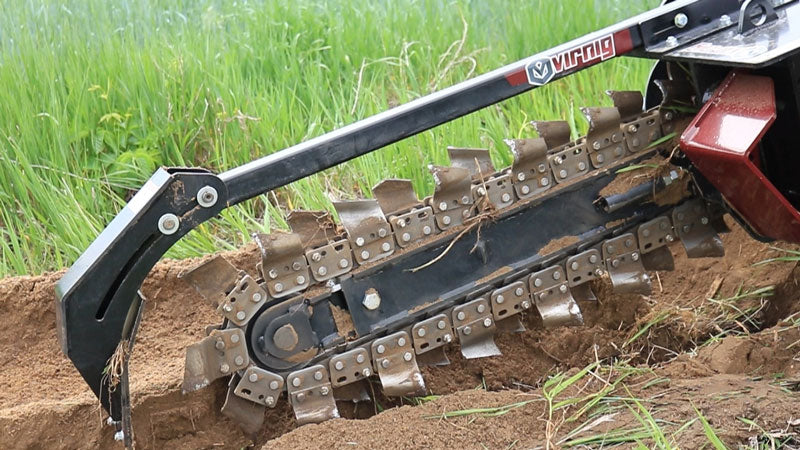

- Anti-Back Flex Chain Design boosts penetration and reduces chain “whip” in tough soils

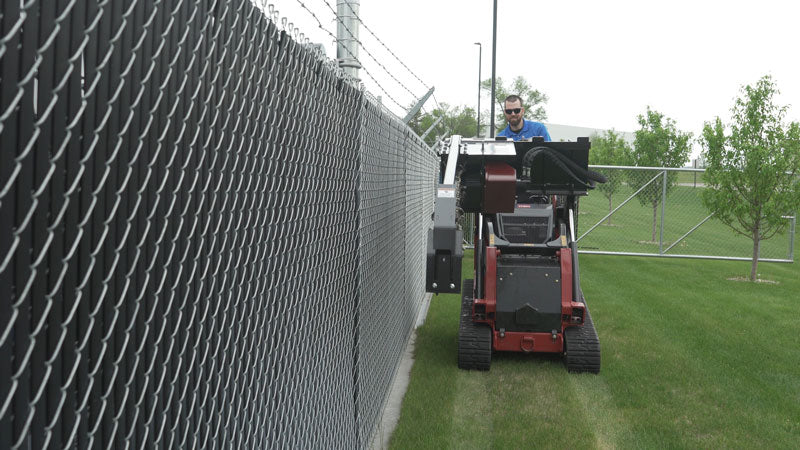

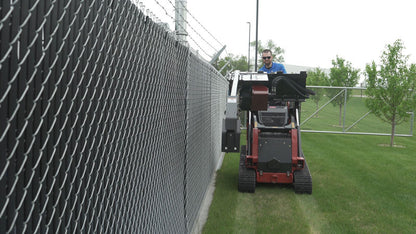

- Manual Side-Shift Capability enables trenching tight against buildings, fences, or obstacles
- Removable Spoil Auger delivers maximum flexibility for close-quarters trenching

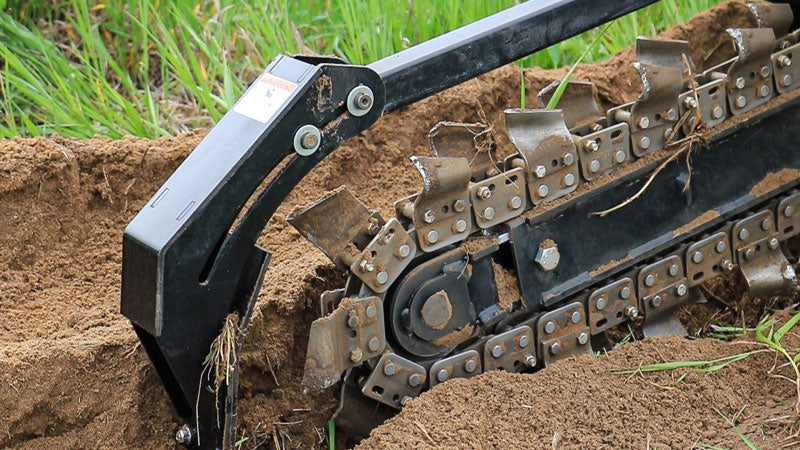

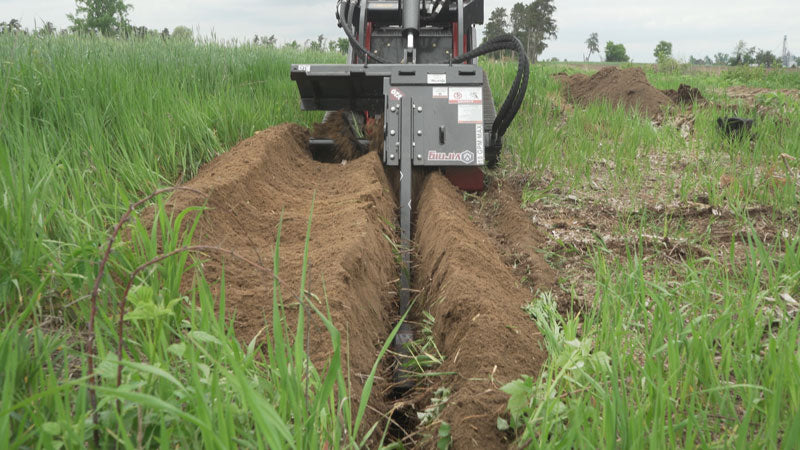

- Standard Crumber Bar leaves a smooth, clean trench bottom ready for utilities or irrigation lines
- Bi-Directional Chain Rotation helps clear debris and eject rocks efficiently
- Heavy-Duty Greasable Idler Bearing increases longevity and reduces daily maintenance
- 60-Degree Optimal Trenching Angle enhances cutting performance and reduces wear
- Multiple Chain Styles Available for everything from soft loam to rock and frost
- Durable, High-Strength Trencher Boom engineered for demanding commercial work

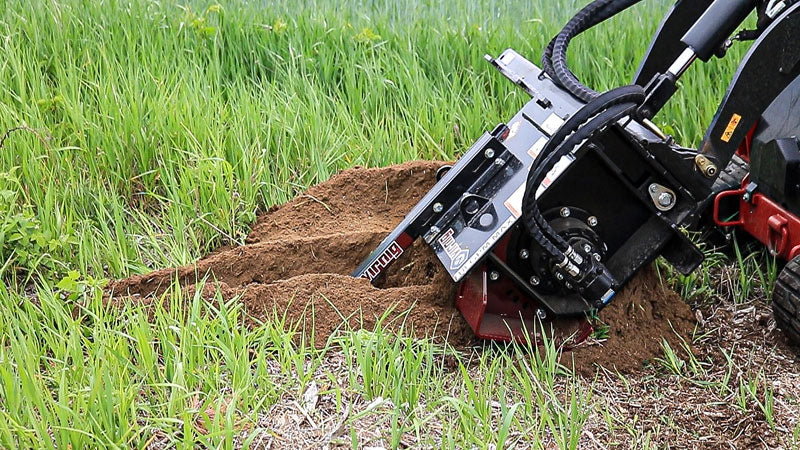

- High-Efficiency Spoil Auger moves material away from the trench for faster progress
- Compact Mini Skid Steer Compatibility makes it ideal for tight residential or landscape projects
- Rugged Construction for Contractor-Grade Reliability in landscaping and utility installation

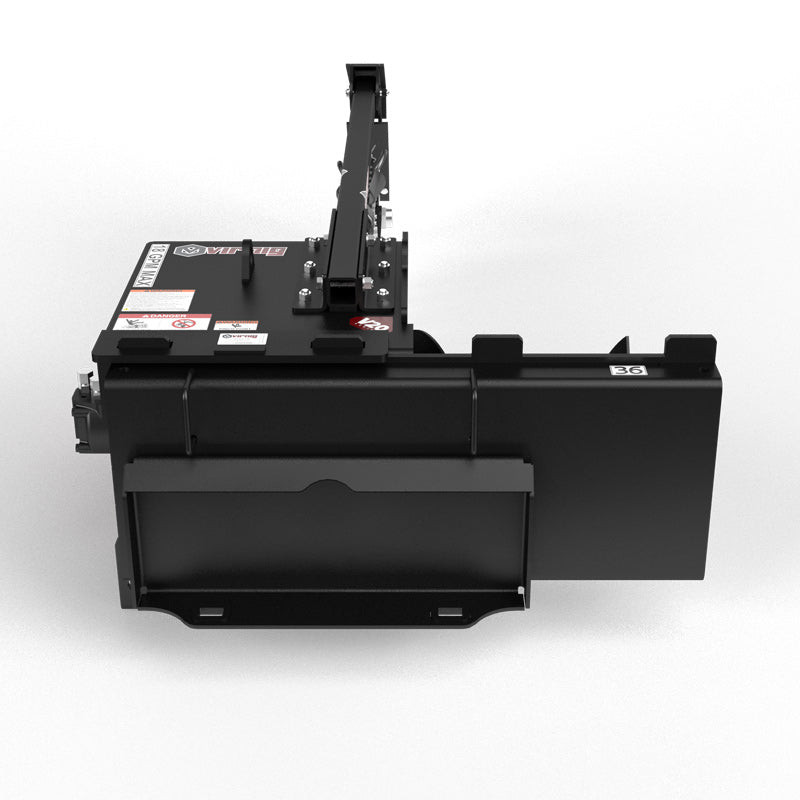

- Fast Coupling Mini Skid Mount Options (Mini Universal, Bobcat® Mini, ASV® Mini)
- Optimized for 10–18 GPM Hydraulics ensuring broad compatibility across mini skid steer models
Detailed Specifications
| Specification | CTRN36-18 |
|---|---|
| Dig Depth | 36" |
| Recommended Hydraulic Flow | 10–18 GPM |
| Overall Width (Mini Universal / Bobcat® Mini / ASV® Mini) | 41" / 41" / 49.7" |
| Overall Height | 23" |
| Overall Length | 73" |
| Side Shift Travel (Universal / Bobcat® / ASV®) | 21" / 21" / 25" |
| Auger Diameter | 12.5" |
| Spoil Auger Discharge Reach | 19.5" |
| Optimal Trenching Angle | 60° |
| Approximate Weight | 640 lbs* |
| Recommended Loader Capacity | >635 lbs |
| Chain Style Options | Single Standard, Double Standard, 70/30 Combo, Rock & Frost |
| Mount Options | Mini Universal, Bobcat® Mini, ASV® Mini |
| Specification | CTRN48-18 |
|---|---|
| Dig Depth | 48" |
| Recommended Hydraulic Flow | 10–18 GPM |
| Overall Width (Mini Universal / Bobcat® Mini / ASV® Mini) | 41" / 41" / 49.7" |
| Overall Height | 23" |
| Overall Length | 86" |
| Side Shift Travel (Universal / Bobcat® / ASV®) | 21" / 21" / 25" |
| Auger Diameter | 12.5" |
| Spoil Auger Discharge Reach | 19.5" |
| Optimal Trenching Angle | 60° |
| Approximate Weight | 760 lbs* |
| Recommended Loader Capacity | >635 lbs |
| Chain Style Options | Single Standard, Double Standard, 70/30 Combo, Rock & Frost |
| Mount Options | Mini Universal, Bobcat® Mini, ASV® Mini |
Manuals & Documents
Specification Sheet
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

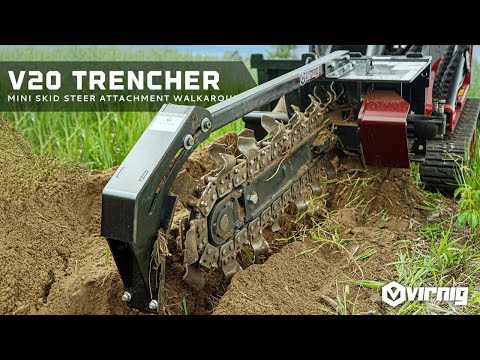

Videos
